Blower Motor: Testing and Inspection

ON-VEHICLE INSPECTION

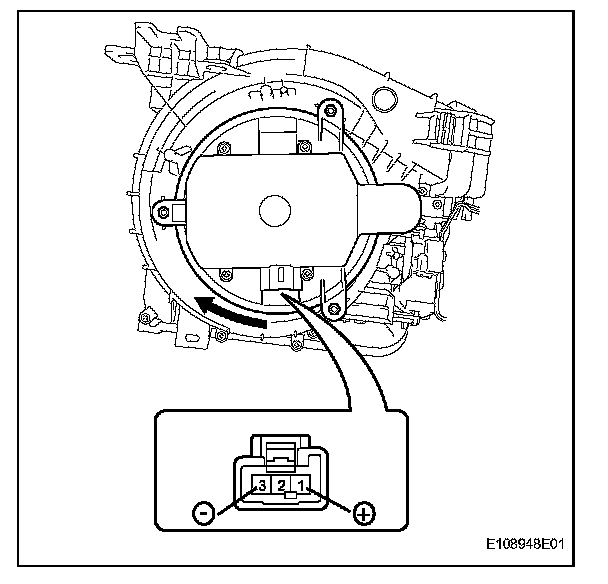

1. INSPECT BLOWER MOTOR




a. Connect the battery's positive (+) lead to terminal 1 and negative (-) lead to terminal 3. Check that the motor operates smoothly.

If the result is not as specified, replace the blower motor.
