Home >> Lexus >> 2007 >> GS 350 AWD V6-3.5L (2GR-FSE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Auxiliary Cabin Heater >> Auxiliary Heater Element >> Testing and Inspection

Auxiliary Heater Element: Testing and Inspection

INSPECTION

1. INSPECT WATER BY-PASS GLOW PLUG

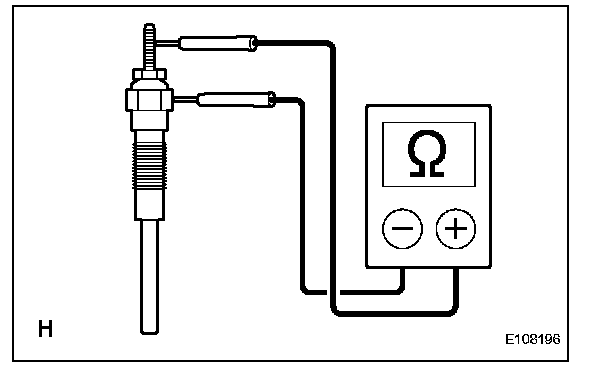

a. Measure the resistance of the glow plug.

Standard resistance: Below 1 ohm

If the result is not as specified, replace the glow plug.
