Disassembly and Reassembly

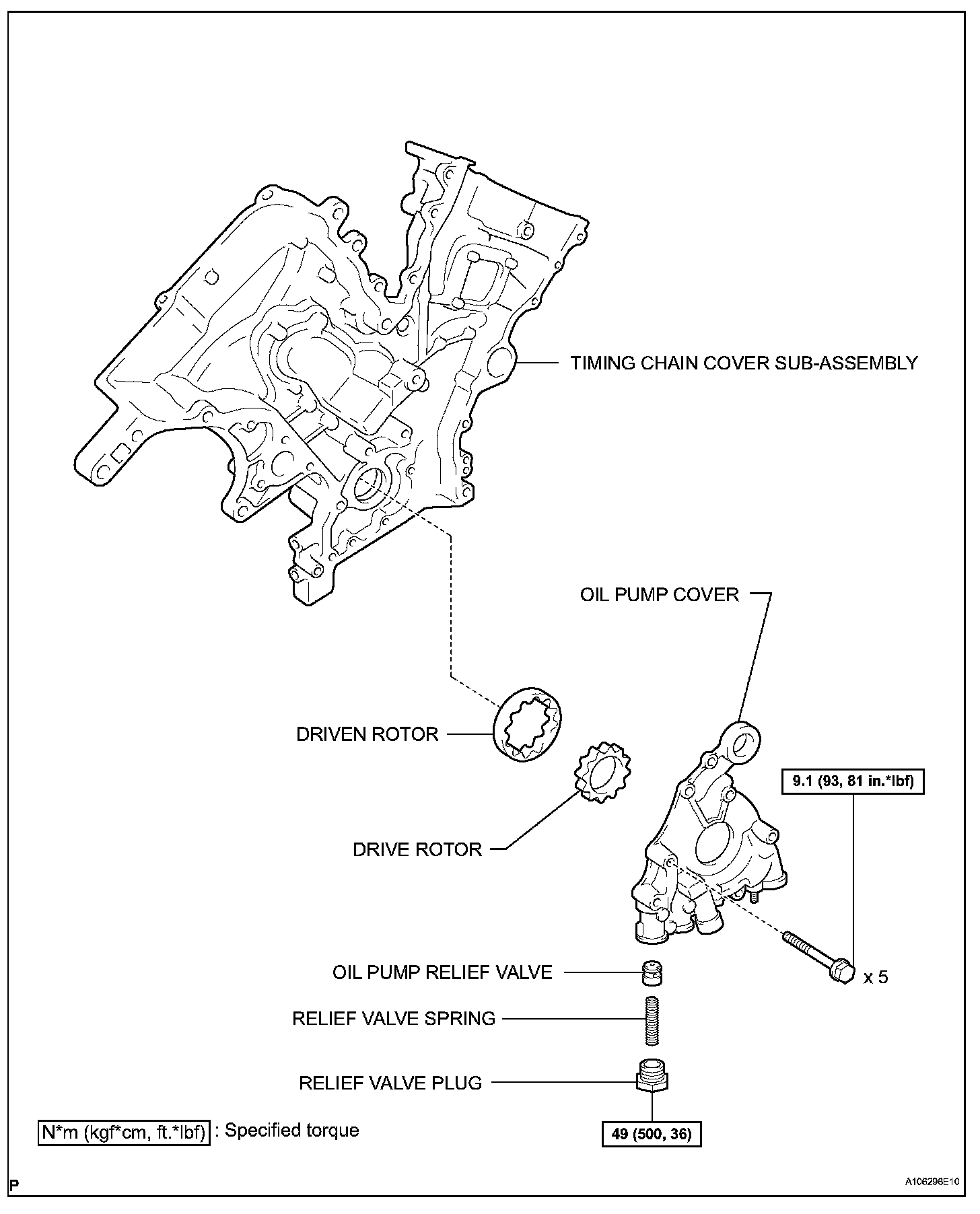

OIL PUMPCOMPONENTS (Part 1):

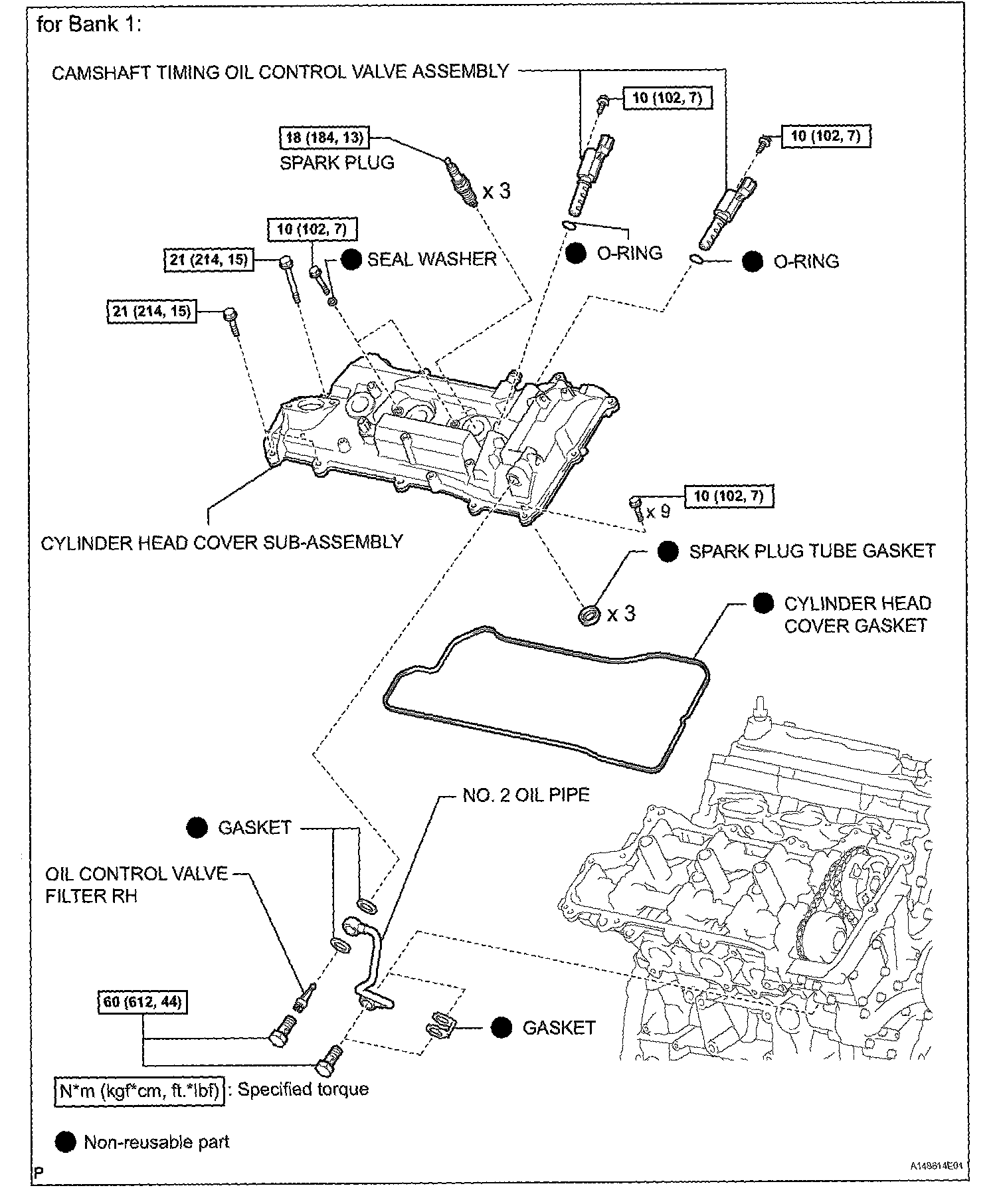

COMPONENTS (Part 2) (for Bank 1):

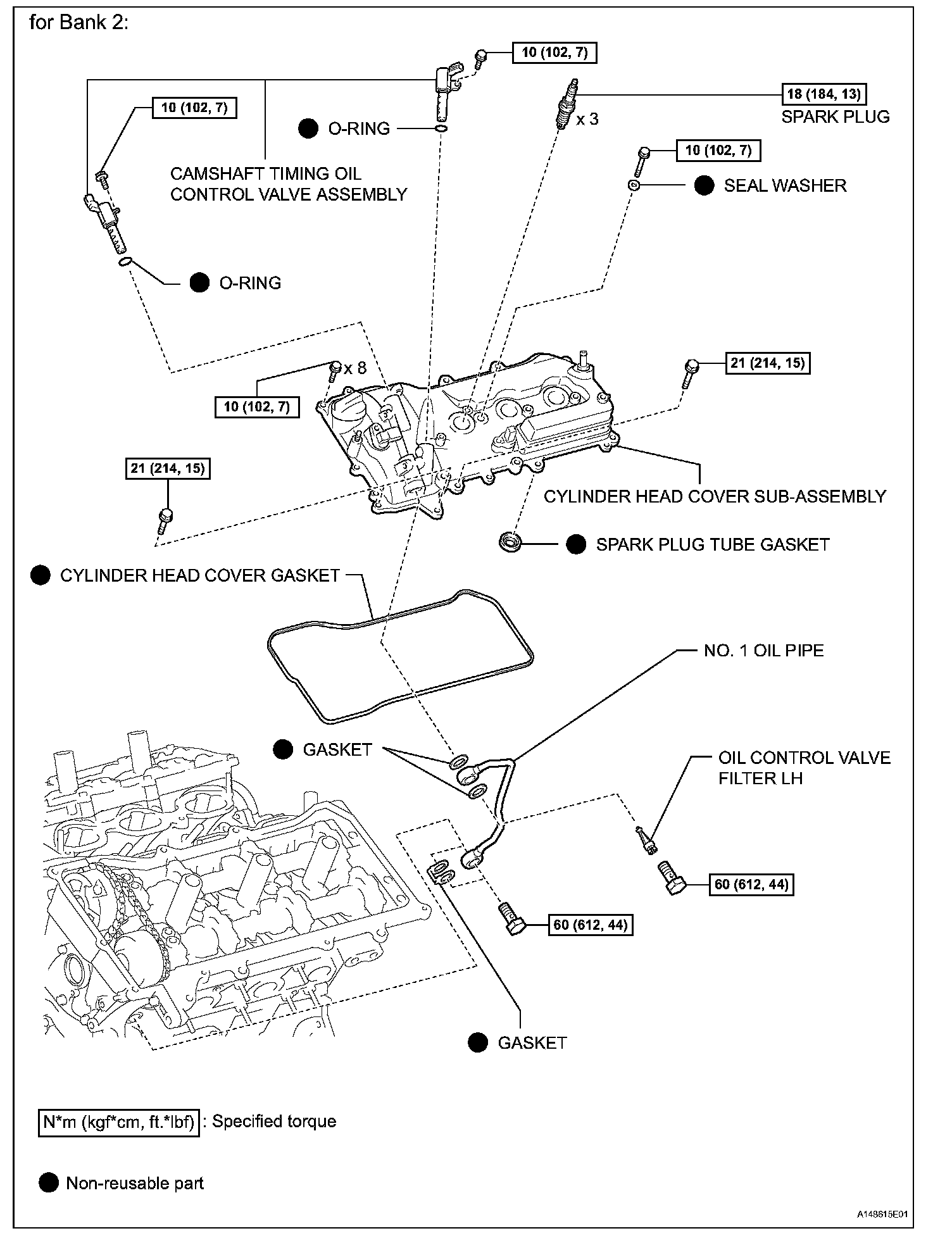

COMPONENTS (Part 3) (for Bank 2):

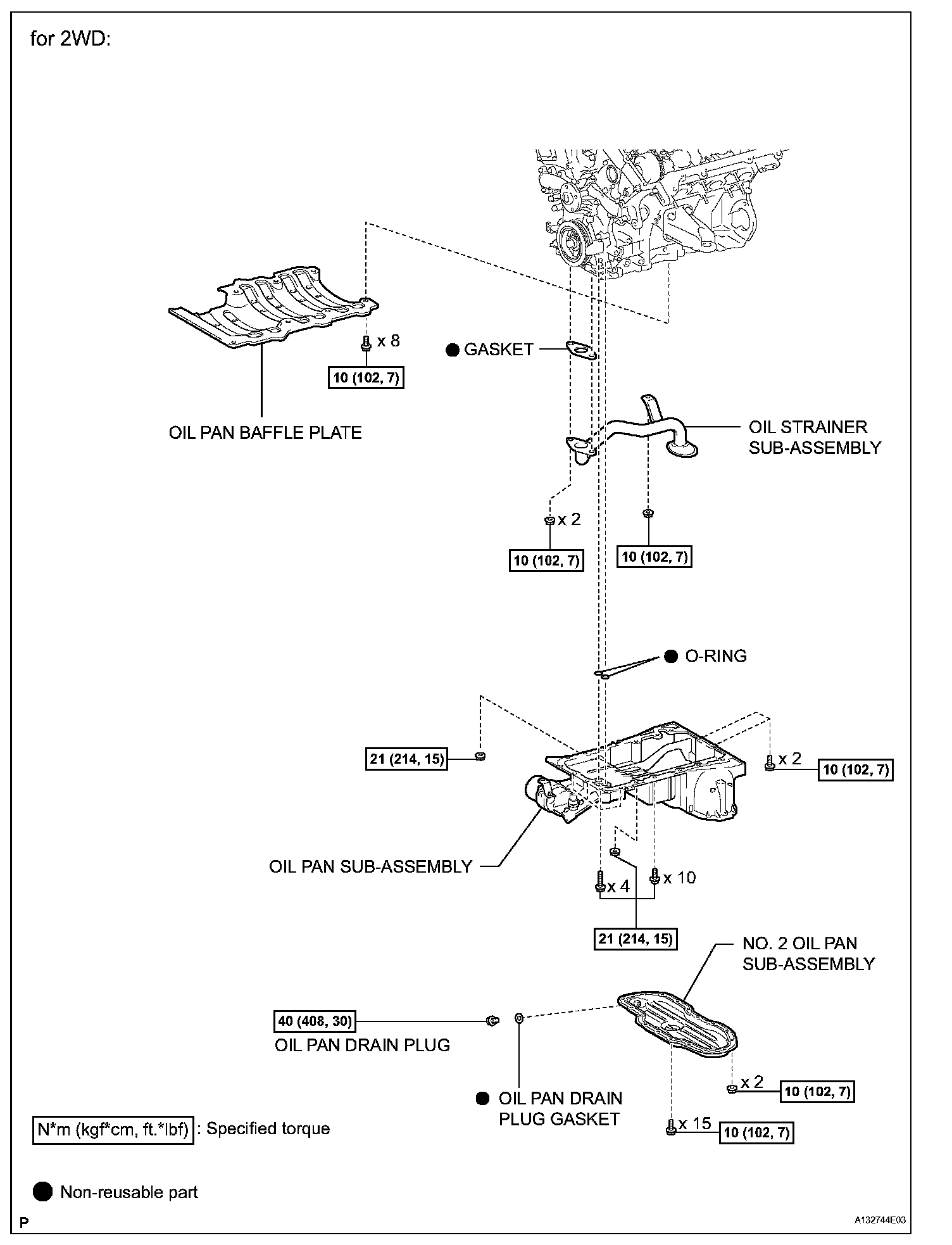

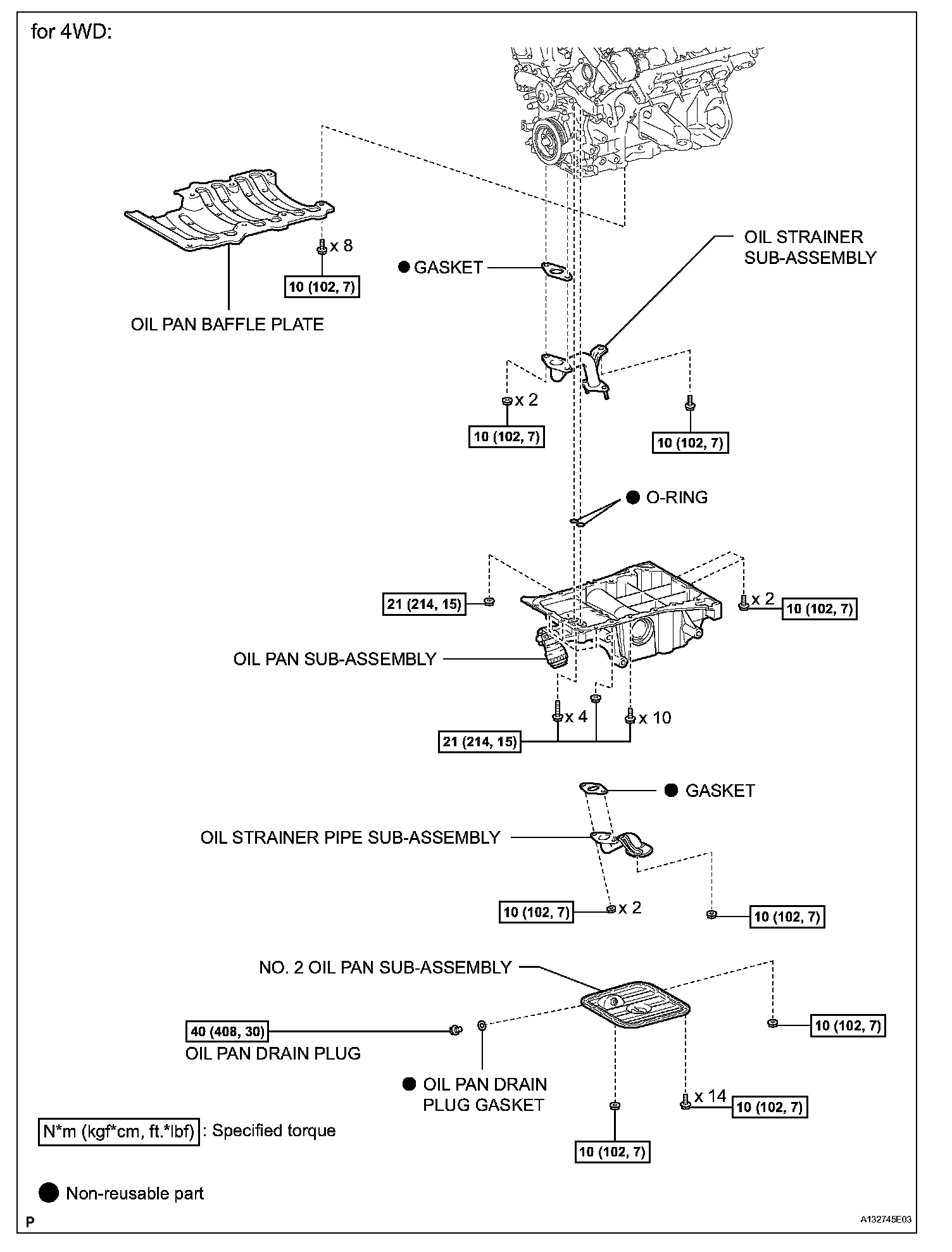

COMPONENTS (Part 4) (for 2WD):

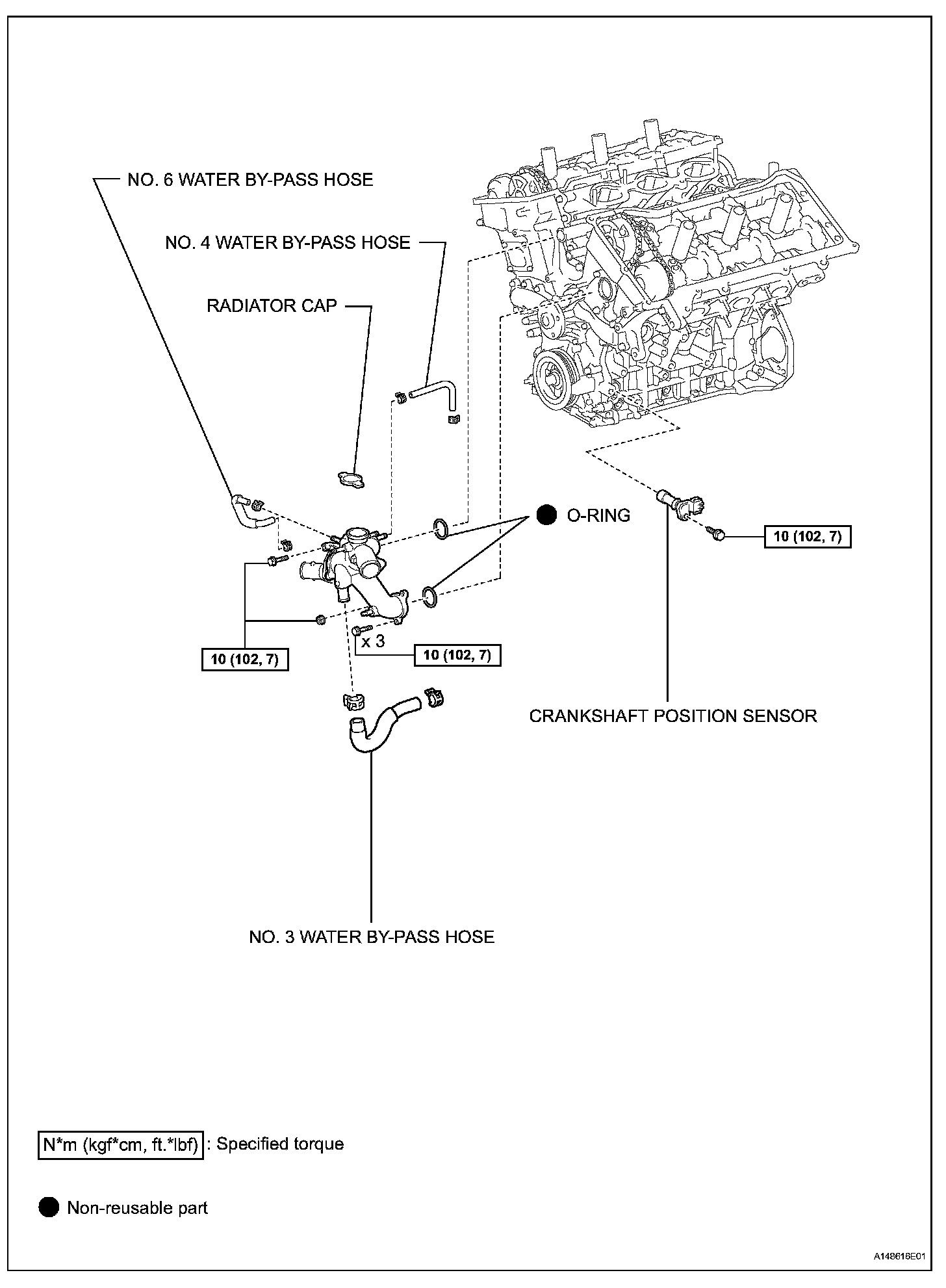

COMPONENTS (Part 5) (for 4WD):

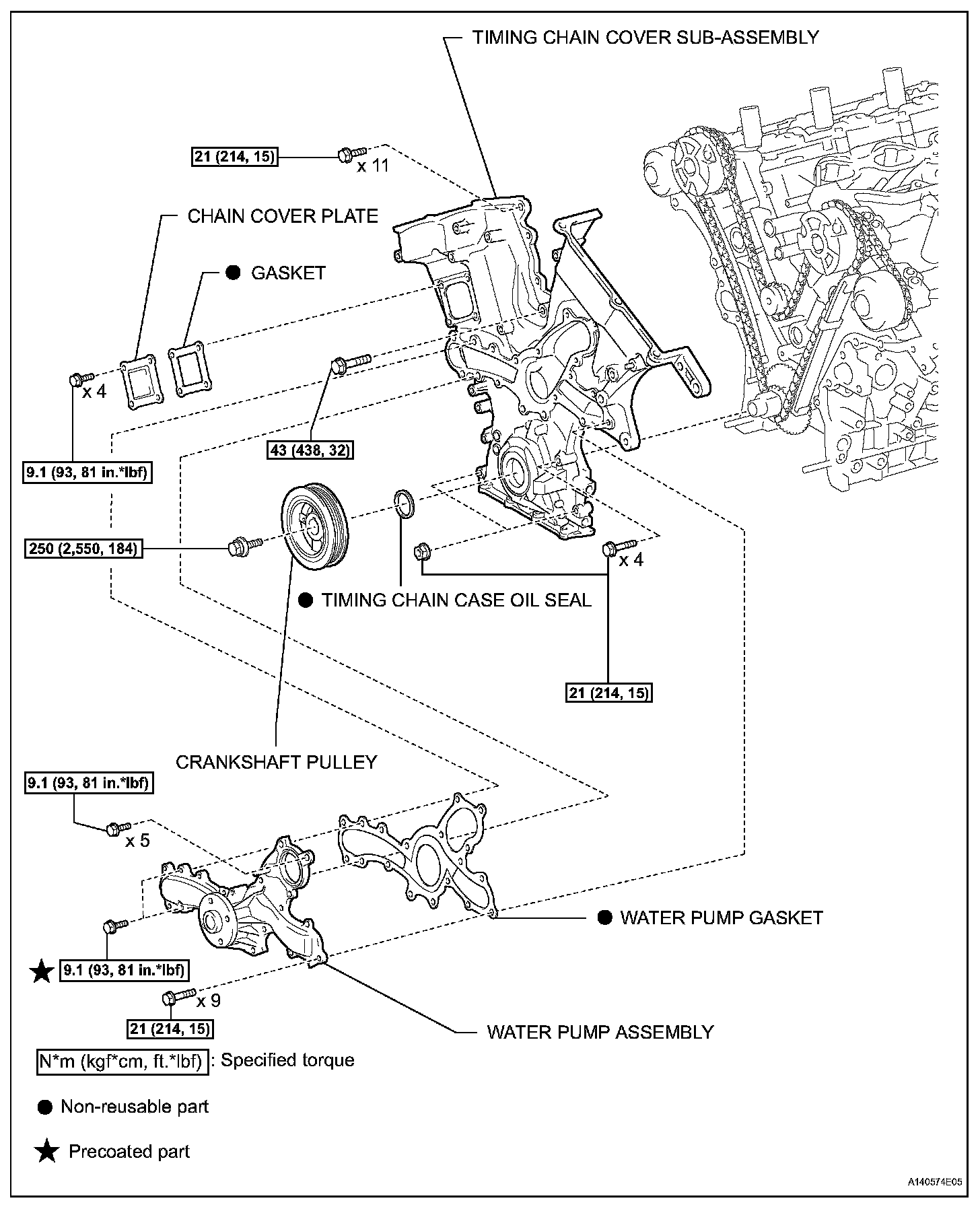

COMPONENTS (Part 6):

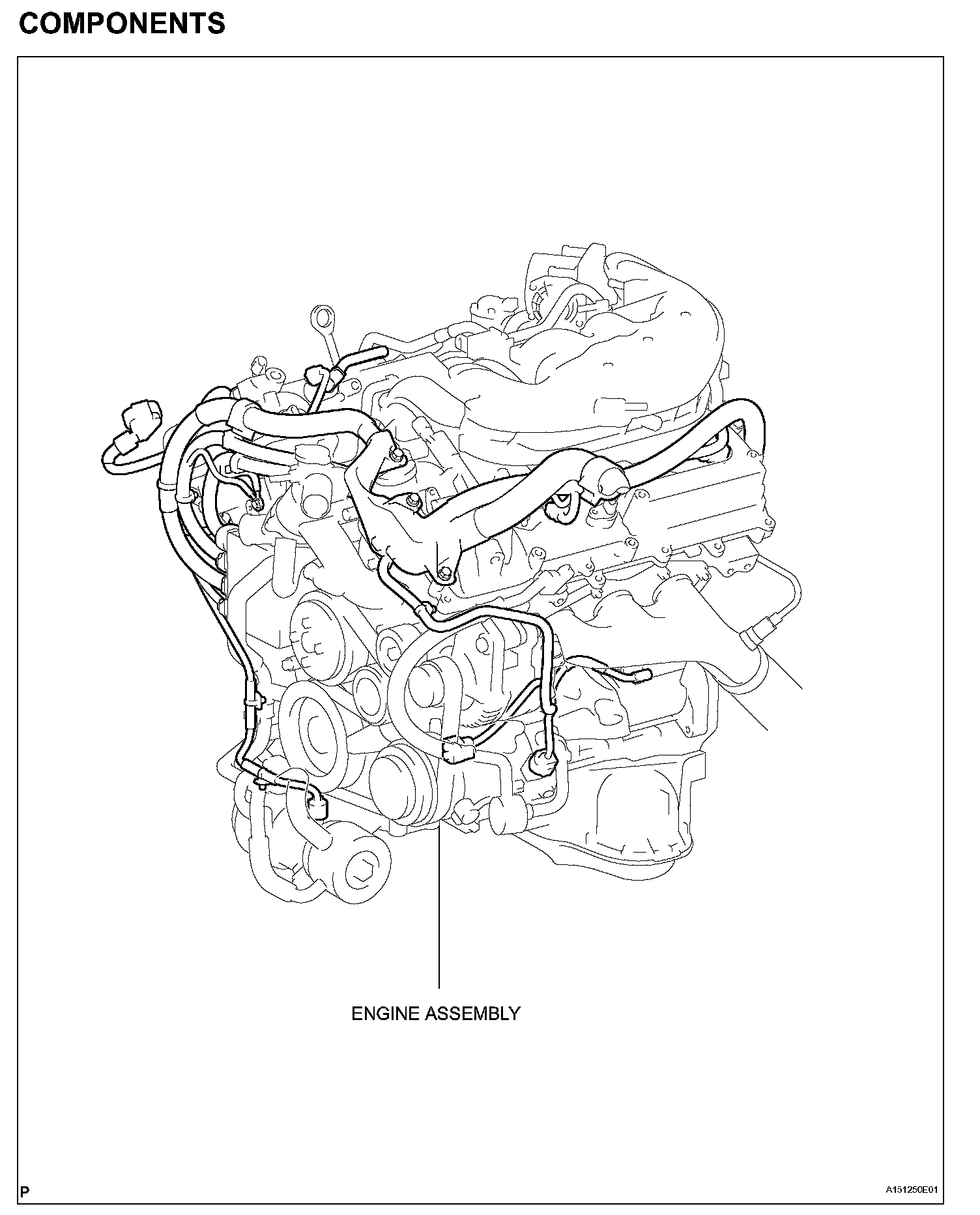

COMPONENTS (Part 7):
COMPONENTS (Part 8):
REPLACEMENT
1. REMOVE TIMING CHAIN COVER OIL SEAL

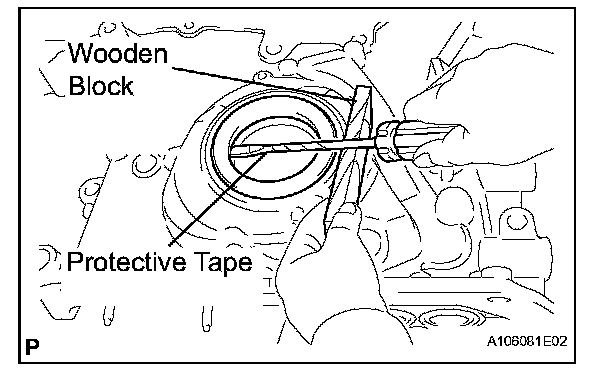

(a) Using a screwdriver and wooden block, pry out the oil seal.
HINT: Tape the screwdriver tip before use.
2. INSTALL TIMING CHAIN COVER OIL SEAL

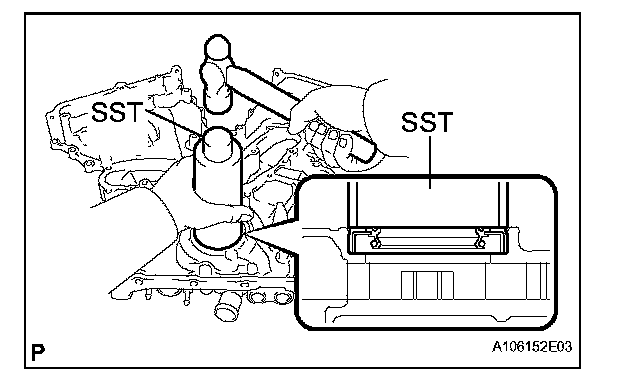

(a) Using SST, tap in a new oil seal until its surface is flush with the timing gear case edge.
SST 09316-60011 (09316-00011)
NOTICE:
^ Keep the lip free from foreign matter.
^ Do not tap the oil seal at an angle.
