Overhaul

COOLING FAN MOTOR

COMPONENTS (Part 1):

COMPONENTS (Part 2):

DISASSEMBLY

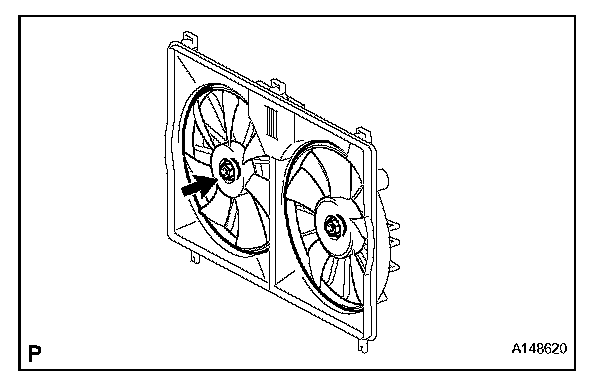

1. REMOVE NO. 1 FAN
(a) Remove the nut and fan.

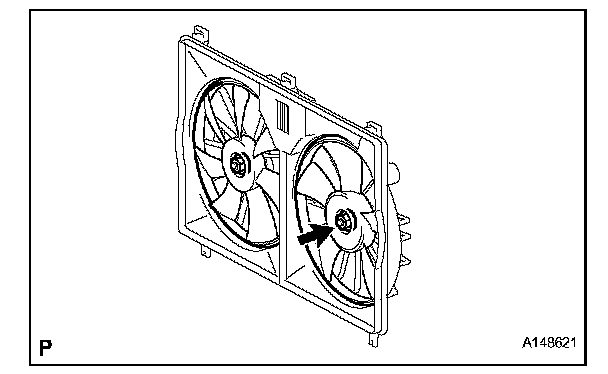

2. REMOVE NO. 2 FAN
(a) Remove the nut and fan.

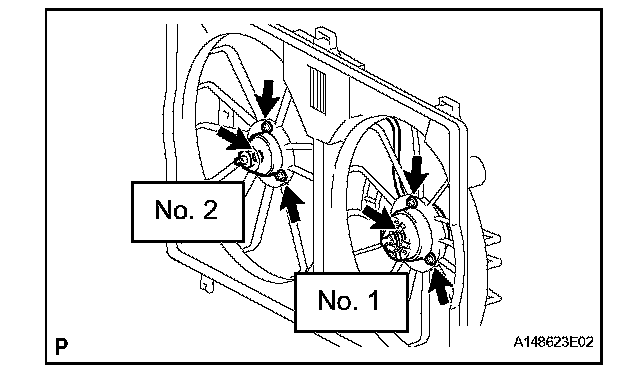

3. REMOVE NO. 1 COOLING FAN MOTOR
(a) Disconnect the ECU connector.
(b) Remove the 3 screws and motor.

4. REMOVE NO. 2 COOLING FAN MOTOR
(a) Disconnect the ECU connector.
(b) Remove the 3 screws and motor.

REASSEMBLY

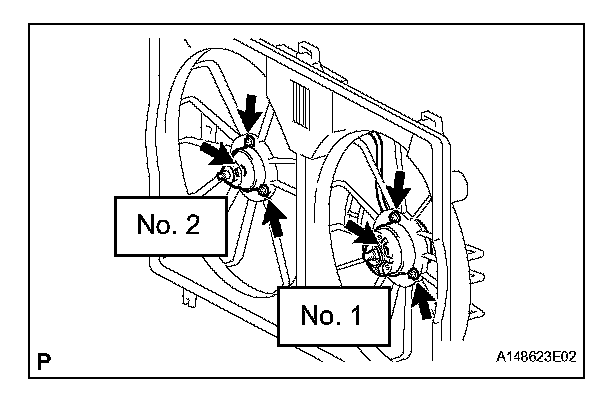

1. INSTALL NO. 2 COOLING FAN MOTOR
(a) Install the motor with the 3 screws.
Torque: 3.8 N*m (39 kgf*cm, 34 in.*lbf)
(b) Connect the ECU connector.

2. INSTALL NO. 1 COOLING FAN MOTOR
(a) Install the motor with the 3 screws.
Torque: 2.6 N*m (27 kgf*cm, 21 in.*lbf)
(b) Connect the ECU connector.

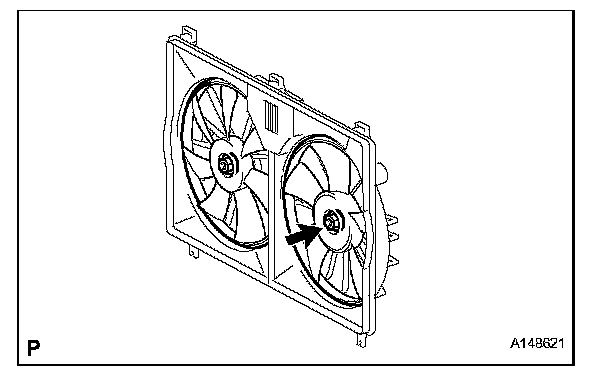

3. INSTALL NO. 2 FAN
(a) Install the fan with the nut.
Torque: 6.2 N*m (63 kgf*cm, 55 in.*lbf)

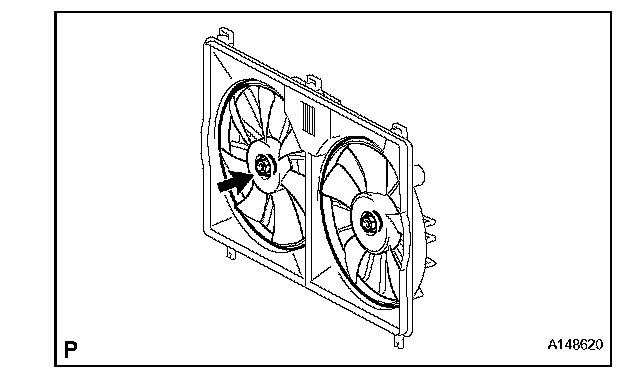

4. INSTALL NO. 1 FAN
(a) Install the fan with the nut.
Torque: 6.2 N*m (63 kgf*cm, 55 in.*lbf)

5. CHECK COOLING FAN MOTOR OPERATION
(a) Check the No. 1 and No. 2 cooling fan motor operation.
(1) Check that the fan rotates smoothly by hand.

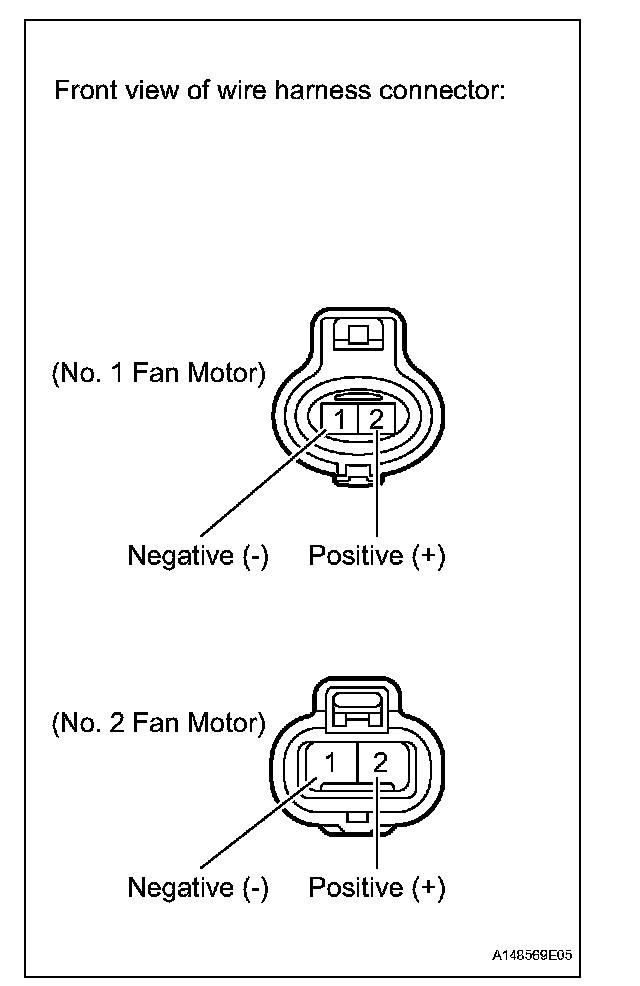

Front View Of Harness Connector:

(2) Connect the battery to the fan motor connector.

HINT: Be careful if the positive and negative terminals of the battery are mistakenly connected to the connector in reverse, as the motor will operate in the opposite direction.

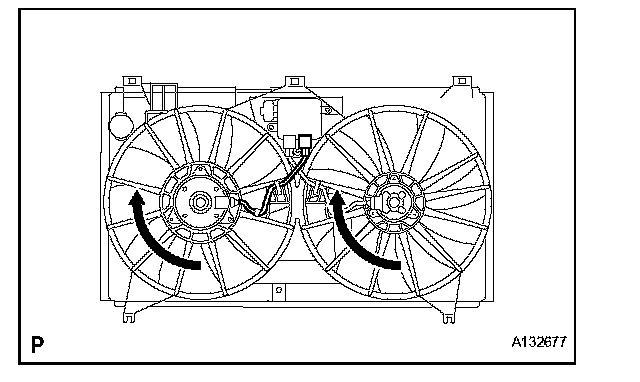

(3) Check that the fan rotates smoothly, and check the motor rotation direction.

NOTICE: Make sure there are no malfunction noises or vibrations while the motor is rotating.
