System Diagram

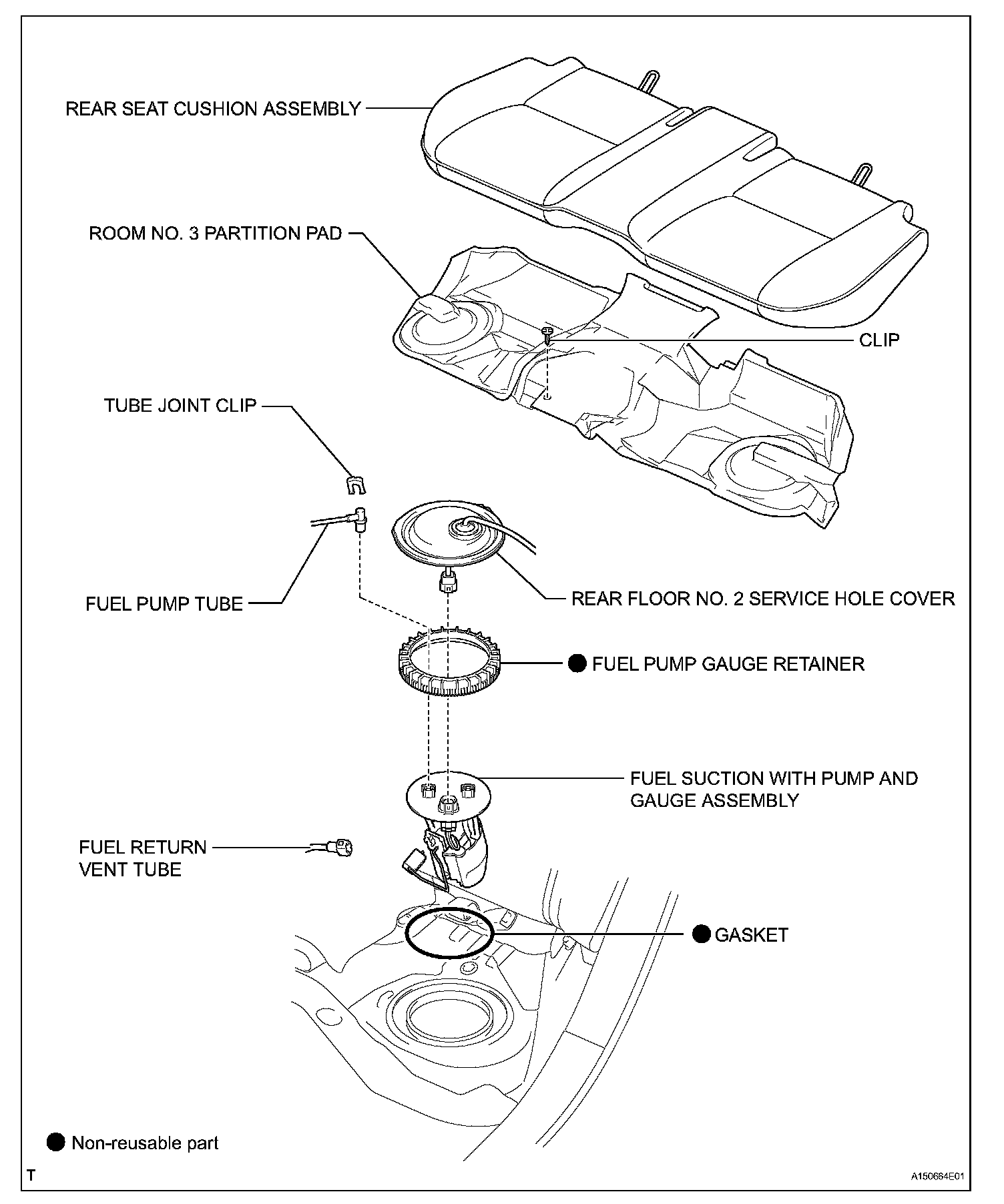

Fuel Pump:

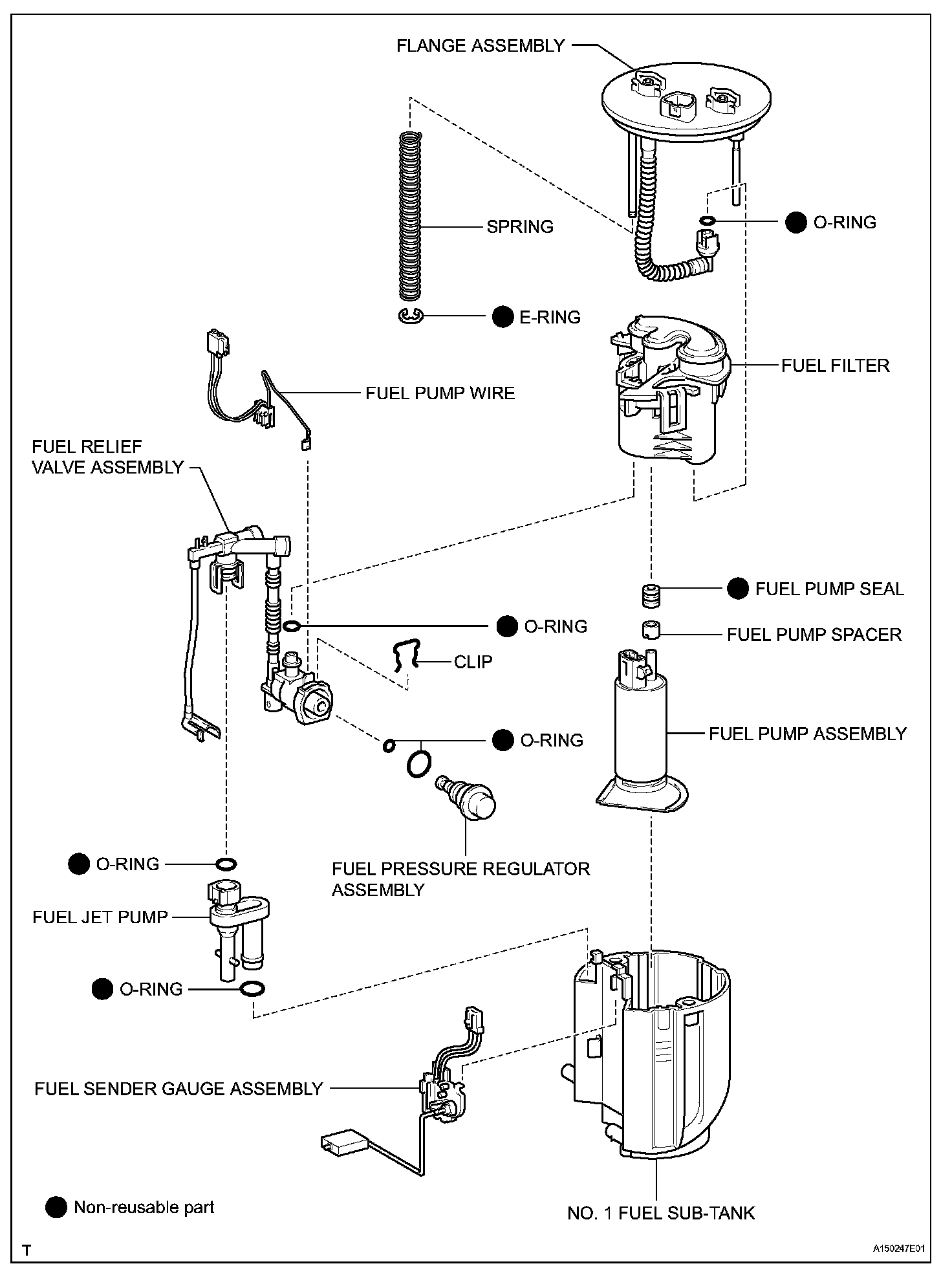

Fuel Pump:

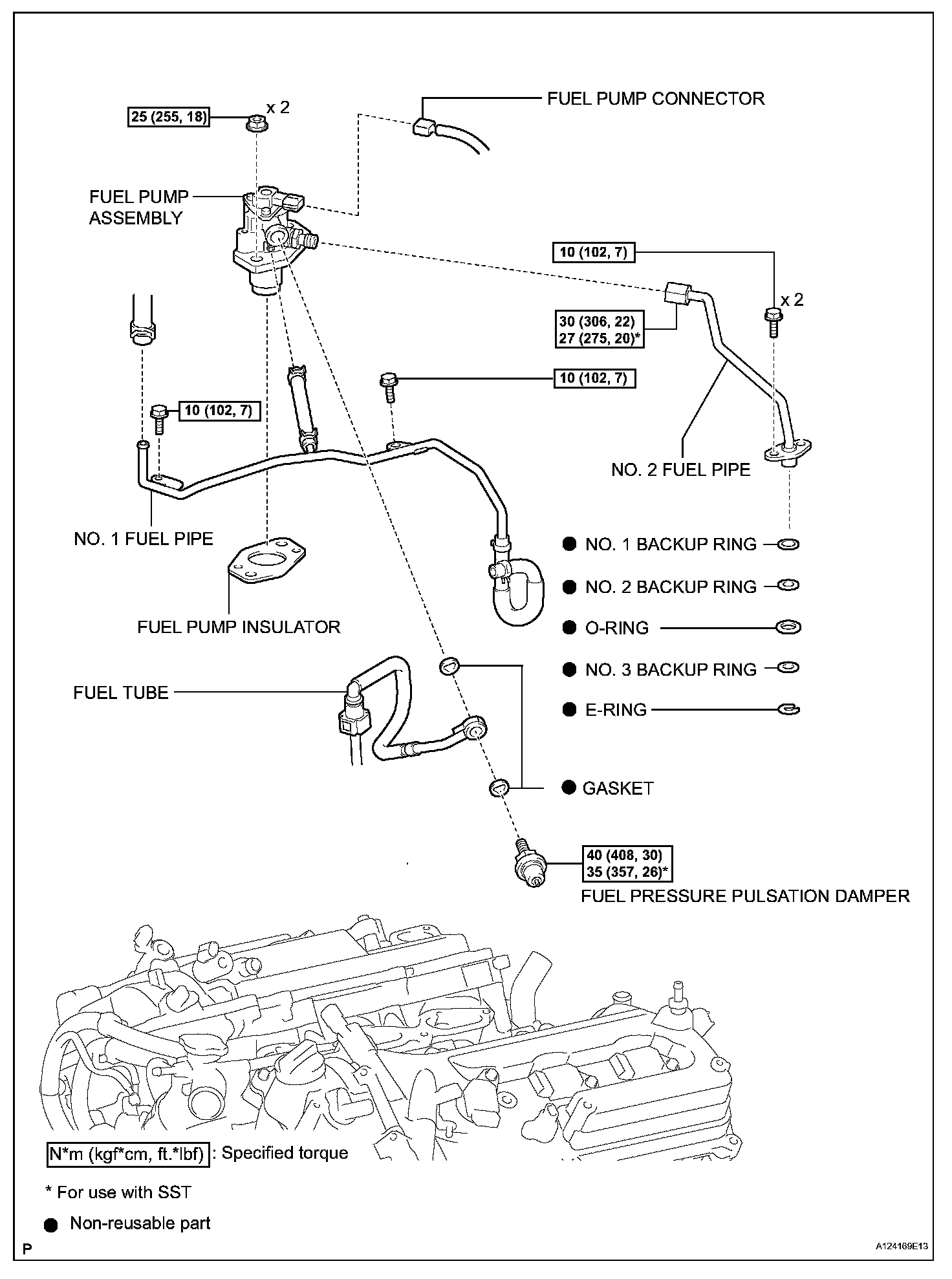

Fuel Pump (For High Pressure):



Fuel Pump (For High Pressure):



Fuel Pump (For High Pressure):



Fuel Pump (For High Pressure):
