Fuel Injector

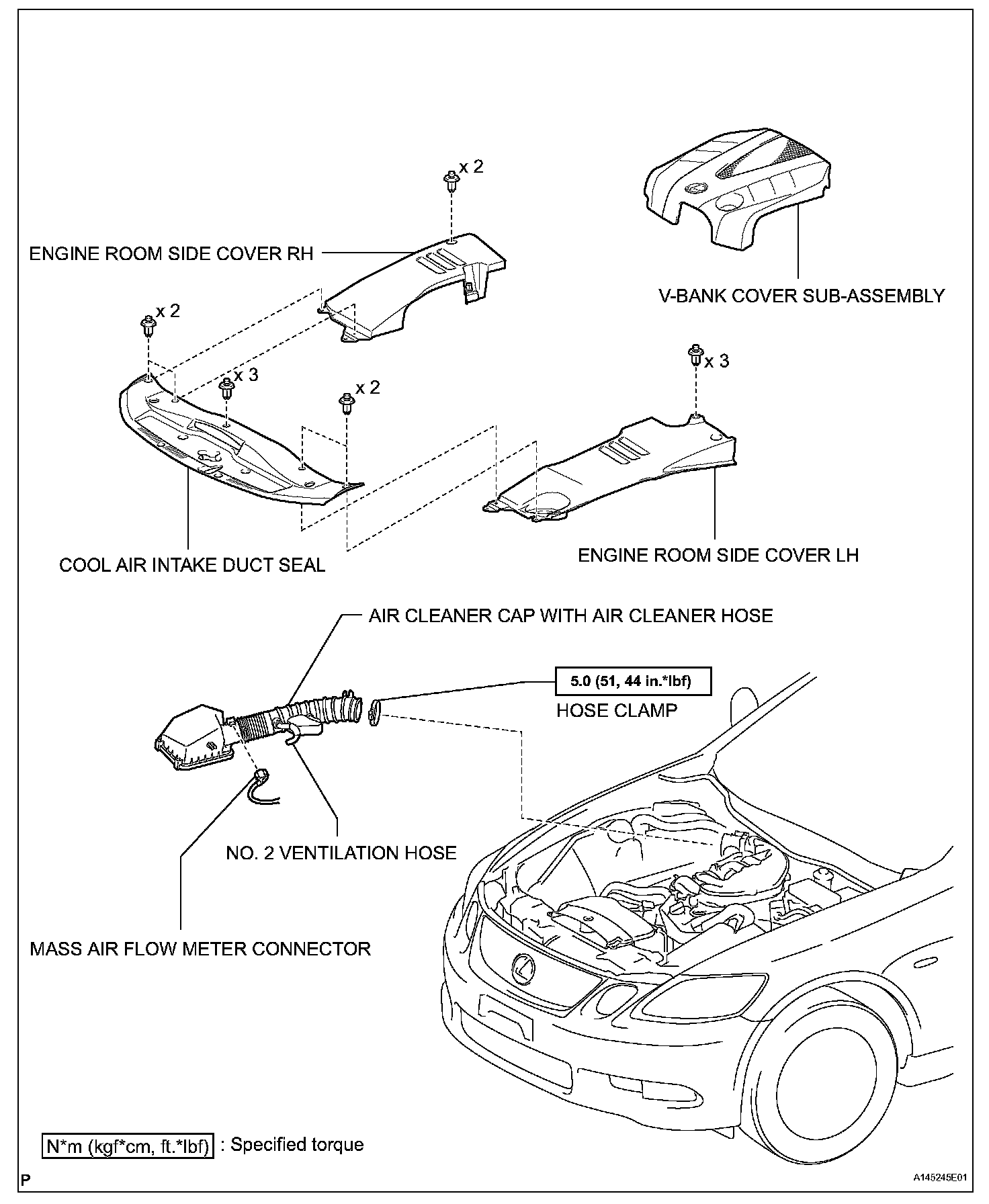

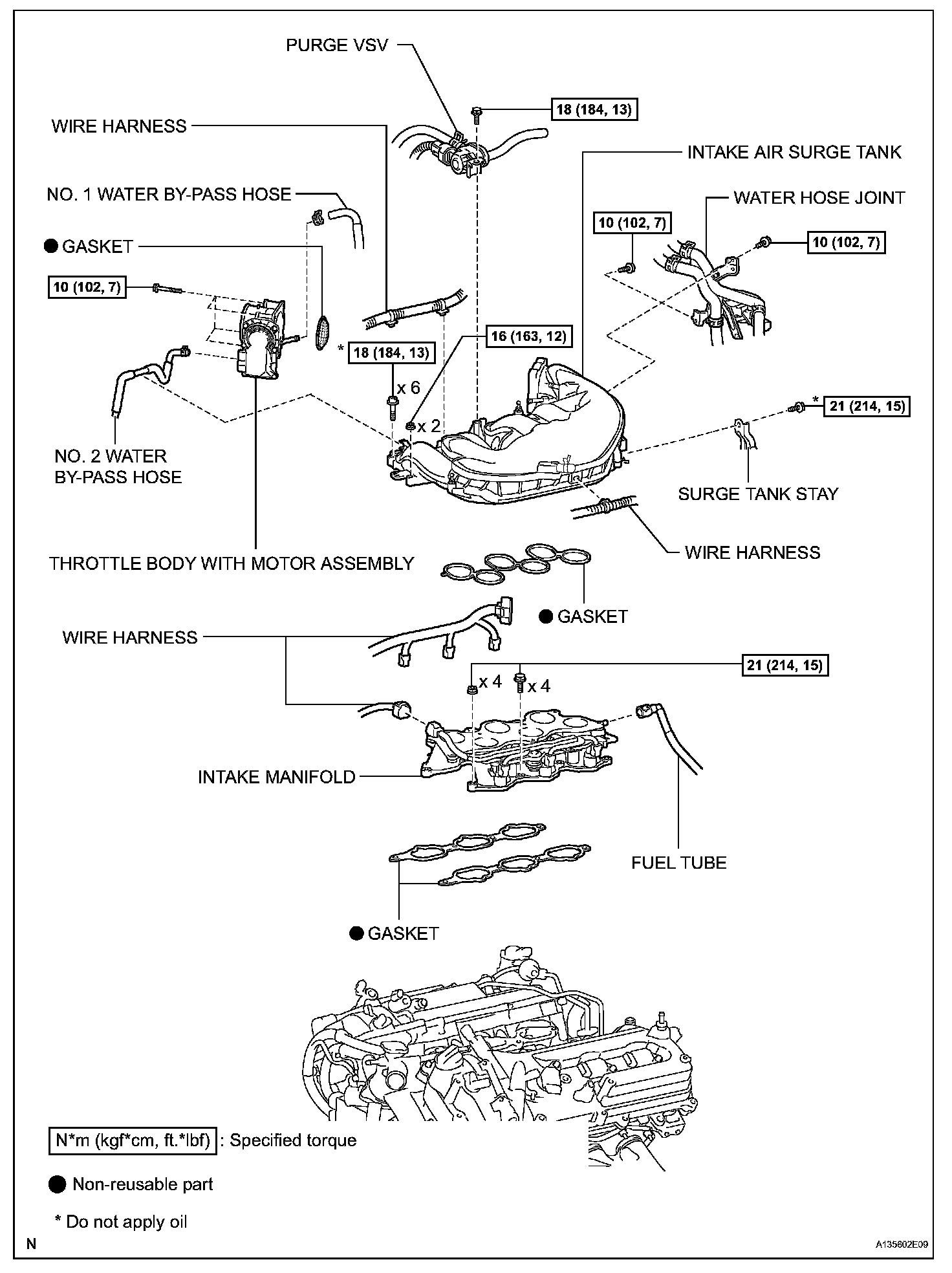

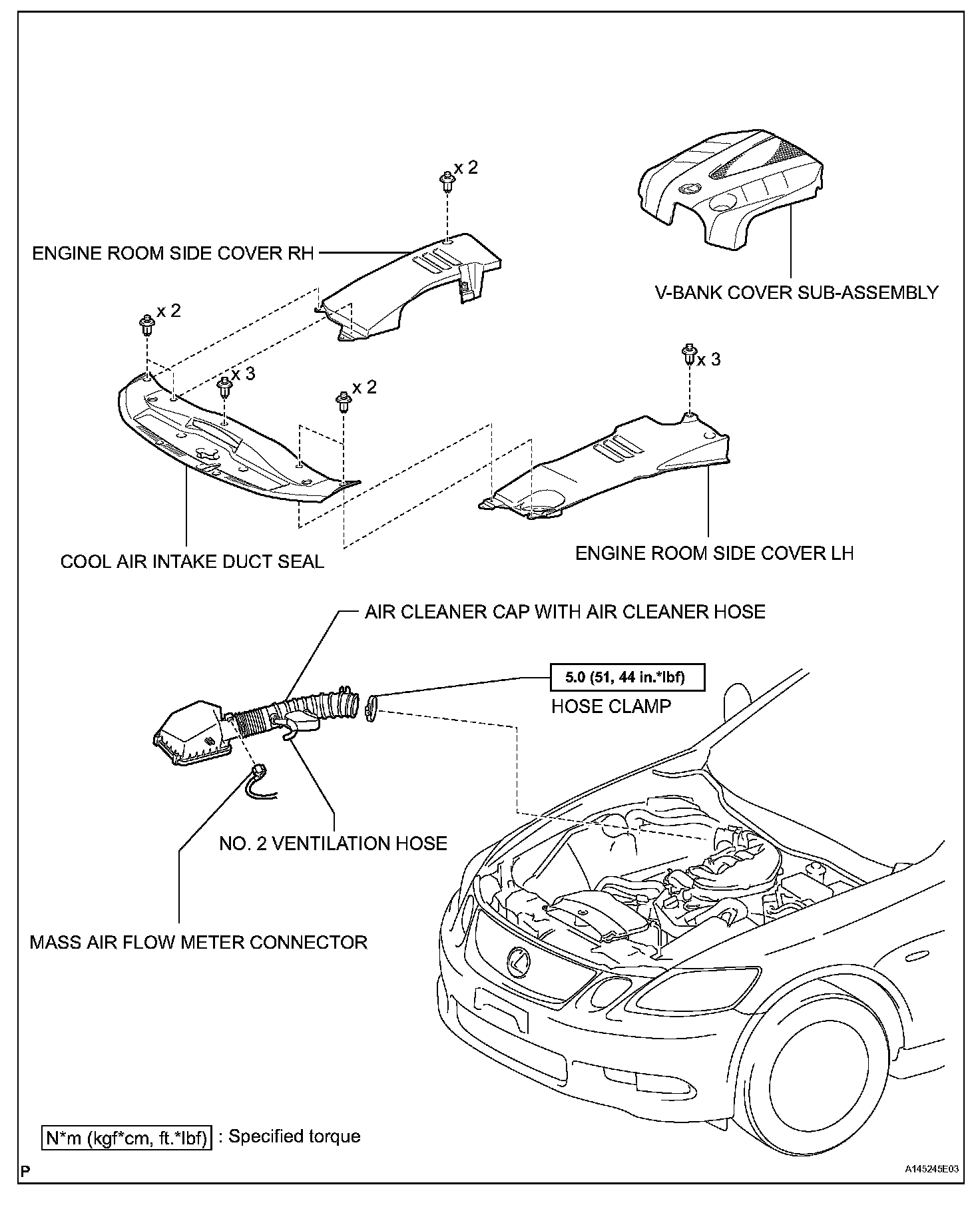

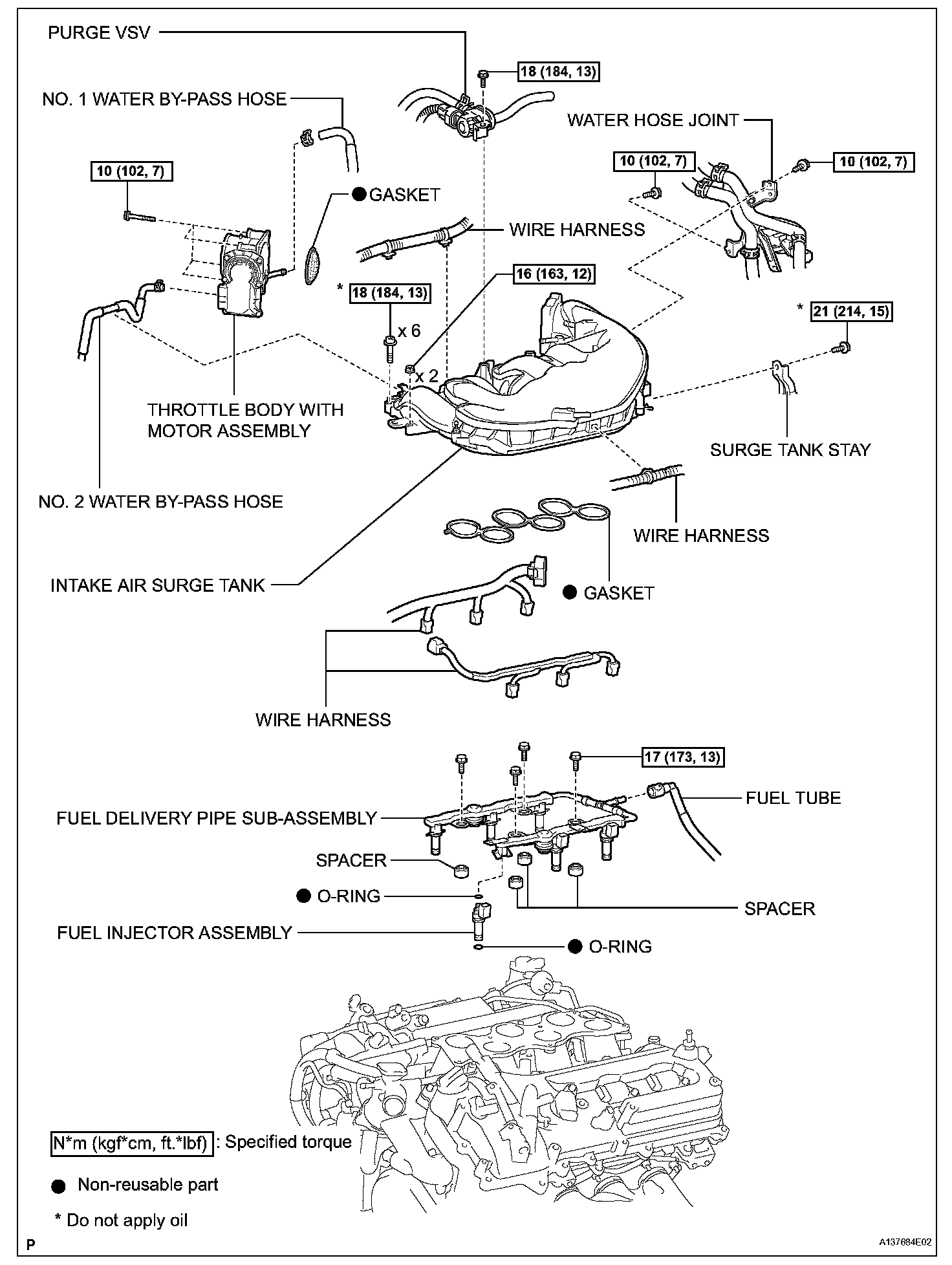

Fuel Injector (For Port Injection):



Fuel Injector (For Port Injection):



Fuel Injector (For Port Injection):

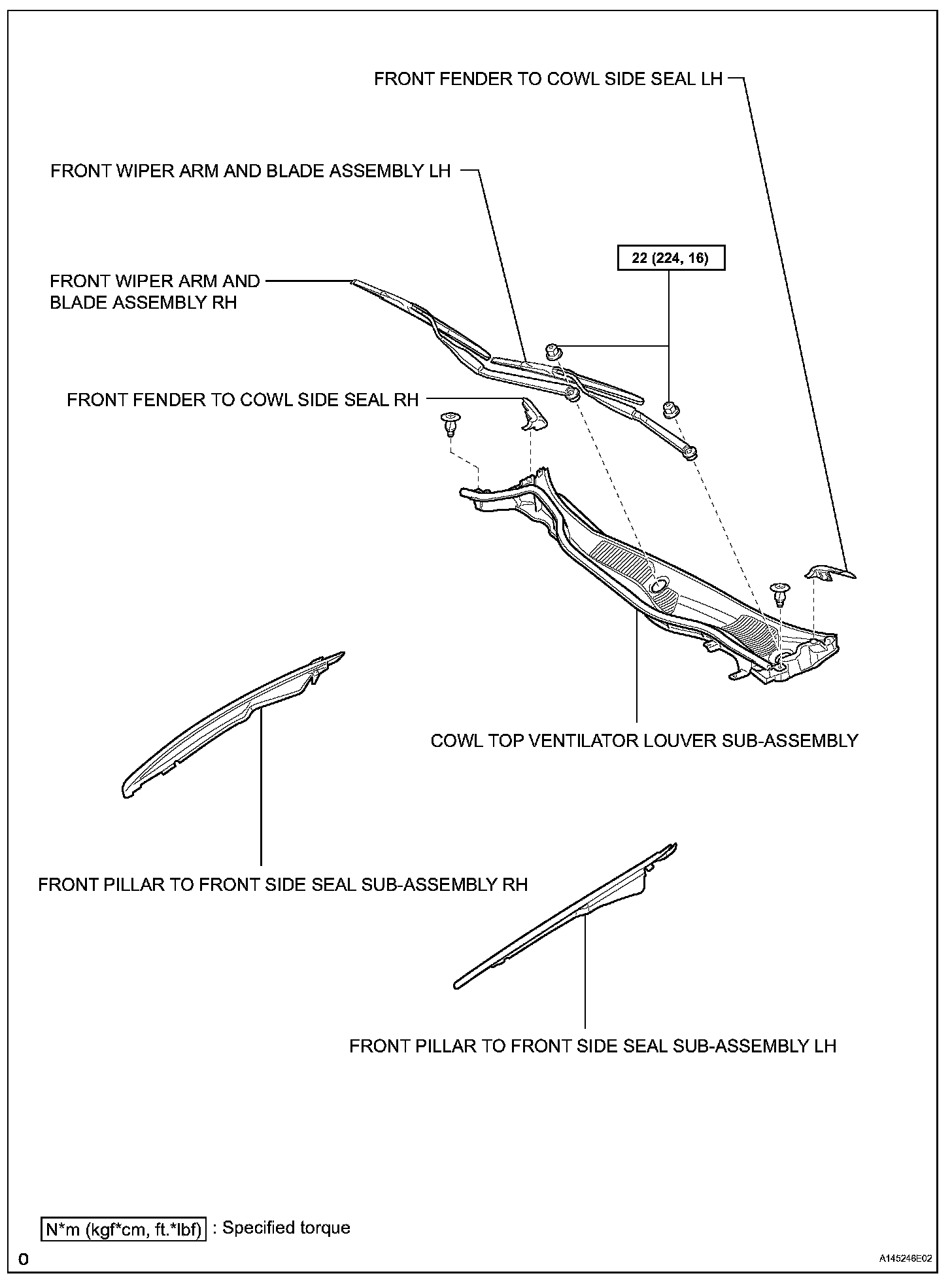

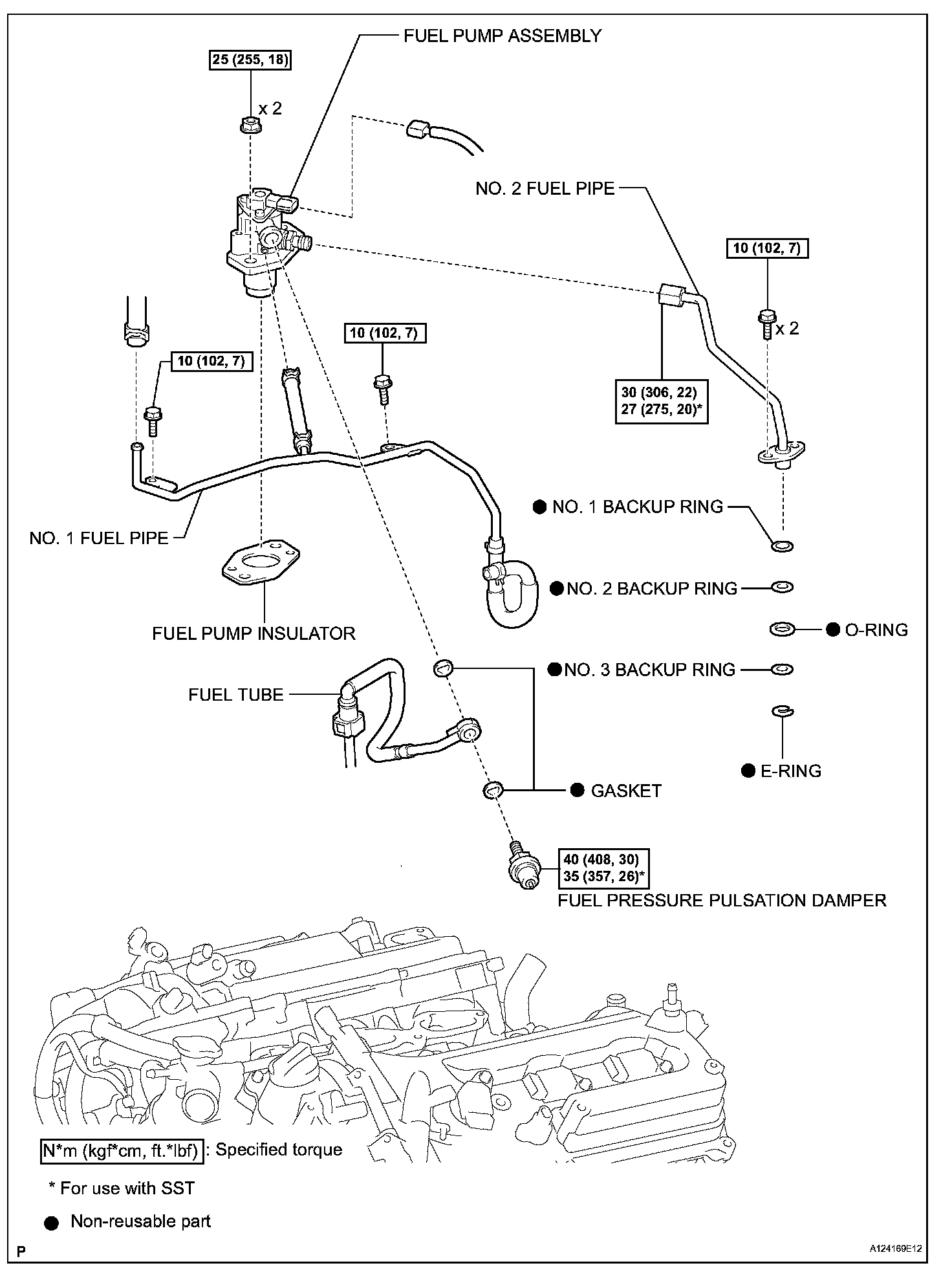

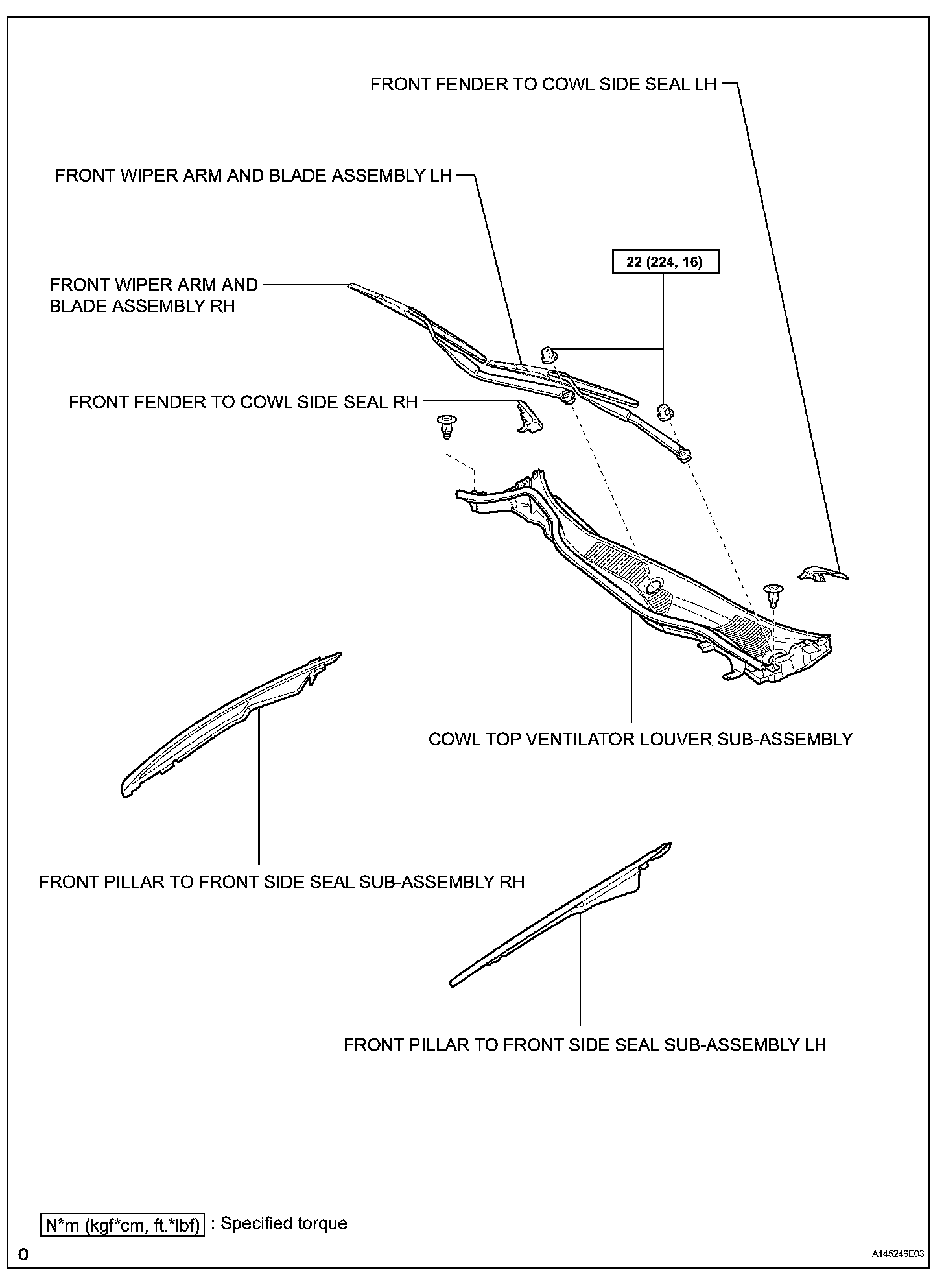

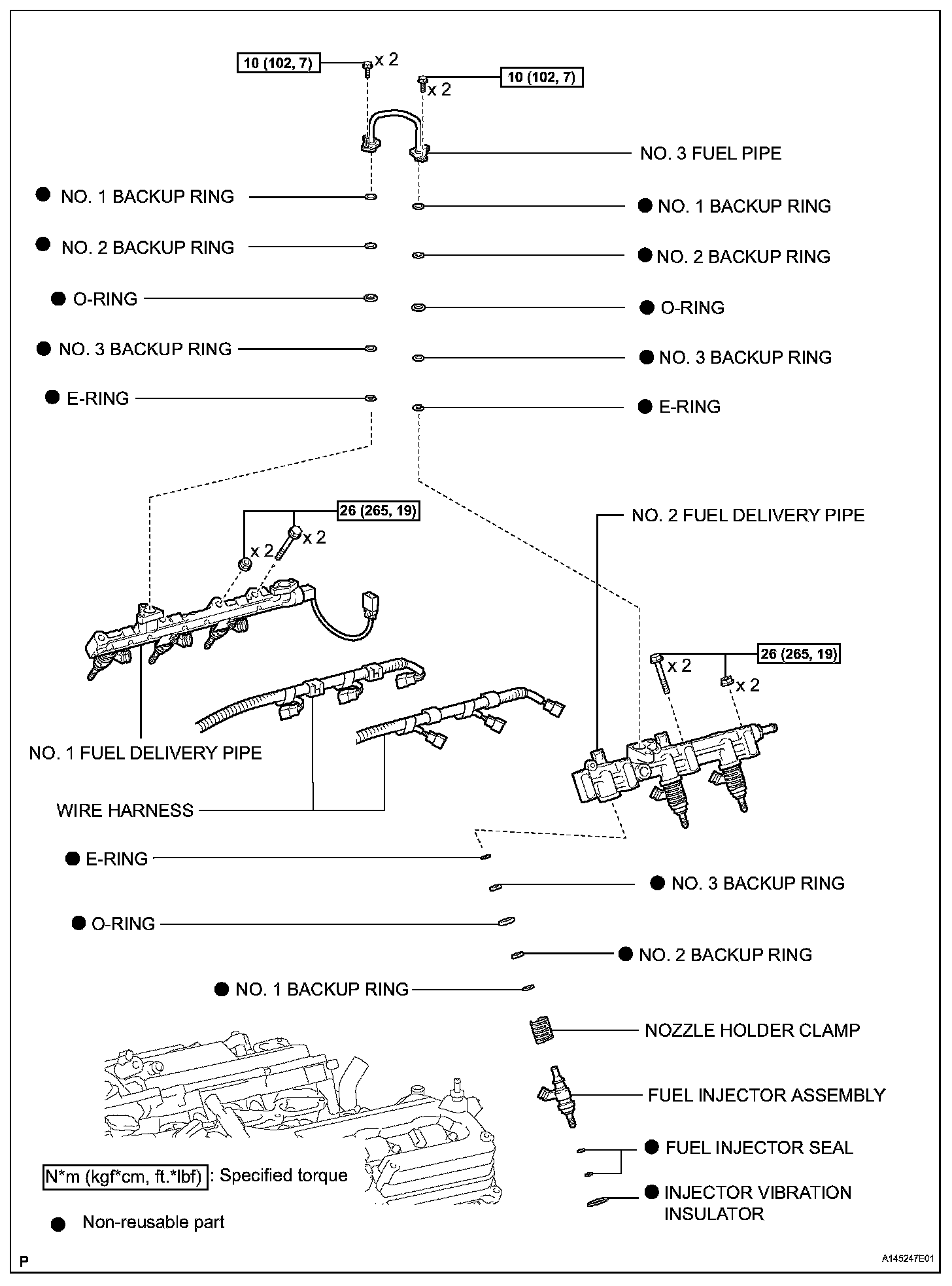

Fuel Injector (For Direct Injection):



Fuel Injector (For Direct Injection):



Fuel Injector (For Direct Injection):



Fuel Injector (For Direct Injection):



Fuel Injector (For Direct Injection):
