Damping Control Actuator

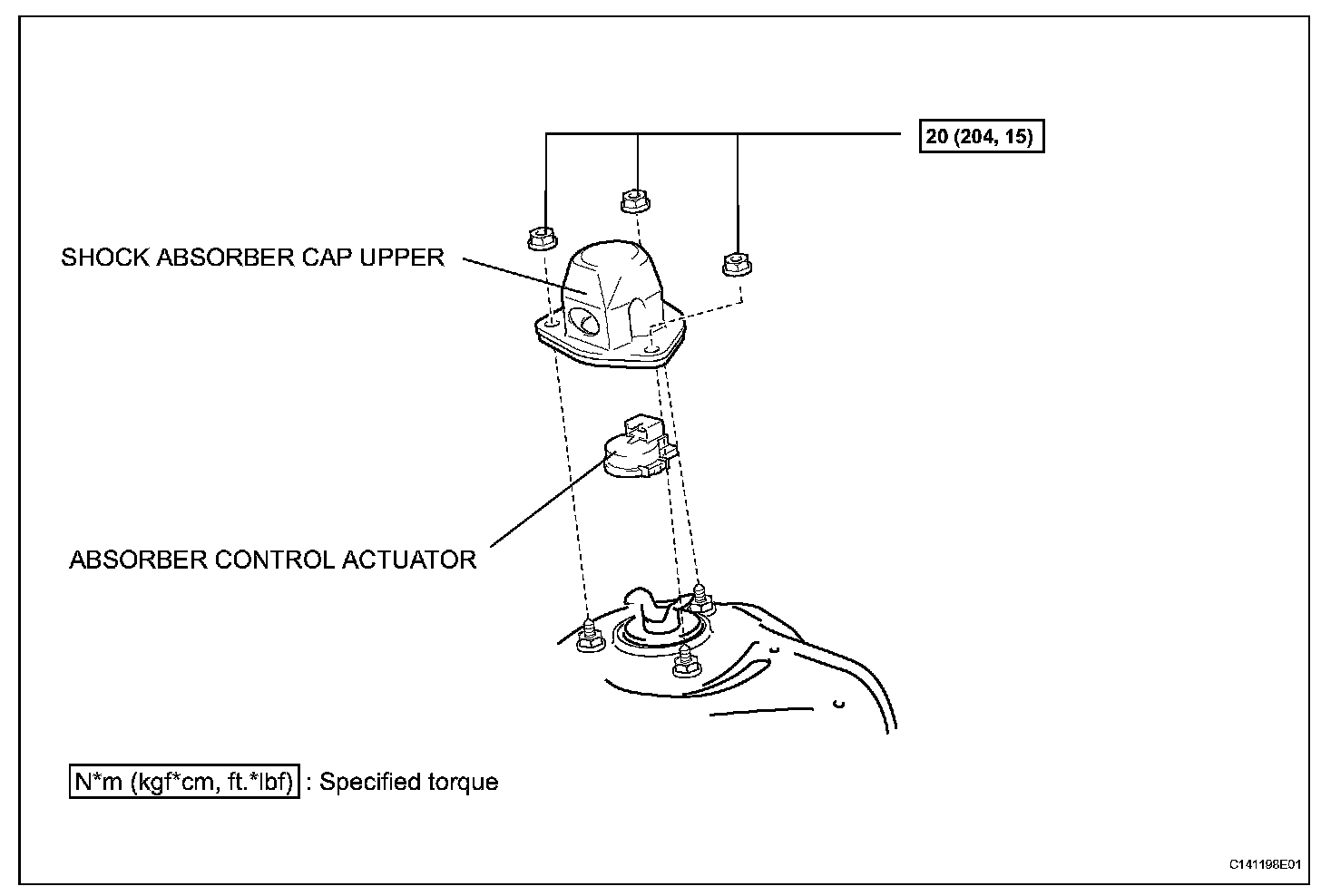

Absorber Control Actuator(For Front Side):



Absorber Control Actuator(For Front Side):

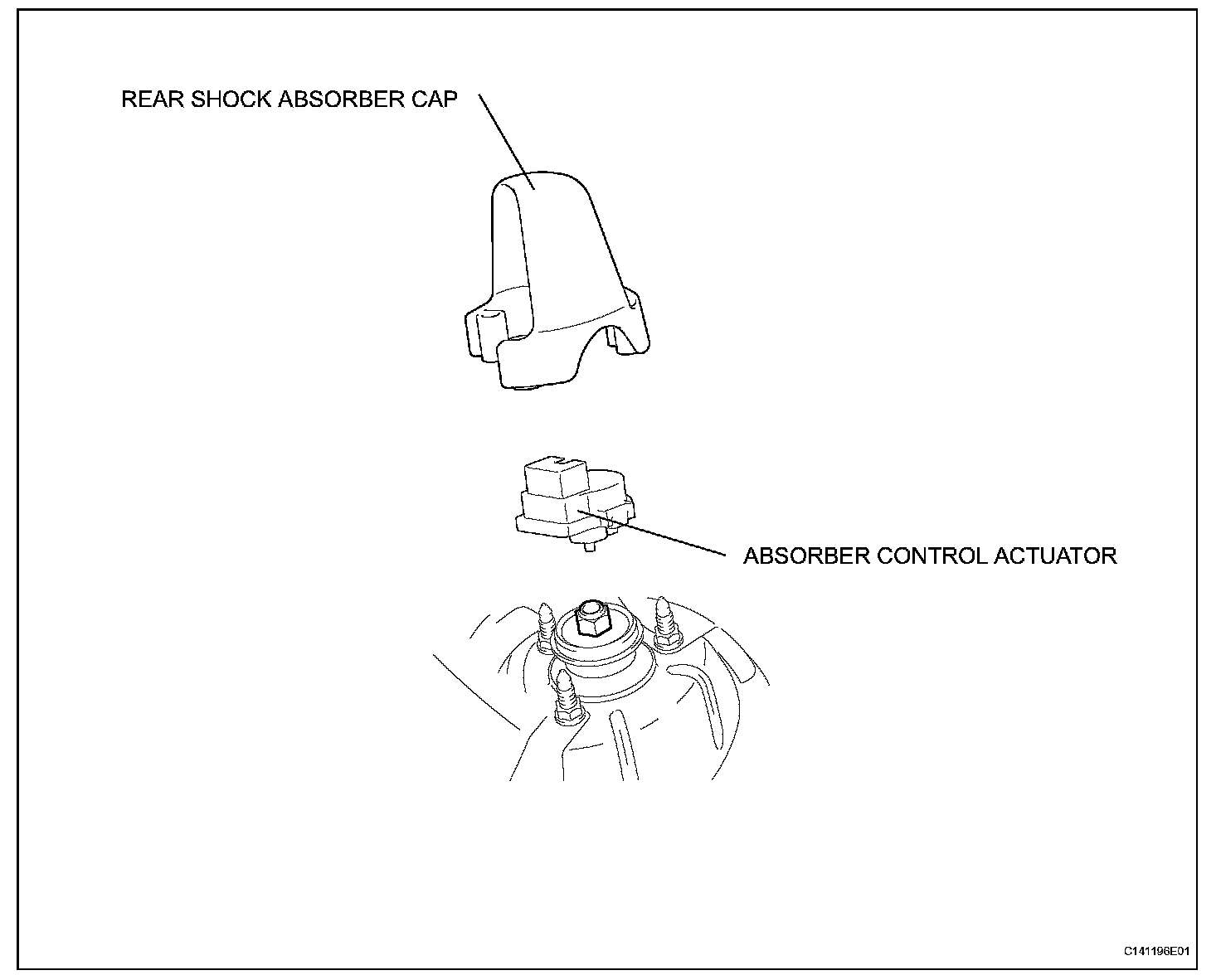

Absorber Control Actuator (For Rear Side):



Absorber Control Actuator (for Rear Side):
