Home >> Lexus >> 2007 >> GS 350 AWD V6-3.5L (2GR-FSE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Antilock Brakes / Traction Control Systems >> Acceleration/Deceleration Sensor

Acceleration/Deceleration Sensor

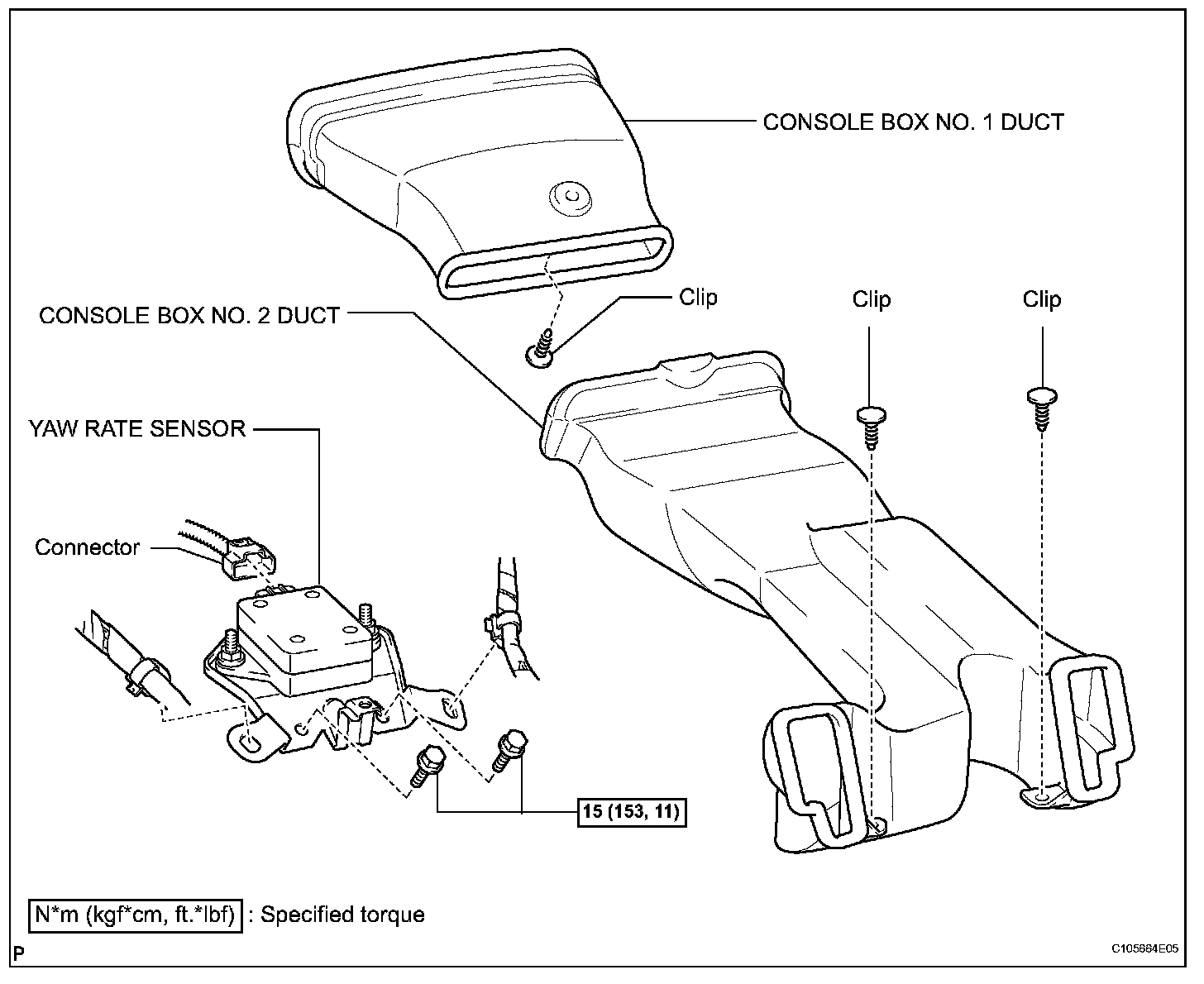

Yaw Rate And Acceleration Sensor:



Yaw Rate And Acceleration Sensor:
