Lexus
>>
2007
>>
GS 350 AWD V6-3.5L (2GR-FSE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By Connector Number
>>
BA2 - KA2
BA2 - KA2

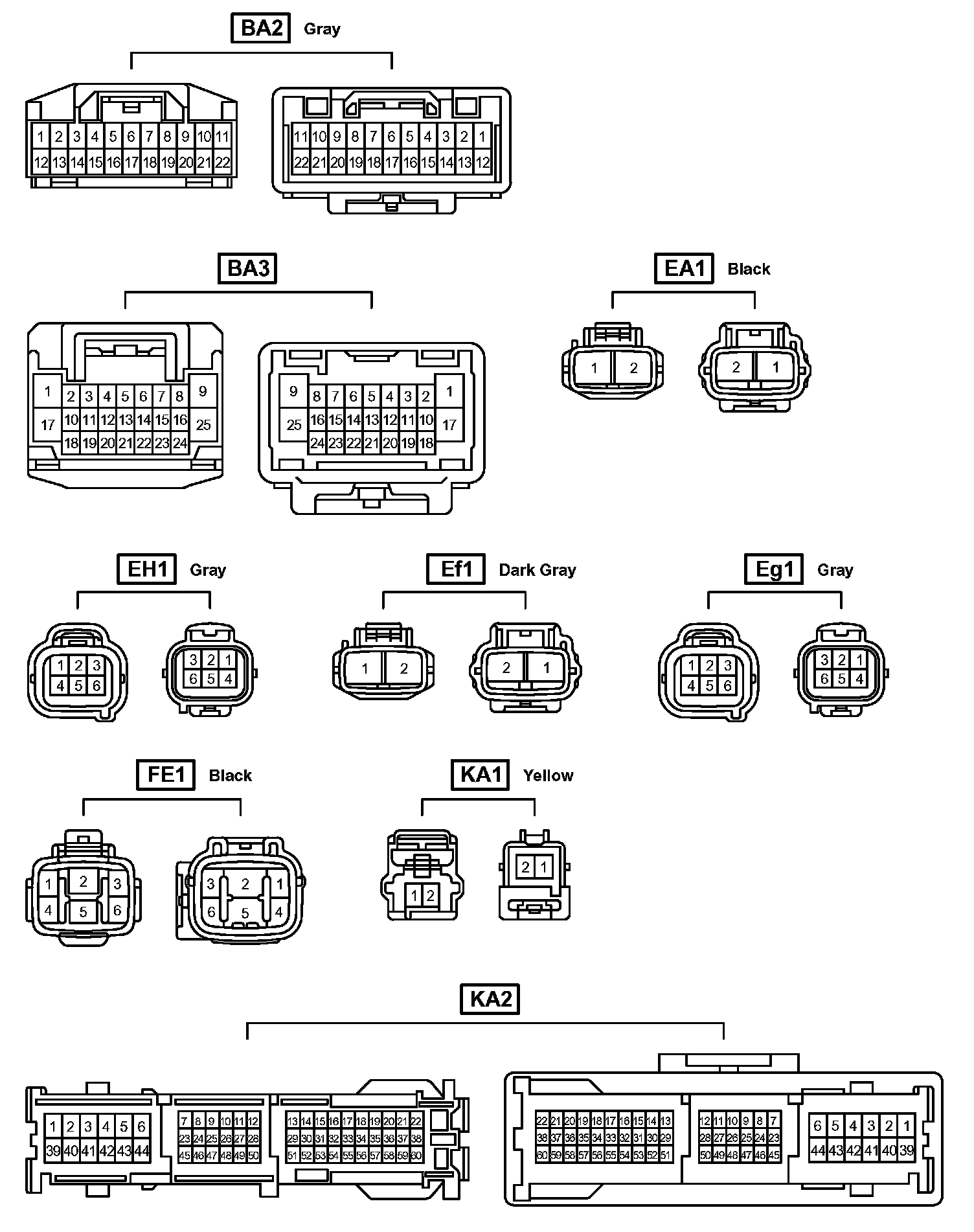

BA2 - KA2:
