VSC Warning Light Does Not Come ON

VSC Warning Light does not Come ON

DESCRIPTION

If the ECU stores DTC, the VSC warning light comes on in the combination meter.

The skid control ECU is connected to the combination meter via CAN and multiplex communications.

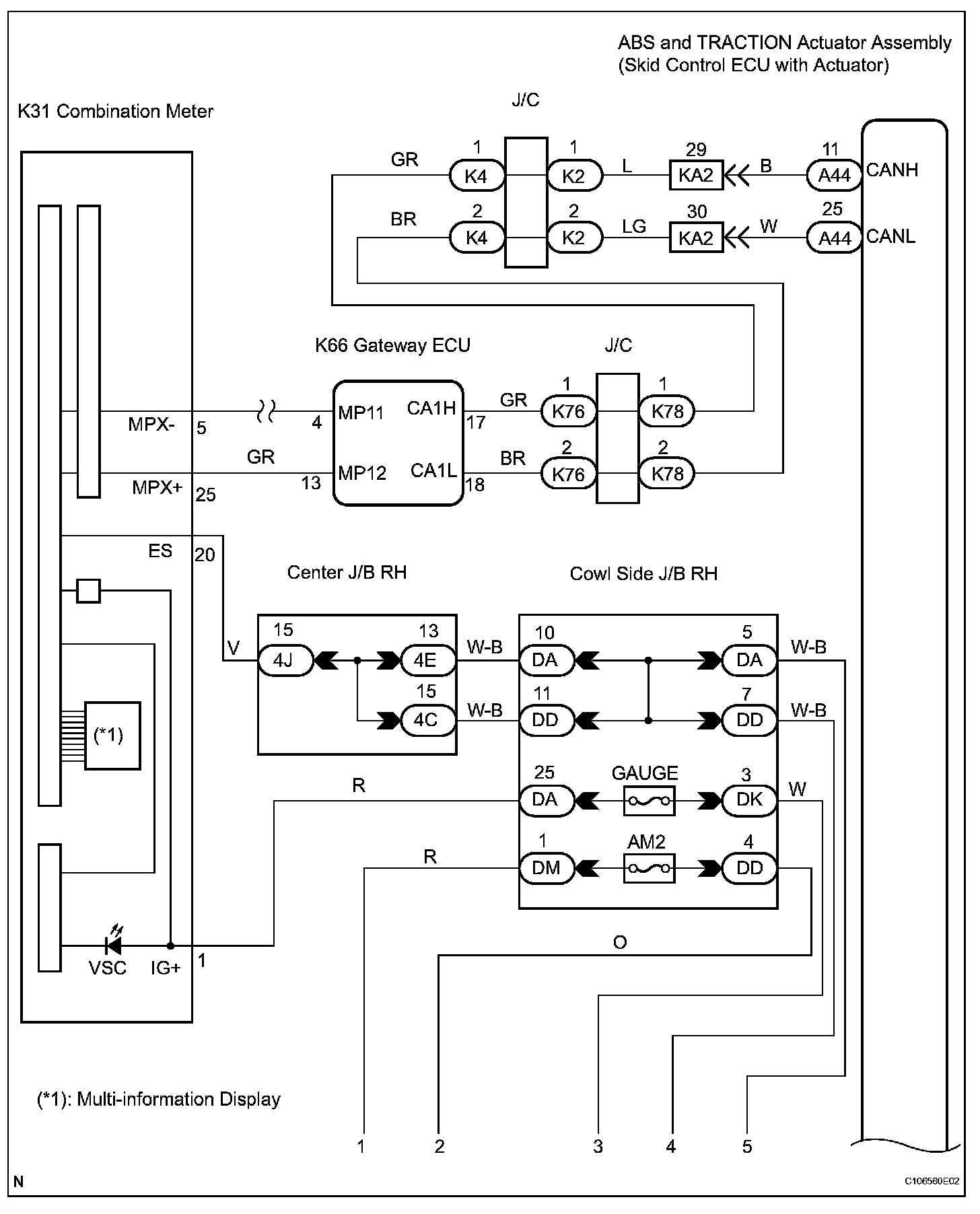

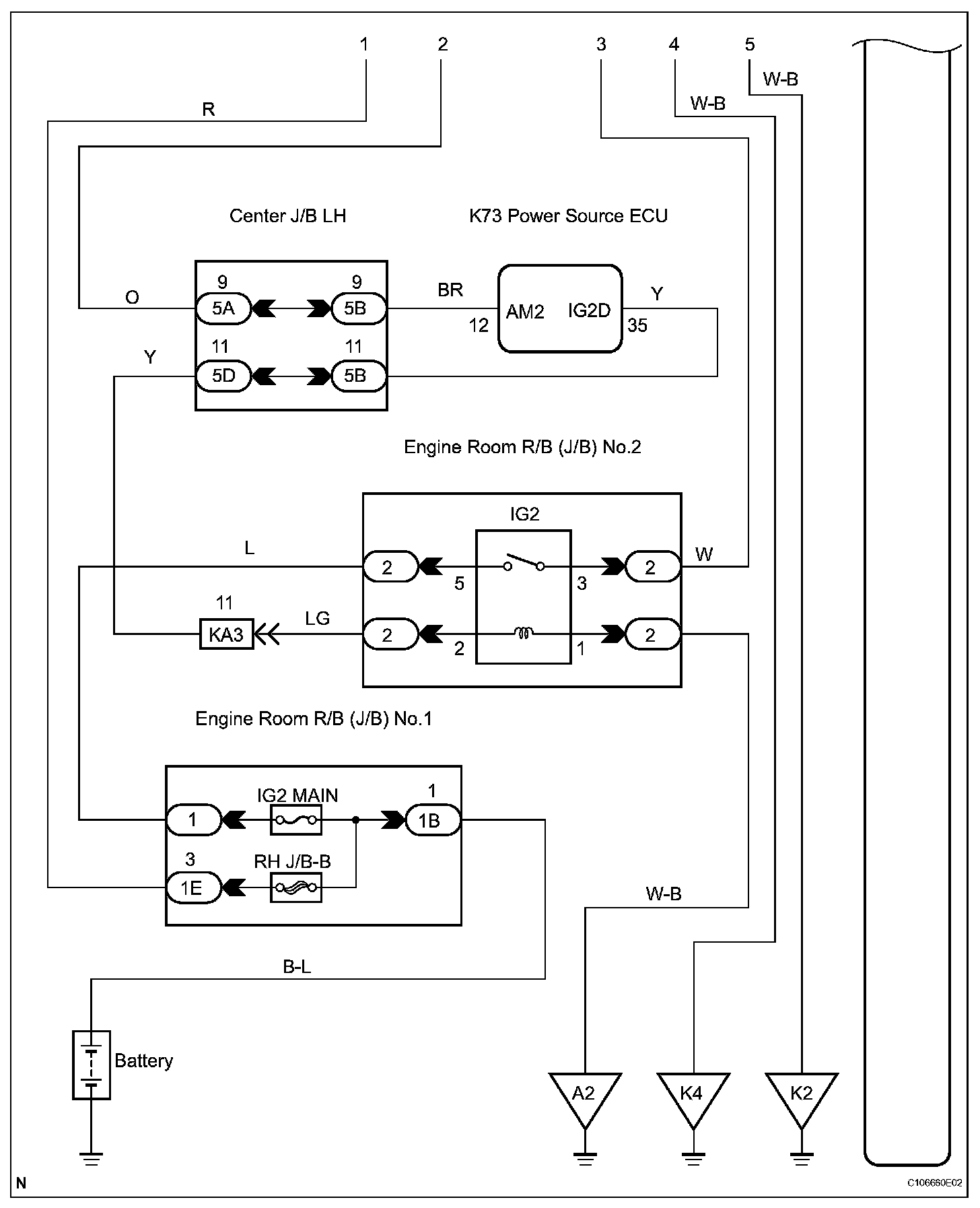

Wiring Diagram:

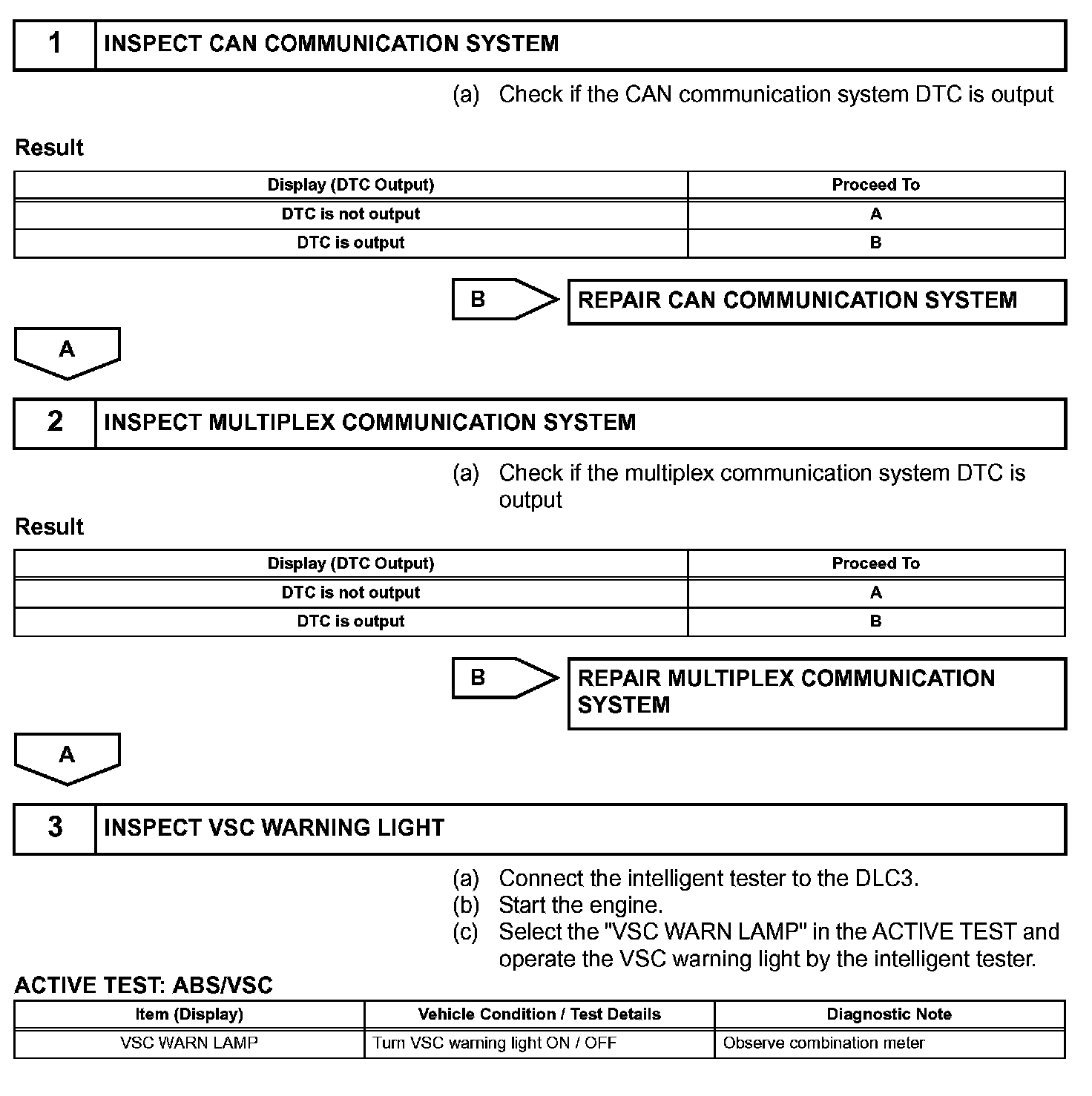

Step 1-3:

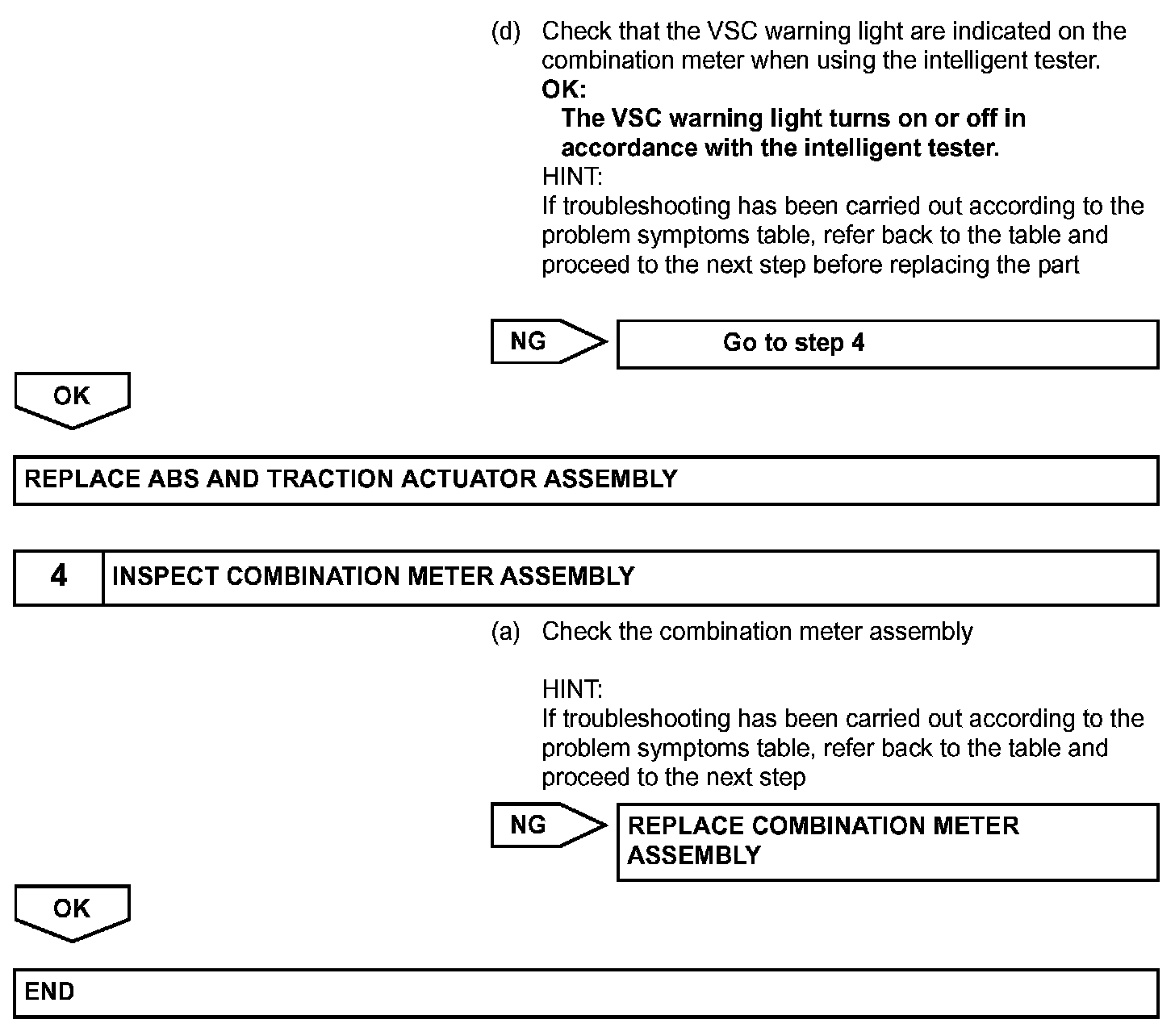

Step 3(Continued)-4:

INSPECTION PROCEDURE

NOTE: When replacing the ABS and TRACTION actuator assembly, perform zero point calibration. Vehicle Stability Control System
