Slip Indicator Light Does Not Come ON

Slip Indicator Light does not Come ON

DESCRIPTION

The SLIP indicator blinks during the VSC and/or TRAC operation.

When the system fails, the SLIP indicator comes on to warn the driver.

The SLIP indicator comes on when the traction control and VSC are terminated by pressing the VSC OFF switch.

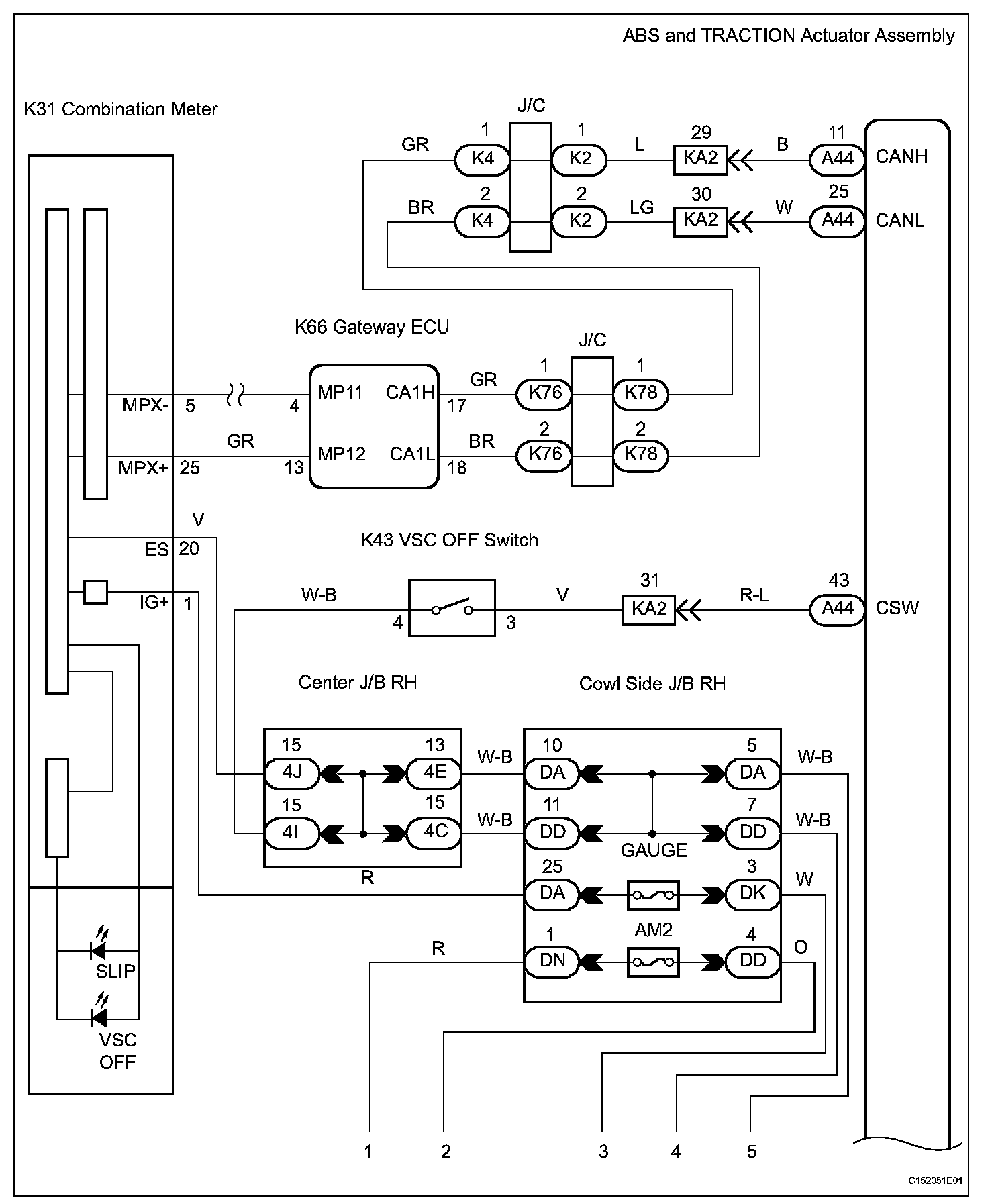

Wiring Diagram:

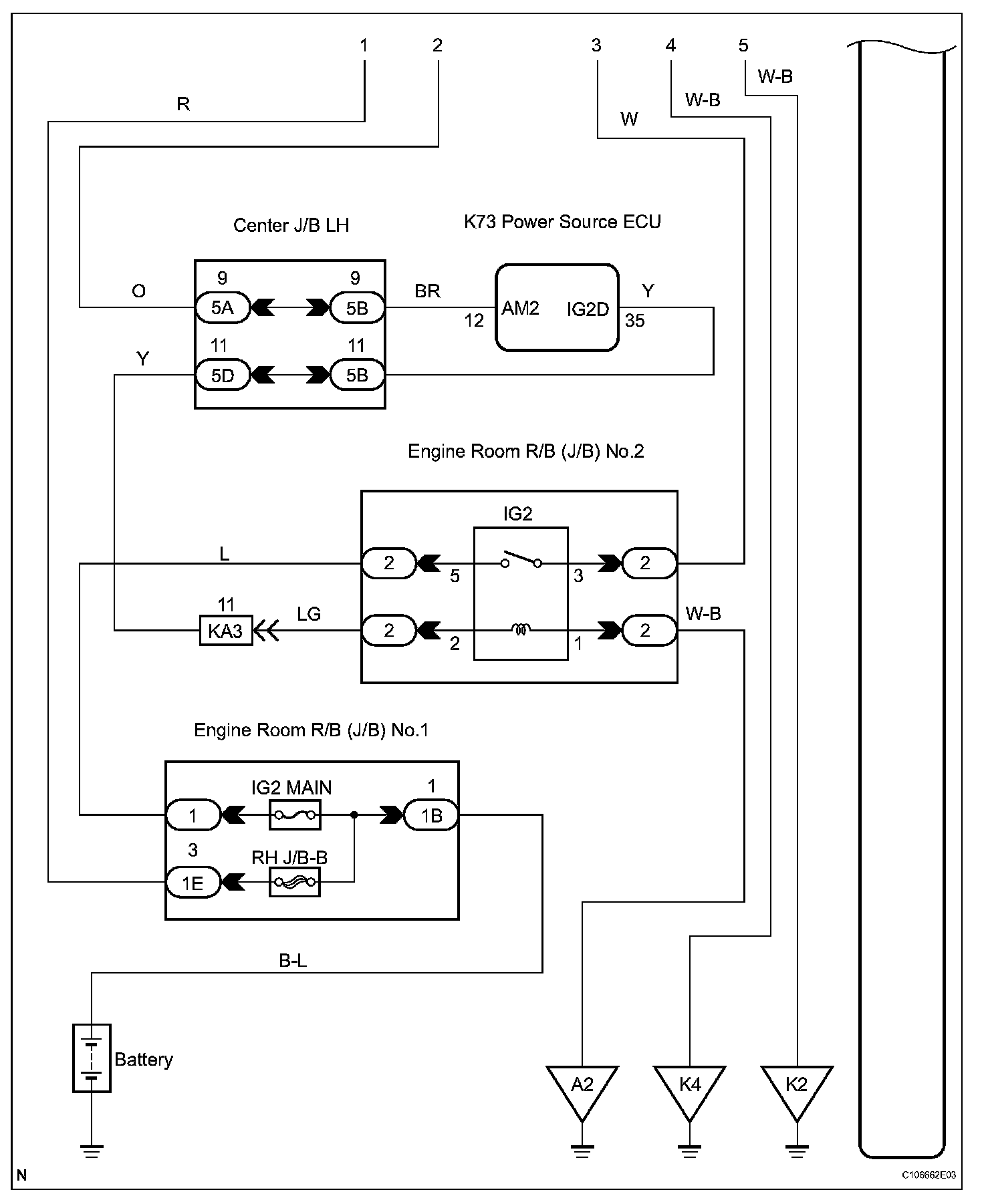

Wiring Diagram:

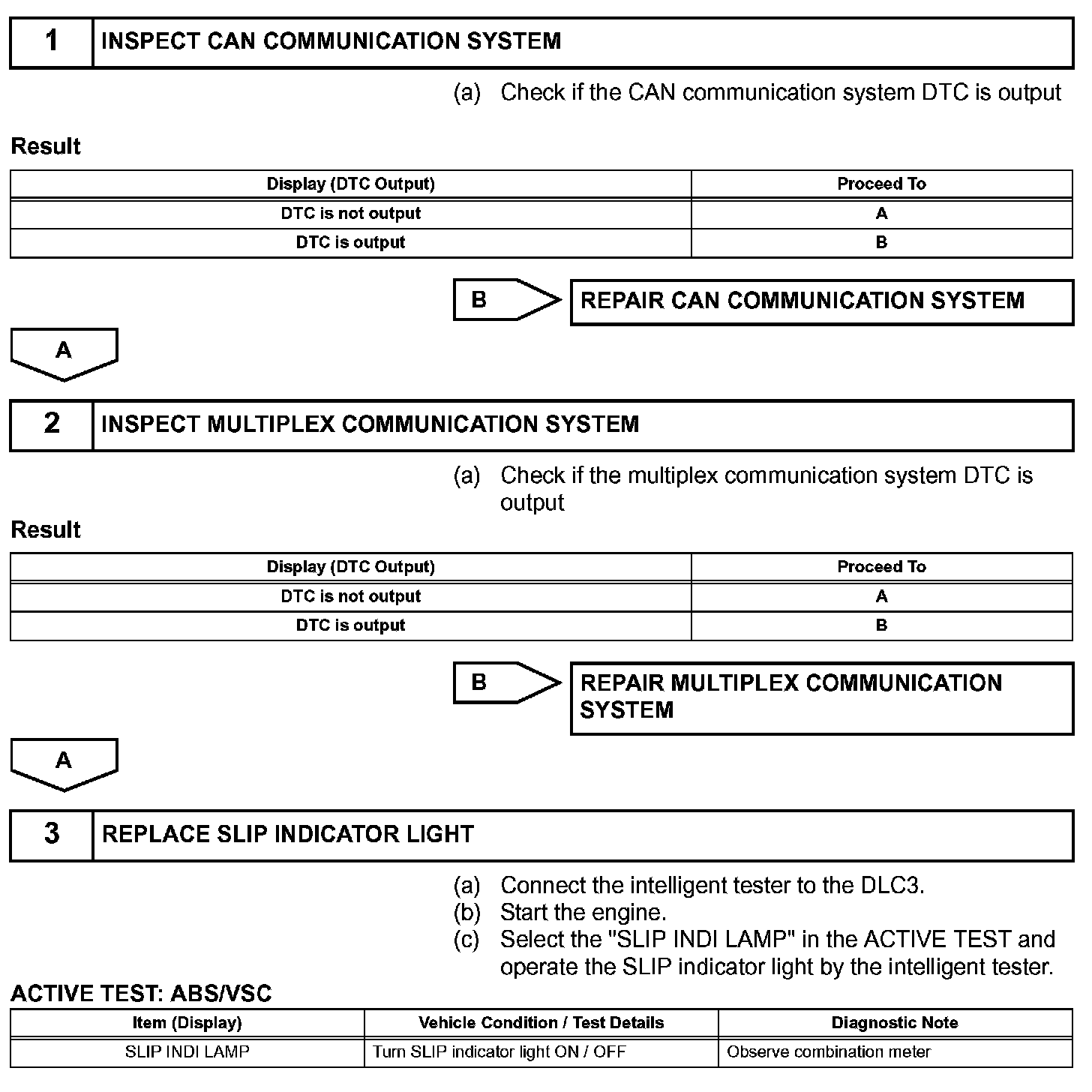

Step 1-3:

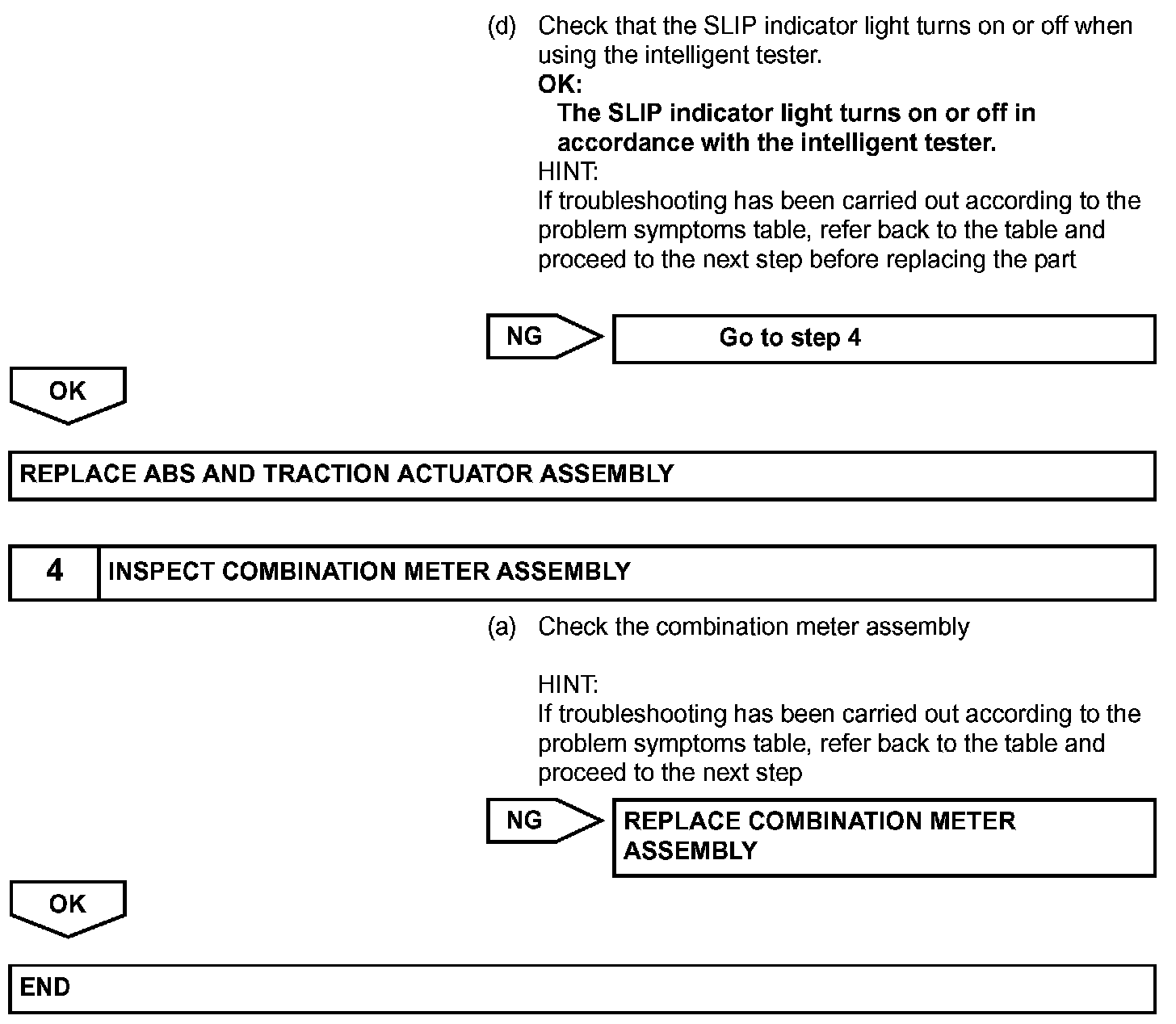

Step 3(Continued)-4:

INSPECTION PROCEDURE

NOTE: When replacing the ABS and TRACTION actuator assembly, perform zero point calibration. Vehicle Stability Control System
