ABS Warning Light Remains ON

ABS Warning Light Remains ON

DESCRIPTION

If any of the given is detected, the ABS warning light remains on.
- The skid control ECU connectors are disconnected from the skid control ECU.
- There is a malfunction in the skid control ECU internal circuit.
- There is an open in the harness between the combination meter and the skid control ECU.

HINT: In some cases, the intelligent tester cannot be used when the skid control ECU is abnormal.

Wiring Diagram:

Step 1-4:

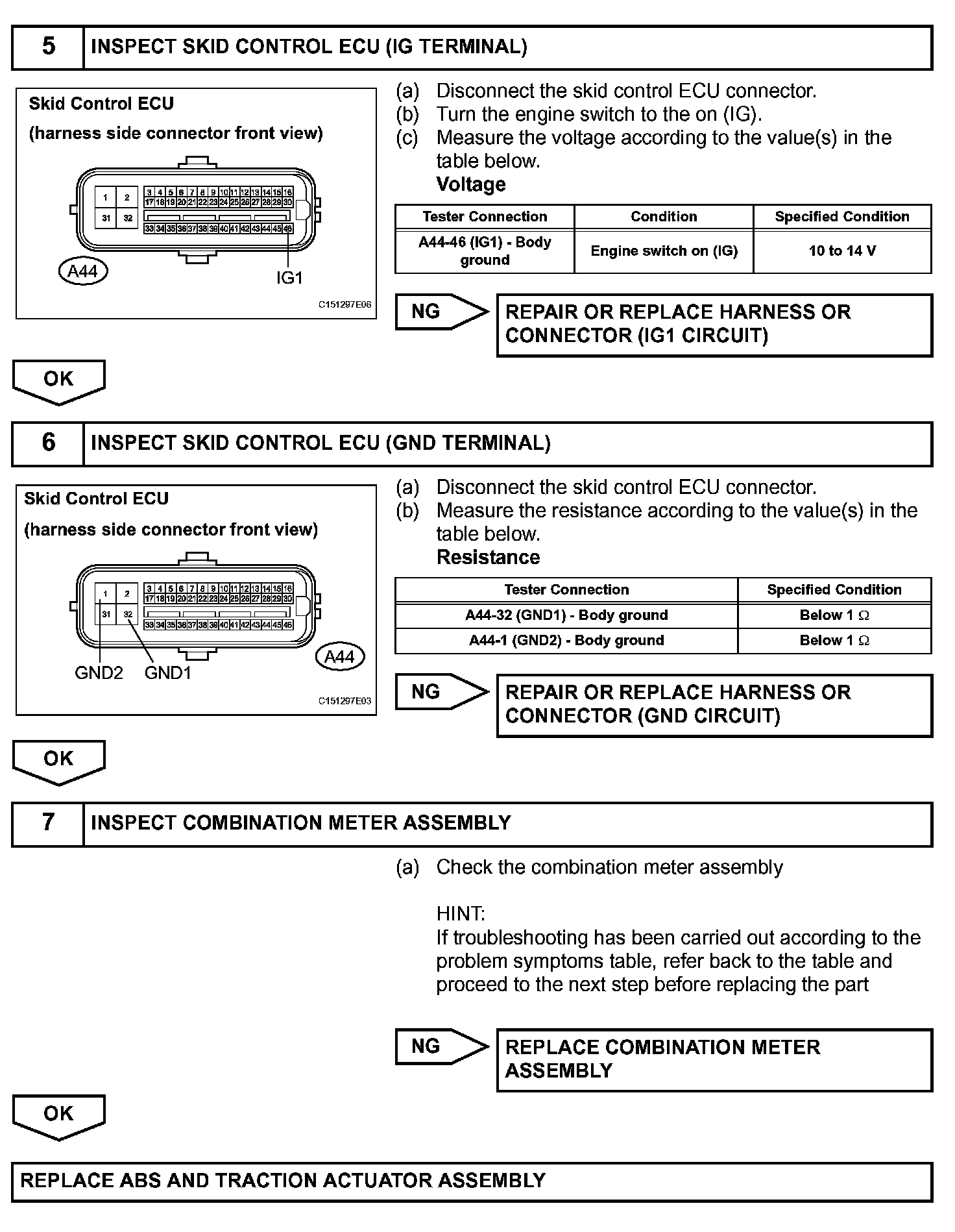

Step 5-7:

INSPECTION PROCEDURE

NOTE: When replacing the ABS and TRACTION actuator assembly, perform zero point calibration. Vehicle Stability Control System
