Brake Warning Light Remains ON

Brake Warning Light Remains ON

DESCRIPTION

The skid control ECU is connected to the combination meter via CAN and multiplex communications. If any of the given is detected, the BRAKE warning light remains on:
- The skid control ECU connector is disconnected from the skid control ECU.
- The brake fluid level is insufficient.
- The parking brake is applied.
- The EBD is defective.

Wiring Diagram:

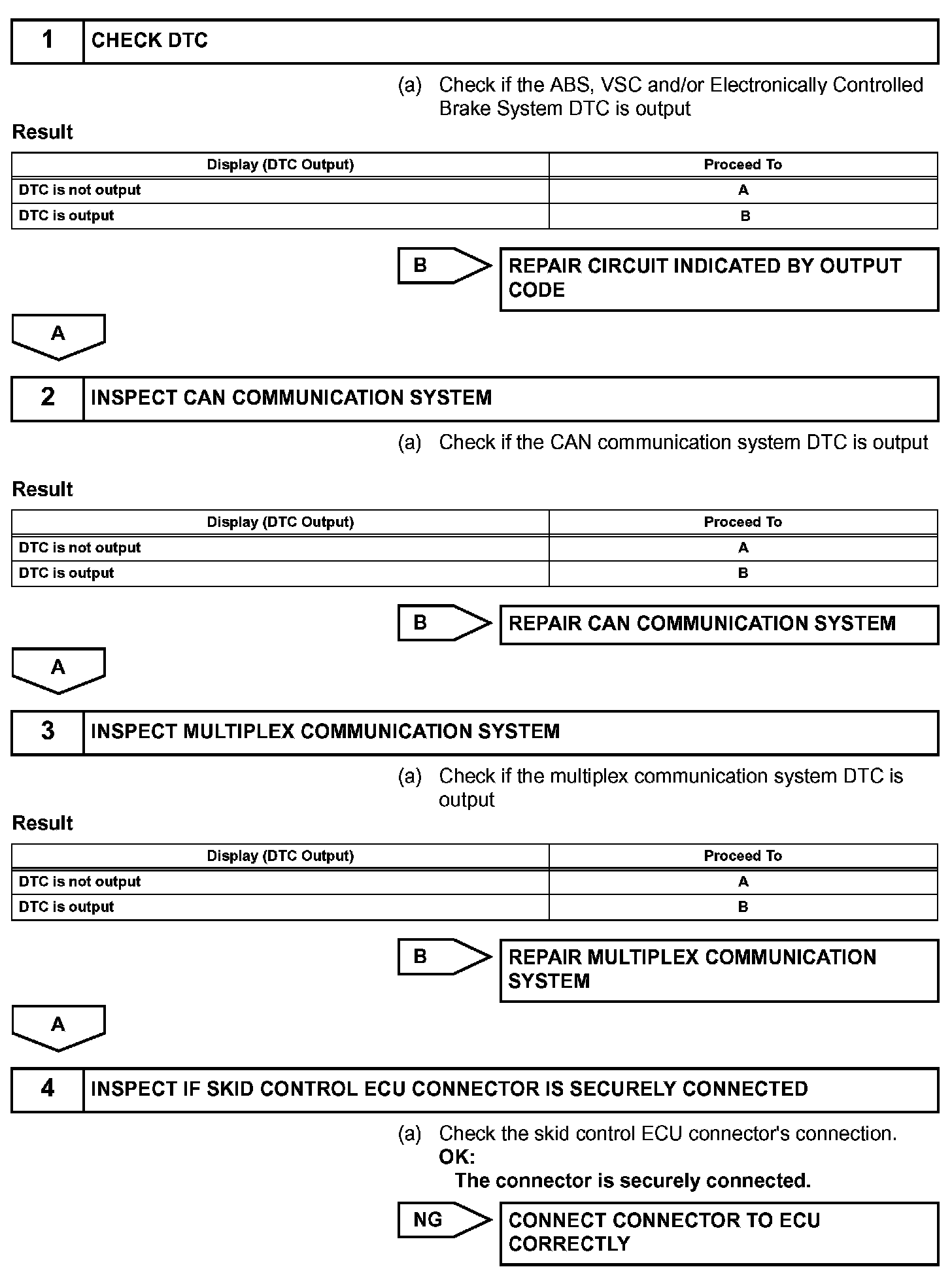

Step 1-4:

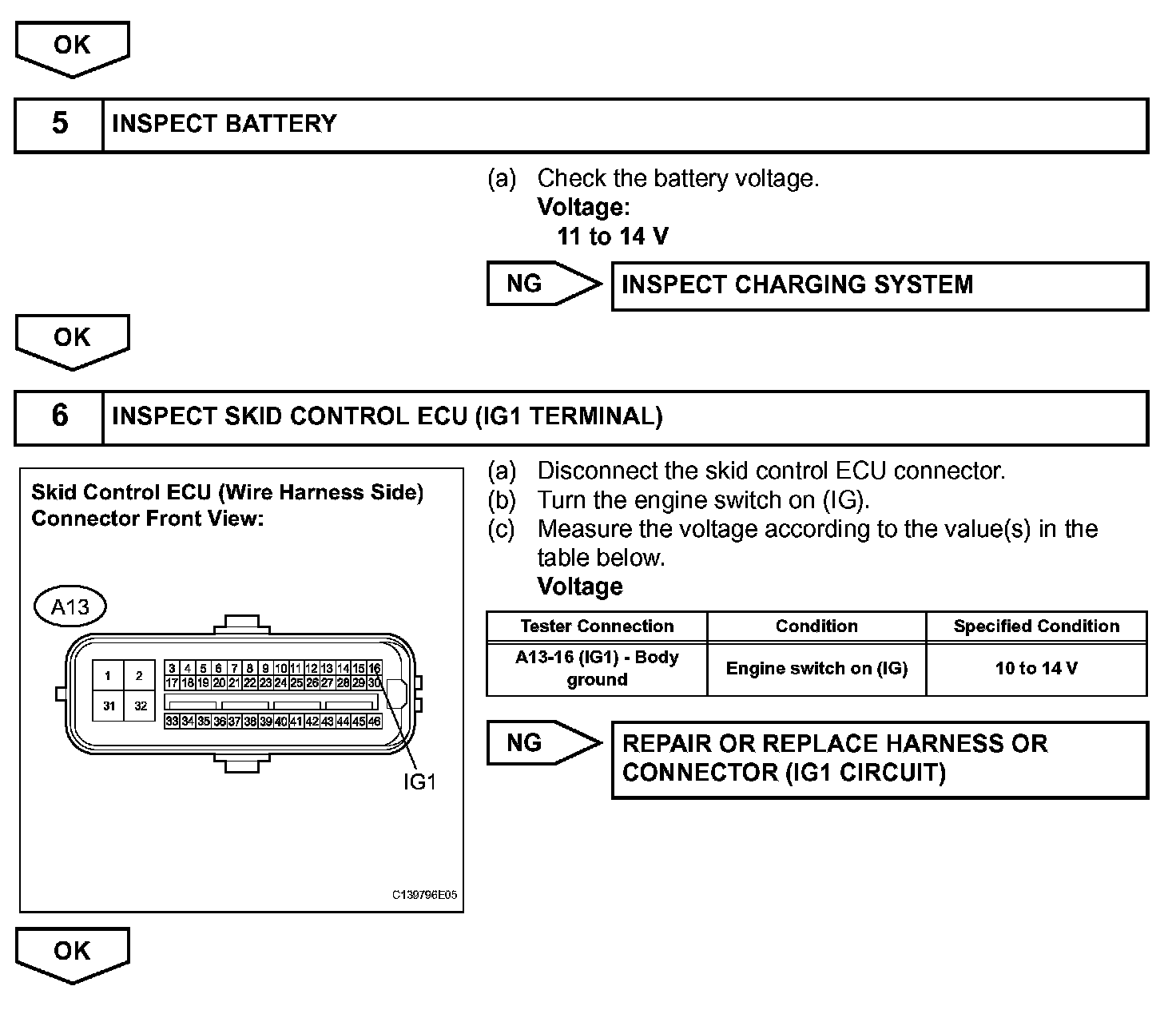

Step 4(Continued)-6:

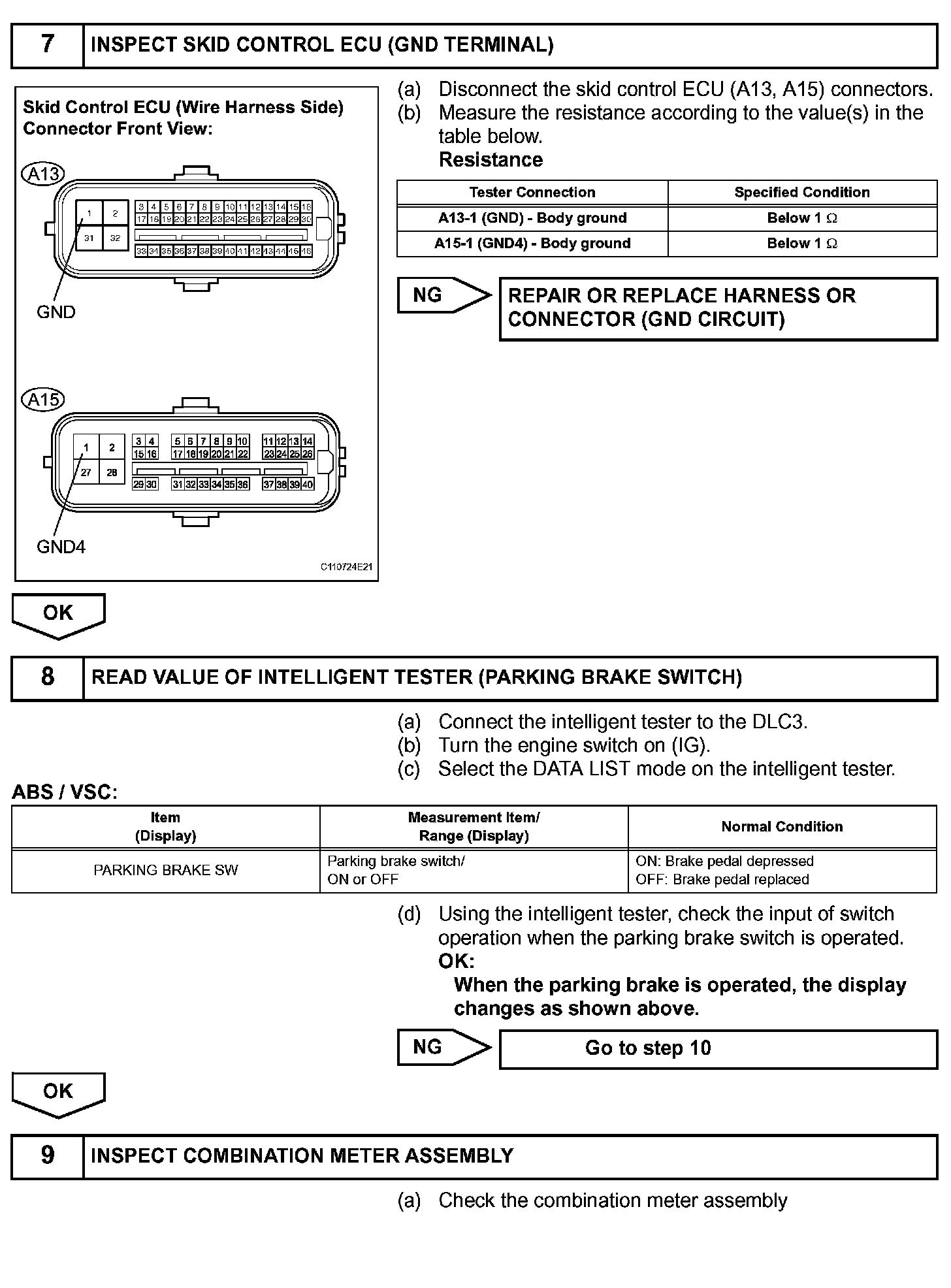

Step 7-9:

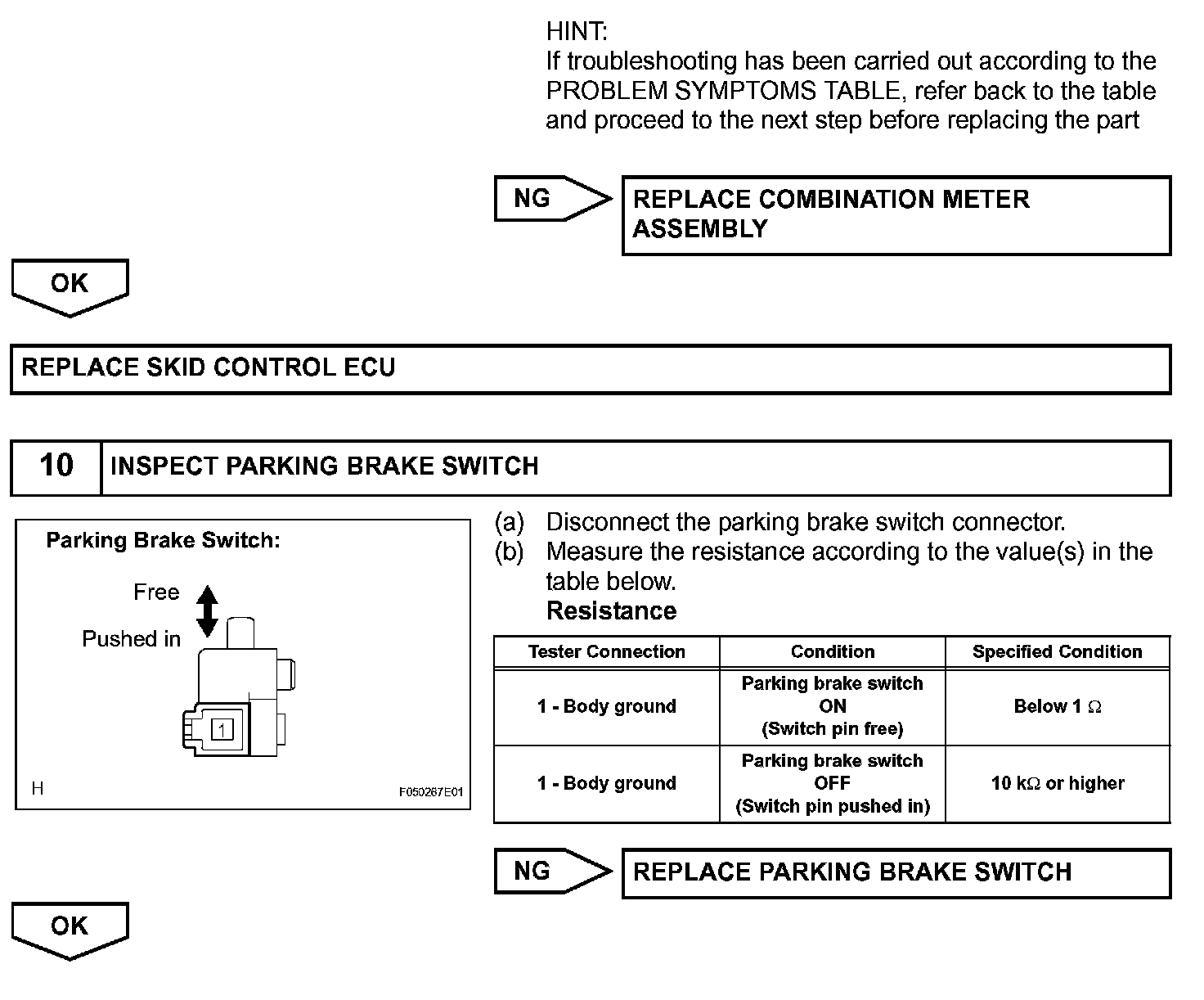

Step 9(Continued)-10:

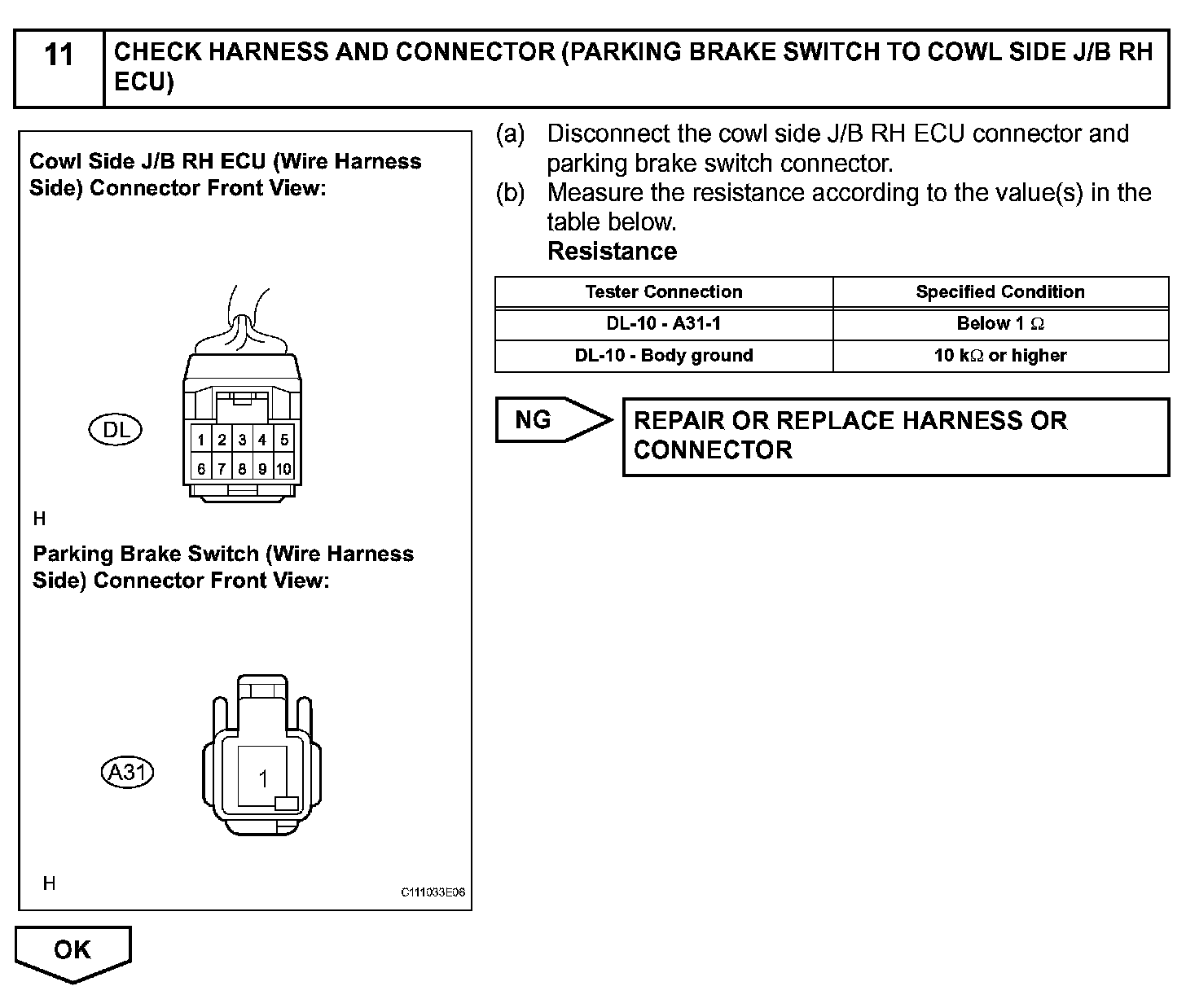

Step 11:

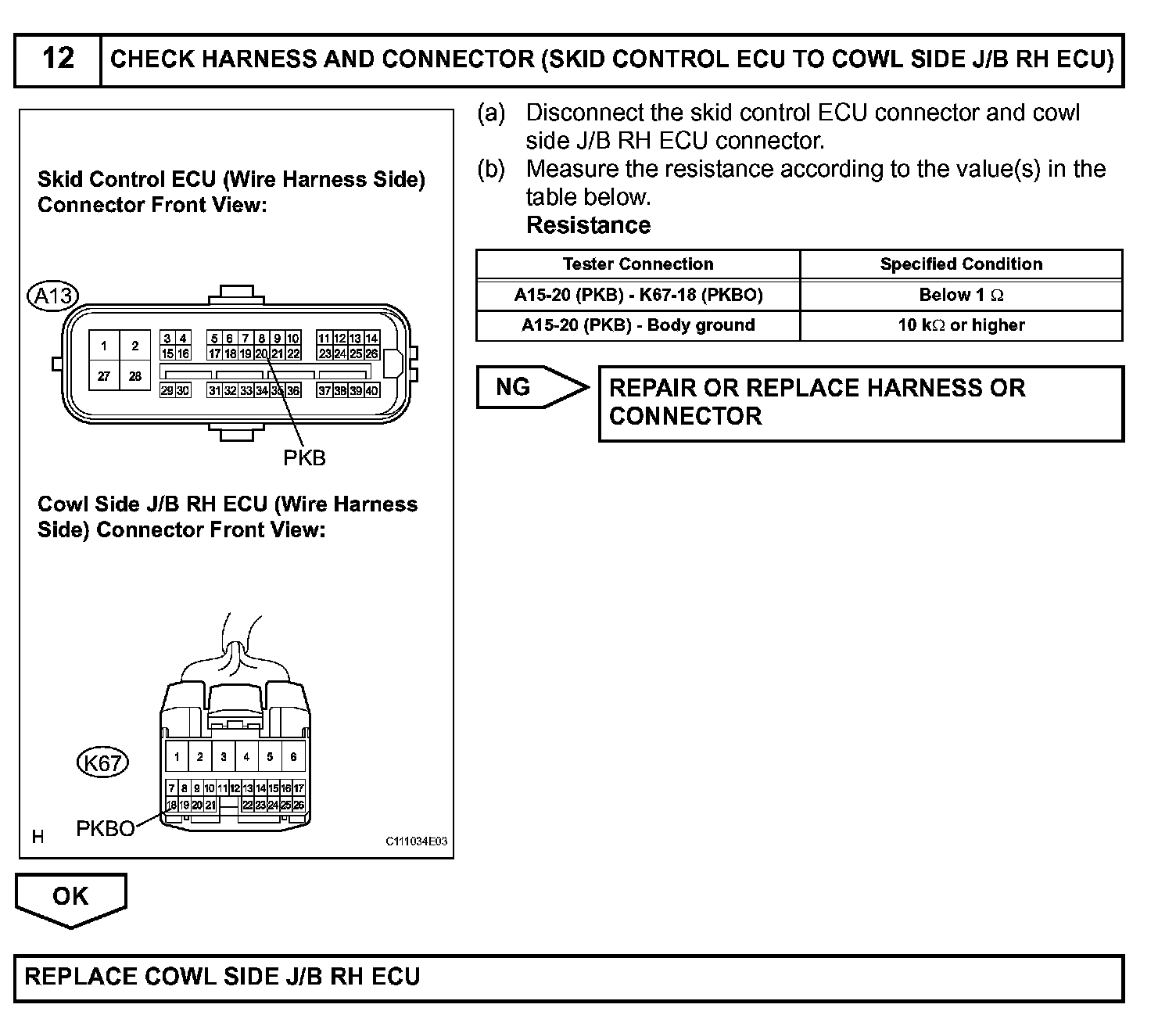

Step 12:

INSPECTION PROCEDURE

NOTE: When replacing the skid control ECU, perform initialization of linear solenoid valve and calibration. Initialization
