Brake Control Warning Light Remains ON

Brake Control Warning Light Remains ON

DESCRIPTION

If the ECU stores a DTC, the brake control (Electronically Controlled Brake System/VSC) warning light comes on in the combination meter.

The skid control ECU is connected to the combination meter via CAN and multiplex communications.

Wiring Diagram:

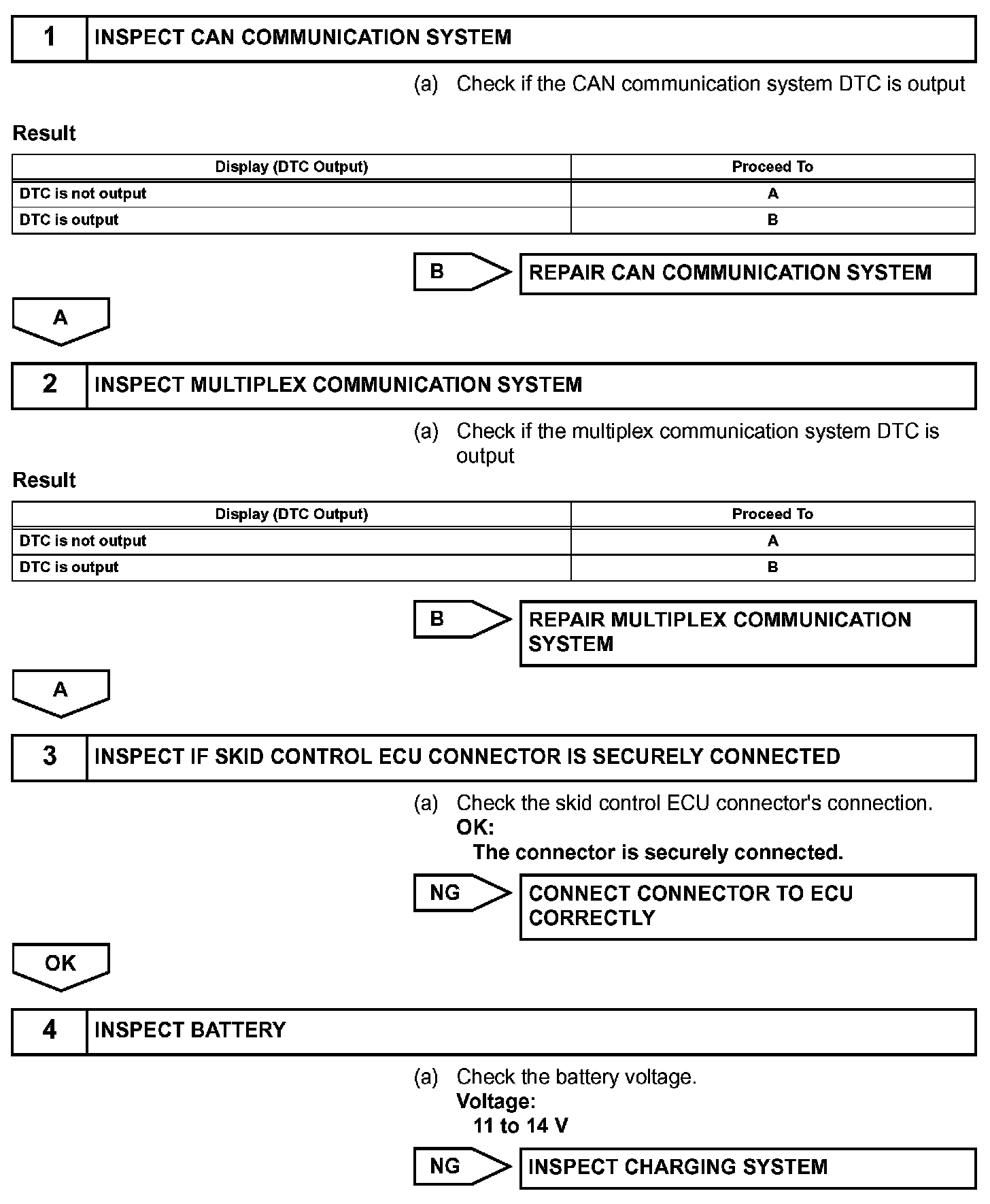

Step 1-4:

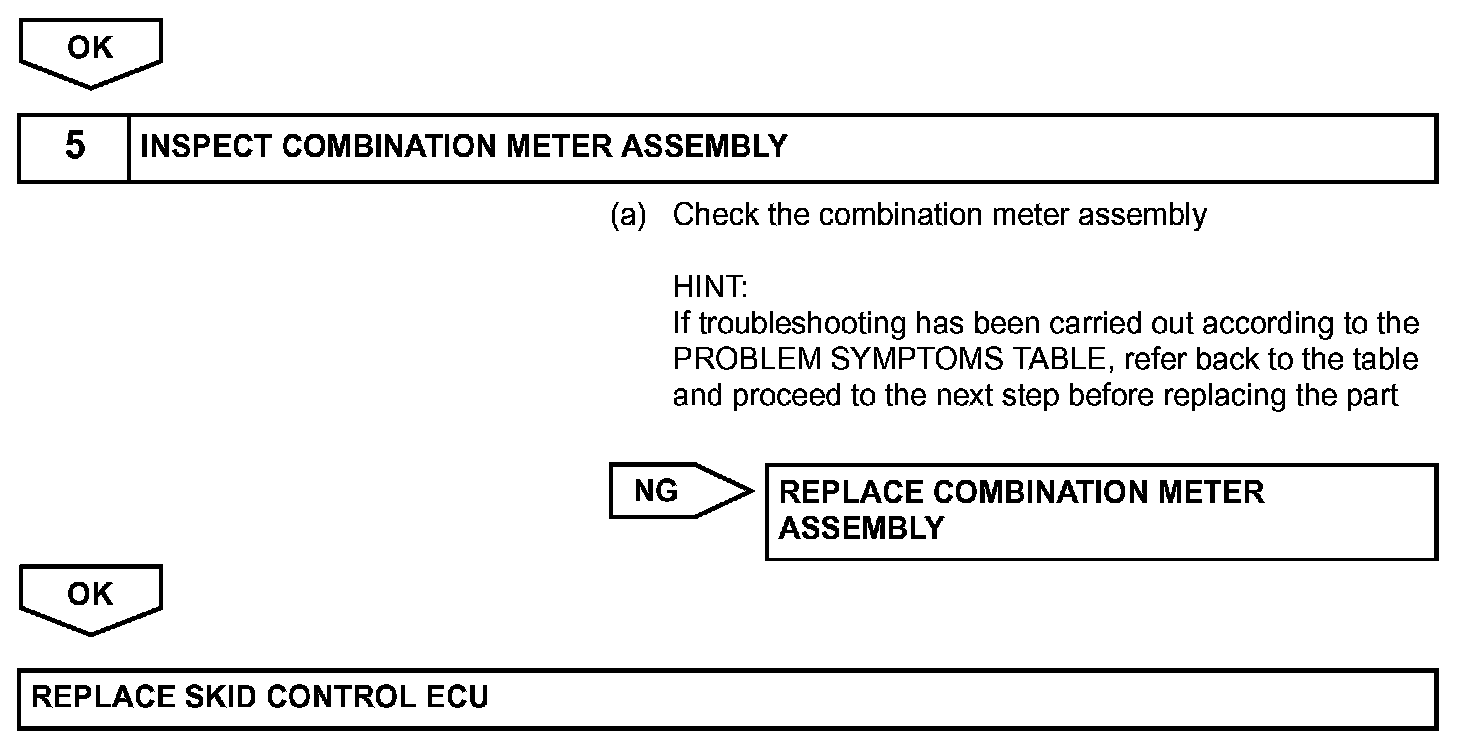

Step 4(Continued)-5:

INSPECTION PROCEDURE

NOTE: When replacing the skid control ECU, perform initialization of linear solenoid valve and calibration. Initialization
