Data List

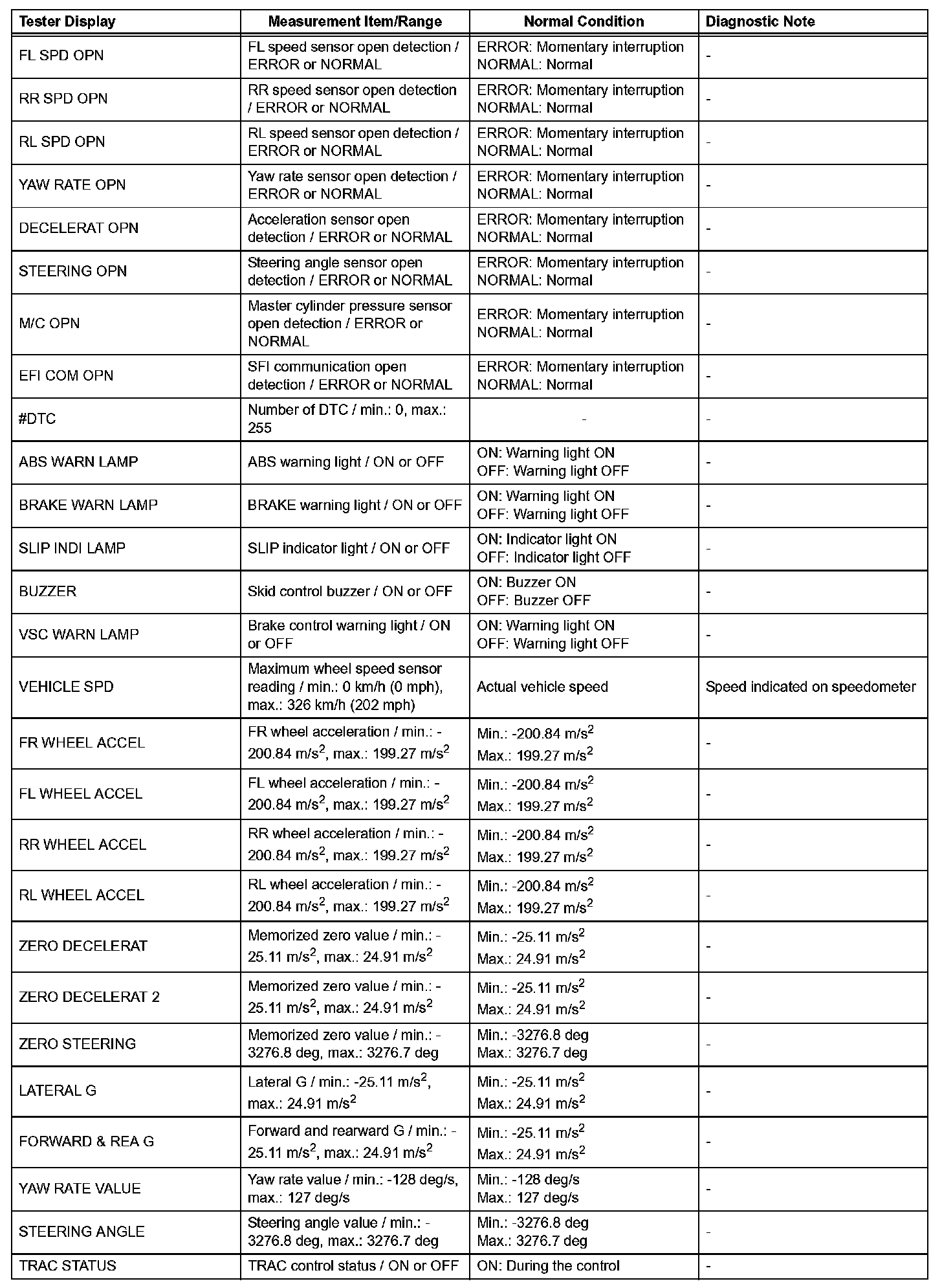

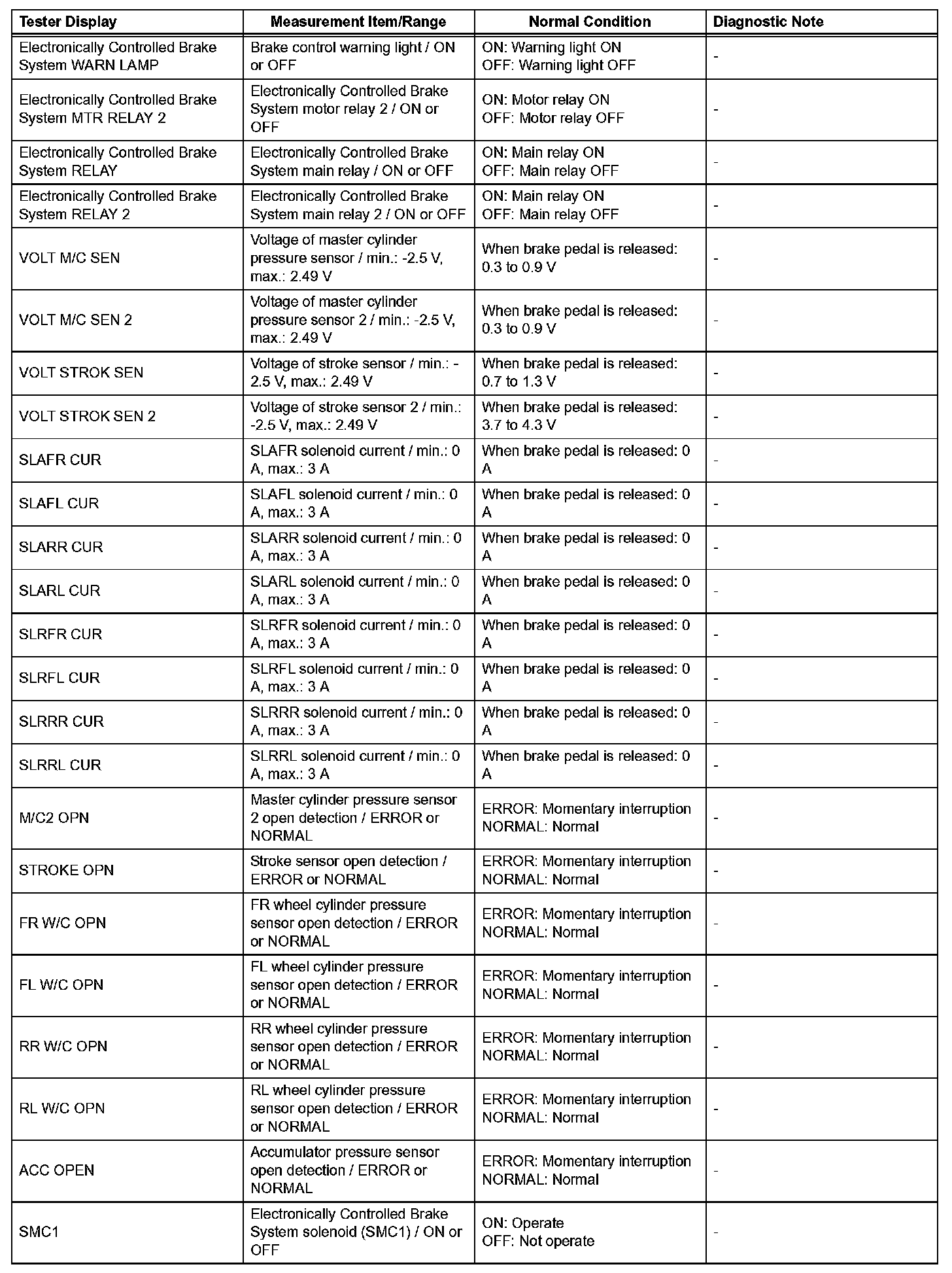

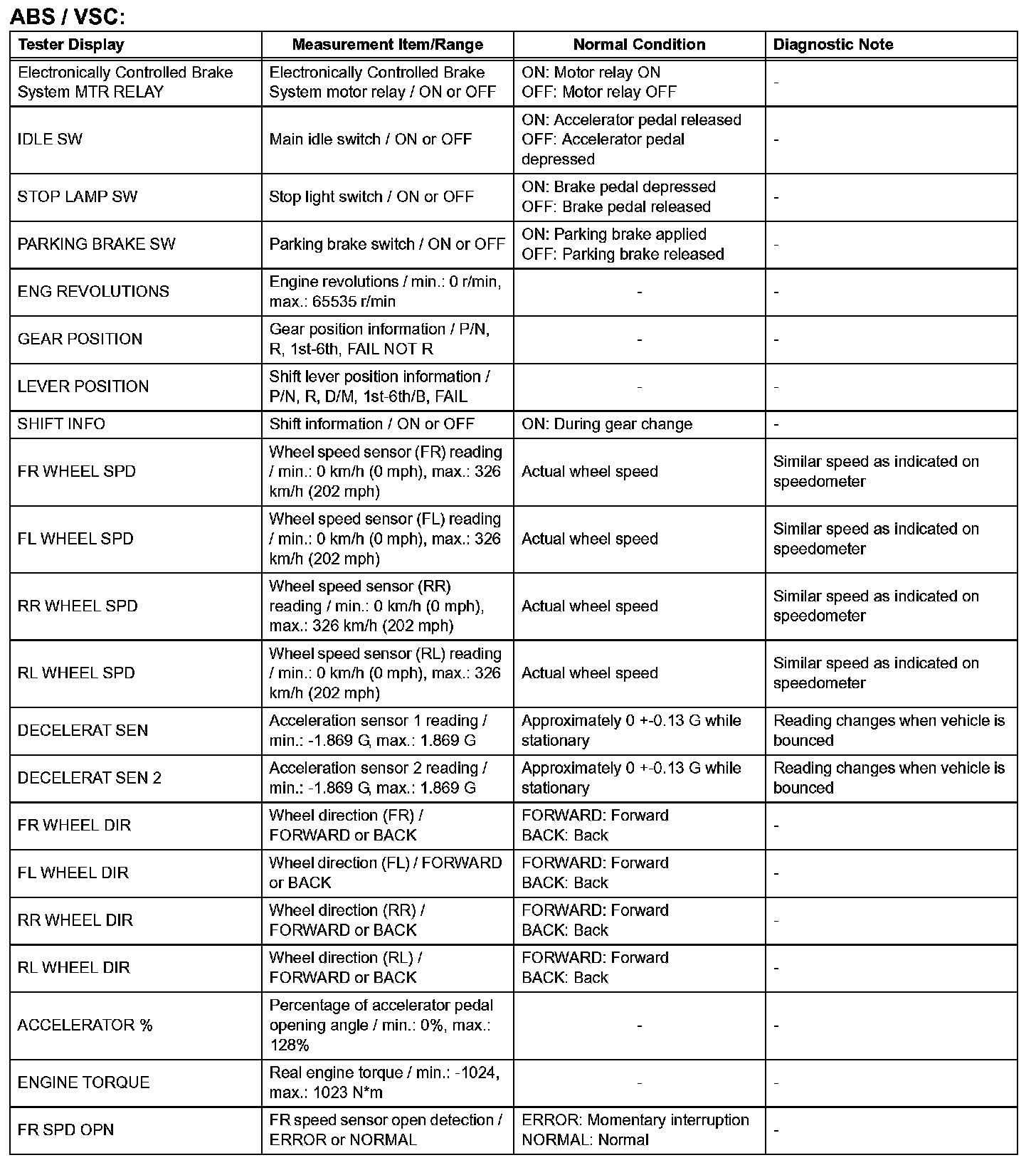

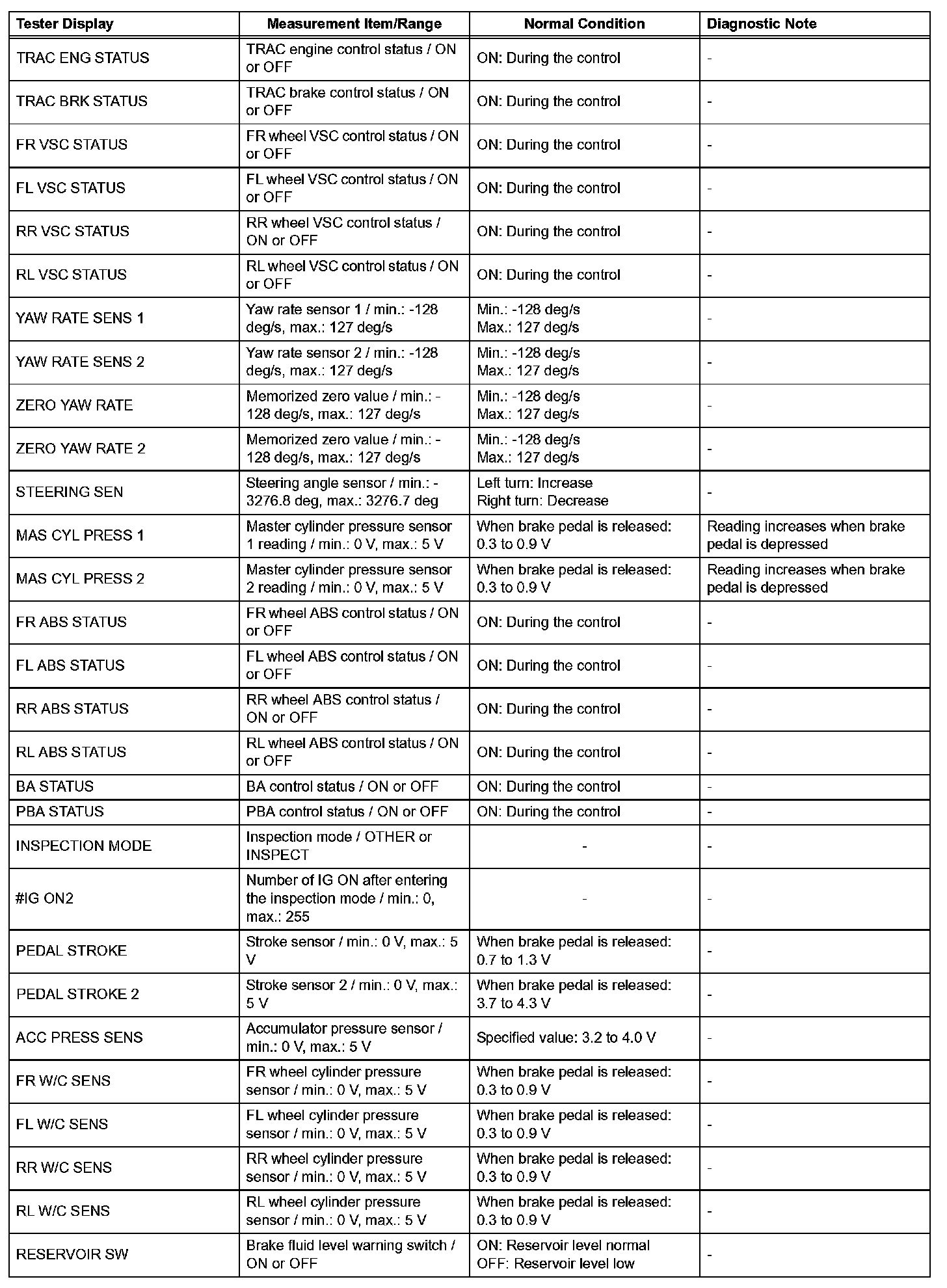

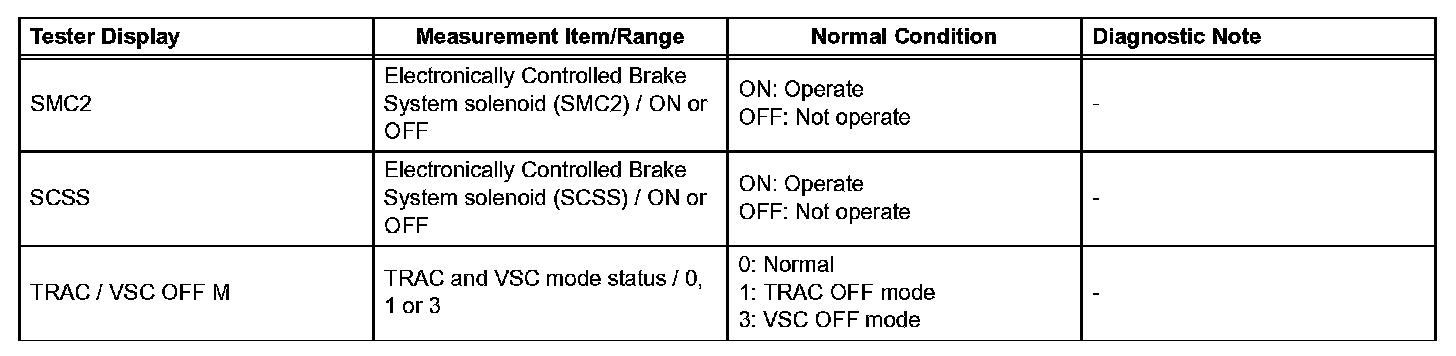

DATA LIST

Part 1:

Part 2:

Part 3:

Part 4:

Part 5:

HINT: With the intelligent tester connected to the DLC3 and the engine switch on (IG), the Electronically Controlled Brake System, ABS, and VSC data list can be displayed. Follow the prompts on the tester screen to access the DATA LIST.
