GS 350 AWD V6-3.5L (2GR-FSE)
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Reading and Clearing Diagnostic Trouble Codes
>>
Electronically Controlled Brake System
>>
Reading Diagnostic Trouble Codes
>>
With Manufacturer's Scan Tool
With Manufacturer's Scan Tool
DTC CHECK (WHEN USING INTELLIGENT TESTER:)
DTC check
1.

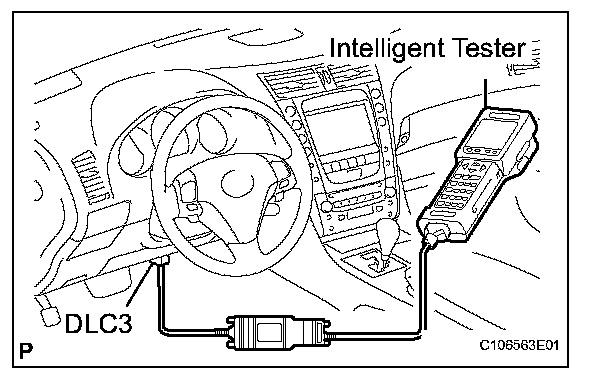

Connect the intelligent tester to the DLC3.
2.
Turn the engine switch on (IG).
3.
Read the DTCs following the prompts on the tester screen.
