Without Scan Tool

DTC CLEAR (WHEN USING SST CHECK WIRE:)

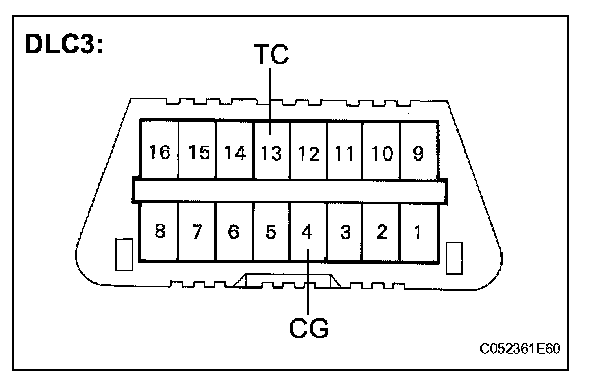

1. Using SST, connect terminals TC and CG of the DLC3.

SST 09843-18040




2. Turn the engine switch on (IG).

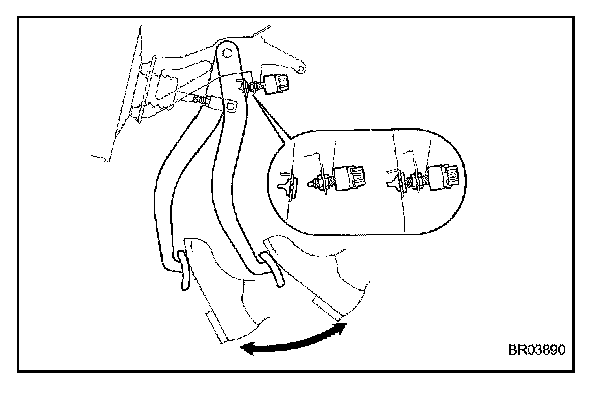

3. Clear the DTCs stored in the ECU by depressing the brake pedal 8 times or more within 5 seconds.
4. Check that the warning light and multi-information display indicate the normal system code.




5. Remove the SST from the terminals of the DLC3.

HINT: Clearing the DTCs cannot be performed by removing the battery cable or the ECU- IG fuse.

END OF DTC CLEAR (WHEN USING SST CHECK WIRE:)

a. Turn the engine switch on (IG).
b. Check that the ABS and brake control warning lights illuminate and then turn off after the engine starts.
