VSC OFF Switch

VSC OFF SWITCH

INSPECTION

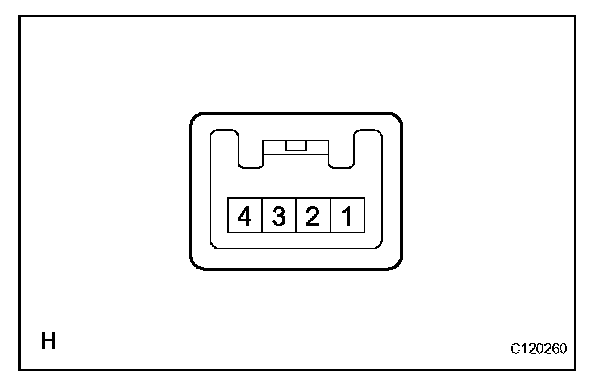

1. INSPECT VSC OFF SWITCH

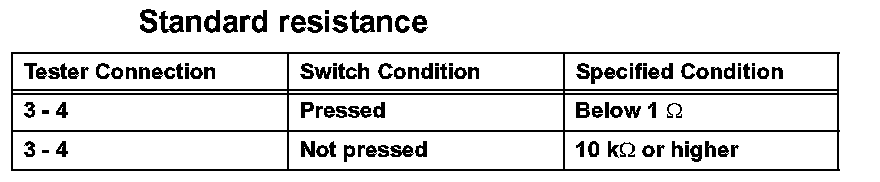

a. Measure the resistance according to the value(s) in the table given.

If the value is not as specified, replace the VSC OFF switch.
