Antilock Brakes / Traction Control Systems: Service and Repair
REMOVAL1. DISCONNECT BATTERY NEGATIVE TERMINAL
2. REMOVE LUGGAGE COMPARTMENT FLOOR MAT
a. Remove the luggage compartment floor mat.
3. REMOVE LUGGAGE COMPARTMENT TRIM NO.1 COVER
a. Remove the luggage compartment trim cover No.1
4. REMOVE ROPE HOOK ASSEMBLY
a. Remove the bolt and rope hook assembly
5. REMOVE REAR FLOOR FINISH PLATE
a. Remove the 3 clips and rear floor finish plate.
6. REMOVE ROPE HOOK
a. Remove the 2 rope hooks.
7. REMOVE LUGGAGE COMPARTMENT TRIM NO.2 HOOK
a. Remove the 2 luggage compartment trim No.2 hooks.
8. REMOVE LUGGAGE COMPARTMENT TRIM COVER FRONT
a. Remove the clip and luggage compartment trim cover front.
9. REMOVE LUGGAGE COMPARTMENT TRIM COVER SIDE RH
a. Remove the rope hook assembly.
b. Remove the clip and luggage compartment trim cover side RH.
10. REMOVE BRAKE CONTROL POWER SUPPLY ASSEMBLY
a. Disconnect the connector.

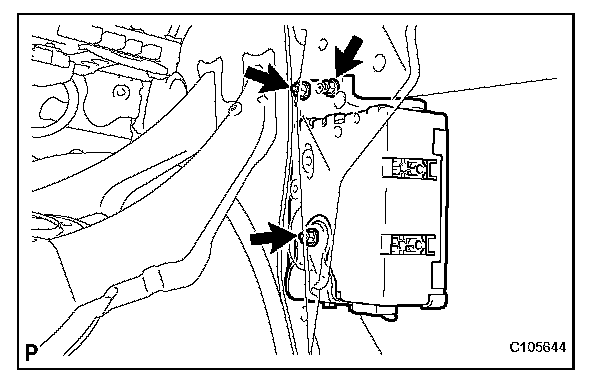

b. Remove the 3 nuts and the brake control power supply assembly.
c. Remove the 4 bolts and 2 brackets.
INSTALLATION
1. INSTALL BRAKE CONTROL POWER SUPPLY ASSEMBLY
a. Install the 2 brackets with the 4 bolts.
Torque: 13.5 N.m (138 kgf.cm, 10 ft.lbf)

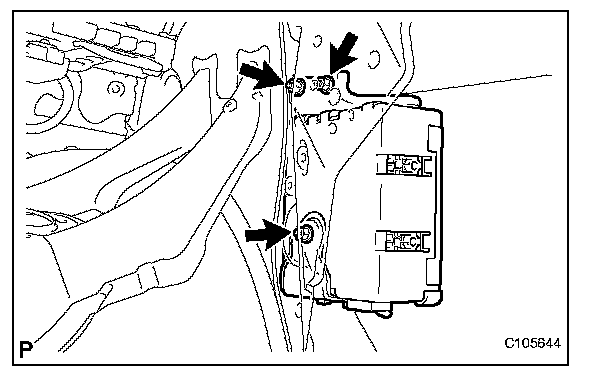

b. Install the brake control power supply assembly with the 3 nuts.
Torque: 17 N.m (173 kgf.cm, 13 ft.lbf)
c. Connect the connector to the brake control power supply assembly.
2. INSTALL LUGGAGE COMPARTMENT TRIM COVER SIDE RH
a. Install the luggage compartment trim cover side RH with the clip.
b. Install the rope hook assembly.
3. INSTALL LUGGAGE COMPARTMENT TRIM COVER FRONT
a. Install the luggage compartment trim cover front with the clip.
4. INSTALL LUGGAGE COMPARTMENT TRIM NO.2 HOOK
a. Install the 2 luggage compartment trim No.2 hooks .
5. INSTALL ROPE HOOK
a. Install the 2 rope hooks.
6. INSTALL REAR FLOOR FINISH PLATE
a. Install the rear floor finish plate with the clip.
7. INSTALL ROPE HOOK ASSEMBLY
a. Install the 2 rope hook assembly.
8. INSTALL LUGGAGE COMPARTMENT TRIM NO.1 COVER
a. Install the luggage compartment trim No.1 cover
9. INSTALL LUGGAGE COMPARTMENT FLOOR MAT
a. Install the luggage compartment floor mat.
10. CONNECT BATTERY CABLE TO BATTERY NEGATIVE TERMINAL
11. CHECK AND CLEAR DTC
12. PERFORM INITIALIZATION
Some systems need initialization after reconnecting the cable to the negative battery terminal.
