Silencer Sheet Installation Areas

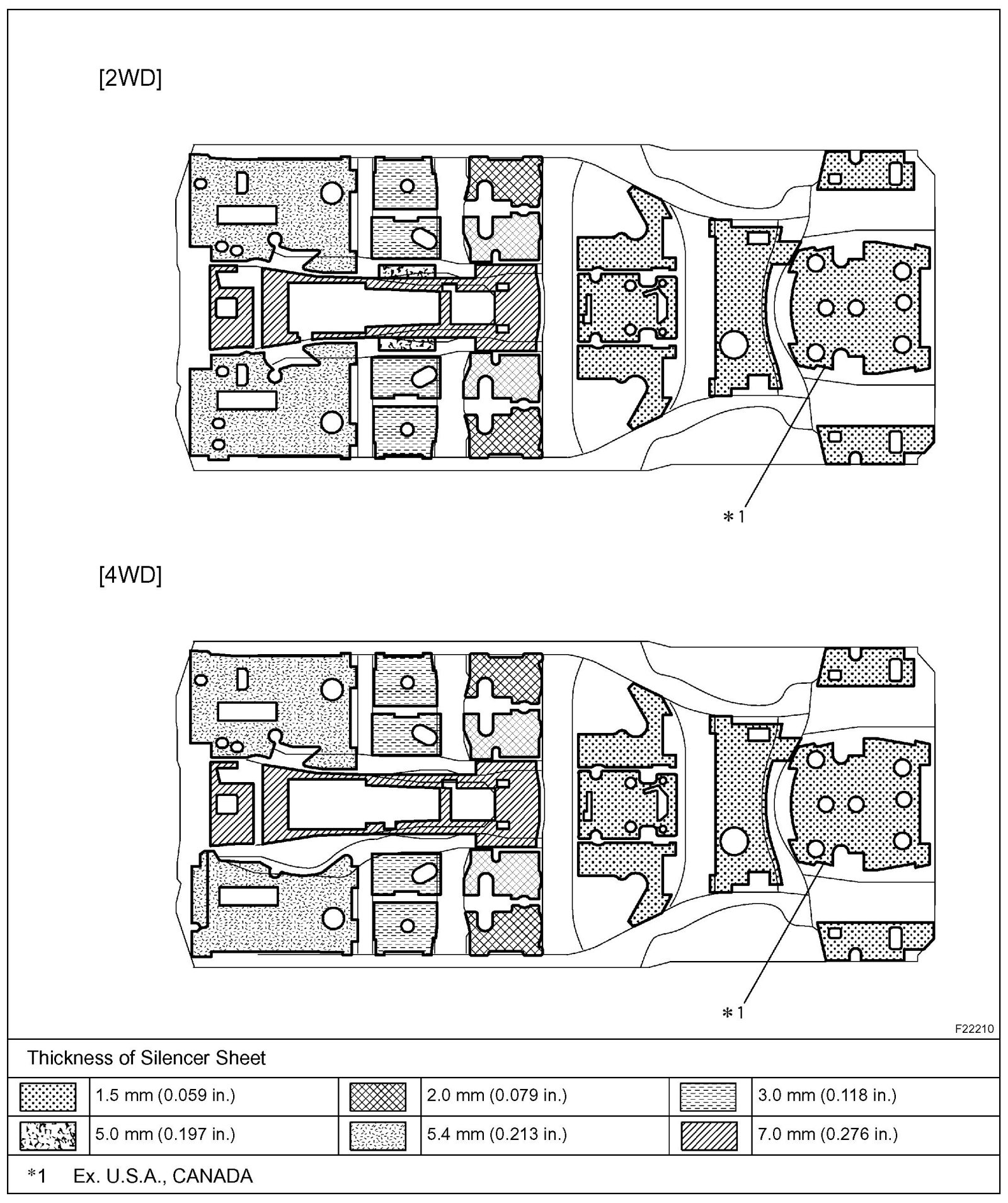

SILENCER SHEET INSTALLATION AREAS






HINT: Use a silencer seat as a replacement of damping coat in the area where damping coat is applied.
