Front Seatback Heater
FRONT SEATBACK HEATERINSPECTION
1. INSPECT FRONT SEATBACK HEATER LH

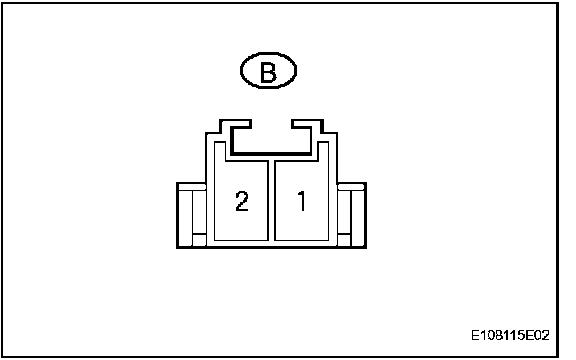

a. Disconnect the B heater connector.

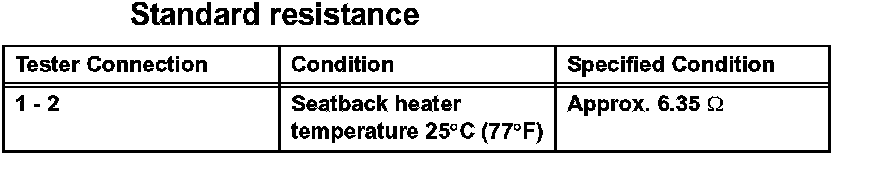

b. Measure the resistance of the heater.
If the result is not as specified, the heater may have a malfunction.
2. INSPECT FRONT SEATBACK HEATER RH

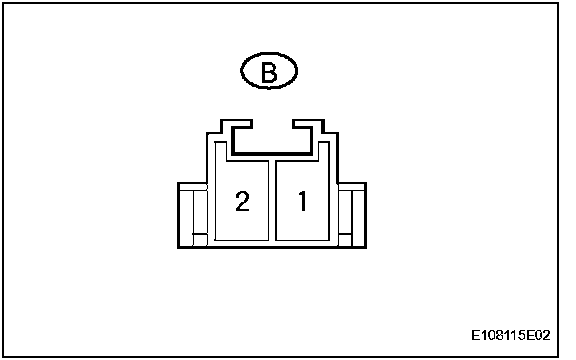

a. Disconnect the B heater connector.

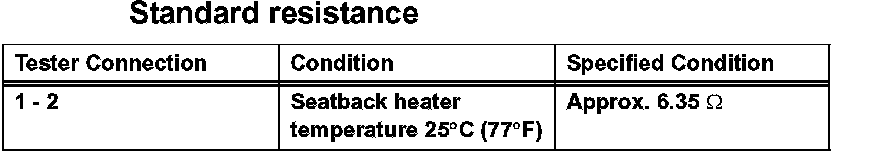

b. Measure the resistance of the heater.
If the result is not as specified, the heater may have a malfunction.
