Front Seat Cushion Heater

FRONT SEAT CUSHION HEATER

INSPECTION

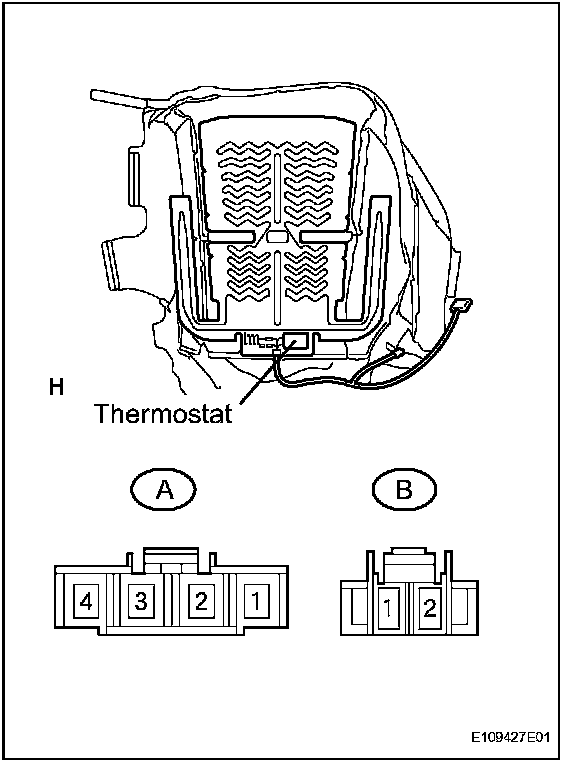

1. INSPECT FRONT SEAT CUSHION HEATER LH





a. Heat the thermostat with a heat light.

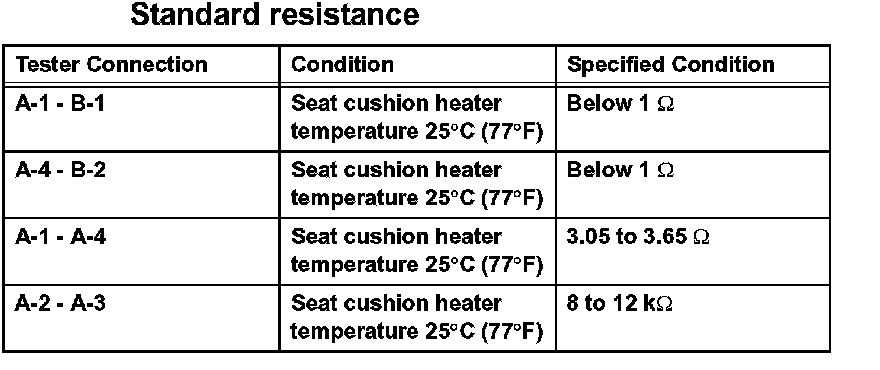

b. Measure the resistance of the heater.





If the result is not as specified, the heater control may have a malfunction.

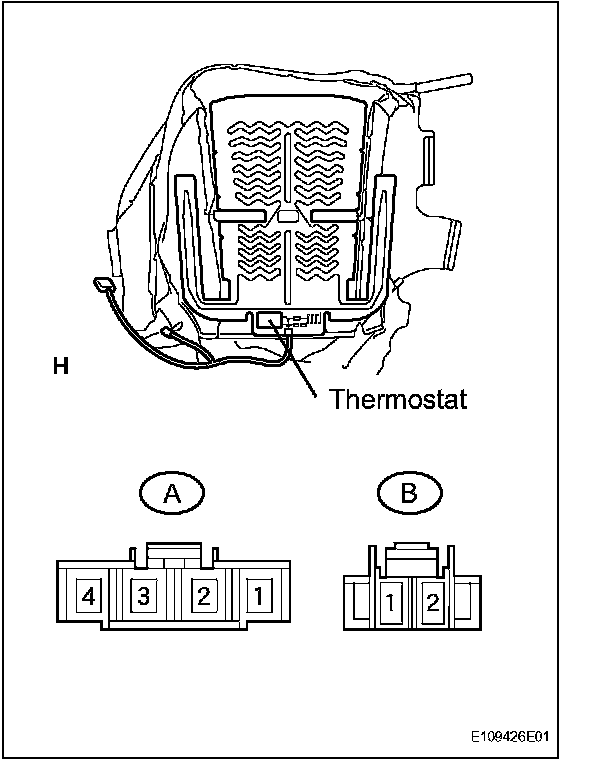

2. INSPECT FRONT SEAT CUSHION HEATER RH





a. Heat the thermostat with a heat light.

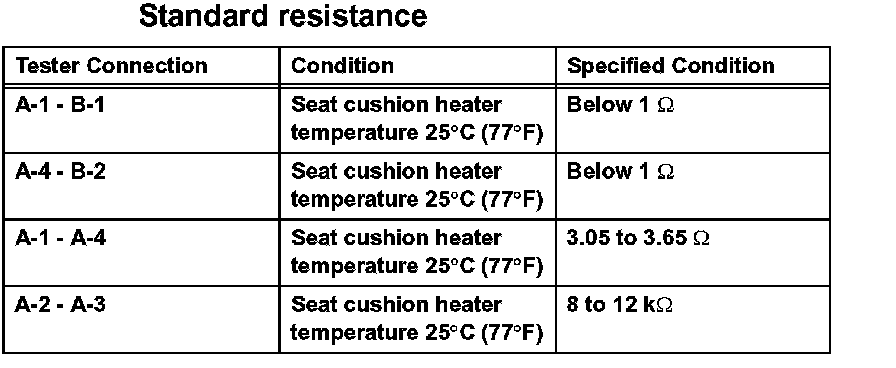

b. Measure the resistance of the heater.





If the result is not as specified, the heater control may have a malfunction.
