Home >> Lexus >> 2007 >> GS 350 AWD V6-3.5L (2GR-FSE) >> Repair and Diagnosis >> Body and Frame >> Seats >> Memory Positioning Systems >> Memory Positioning Module >> Locations

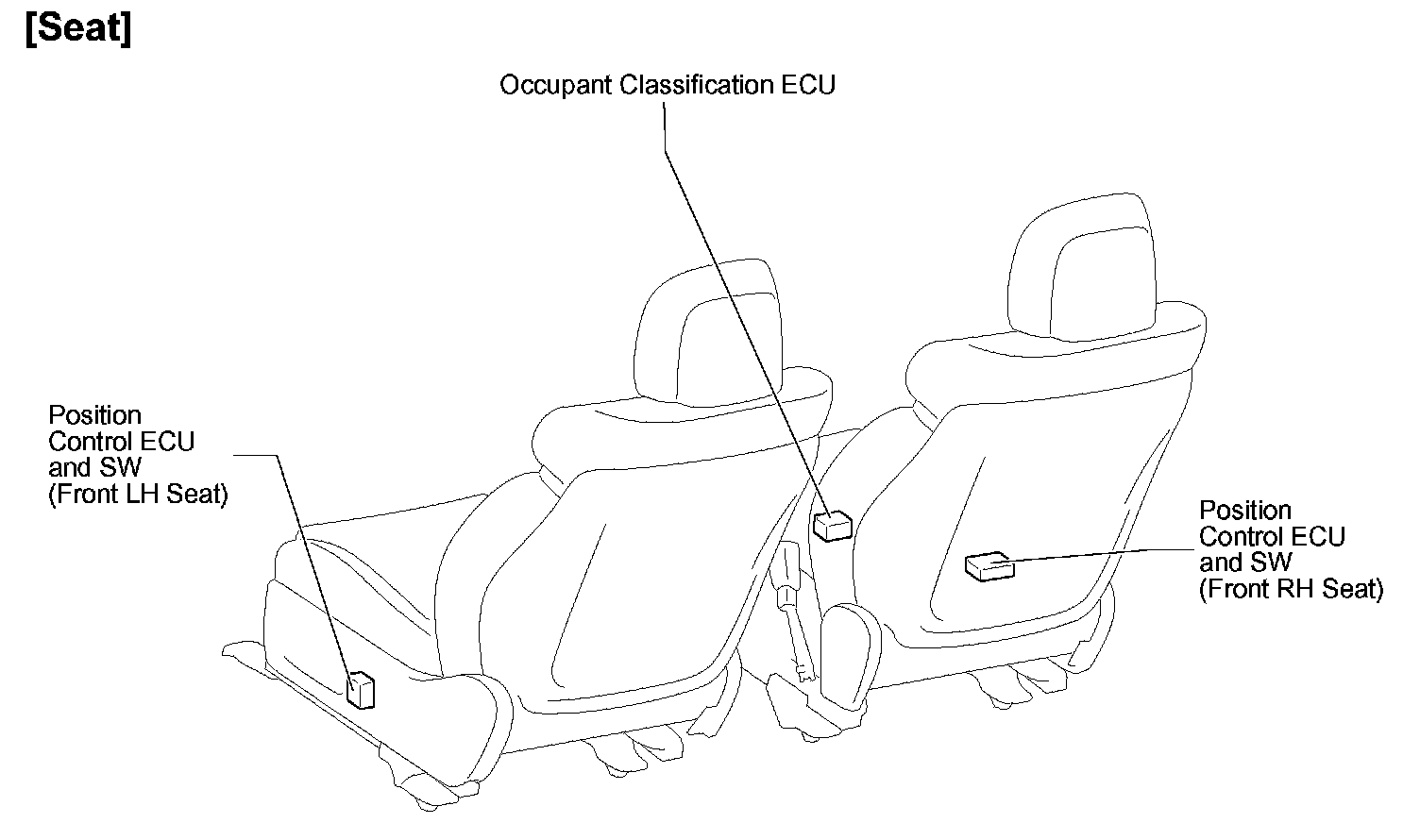

Memory Positioning Module: Locations

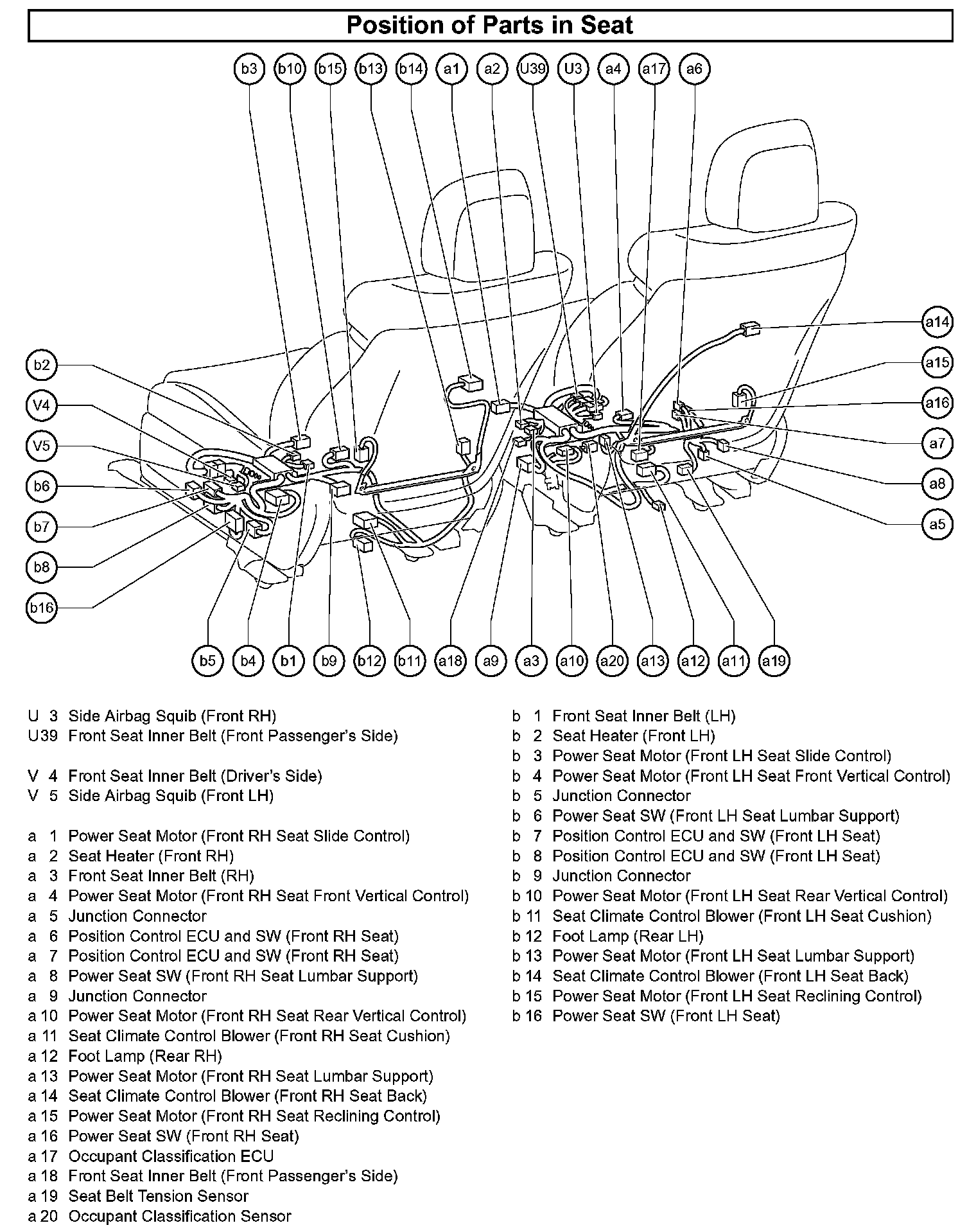

Seat:



Fo - Se:

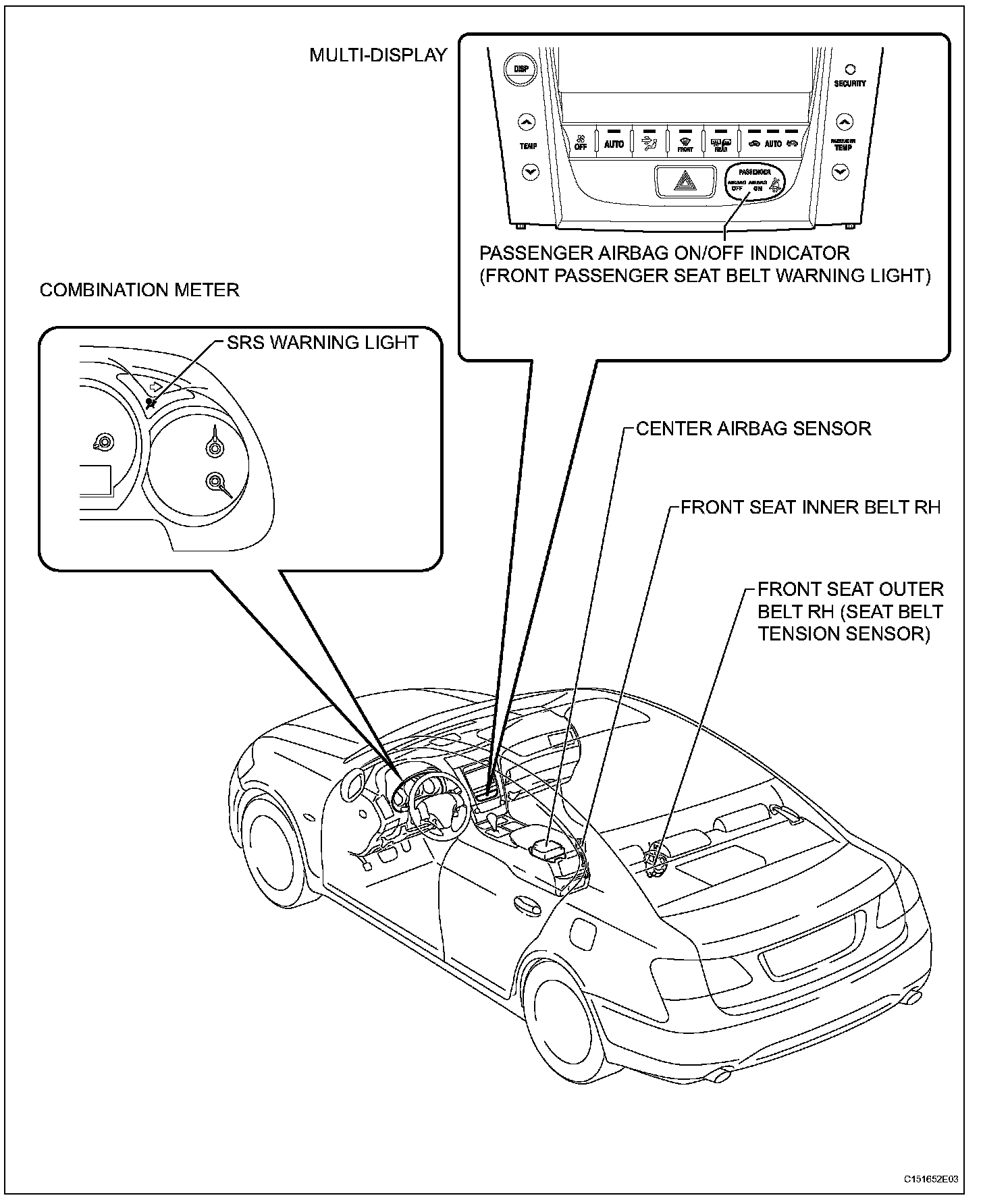

Occupant Classification System:

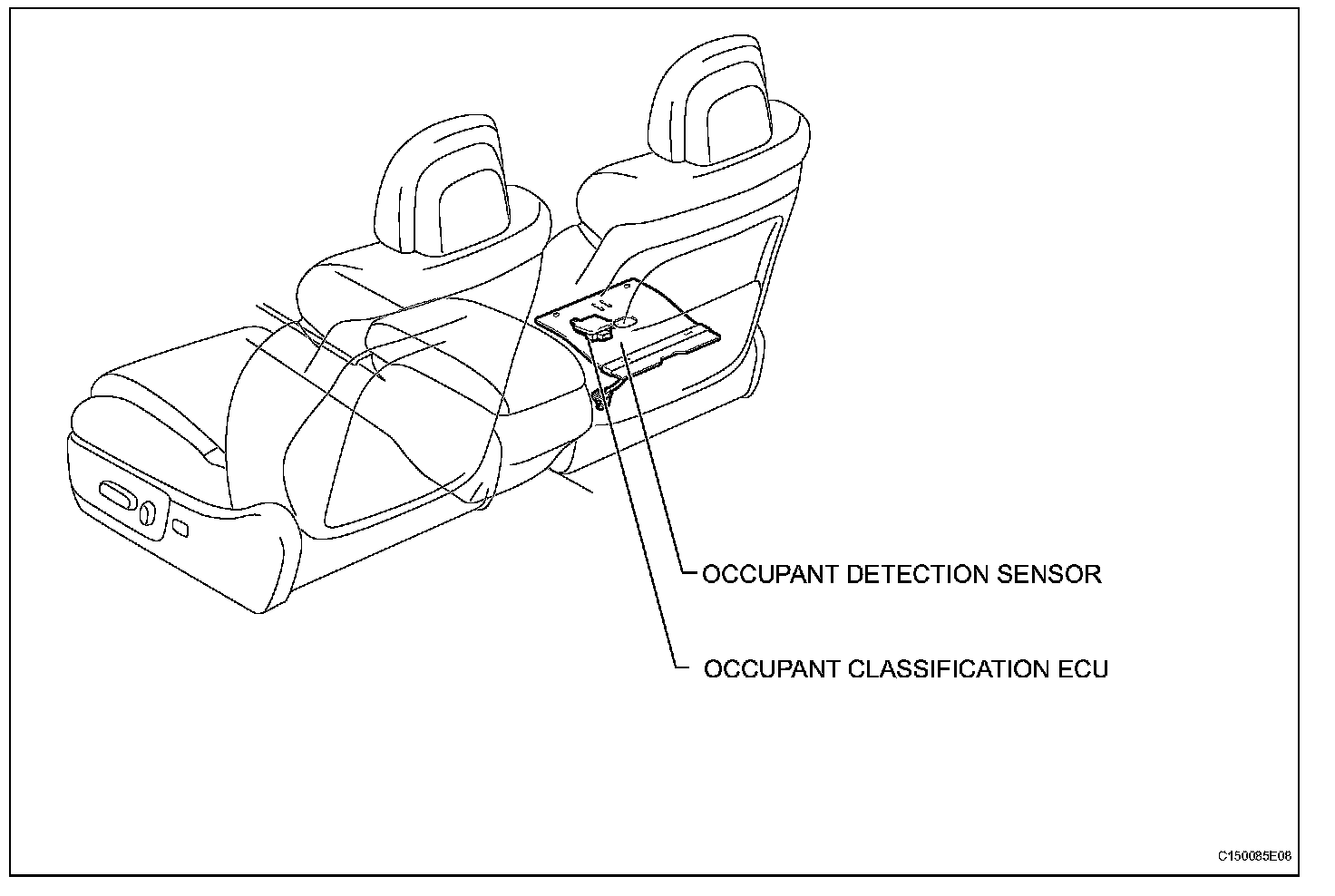

Occupant Classification System:
