Seats: Locations

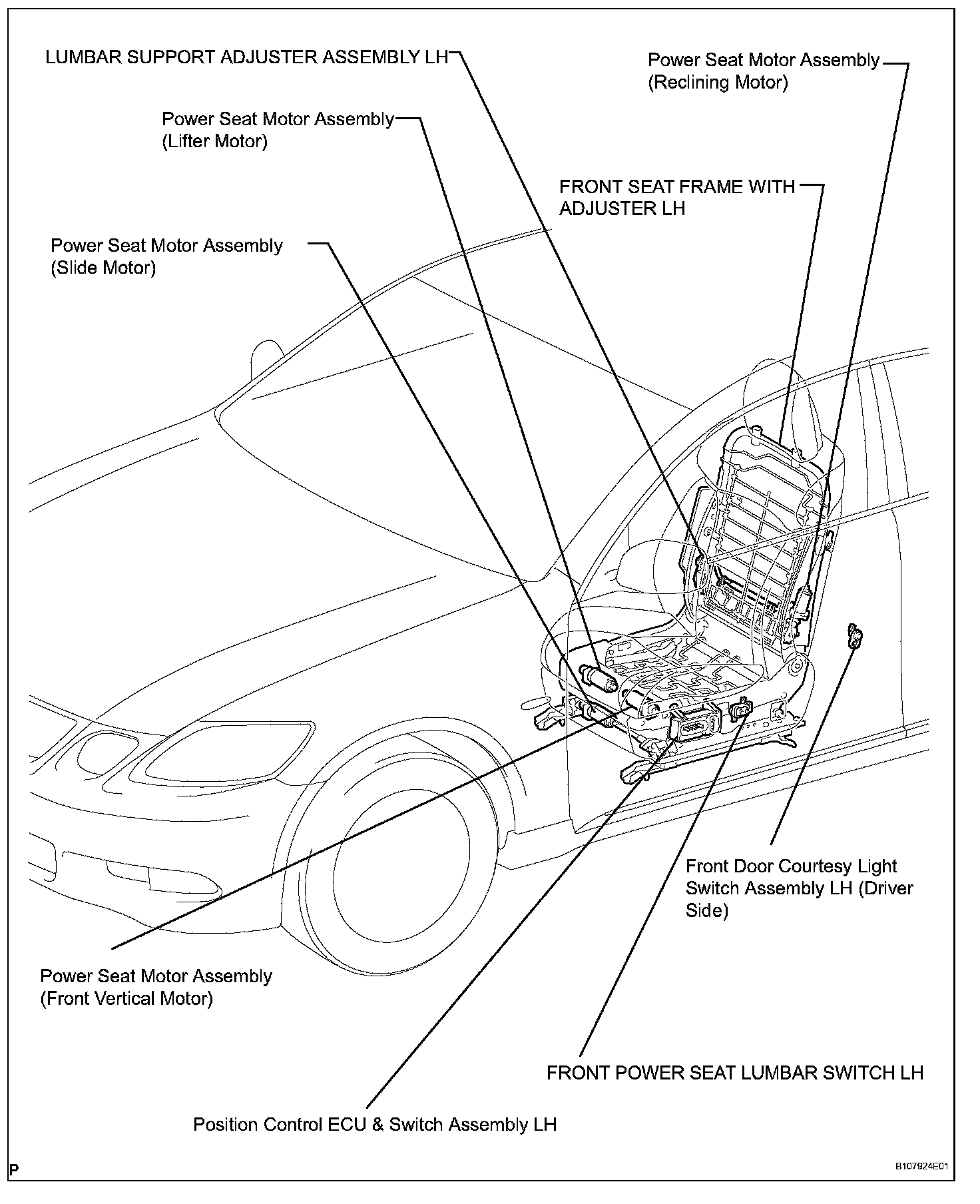

Front Power Seat Control System:

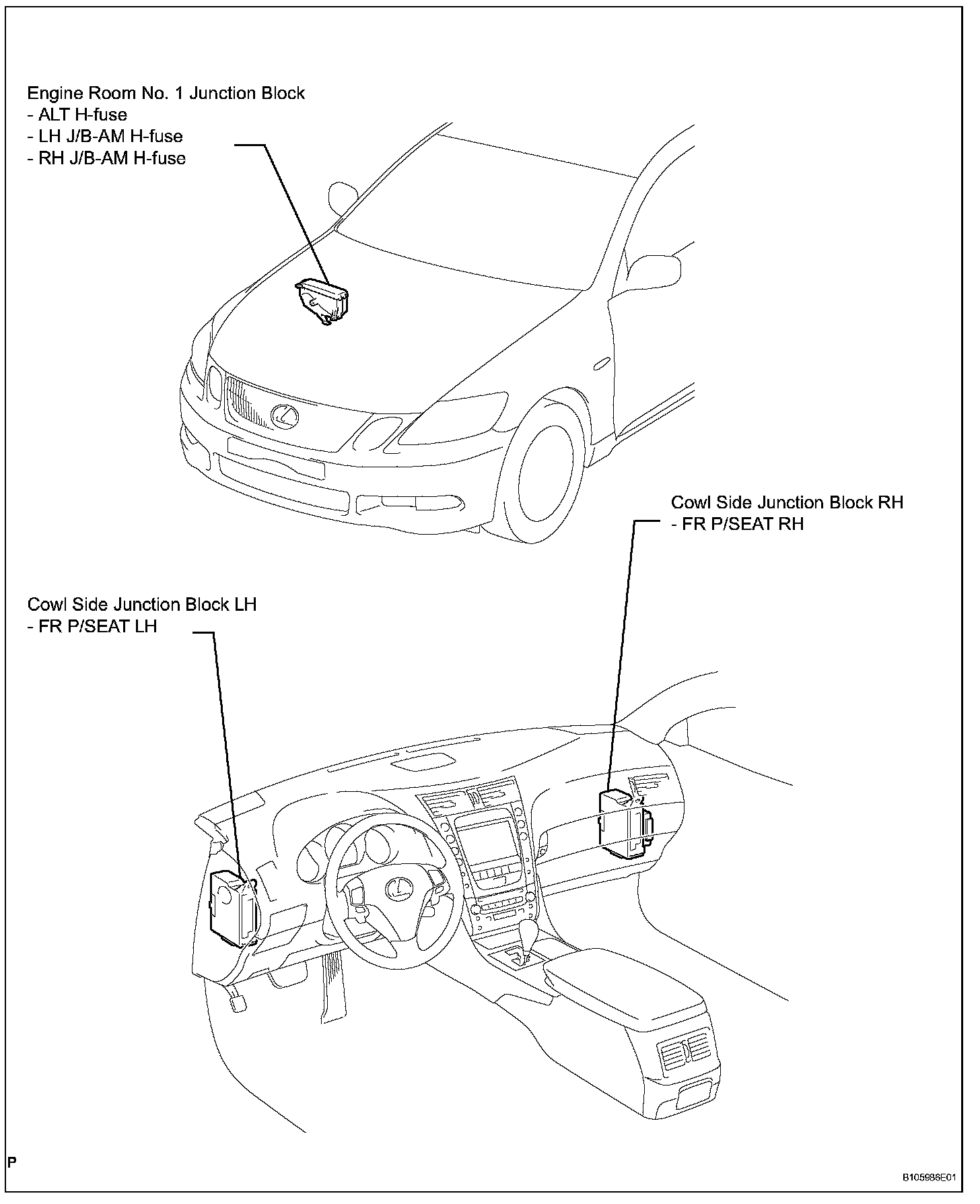

Front Power Seat Control System:

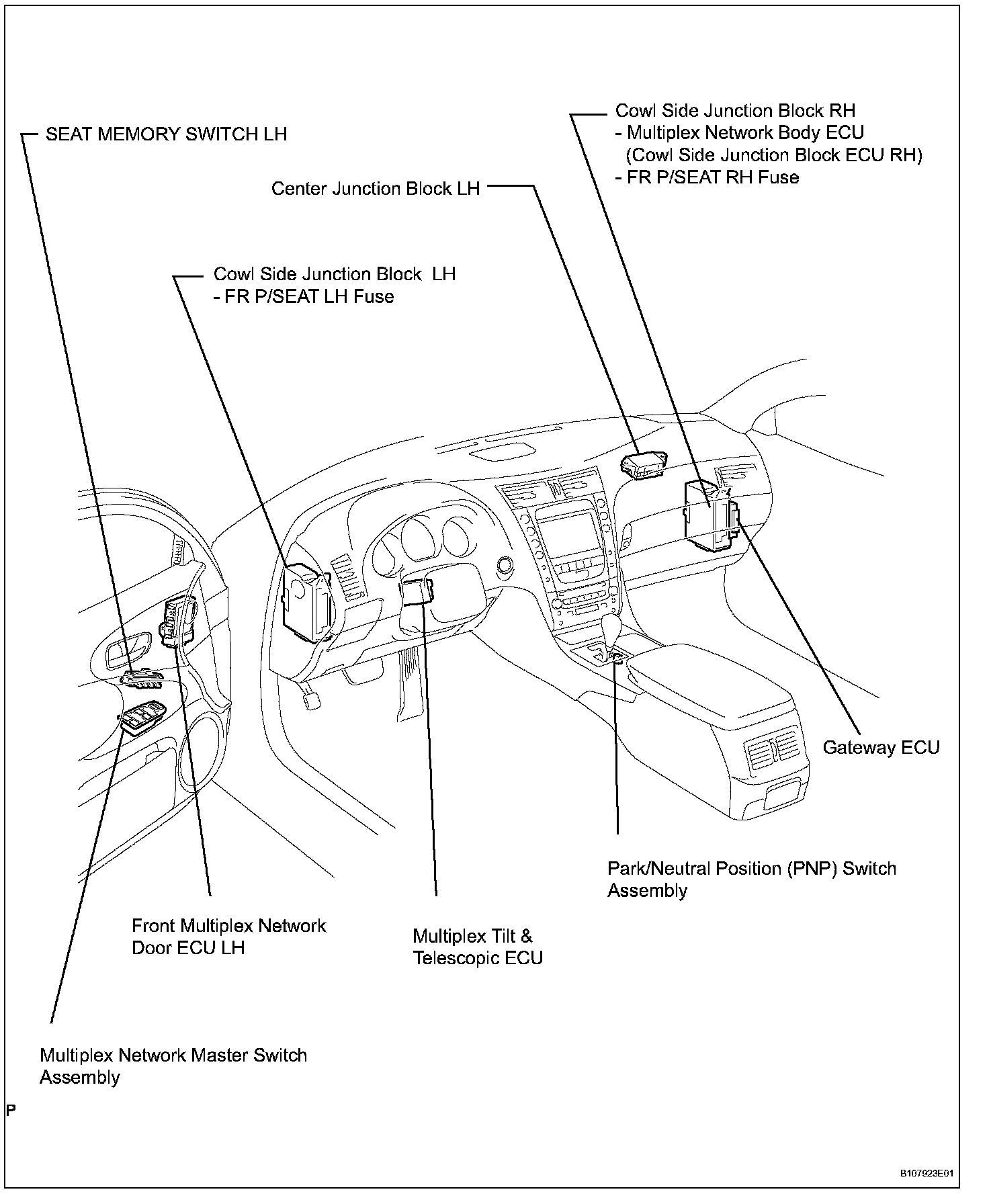

Front Power Seat Control System (w/ Seat Position Memory System):

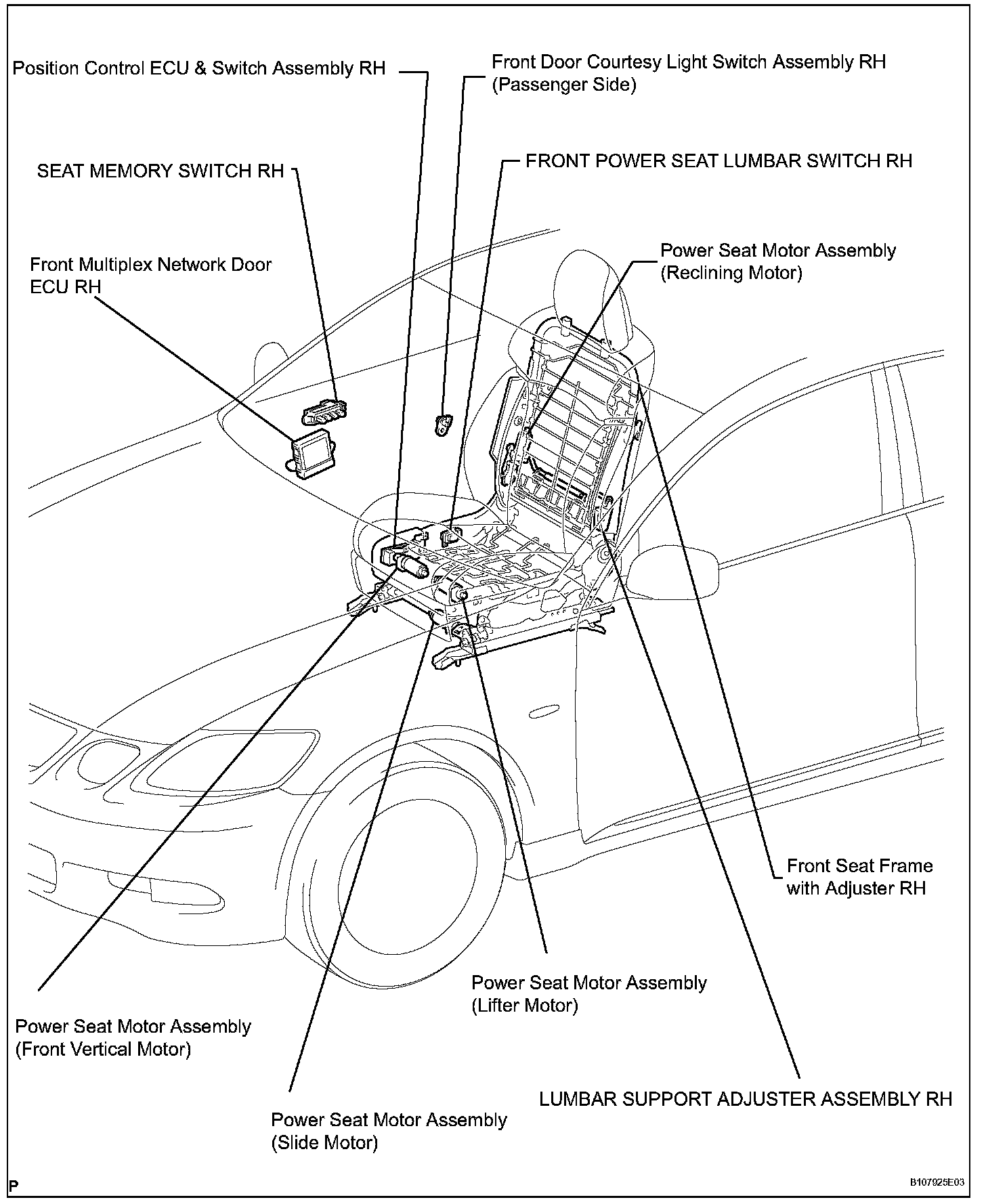

Front Power Seat Control System (w/ Seat Position Memory System):

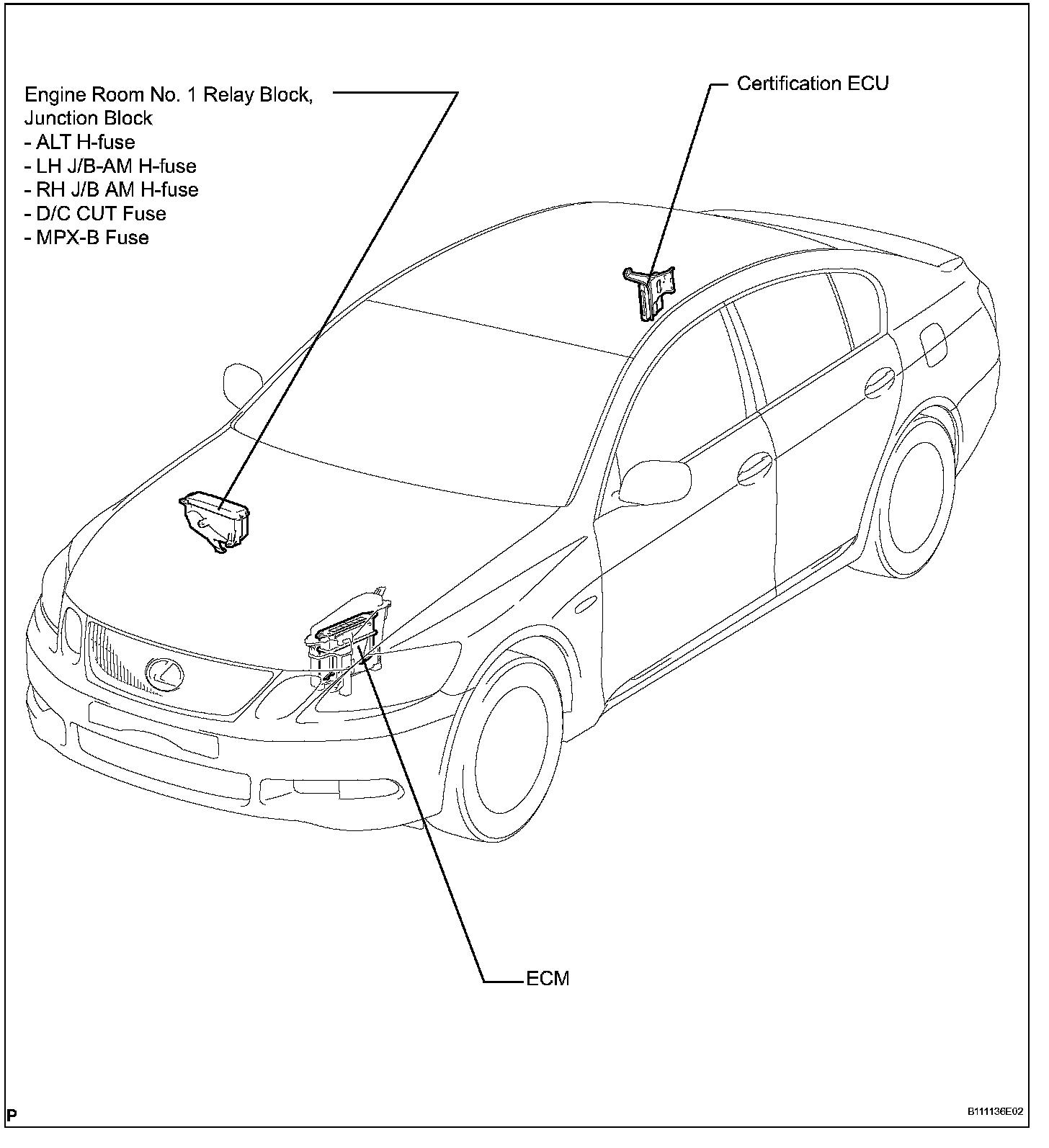

Front Power Seat Control System (w/ Seat Position Memory System):



Front Power Seat Control System (w/ Seat Position Memory System):

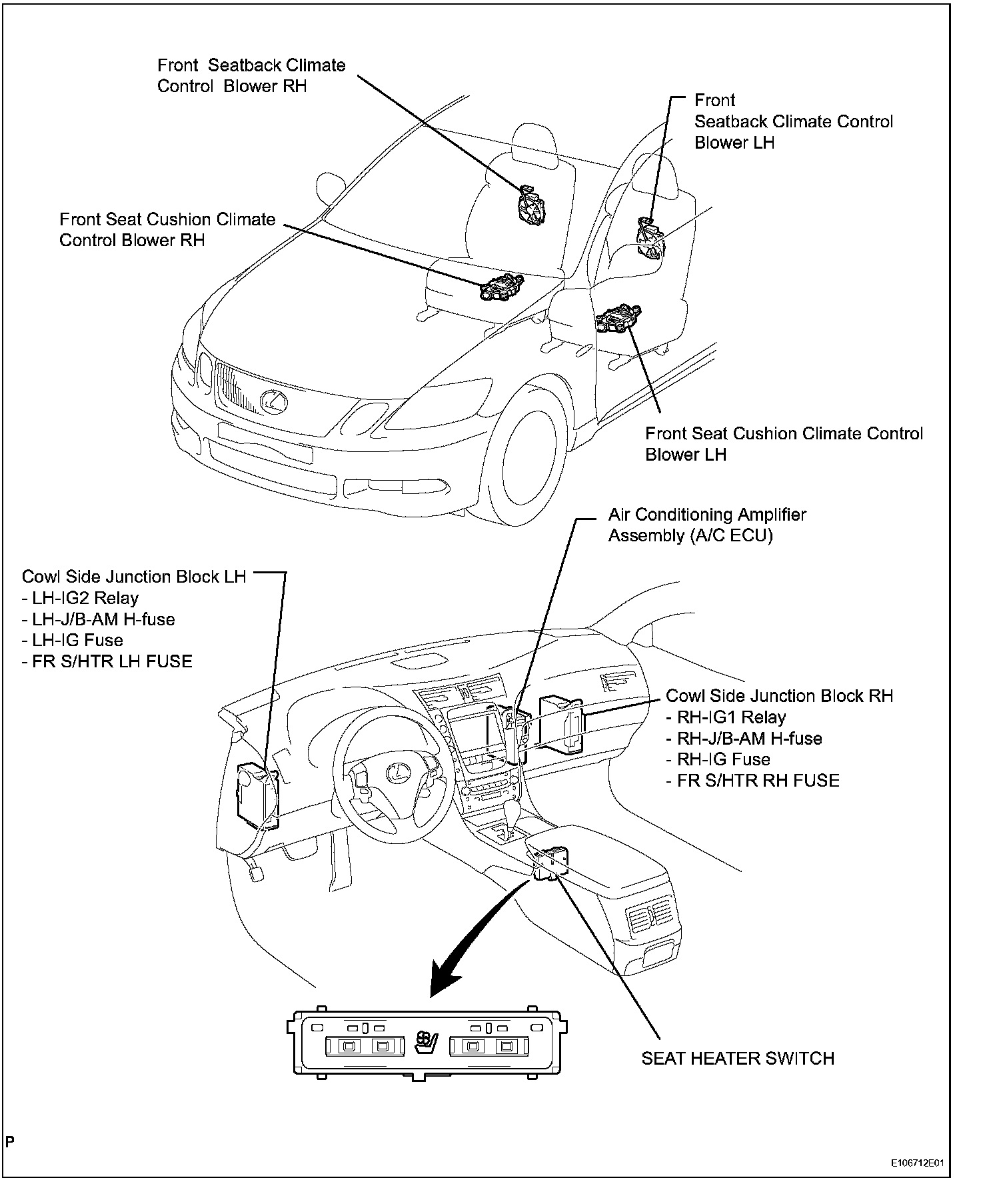

Climate Control Seat System:
