Sliding Roof ECU Power Source Circuit

Sliding Roof ECU Power Source Circuit

DESCRIPTION
The sliding roof ECU receives signals from the sliding roof switch and activates the sliding roof. However, fuse, wire harness or sliding roof ECU malfunctions may cause the sliding roof system to stop operating.

WIRING DIAGRAM

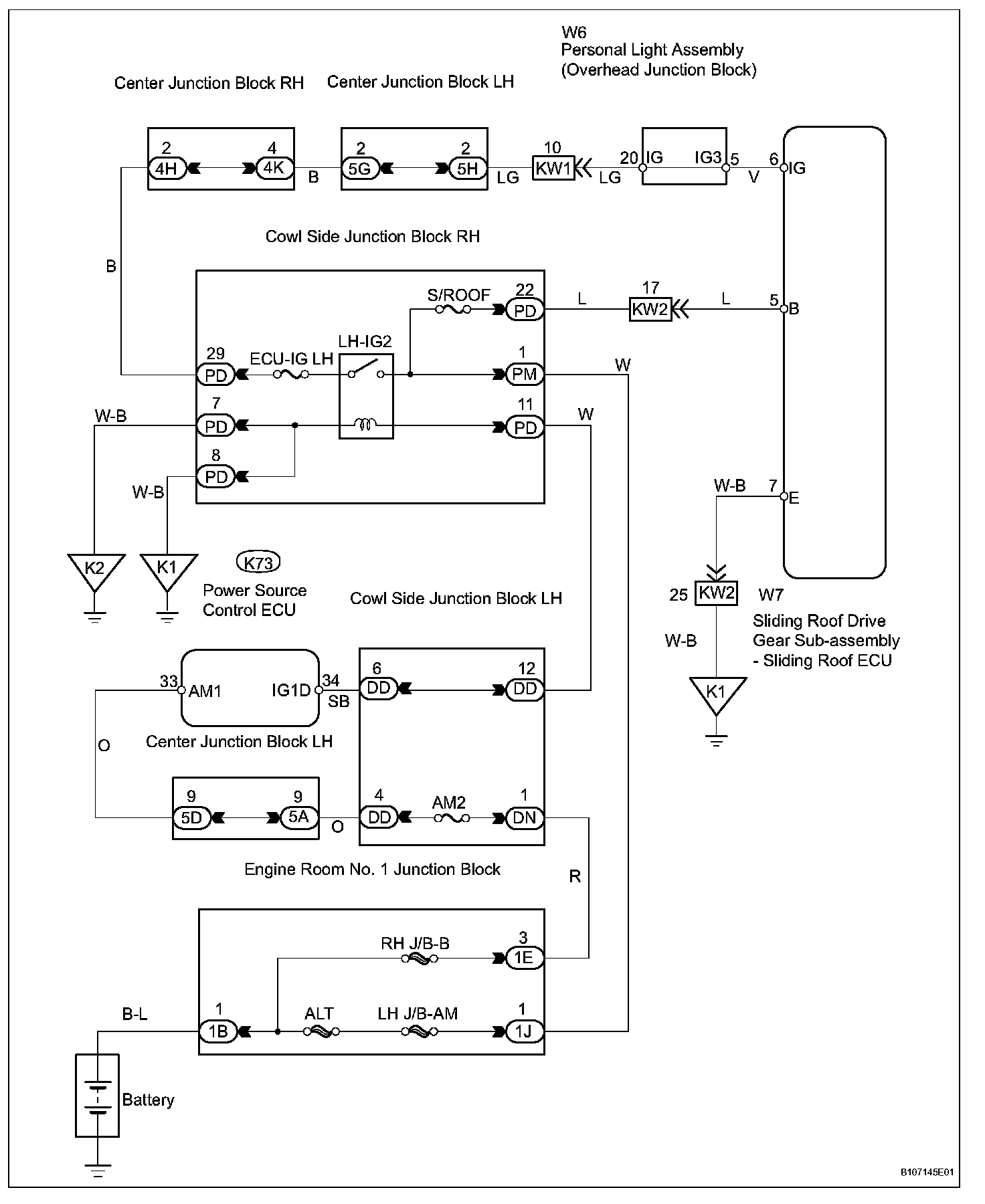

Wiring Diagram:

INSPECTION PROCEDURE

Step 1 - 2:

Step 3:

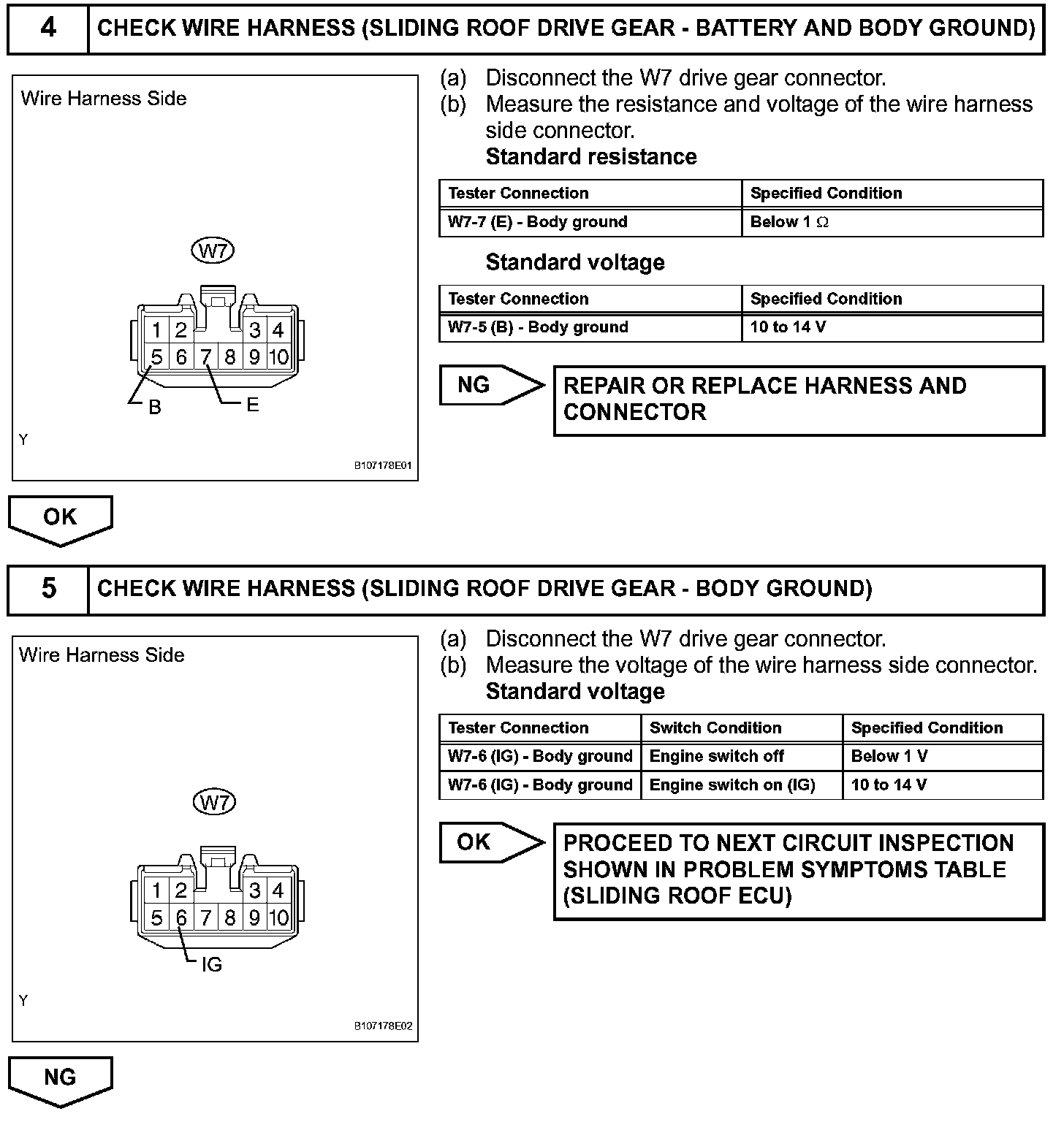

Step 4 - 5:

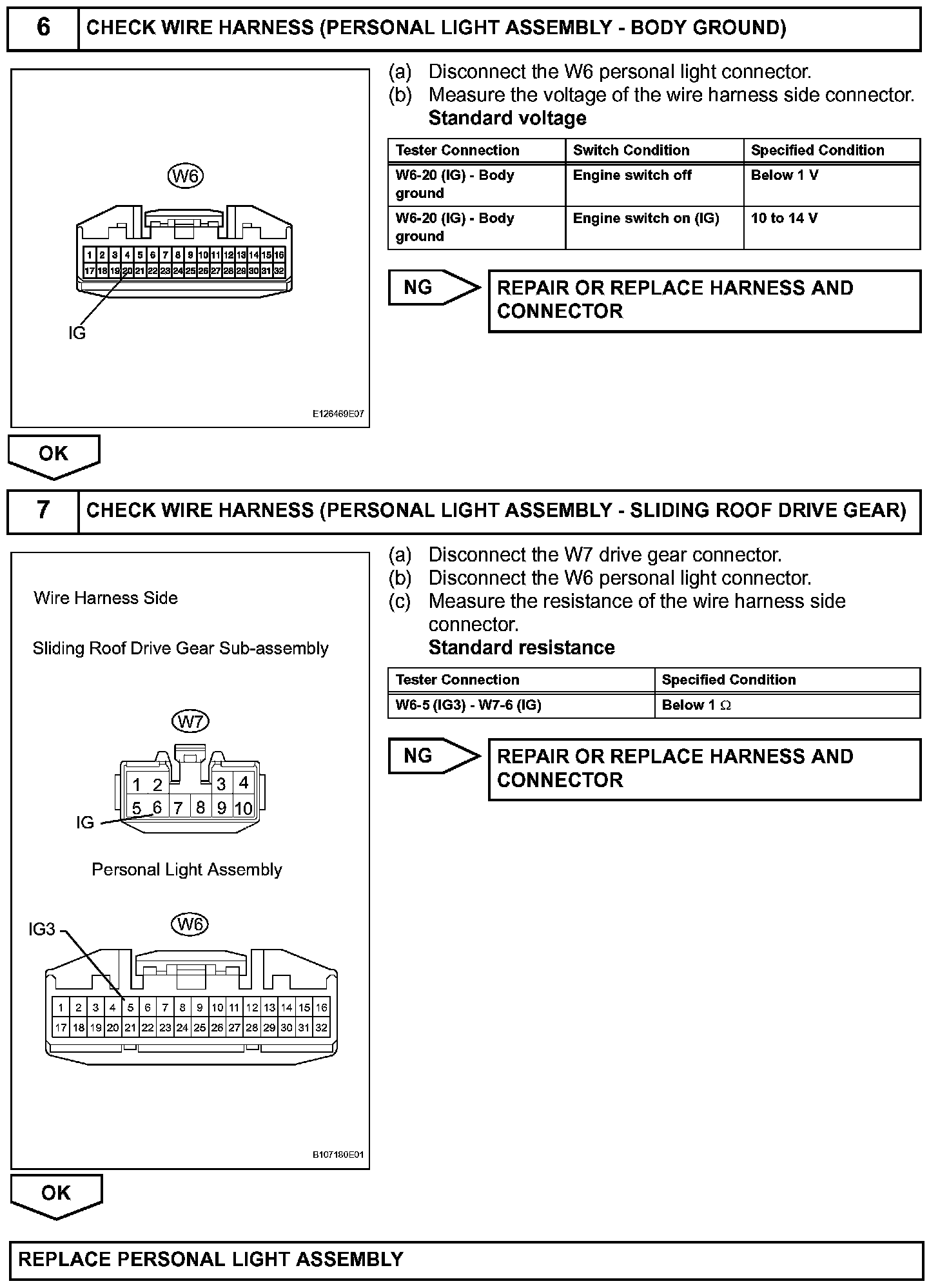

Step 6 - 7:
