Rear Seat Side Airbag Assembly

ON-VEHICLE INSPECTION

1. REAR SEAT SIDE AIRBAG ASSEMBLY (VEHICLE NOT INVOLVED IN COLLISION)
a. Perform a diagnostic system check.

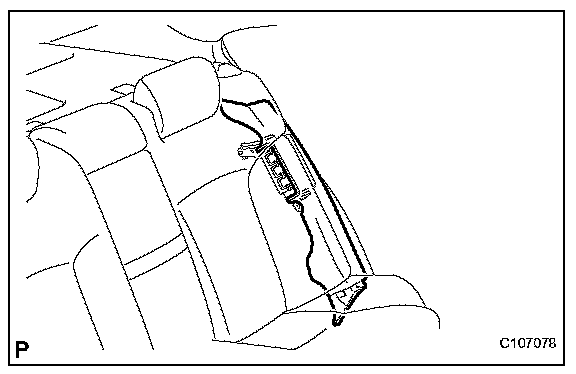

b. With the rear seat airbag assembly installed on the vehicle, perform a visual check including the following:

Cuts, minute cracks or marked discoloration on the rear seat airbag assembly.

2. REAR SEAT SIDE AIRBAG ASSEMBLY (VEHICLE INVOLVED IN COLLISION AND AIRBAG HAS NOT DEPLOYED)
a. Perform a diagnostic system check.

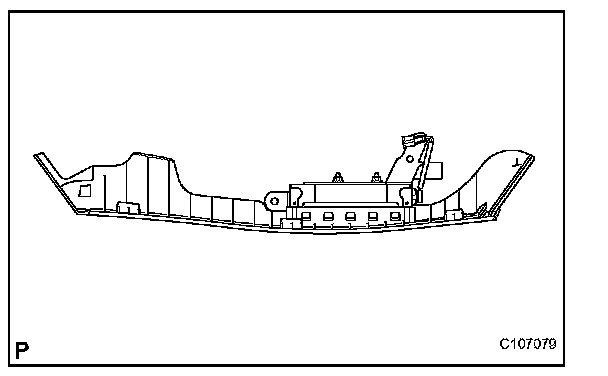

b. With the rear seat airbag assembly removed from the vehicle, perform a visual check. If there are any defects as mentioned below, replace the rear seat airbag assembly with a new one:
- Cuts, minute cracks or marked discoloration on the rear seat airbag assembly.
- Cracks or other damage to the connector.

CAUTION: For removal and installation procedures of the rear seat airbag assembly. Be sure to follow the correct procedure.
