All Doors LOCK / UNLOCK Functions Do Not Operate Via Master Switch, Driver Side Door Key Cylinder
All Doors LOCK / UNLOCK Functions do not Operate Via Master Switch, Driver Side Door Key CylinderDESCRIPTION
The multiplex network body ECU receives switch signals from the multiplex network master switch and driver side door key cylinder, and activates the door lock motor on each door according to the signals.

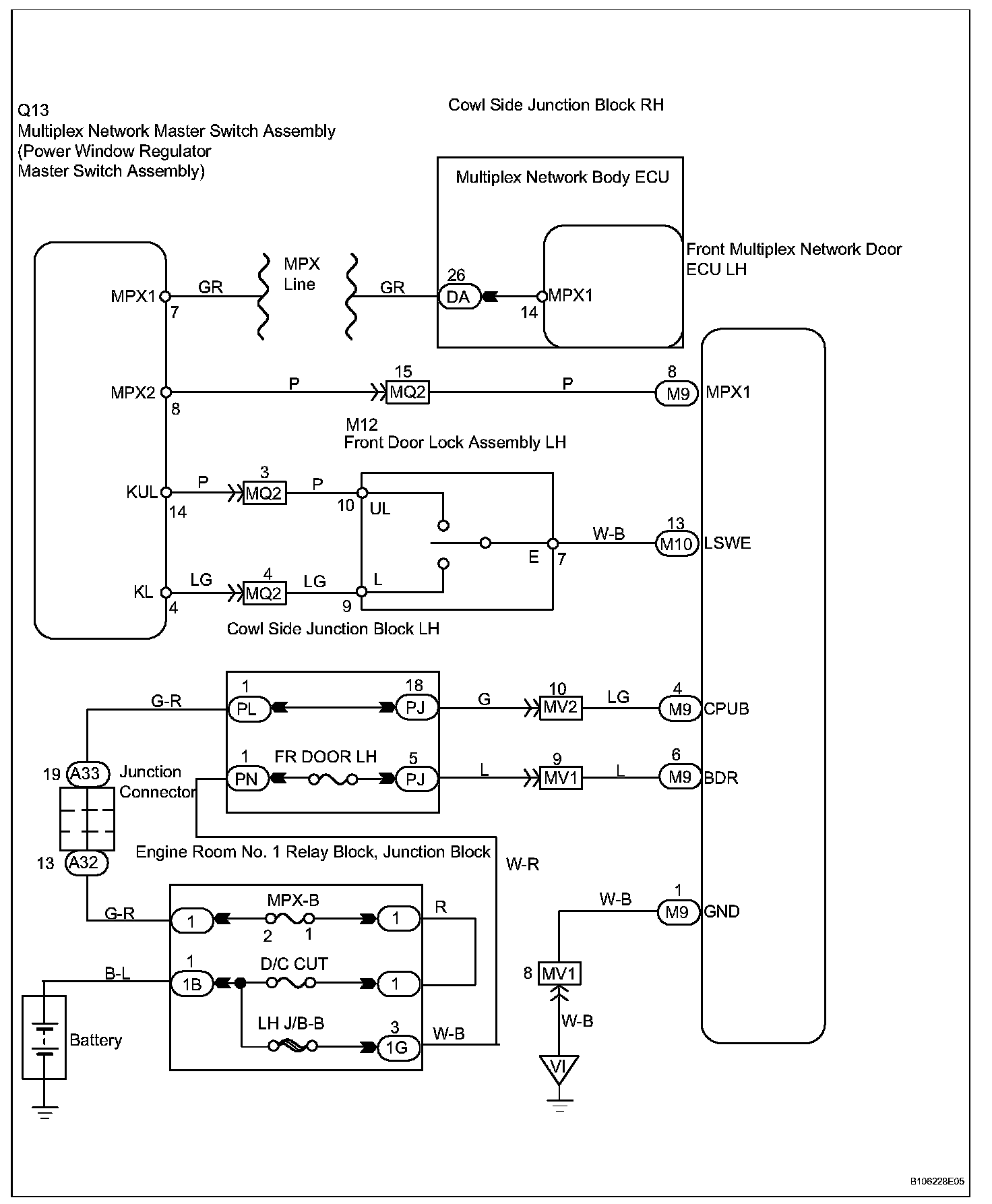

Wiring Diagram:

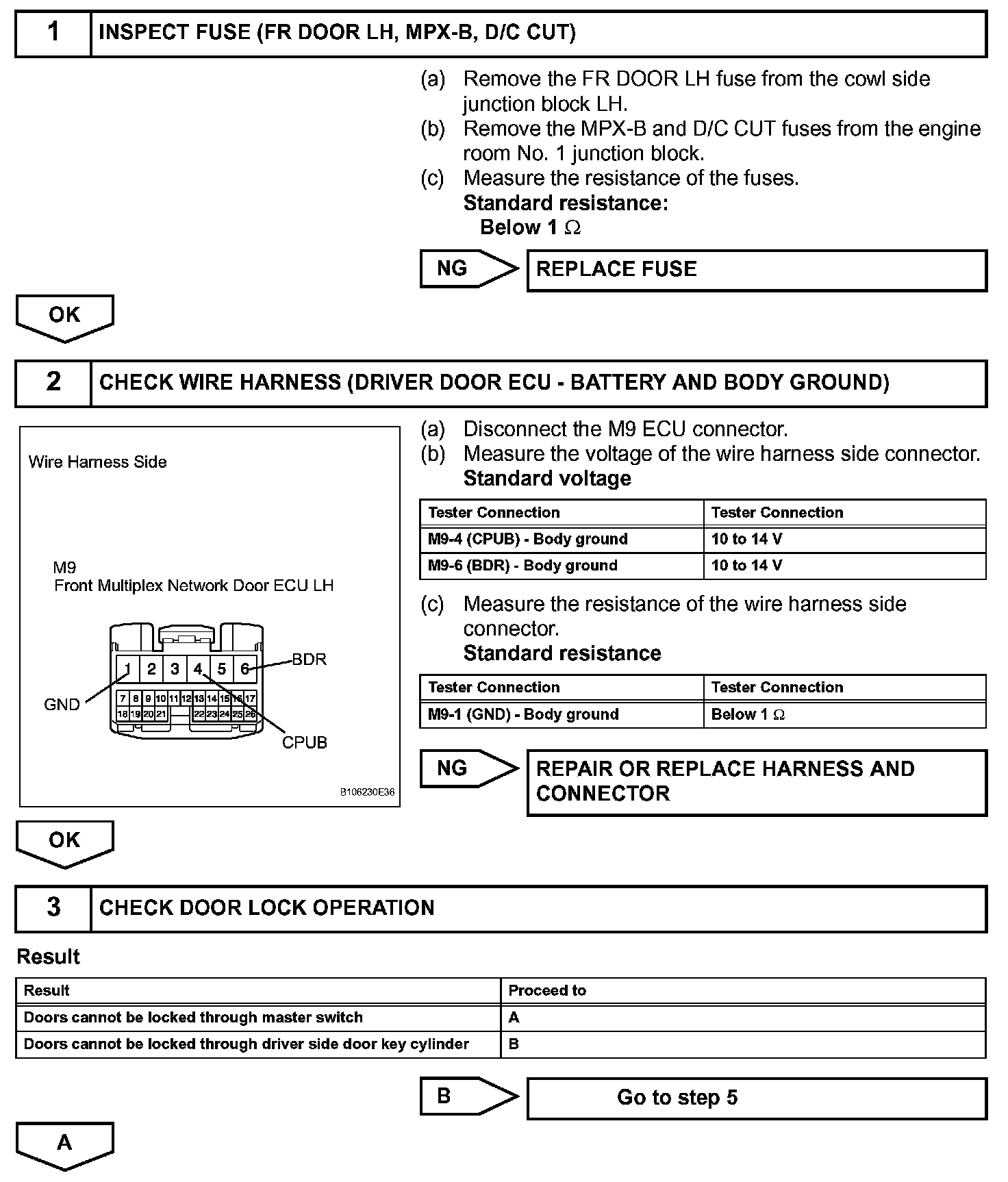

Step 1-3:

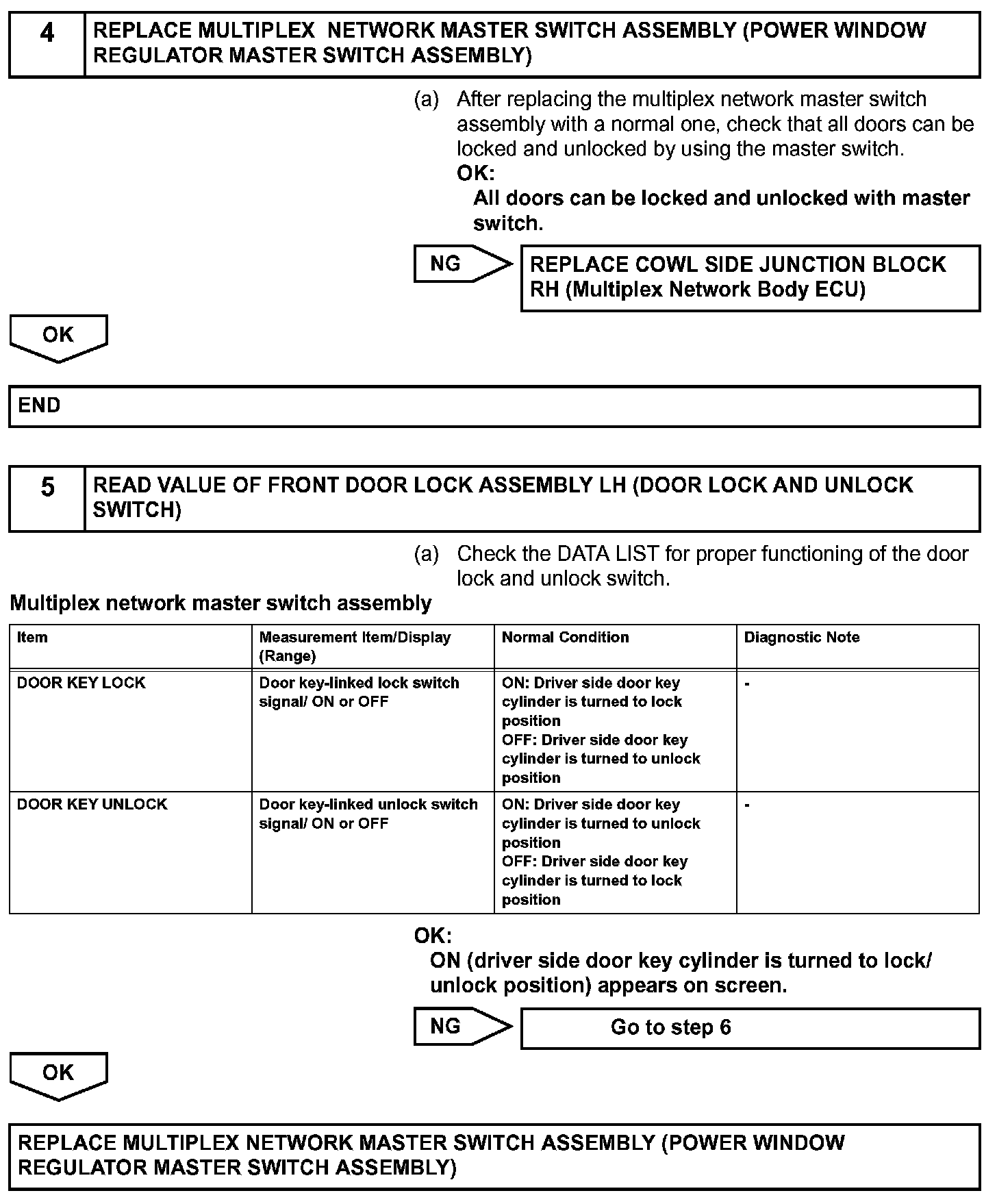

Step 4-5:
Step 6:

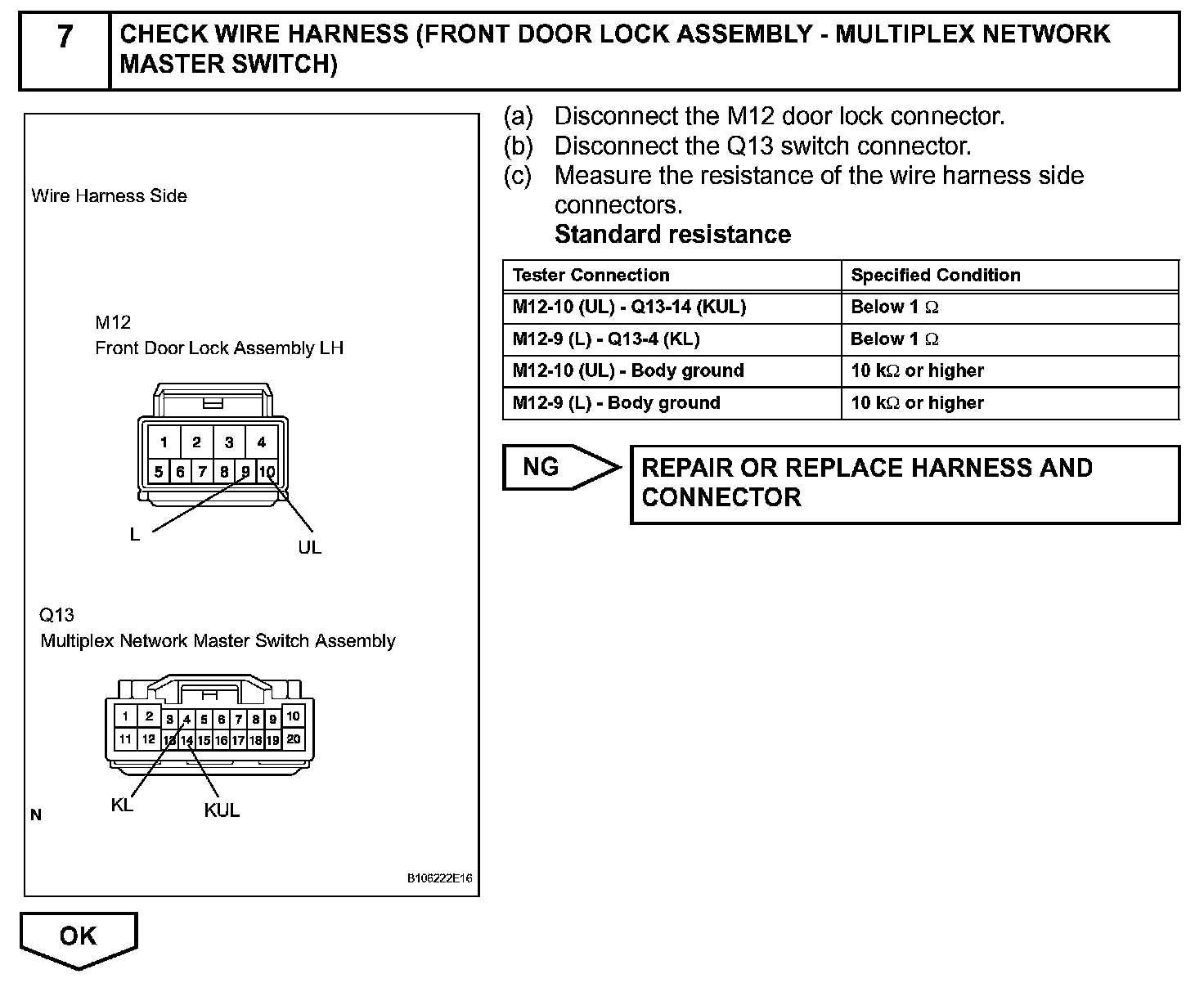

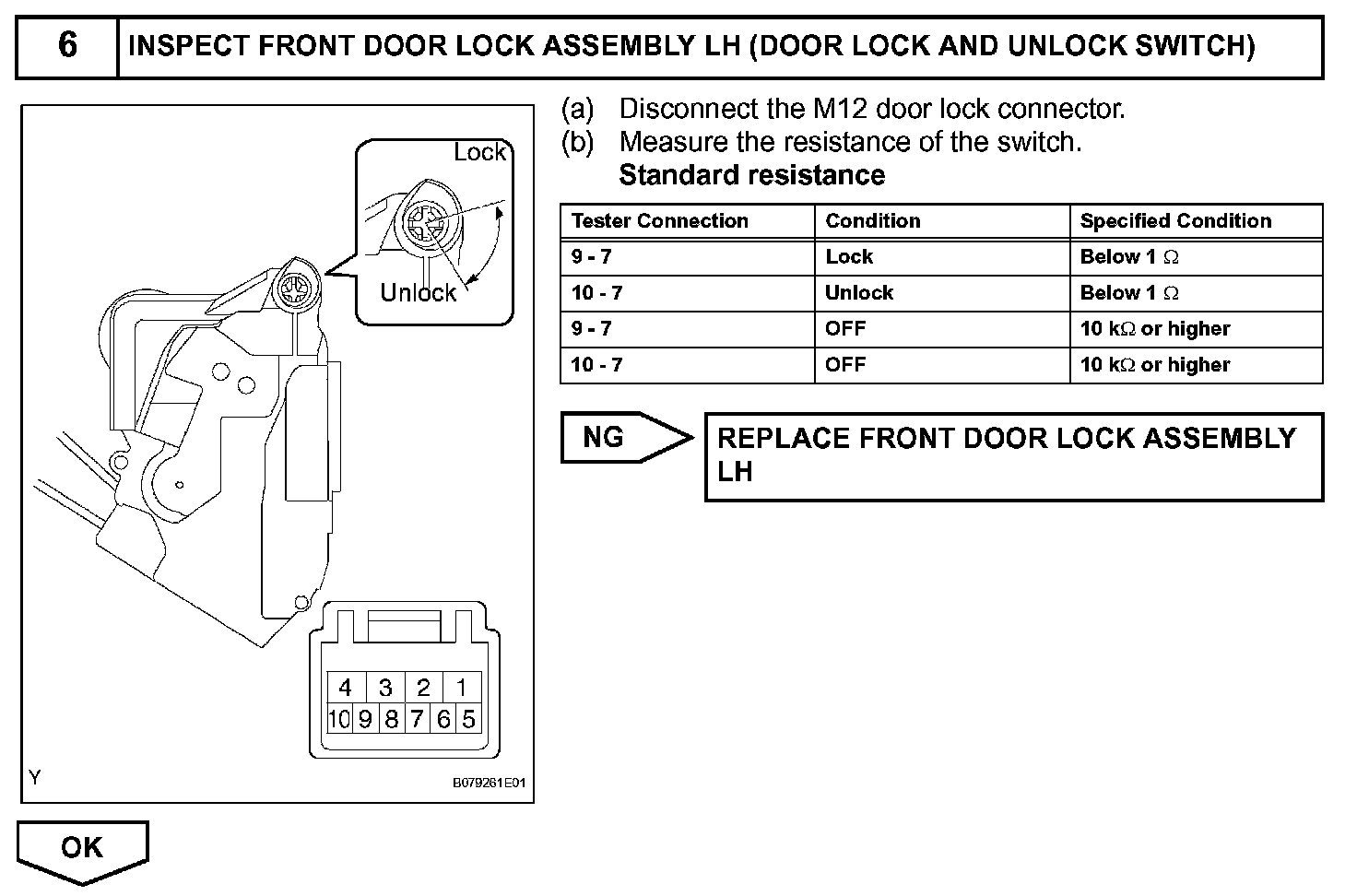

Step 7:

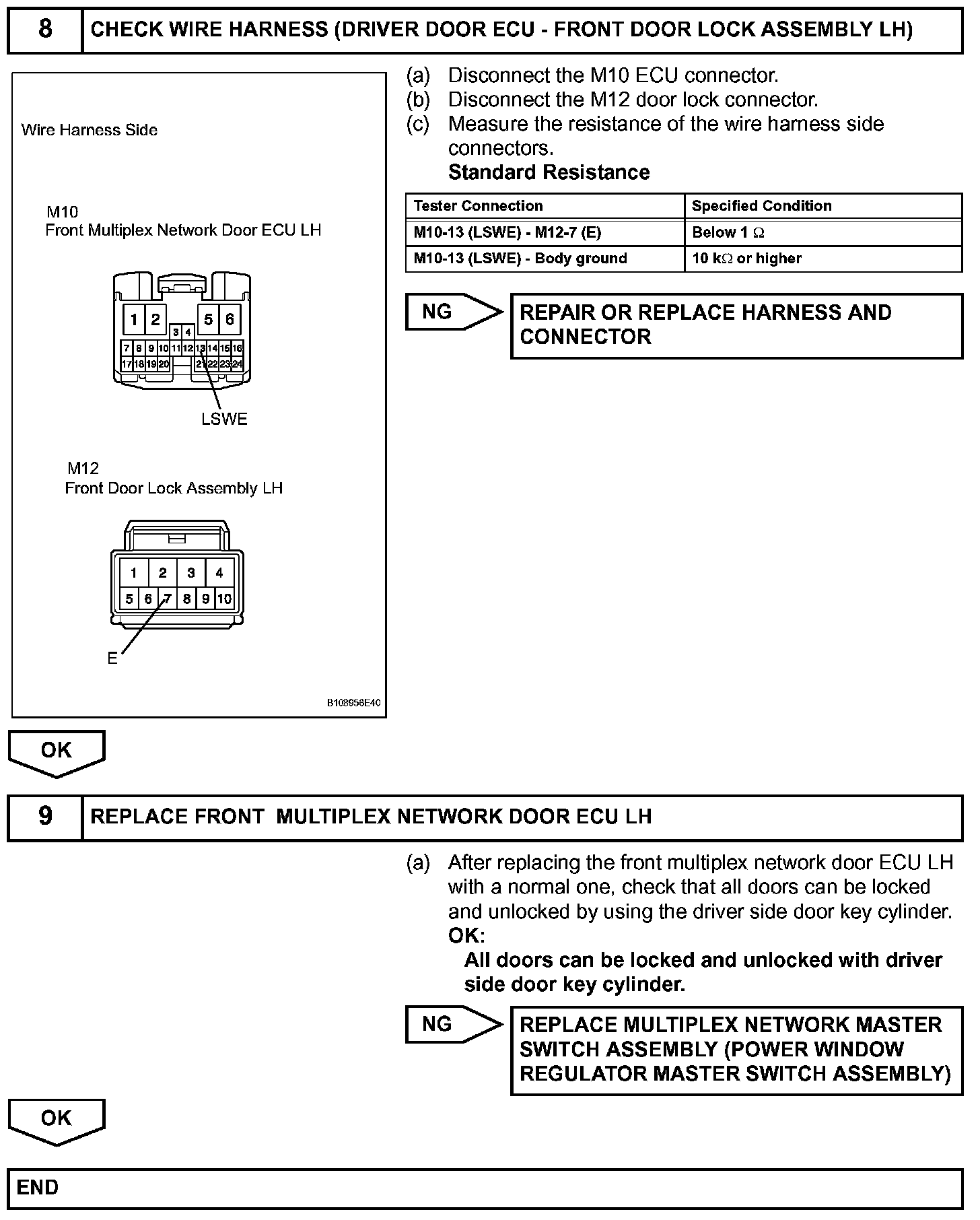

Step 8-9:
INSPECTION PROCEDURE
