All Door Entry Lock and Unlock Functions Do Not Operate

All Door Entry Lock and Unlock Functions do not Operate

DESCRIPTION

When the key cancel function is ON, all entry functions will stop operating. If the key cancel function is operated but all entry functions stop operating, one of the following is malfunctioning: 1)key cancel function, 2) certification ECU, or 3) wire harness.

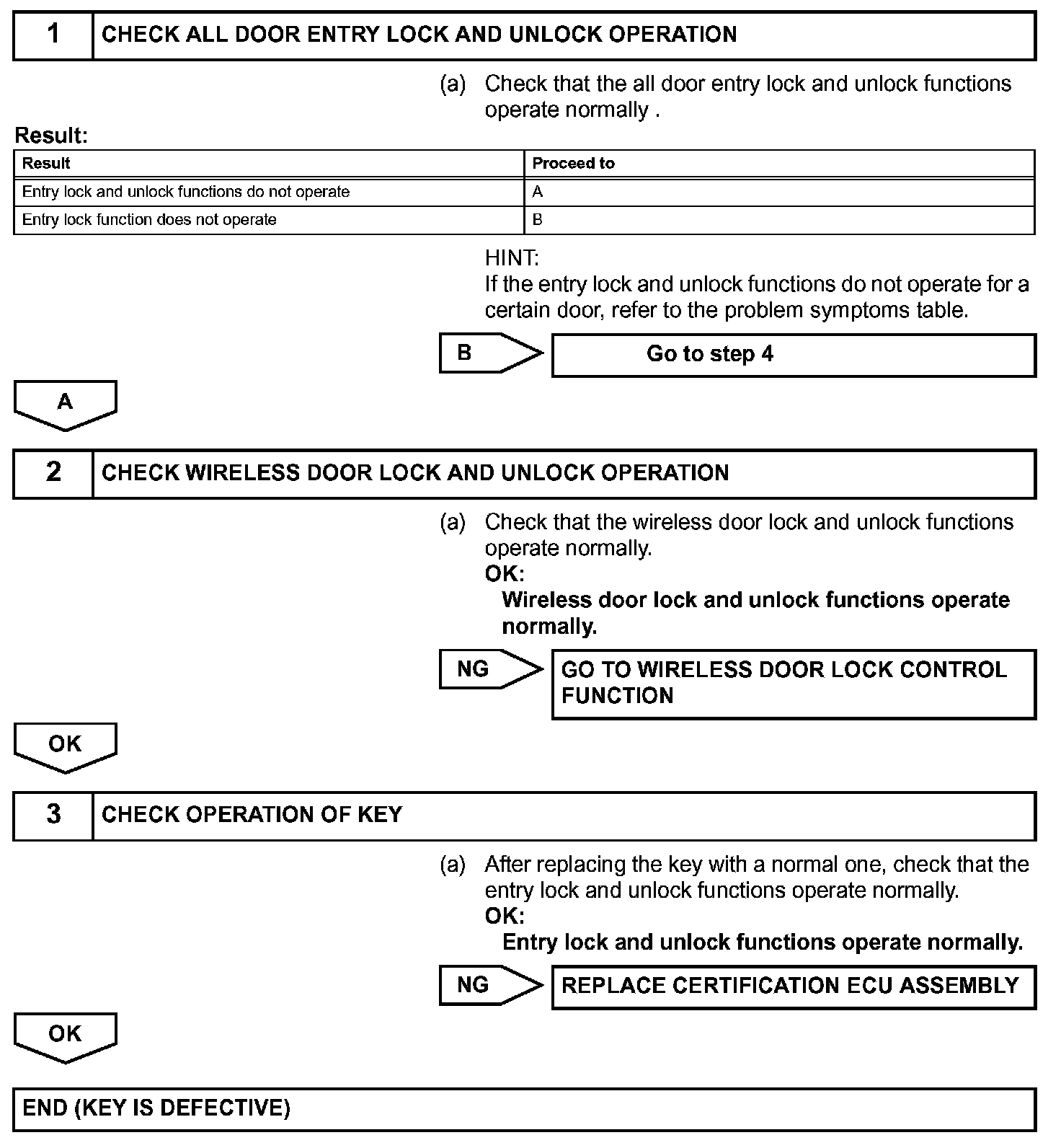

Step 1-3:

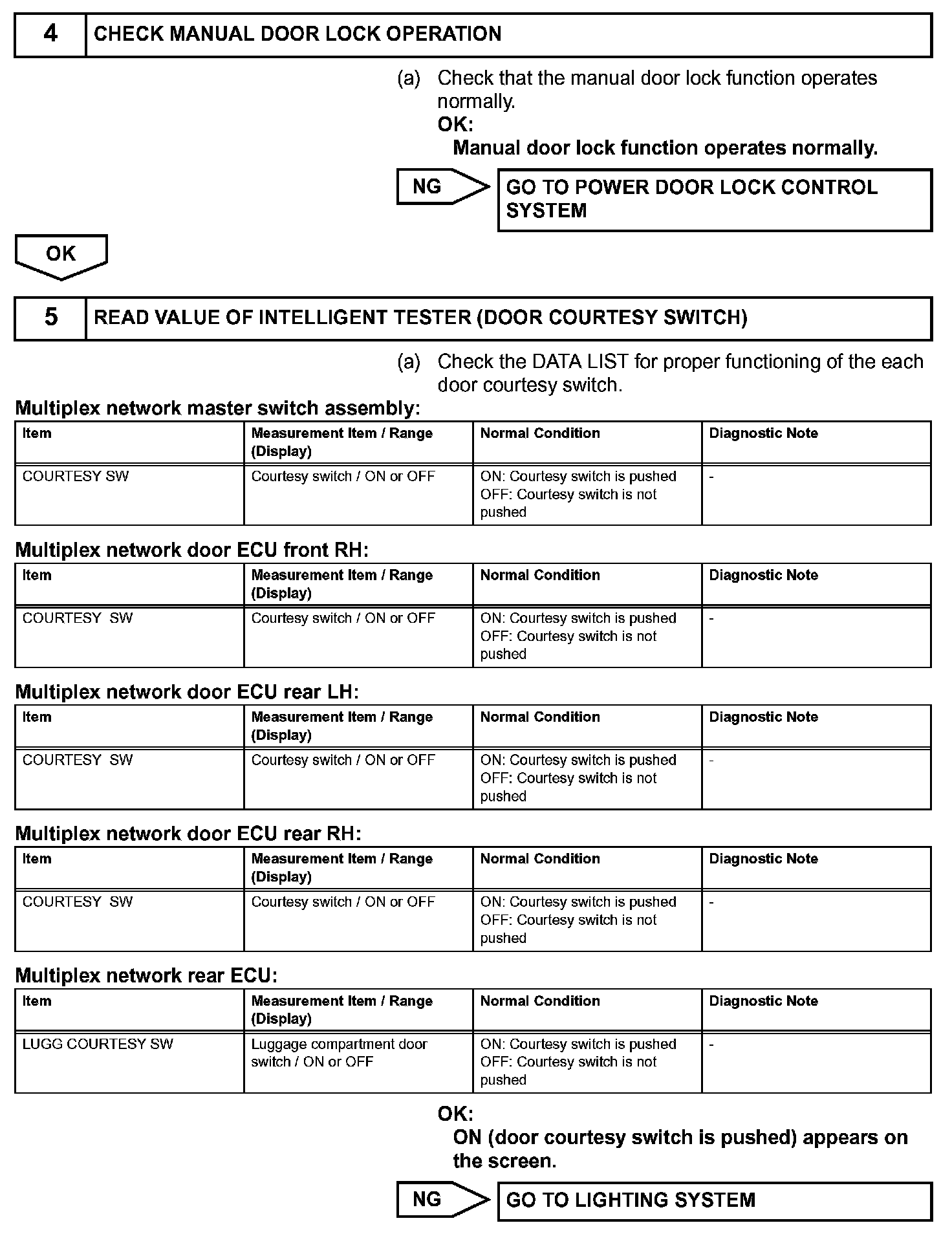

Step 4-5:

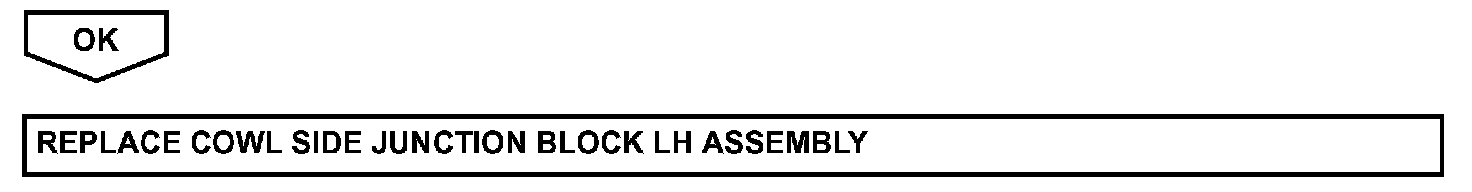

Step 5 (Continued):

INSPECTION PROCEDURE
