Overhaul

REAR CONSOLE BOX

Rear Console Box:

Rear Console Box:

DISASSEMBLY

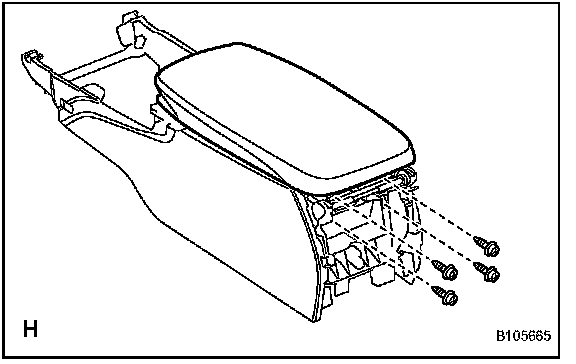

1. REMOVE REAR CONSOLE ARMREST ASSEMBLY
a. Remove the 4 screws and armrest.

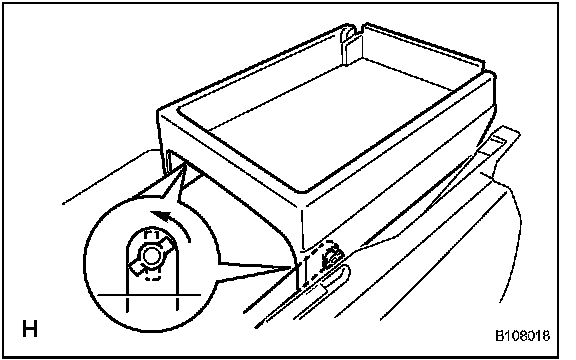

2. REMOVE CONSOLE BOX SUB-ASSEMBLY UPPER
a. Remove the console box as shown in the illustration.

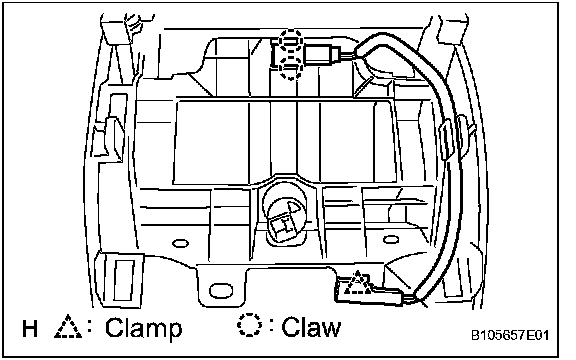

3. REMOVE CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY
a. Using a screwdriver, detach the clamp and 2 claws.

HINT: Tape the screwdriver tip before use.

b. Remove the light.

4. REMOVE POWER OUTLET SOCKET ASSEMBLY

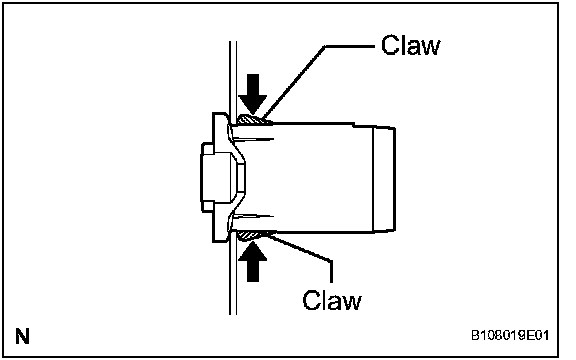

5. REMOVE POWER POINT SOCKET COVER
a. Using a screwdriver, detach the 2 claws and remove the socket cover.

HINT: Tape the screwdriver tip before use.

6. REMOVE CONSOLE BOX NO. 5 MOUNTING BRACKET
a. Remove the 2 screws and bracket.

REASSEMBLY

1. INSTALL CONSOLE BOX NO. 5 MOUNTING BRACKET
a. Install the bracket with the 2 screws.

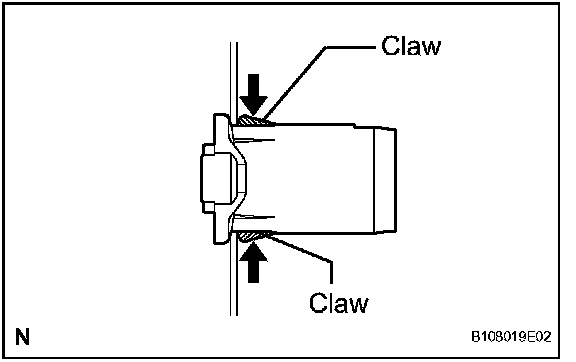

2. INSTALL POWER POINT SOCKET COVER
a. Attach the 2 claws to install the socket cover.

3. INSTALL POWER OUTLET SOCKET ASSEMBLY

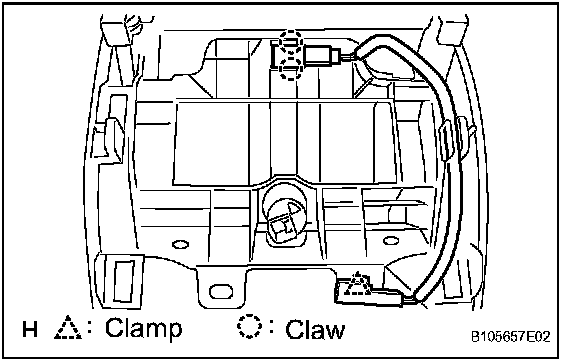

4. INSTALL CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY
a. Attach the clamp and 2 claws to install the light.

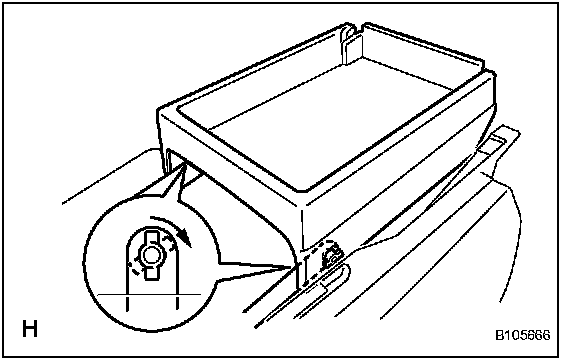

5. INSTALL CONSOLE BOX SUB-ASSEMBLY UPPER
a. Install the console box, as shown in the illustration.

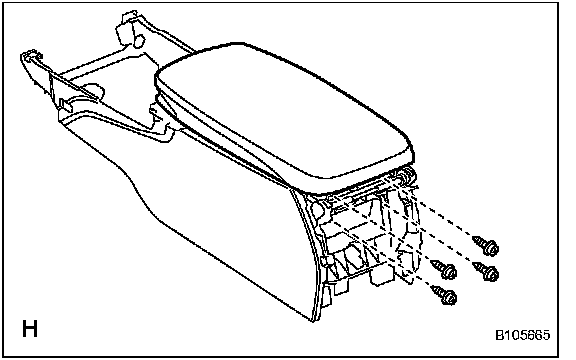

6. INSTALL REAR CONSOLE ARMREST ASSEMBLY
a. Install the armrest with the 4 screws.
