Body Emblem: Service and Repair

Name Plate:

REMOVAL

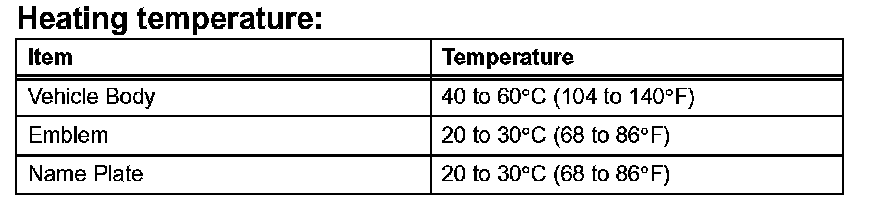

HINT: When removing the emblem and name plate, heat the vehicle body, emblem and name plate using a heat light.






NOTE: Do not heat the vehicle body, emblem and name plate excessively.

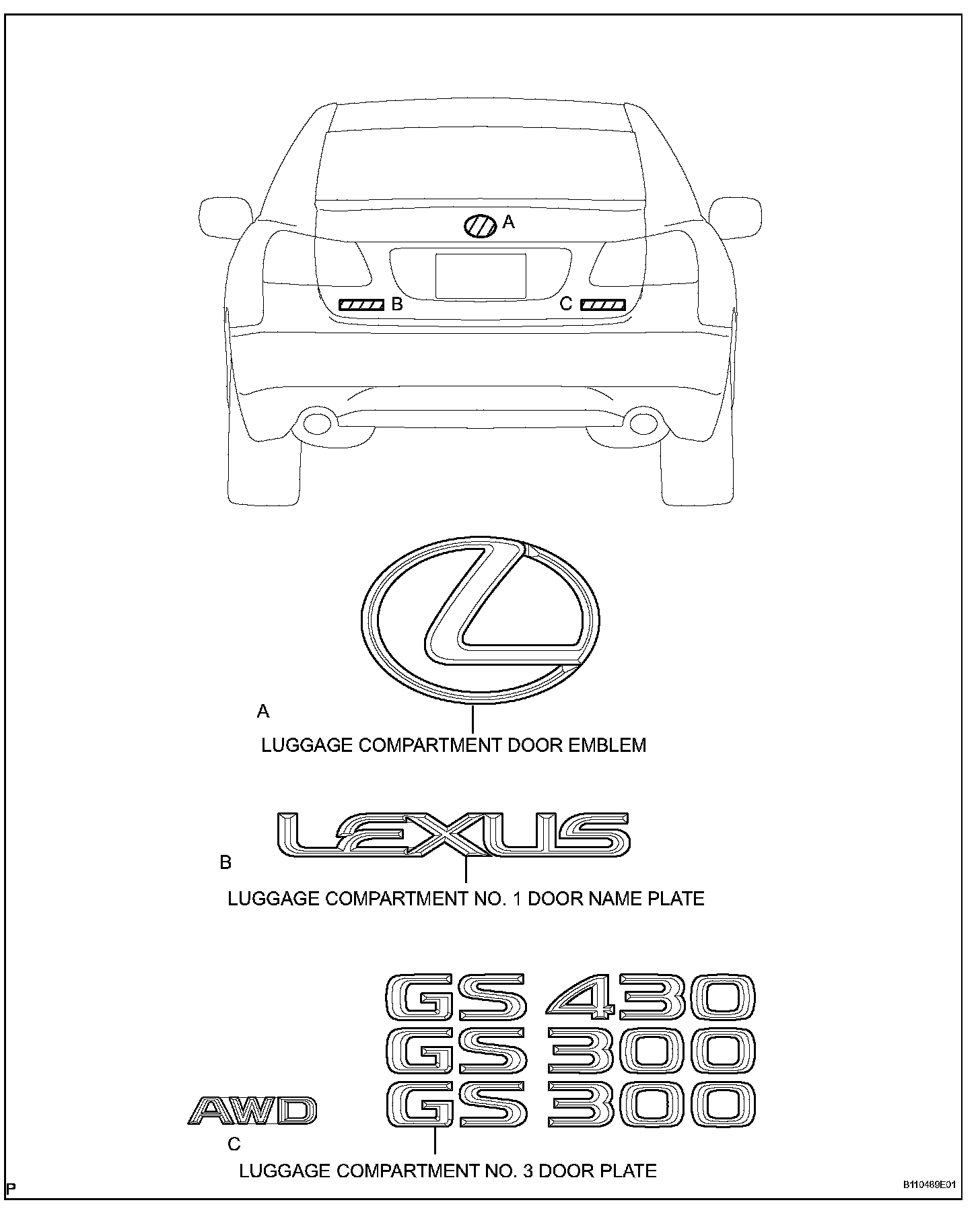

1. REMOVE LUGGAGE COMPARTMENT DOOR EMBLEM
a. Put protective tape around the emblem.
b. Insert a piano wire between the vehicle body and emblem.
c. Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.
d. Pull the piano wire and scrape off the double-sided tape that holds the moulding to the vehicle body

NOTE:
- If reusing the emblem, take care not to damage the emblem.
- Be careful not to damage the vehicle body.

e. Remove the emblem.

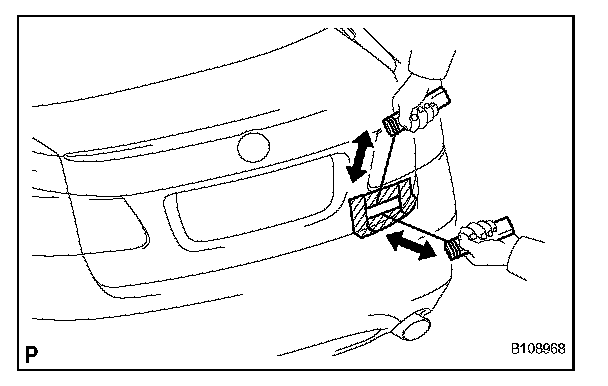

2. REMOVE LUGGAGE COMPARTMENT NO. 1 DOOR NAME PLATE
a. Put protective tape around the name plate.
b. Insert a piano wire between the vehicle body and name plate.
c. Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.
d. Pull the piano wire and scrape off the double-sided tape that holds the moulding to the vehicle body

NOTE:
- If reusing the name plate, take care not to damage the name plate.
- Be careful not to damage the vehicle body.

e. Remove the name plate.

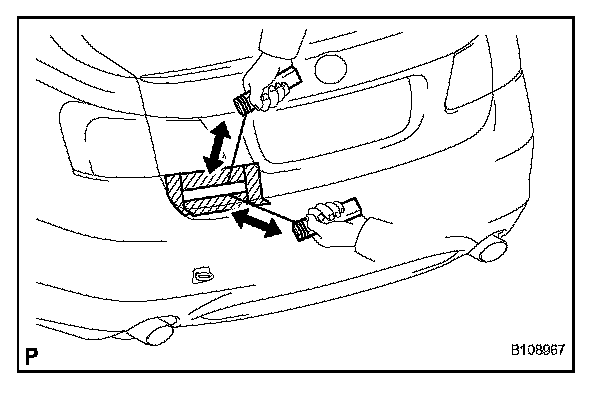

3. REMOVE LUGGAGE COMPARTMENT NO. 3 DOOR PLATE
a. Put protective tape around the door plate.
b. Insert a piano wire between the vehicle body and door plate.
c. Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.
d. Pull the piano wire and scrape off the double-sided tape that holds the moulding to the vehicle body.

NOTE:
- If reusing the door plate, take care not to damage the name plate.
- Be careful not to damage the vehicle body.

e. Remove the door plate.

INSTALLATION

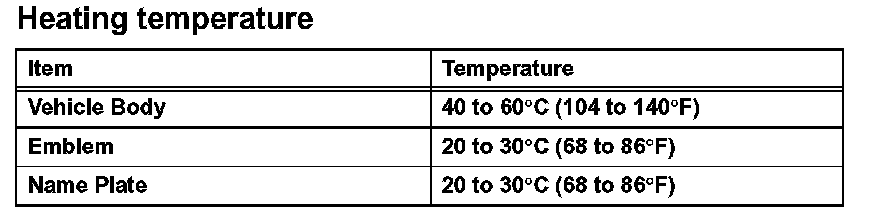

HINT: When installing the emblem and name plate, heat the vehicle body, emblem and name plate using a heat light.






NOTE: Do not heat the vehicle body, emblem and name plate excessively.

1. INSTALL LUGGAGE COMPARTMENT DOOR EMBLEM
a. Clean the vehicle body surface.
1. Using a heat light, heat the vehicle body surface.
2. Remove the double-sided tape from the vehicle body.
3. Wipe off any tape adhesive residue with cleaner.

b. If reusing the emblem:
Clean the emblem.
1. Using a heat light, heat the emblem.
2. Remove the double-sided tape from the emblem.
3. Wipe off any tape adhesive residue with cleaner.
4. Apply new double-sided tape to the emblem.

c. Install the emblem.
1. Using a heat light, heat the vehicle body and emblem.
2. Remove the peeling paper from the face of the emblem.

HINT: After removing the peeling paper, keep the exposed adhesive free from foreign matter.

3. Install the emblem.

2. INSTALL LUGGAGE COMPARTMENT NO. 1 DOOR NAME PLATE
a. Clean the vehicle body surface.
1. Using a heat light, heat the vehicle body surface.
2. Remove the double-sided tape from the vehicle body
3. Wipe off any tape adhesive residue with cleaner.

b. If reusing the name plate:
Clean the name plate.
1. Using a heat light, heat the name plate.
2. Remove the double-sided tape from the name plate.
3. Wipe off any tape adhesive residue with cleaner.
4. Apply new double-sided tape to the name plate.

c. Install the name plate.
1. Using a heat light, heat the vehicle body and name plate.
2. Remove the peeling paper from the face of the name plate.

HINT: After removing the peeling paper, keep the exposed adhesive free from foreign matter.

3. Install the name plate.

3. INSTALL LUGGAGE COMPARTMENT NO. 3 DOOR PLATE
a. Clean the vehicle body surface.
1. Using a heat light, heat the vehicle body surface.
2. Remove the double-sided tape from the vehicle body.
3. Wipe off any tape adhesive residue with cleaner.

b. If reusing the door plate:
Clean the door plate.
1. Using a heat light, heat the door plate.
2. Remove the double-sided tape from the door plate.
3. Wipe off any tape adhesive residue with cleaner.
4. Apply new double-sided tape to the door plate.

c. Install the door plate.
1. Using a heat light, heat the vehicle body and door plate.
2. Remove the peeling paper from the face of the door plate.

HINT: After removing the peeling paper, keep the exposed adhesive free from foreign matter.

3. Install the door plate.
