Trunk / Liftgate Latch: Testing and Inspection

LUGGAGE COMPARTMENT DOOR STRIKER ASSEMBLY

INSPECTION

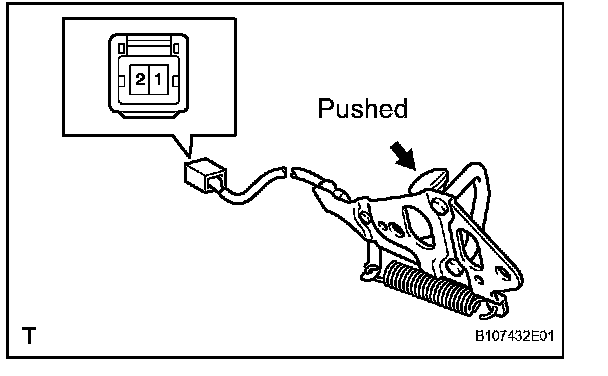

1. INSPECT LUGGAGE COMPARTMENT DOOR STRIKER ASSEMBLY (DOOR UNLOCK SWITCH)

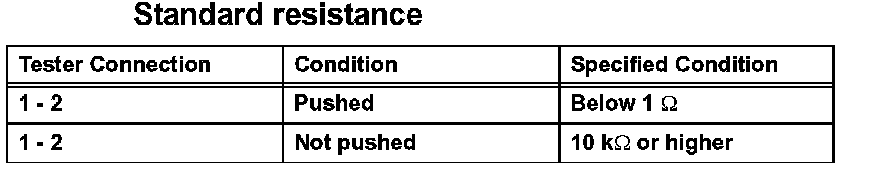

a. Measure the resistance of the switch.





If the result is not as specified, replace the striker.
