Passenger Side J/B ECU Power Source Circuit

Passenger Side J/B ECU Power Source Circuit

DESCRIPTION
- This circuit provides power to operate the multiplex network body ECU.

HINT: Below, the passenger side junction block ECU is referred to as the multiplex network body ECU.

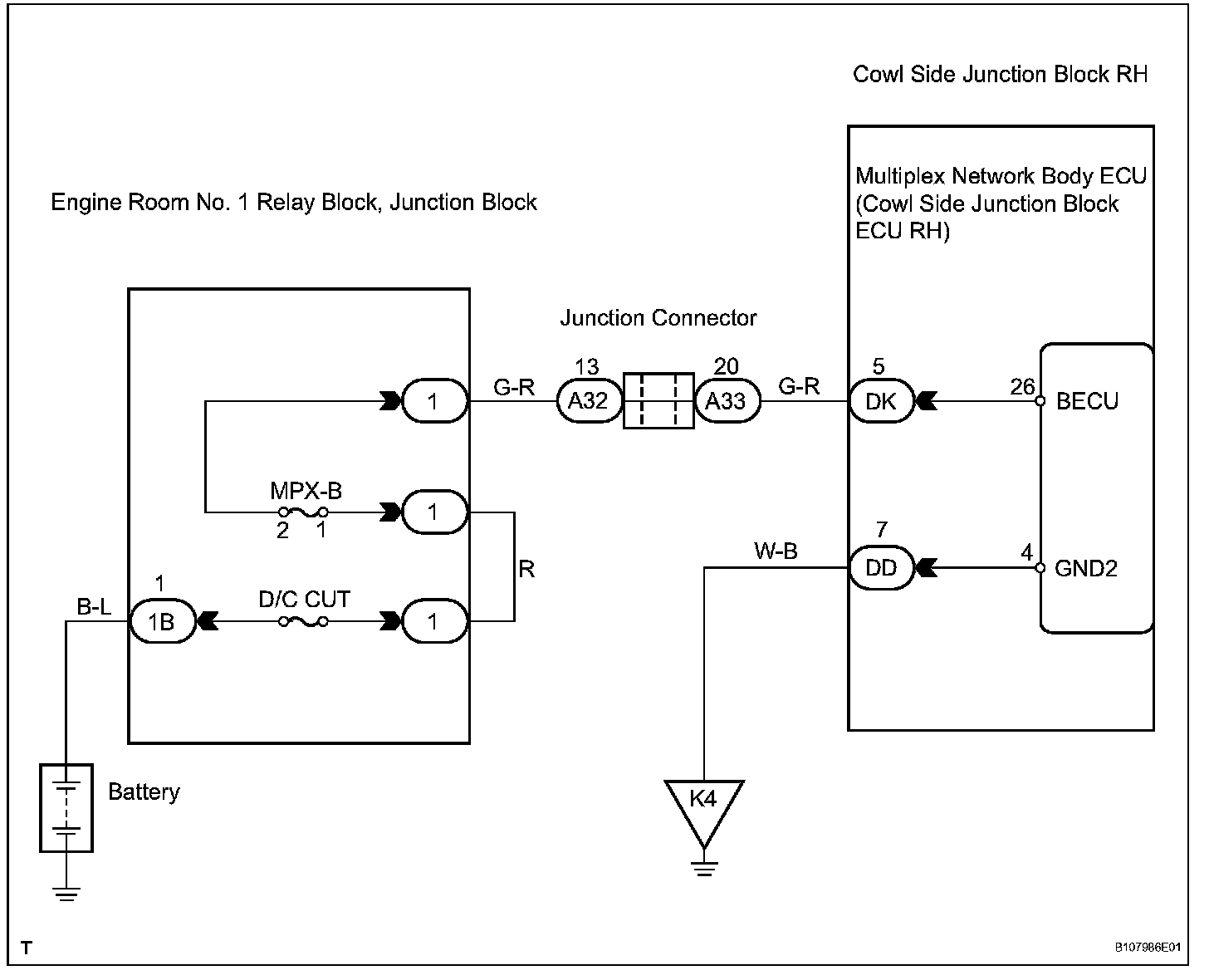

WIRING DIAGRAM

Wiring Diagram:

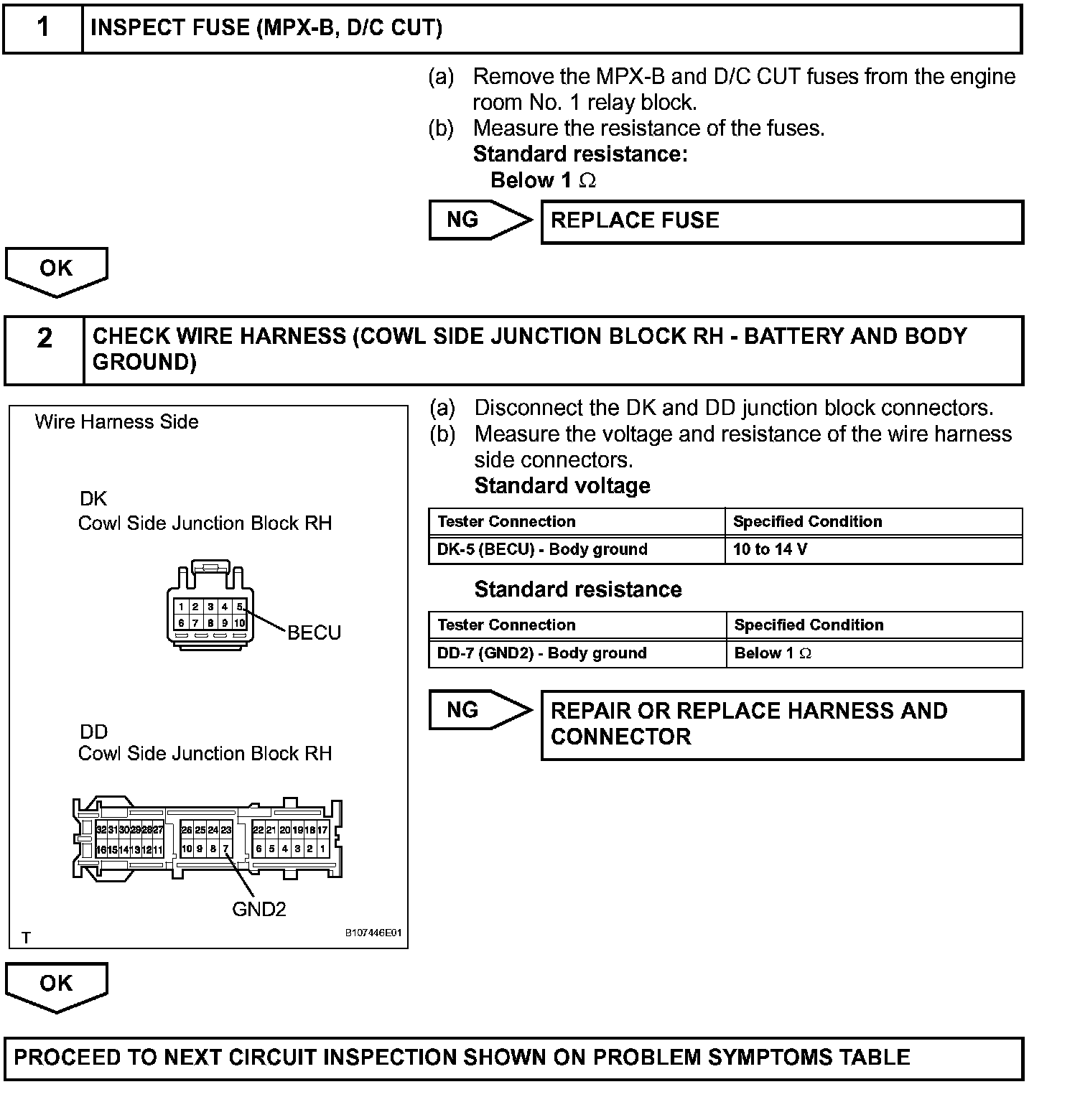

INSPECTION PROCEDURE

Step 1 - 2:
