Luggage Compartment Door Opener Switch Circuit

Luggage Compartment Door Opener Switch Circuit

DESCRIPTION
This circuit detects the state of the luggage door opening switch.

WIRING DIAGRAM

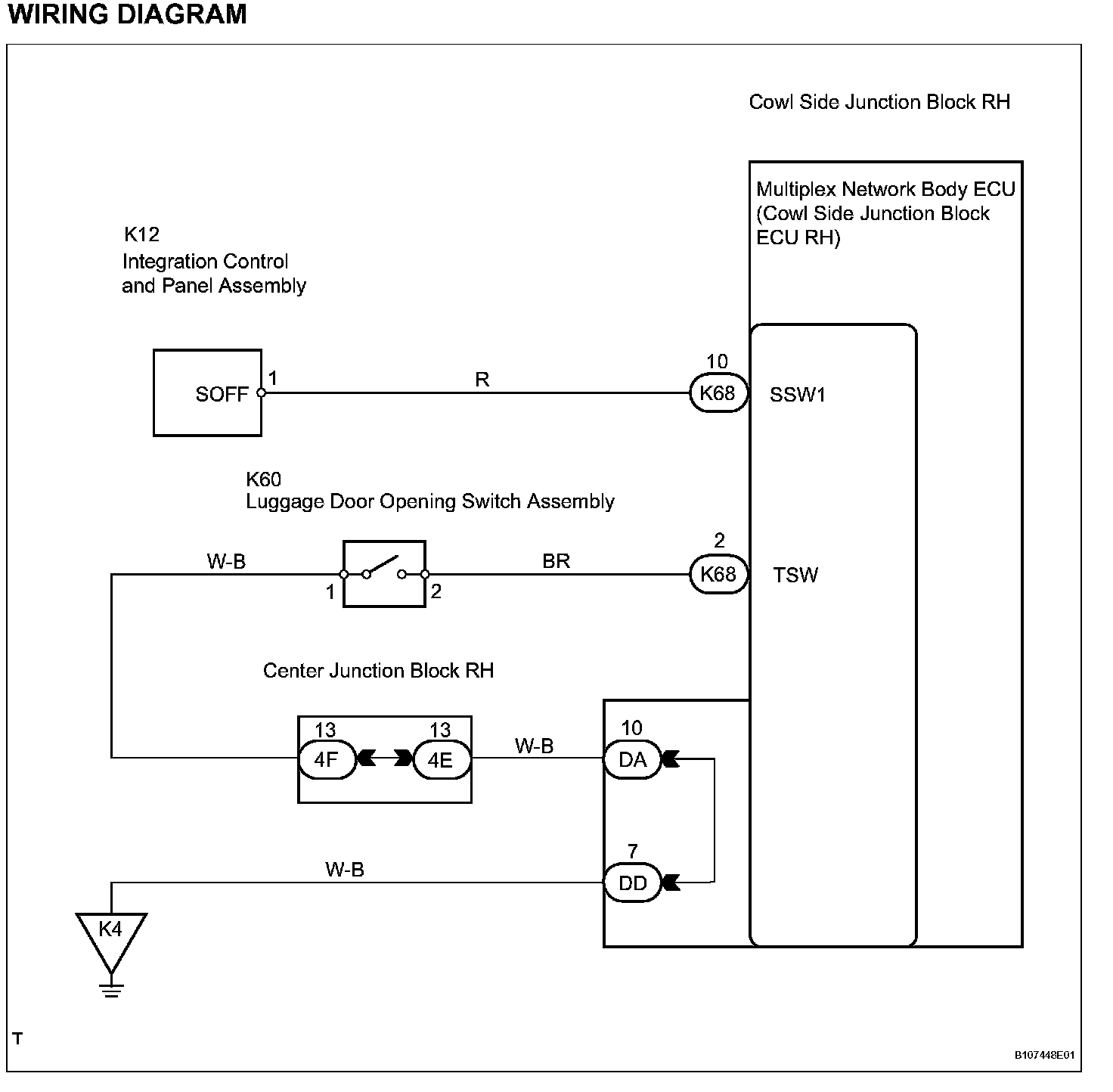

Wiring Diagram:





INSPECTION PROCEDURE

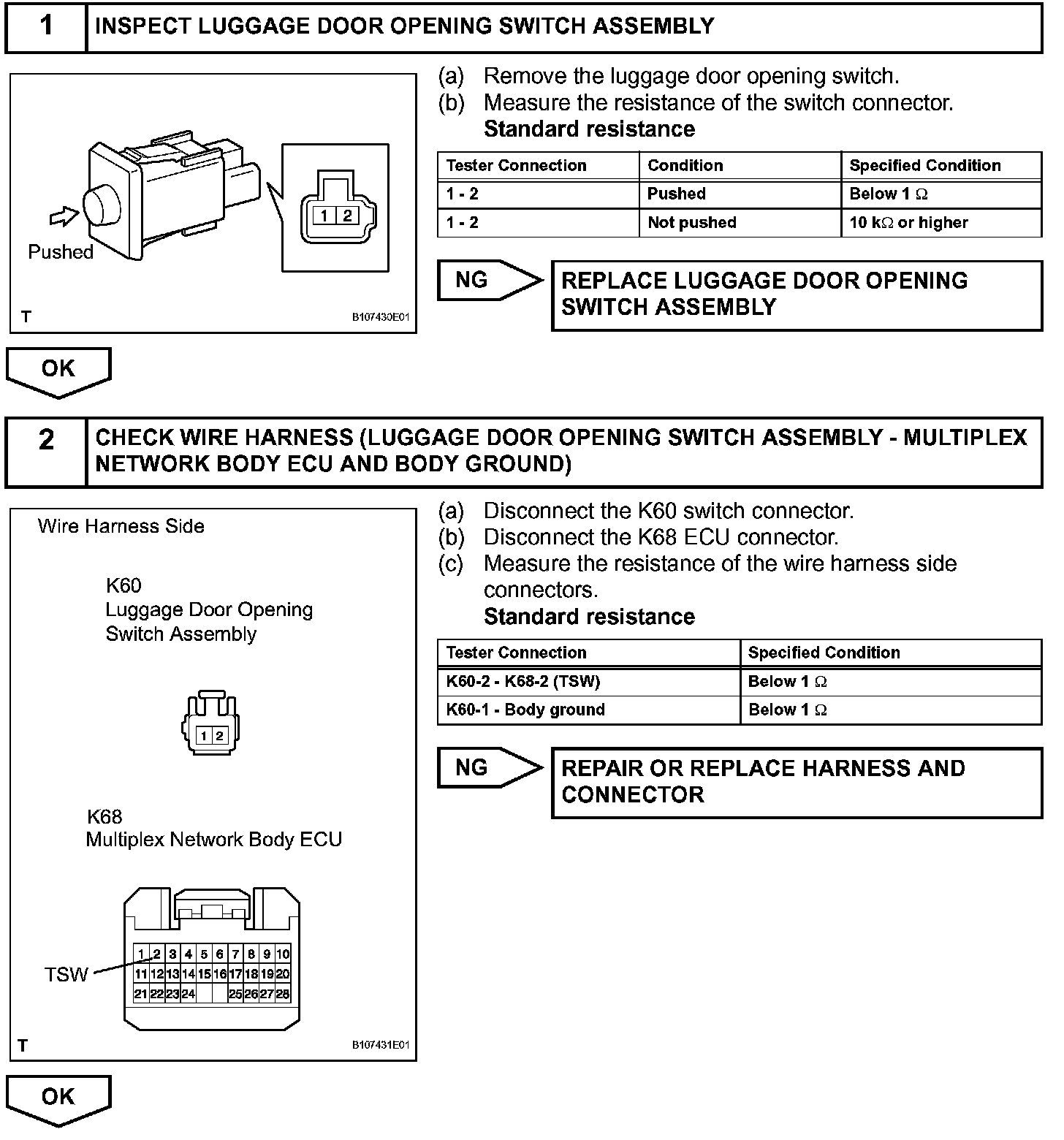

Step 1 - 3:

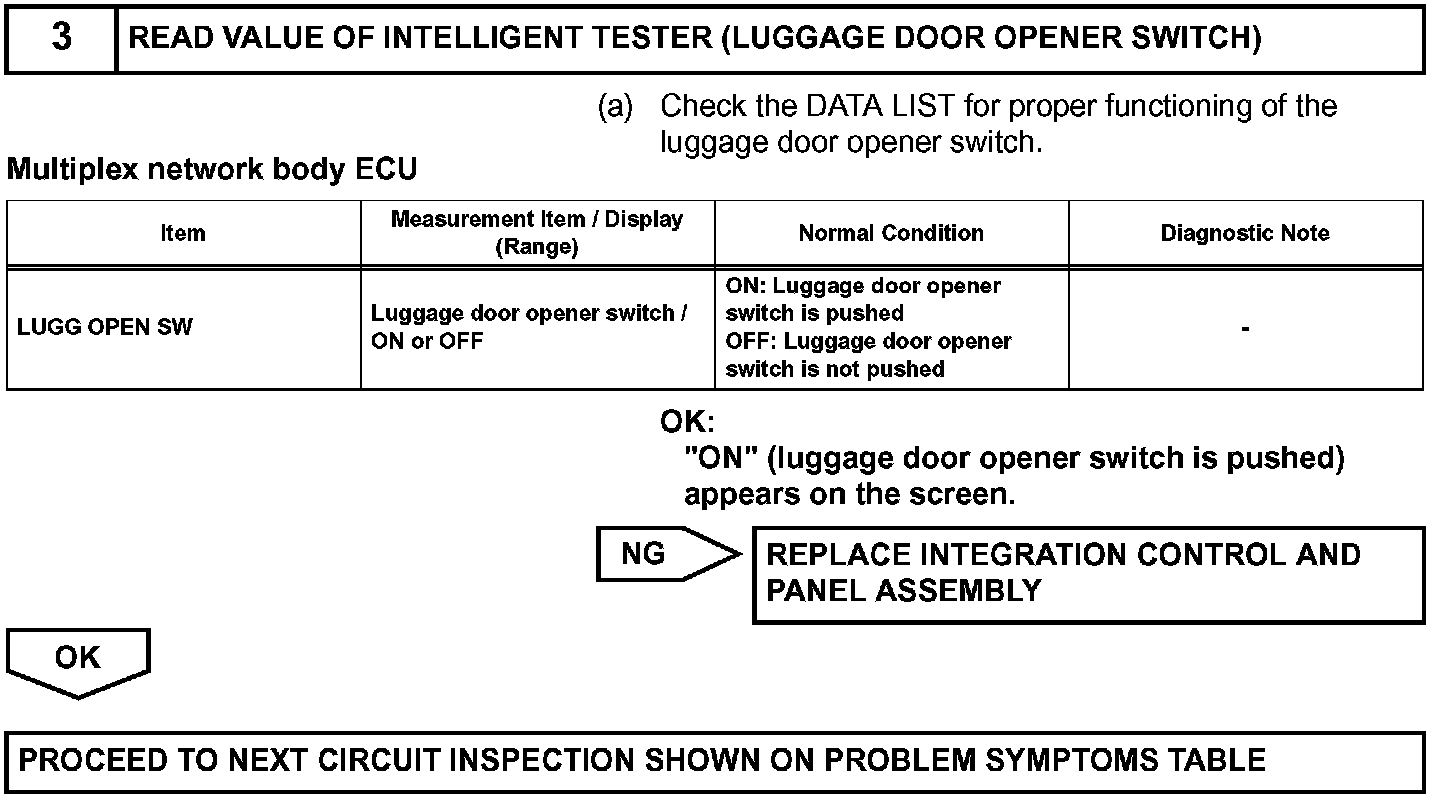

Step 3:
