Luggage Compartment Door Open Switch Circuit

Luggage Compartment Door Open Switch Circuit

DESCRIPTION
The door unlock switch is built into the luggage compartment door striker.
This switch is turned on when the luggage compartment door is opened and turned off when the door is closed.

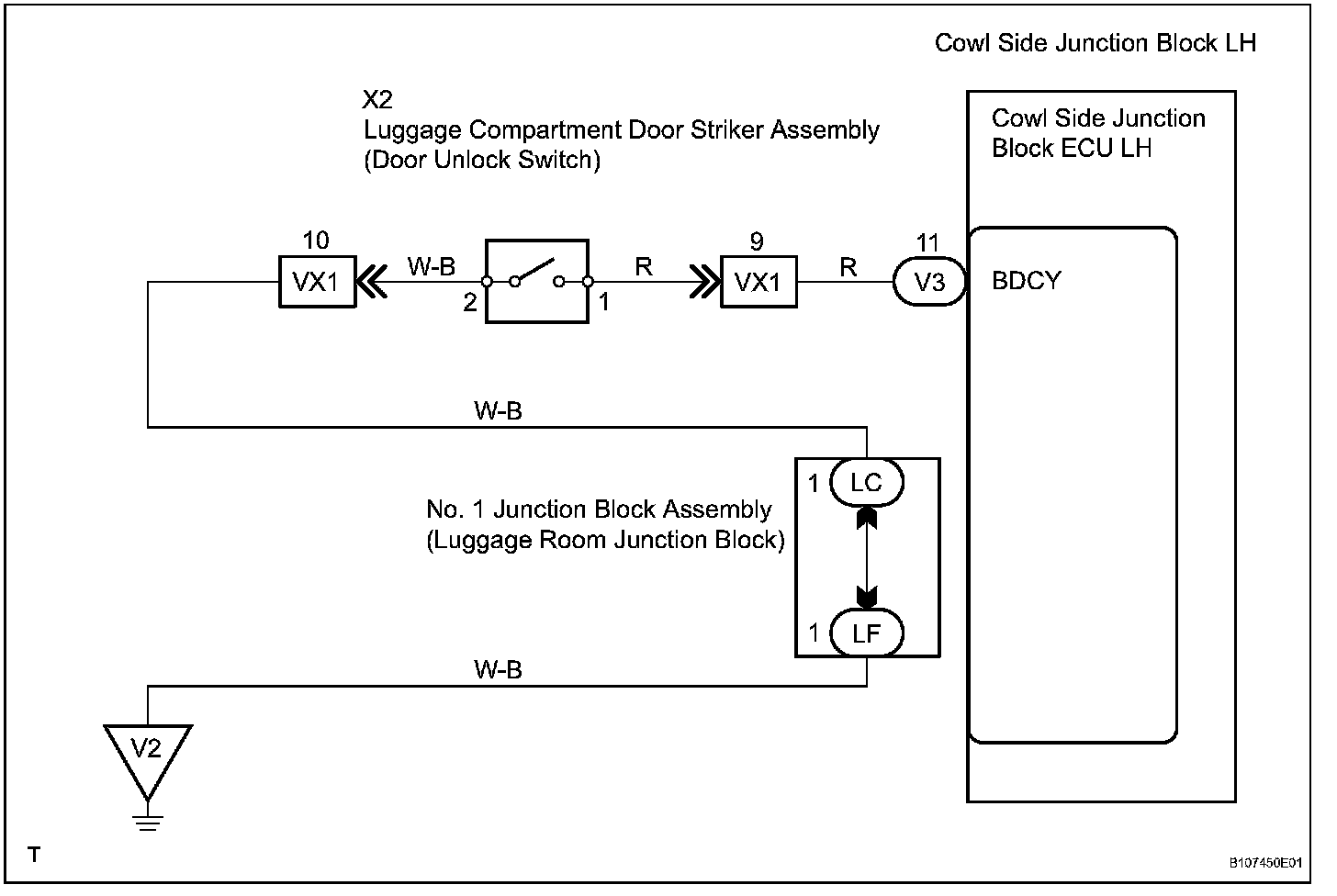

WIRING DIAGRAM
