Problem Symptoms Table
PROBLEM SYMPTOMS TABLEHINT:
- Use the below to help determine the cause of the problem symptom. The potential causes of the symptoms are listed in order of probability in the "Suspected Area" column of table. Check each symptom by checking the suspected reas in the order they are listed. Replace parts as necessary.
- Inspected the fuse related to this symptom before inspecting the suspected areas below.

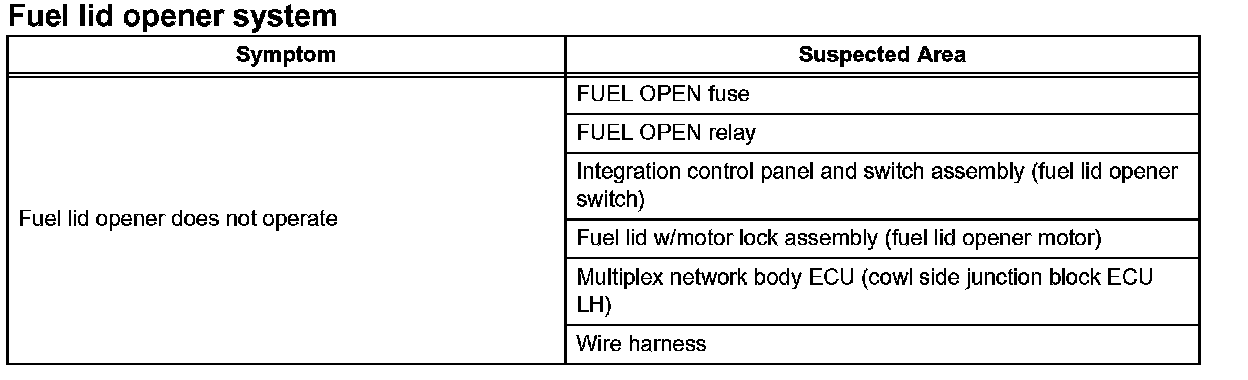

Problem Symptoms Table - Fuel Lid Opener System:
