Home >> Lexus >> 2007 >> GS 350 AWD V6-3.5L (2GR-FSE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Panel Switches Do Not Function

Panel Switches Do Not Function

Panel Switches do not Function

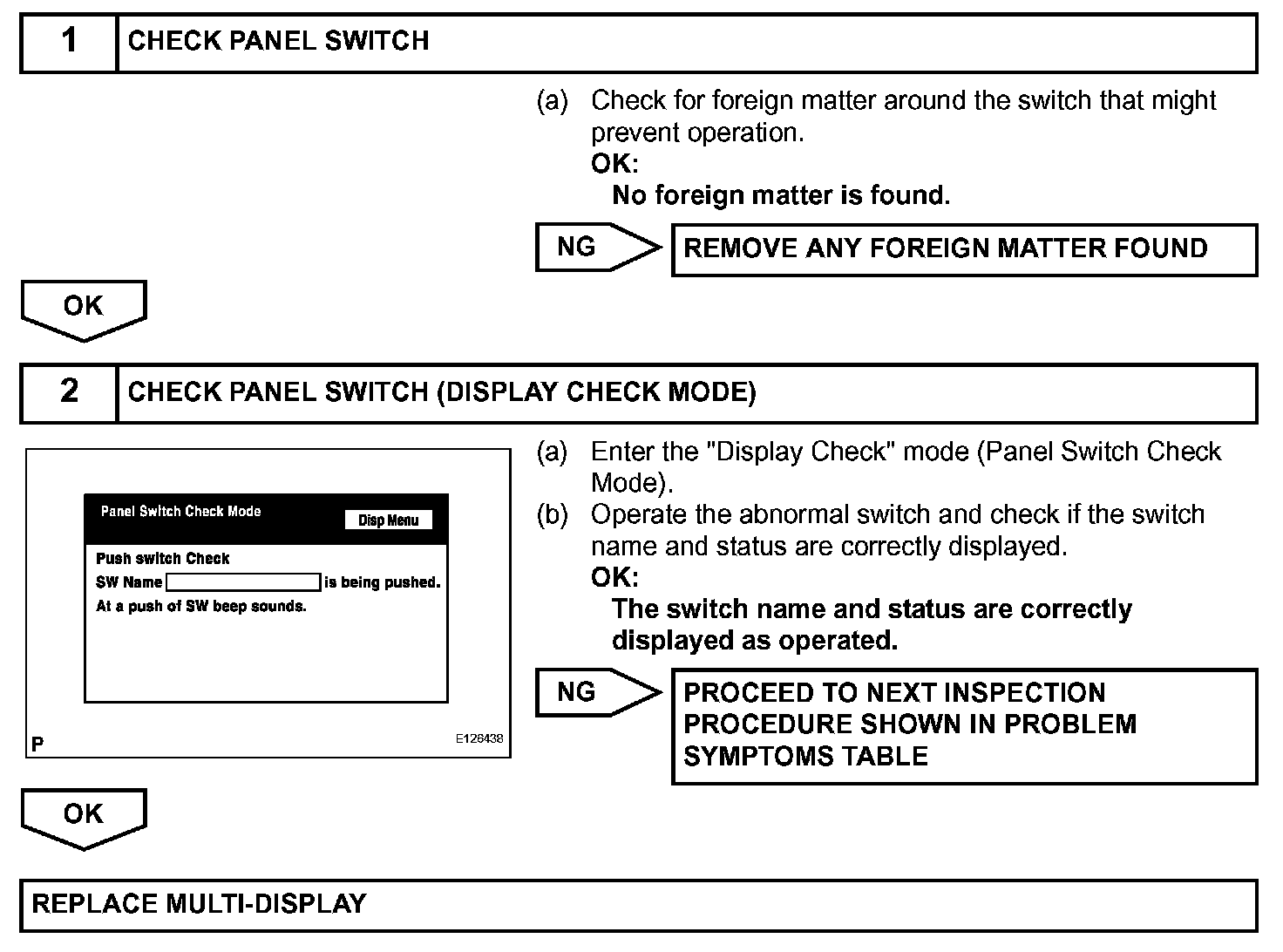

Step 1-2:




INSPECTION PROCEDURE
