Home >> Lexus >> 2007 >> GS 350 AWD V6-3.5L (2GR-FSE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Disc Cannot Be Inserted or Is Ejected Right After Insertion

Disc Cannot Be Inserted or Is Ejected Right After Insertion

Disc cannot be Inserted or is Ejected Right After Insertion

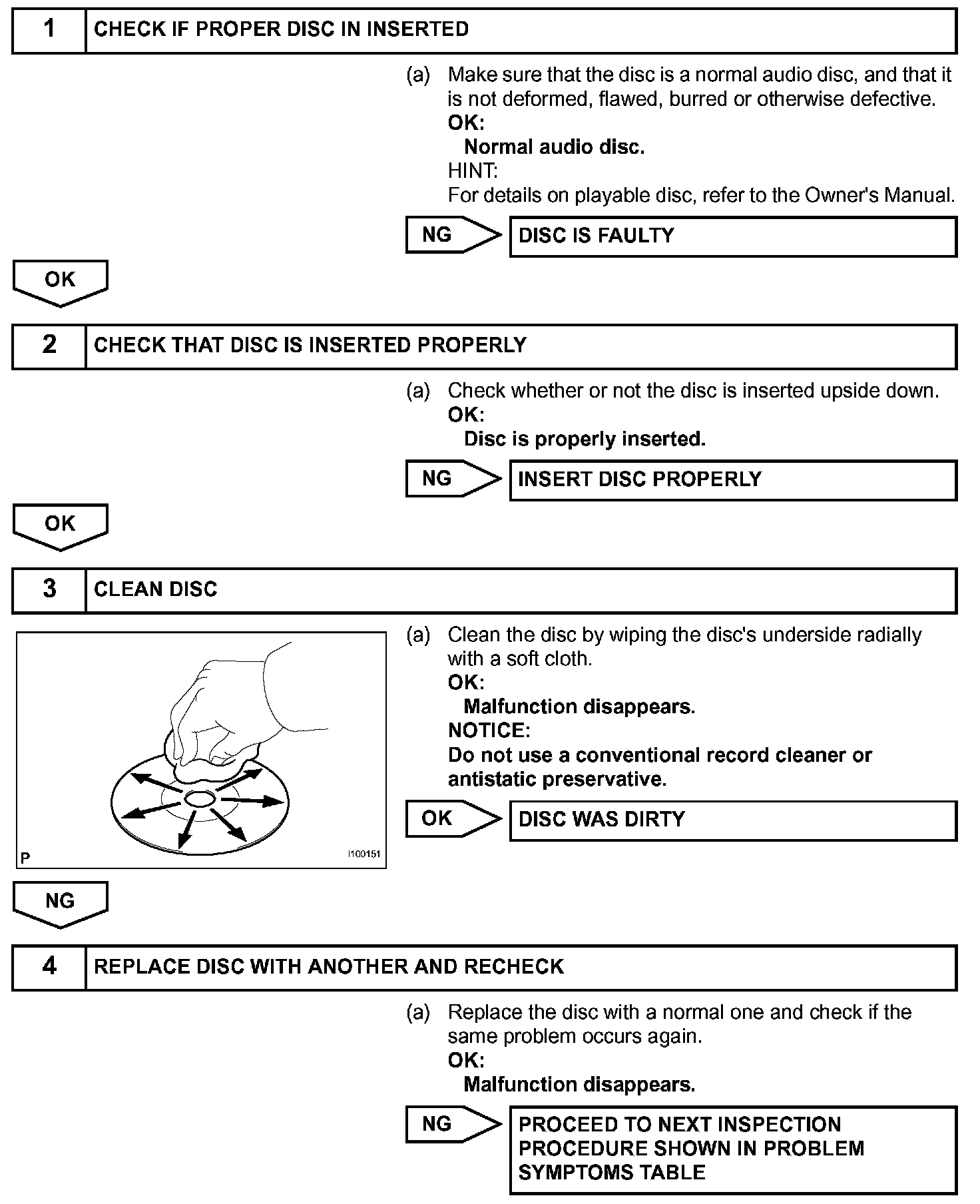

Step 1-4:

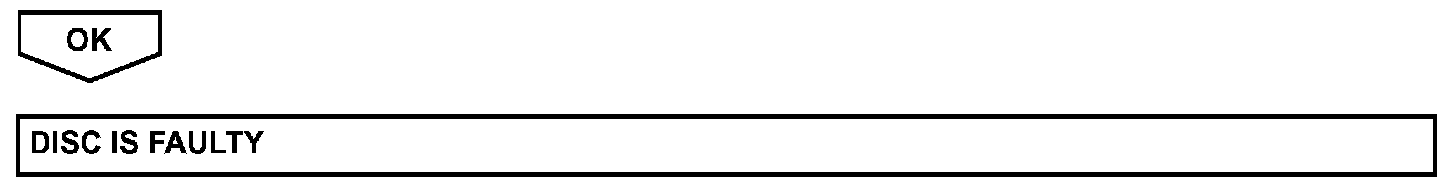

Step 4 (Continued):




INSPECTION PROCEDURE
