Vehicle Speed Signal Circuit Between Stereo Component Amplifier and Combination Meter

Vehicle Speed Signal Circuit between Stereo Component Amplifier and Combination Meter

DESCRIPTION

The stereo component amplifier performs switch operation control during driving by receiving a vehicle speed signal from the combination meter.

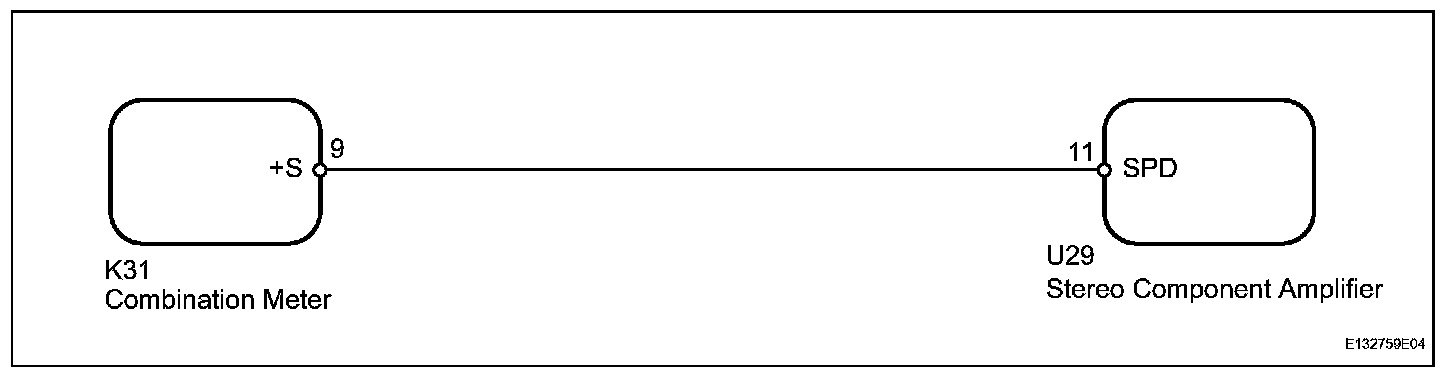

Wiring Diagram:






Step 1:

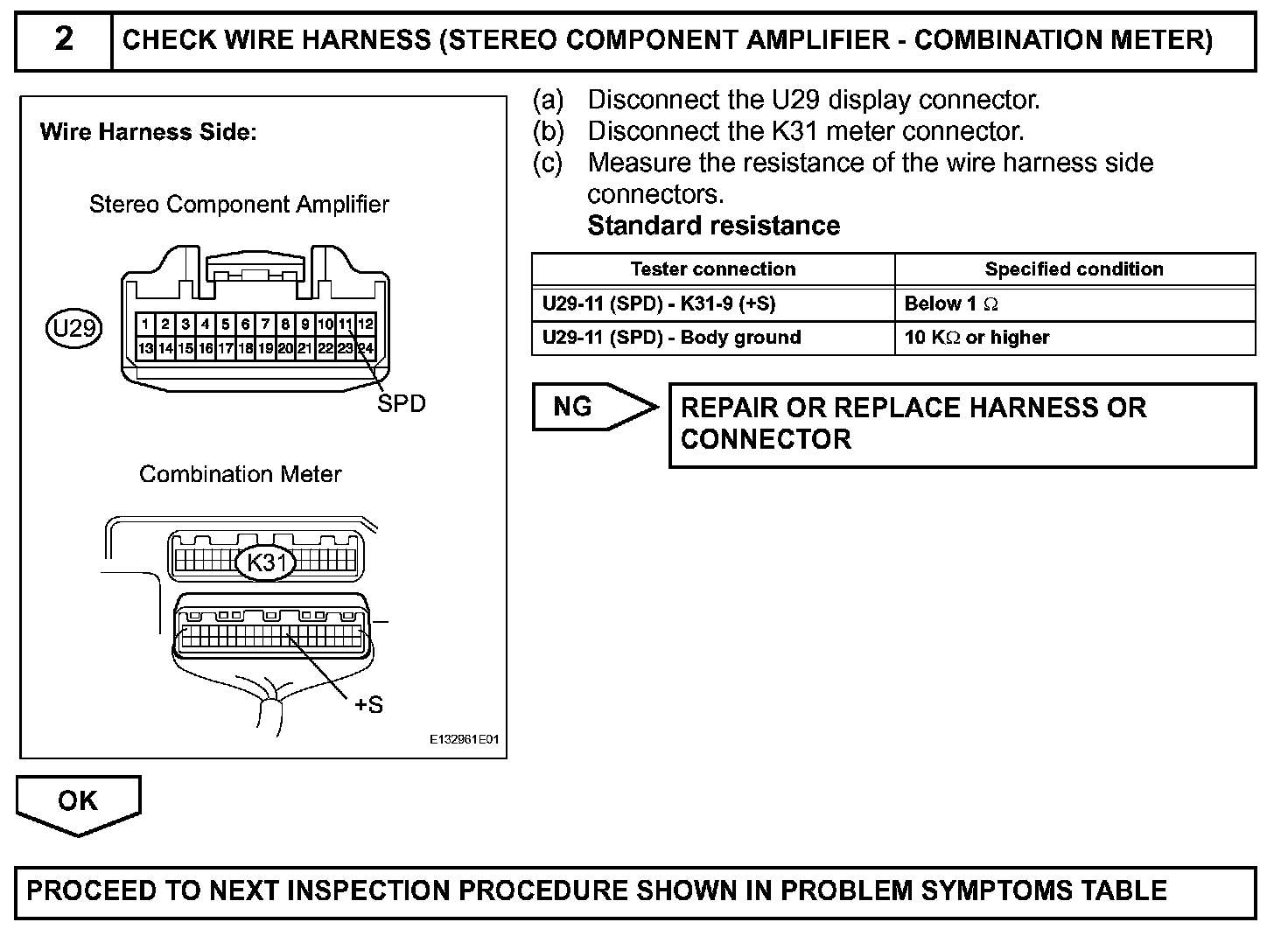

Step 2:




INSPECTION PROCEDURE
