Mute Signal Circuit Between Radio Receiver and Stereo Component Amplifier
Mute Signal Circuit between Radio Receiver and Stereo Component AmplifierDESCRIPTION
The circuit sends a signal to the stereo component amplifier to mute noise. Because of that, the noise produced by changing the sound source ceases.

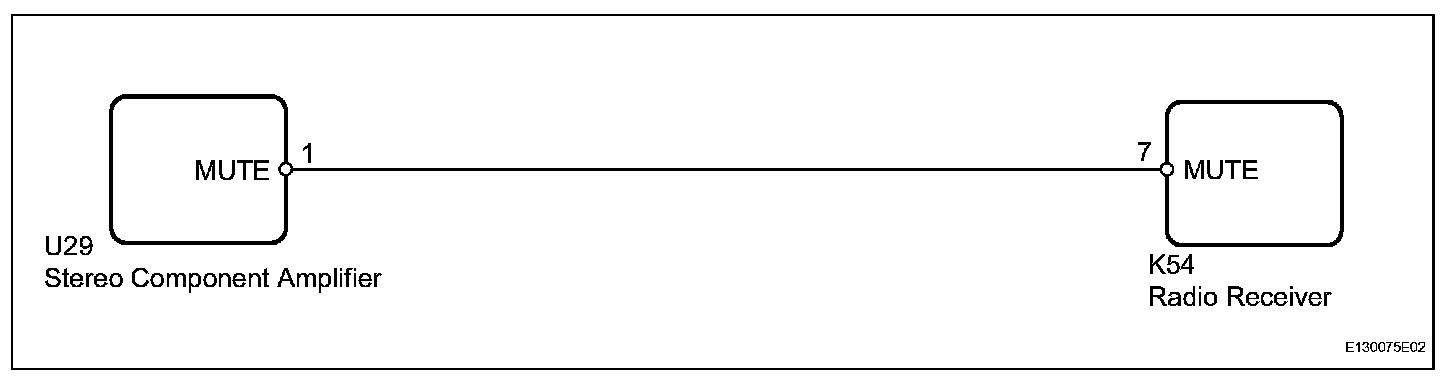

Wiring Diagram:
Step 1:
Step 2:

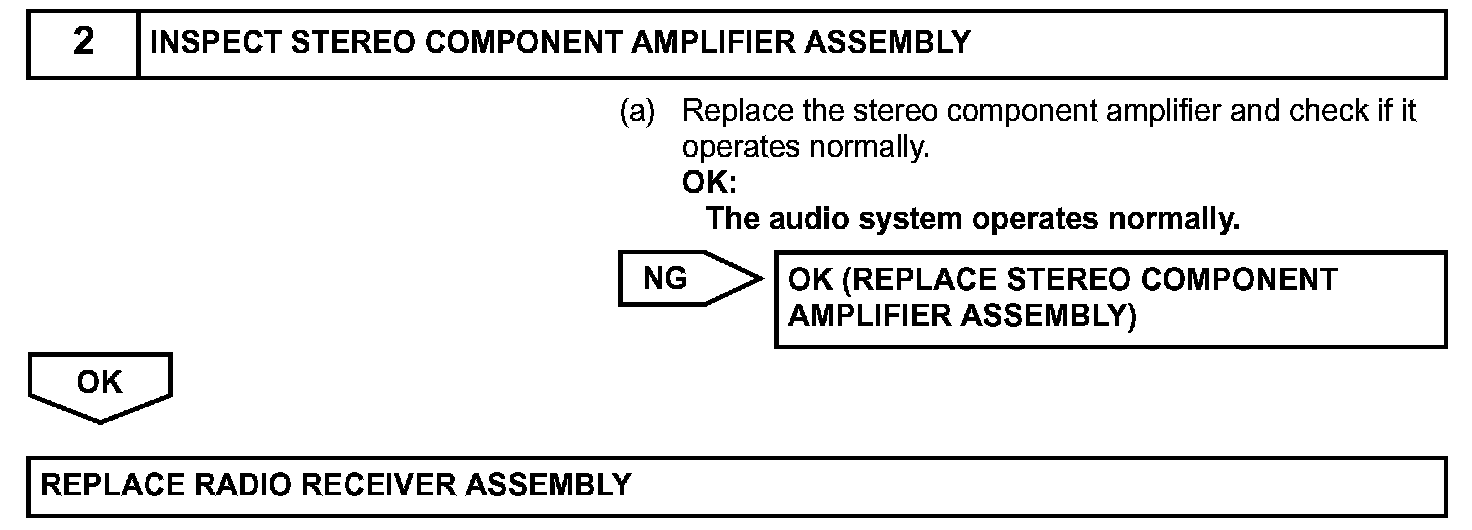

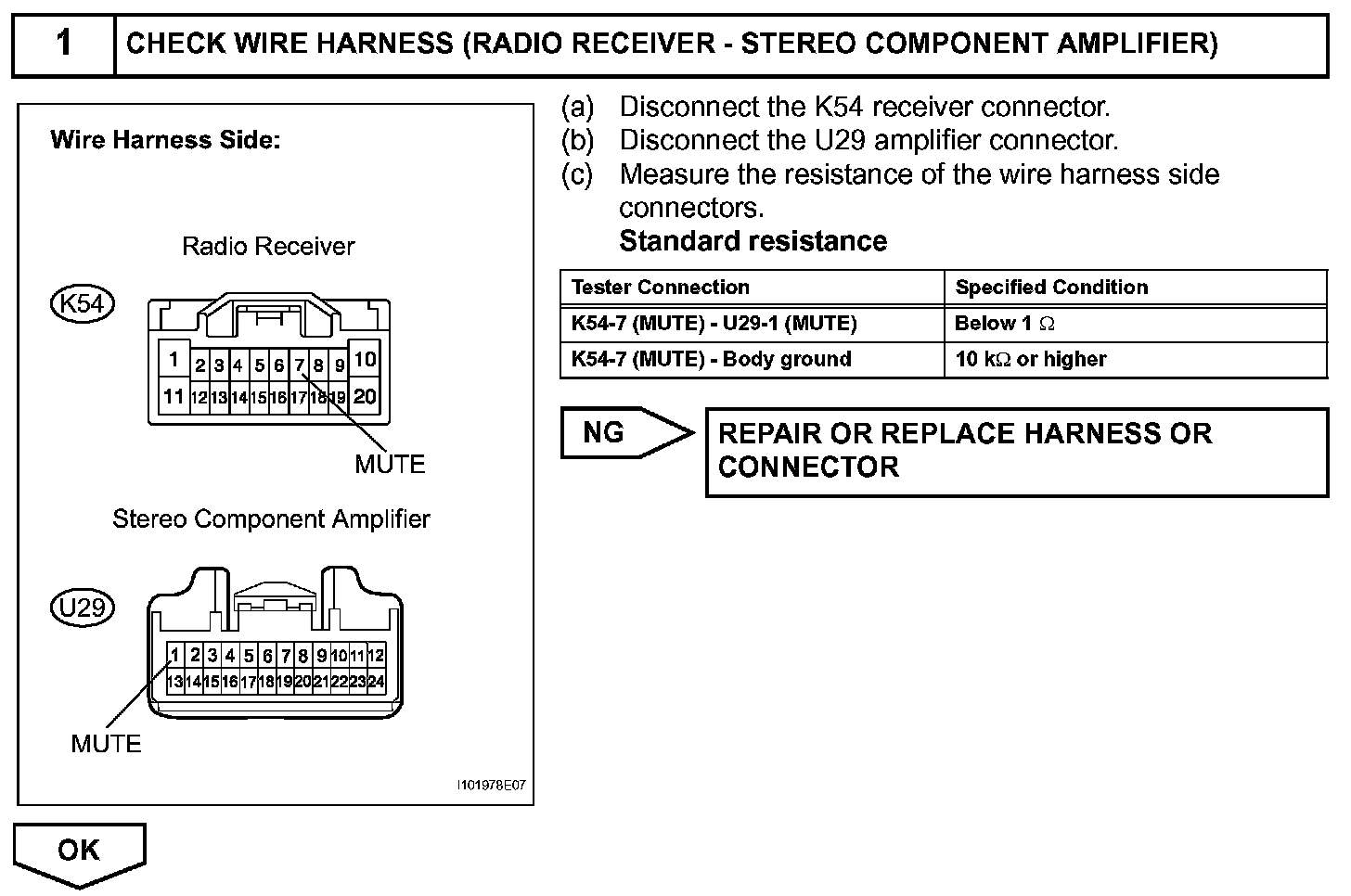

INSPECTION PROCEDURE
