Display Signal Circuit Between Multi-Display and Radio Receiver
Display Signal Circuit between Multi-display and Radio ReceiverDESCRIPTION
This circuit sends a DVD image signal from the radio receiver to the multi-display.

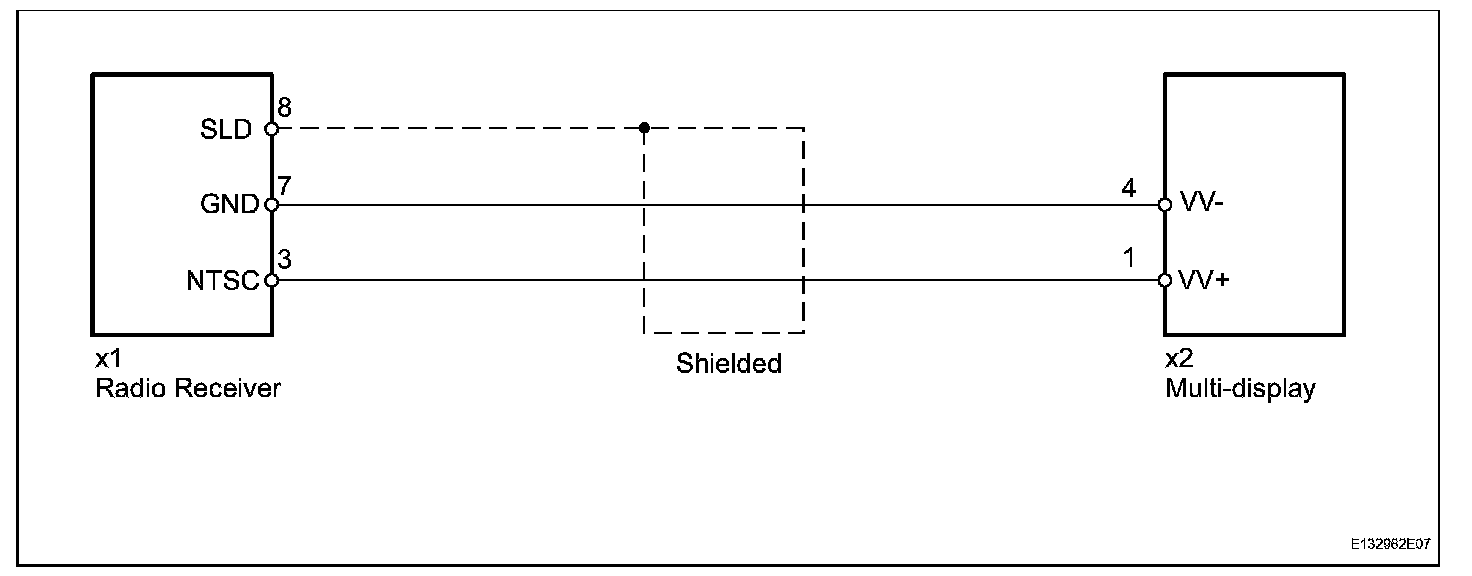

Wiring Diagram:

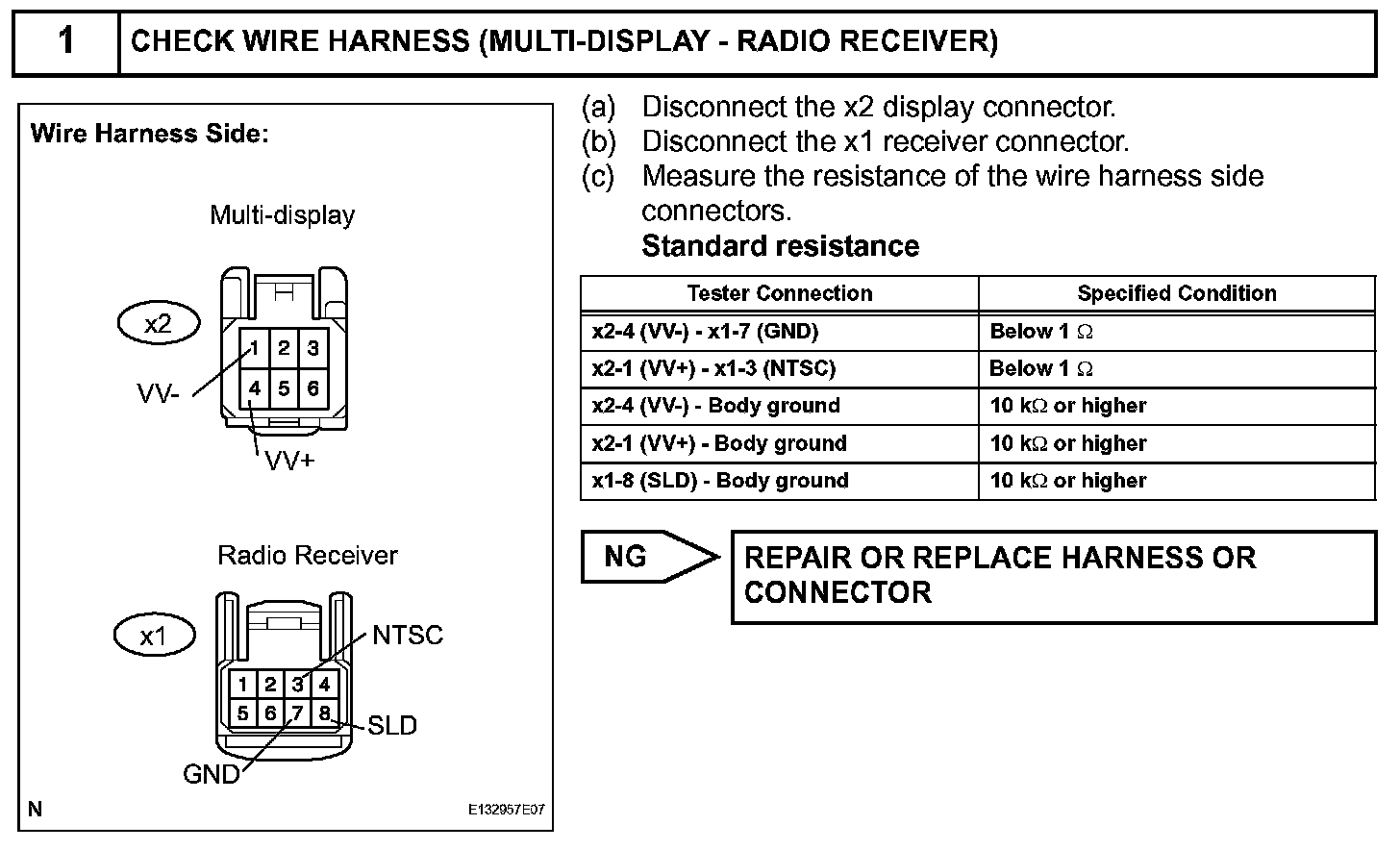

Step 1:

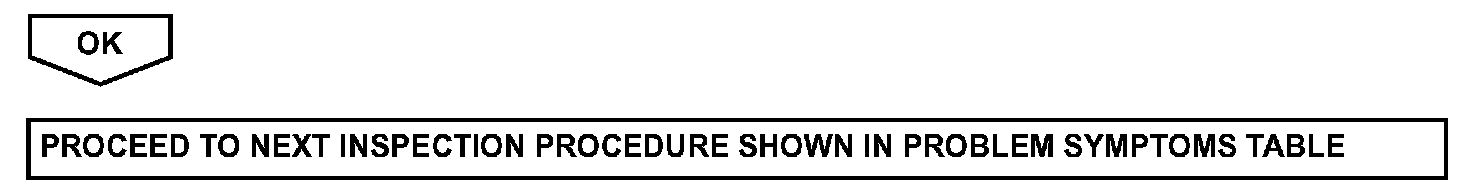

Step 1 (Continued):
INSPECTION PROCEDURE
