Front No. 1 Speaker

Front No. 1 Speaker:

FRONT NO. 1 SPEAKER

REMOVAL

HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed for the LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

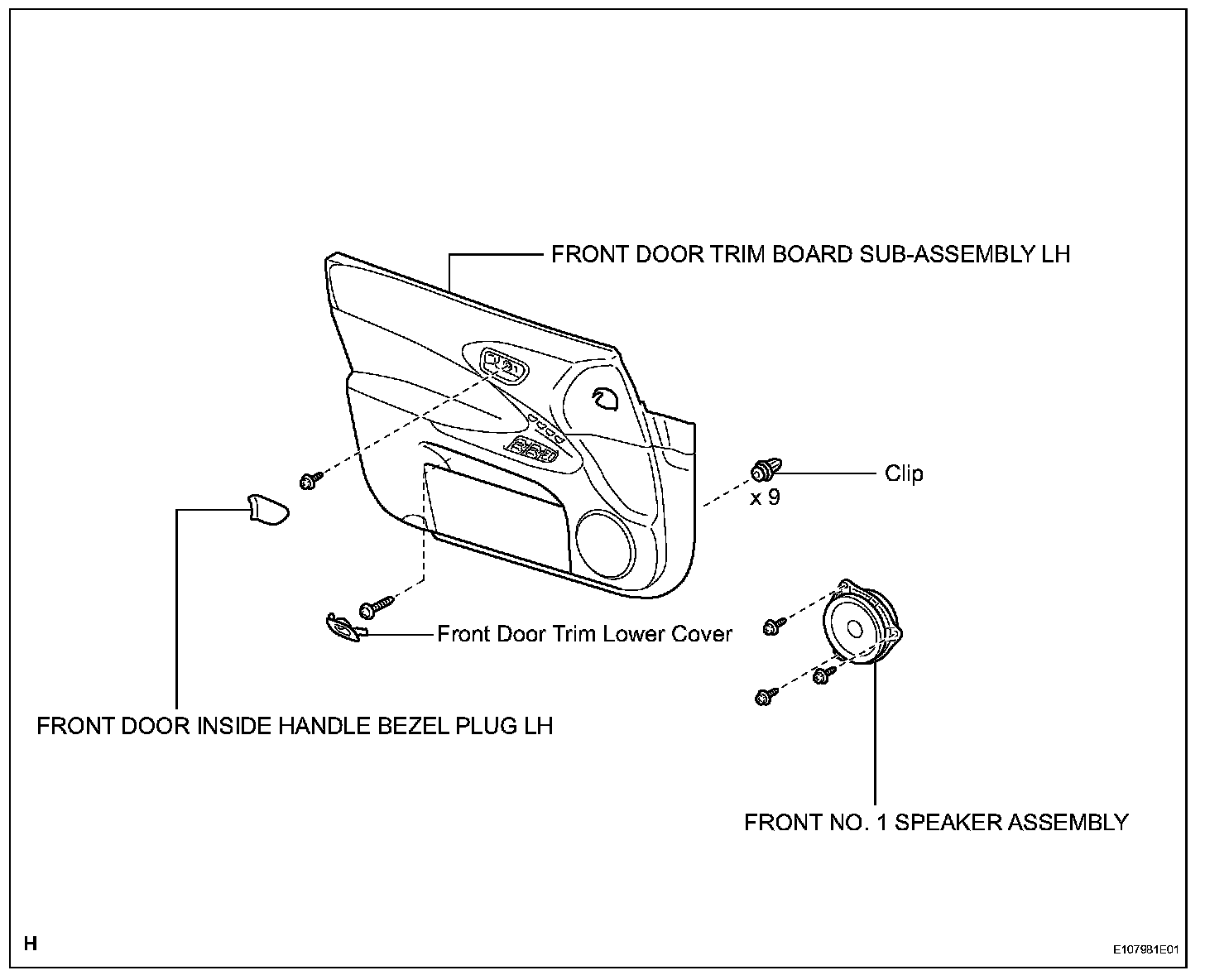

2. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG LH
3. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH

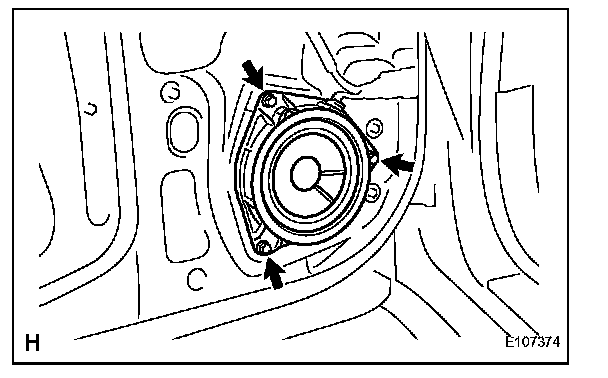

4. REMOVE FRONT NO. 1 SPEAKER ASSEMBLY




a. Disconnect the connector.
b. Remove the 3 screws and speaker.

HINT: Do not touch the cone part of the speaker.

INSTALLATION

HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed for the LH side.

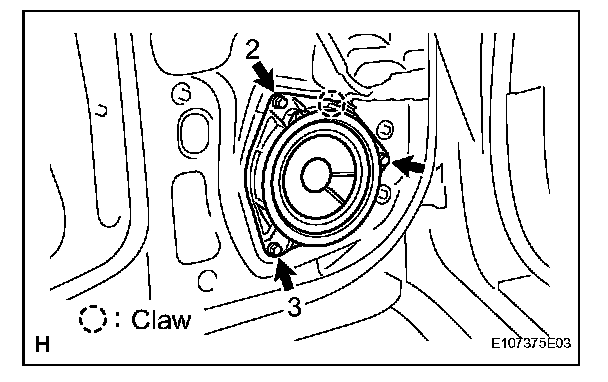

1. INSTALL FRONT NO. 1 SPEAKER ASSEMBLY




a. Temporarily install the speaker by attaching the claws of the speaker to the door panel.
b. Install the speaker with the 3 screws.

HINT:
- Install the screws in the order given in the illustration.
- Do not touch the cone part of the speaker.

c. Connect the connector.

2. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH
3. INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG LH
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

5. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
