Stereo Component Amplifier Power Source Circuit

Stereo Component Amplifier Power Source Circuit

DESCRIPTION

This circuit provides power to the stereo component amplifier.

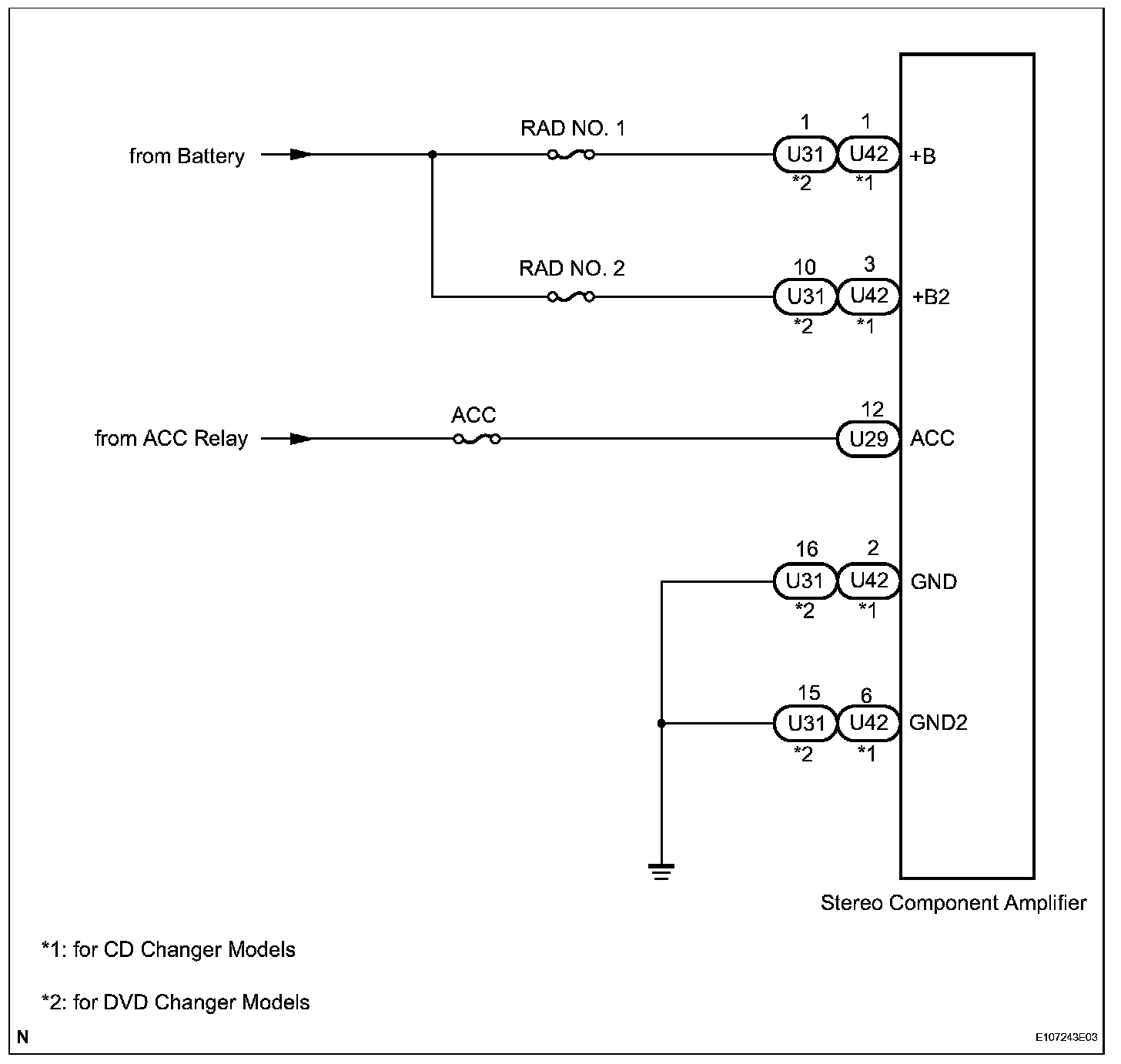

Wiring Diagram:

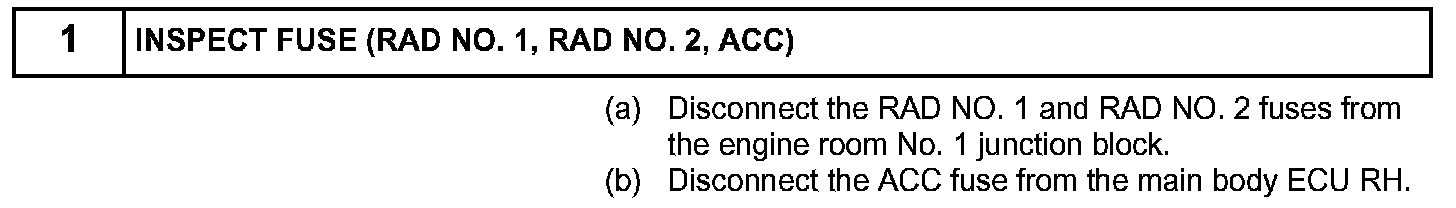

Step 1:

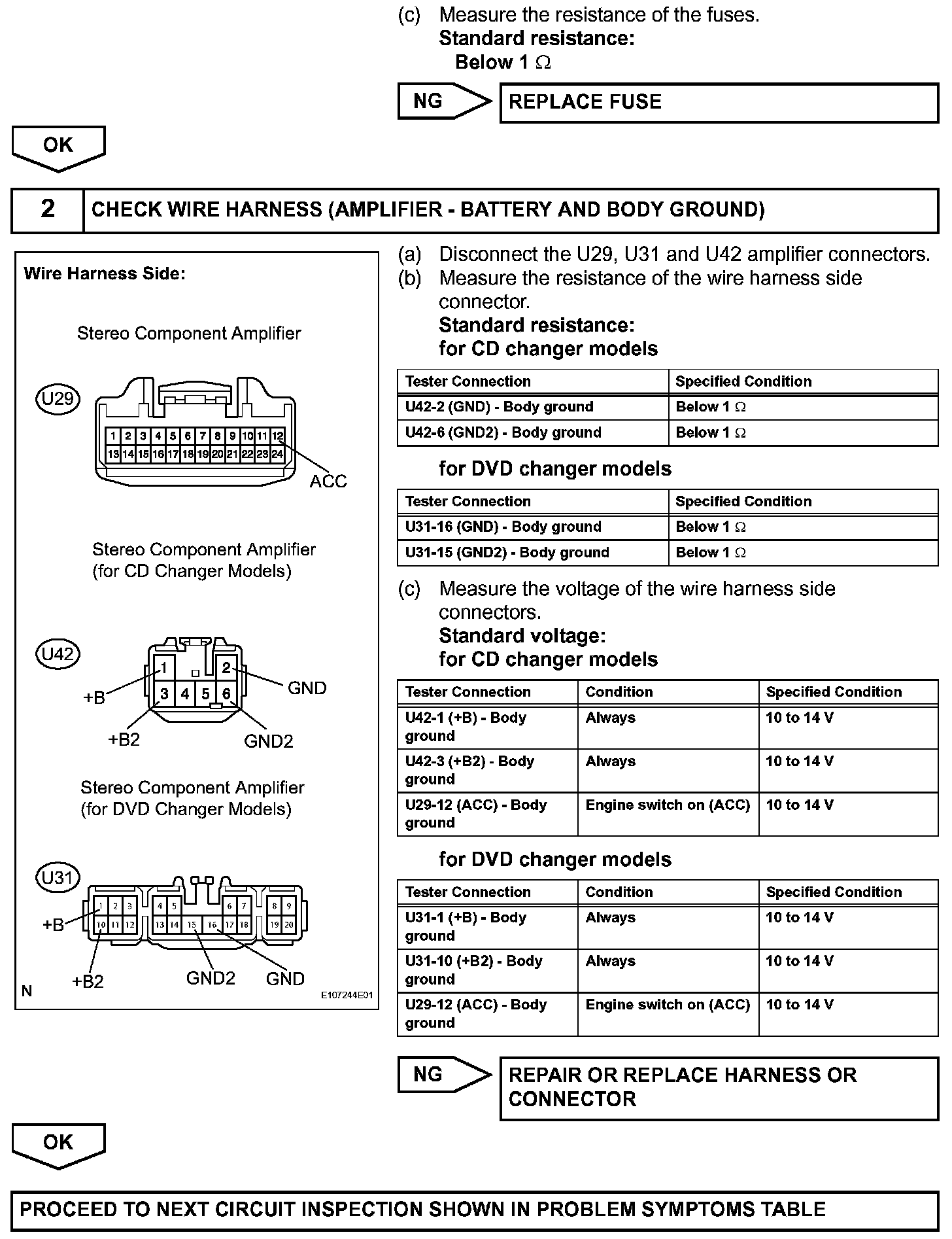

Step 1 (Continued)-2:




INSPECTION PROCEDURE
