Vehicle Speed Signal Circuit Between Navigation ECU and Combination Meter

Vehicle Speed Signal Circuit between Navigation ECU and Combination Meter

DESCRIPTION

This circuit sends a speed signal from the combination meter to the navigation ECU through the multidisplay.

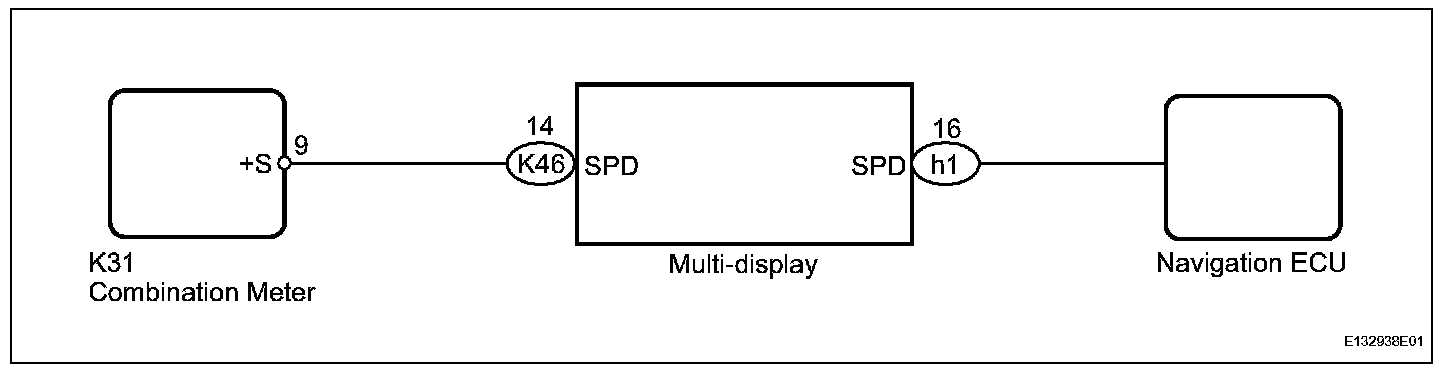

Wiring Diagram:





INSPECTION PROCEDURE

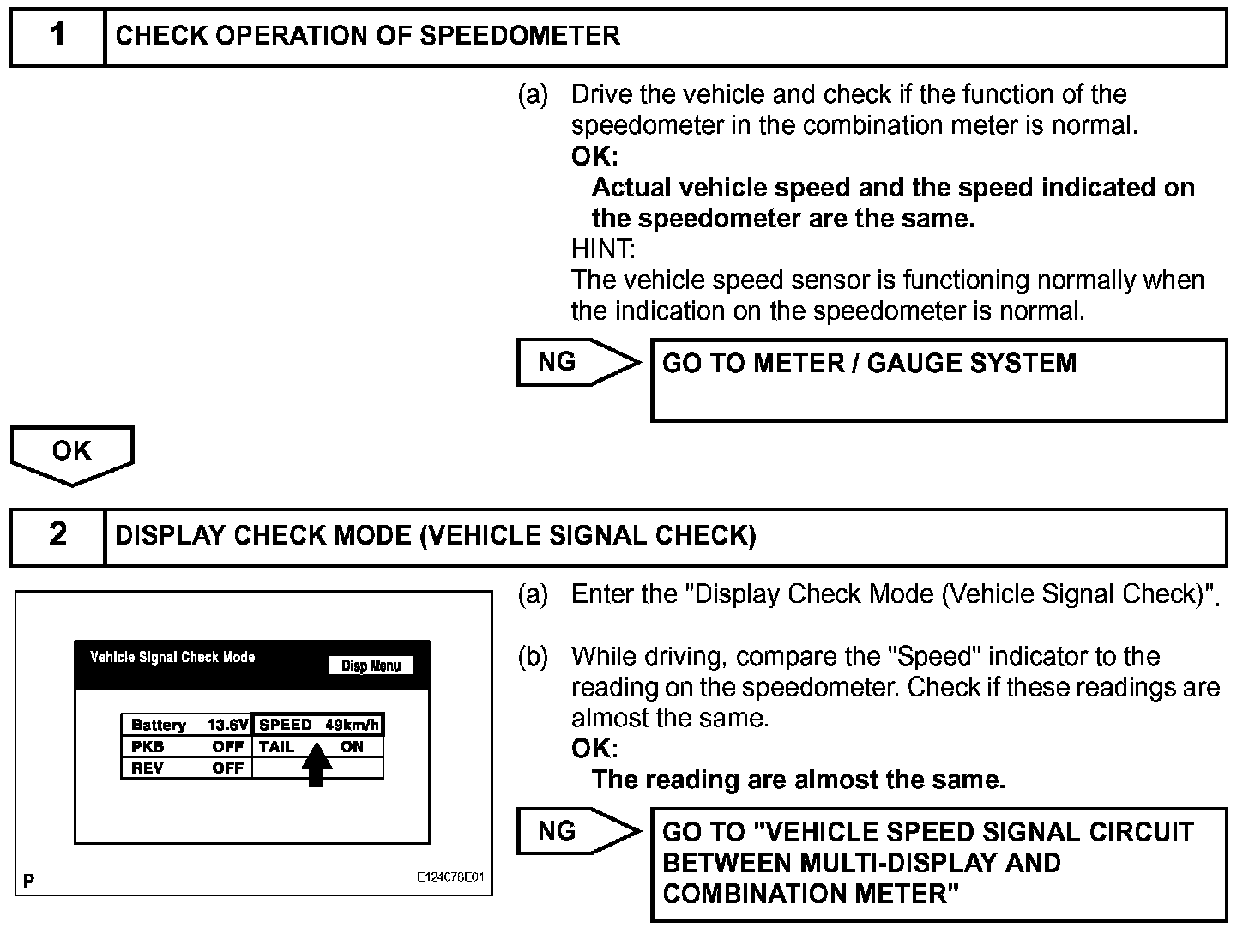

Step 1-2:




Step 2 (Continued):
