Parking Brake Switch Circuit

Parking Brake Switch Circuit

DESCRIPTION

This circuit is from the parking brake switch to the multi-display.

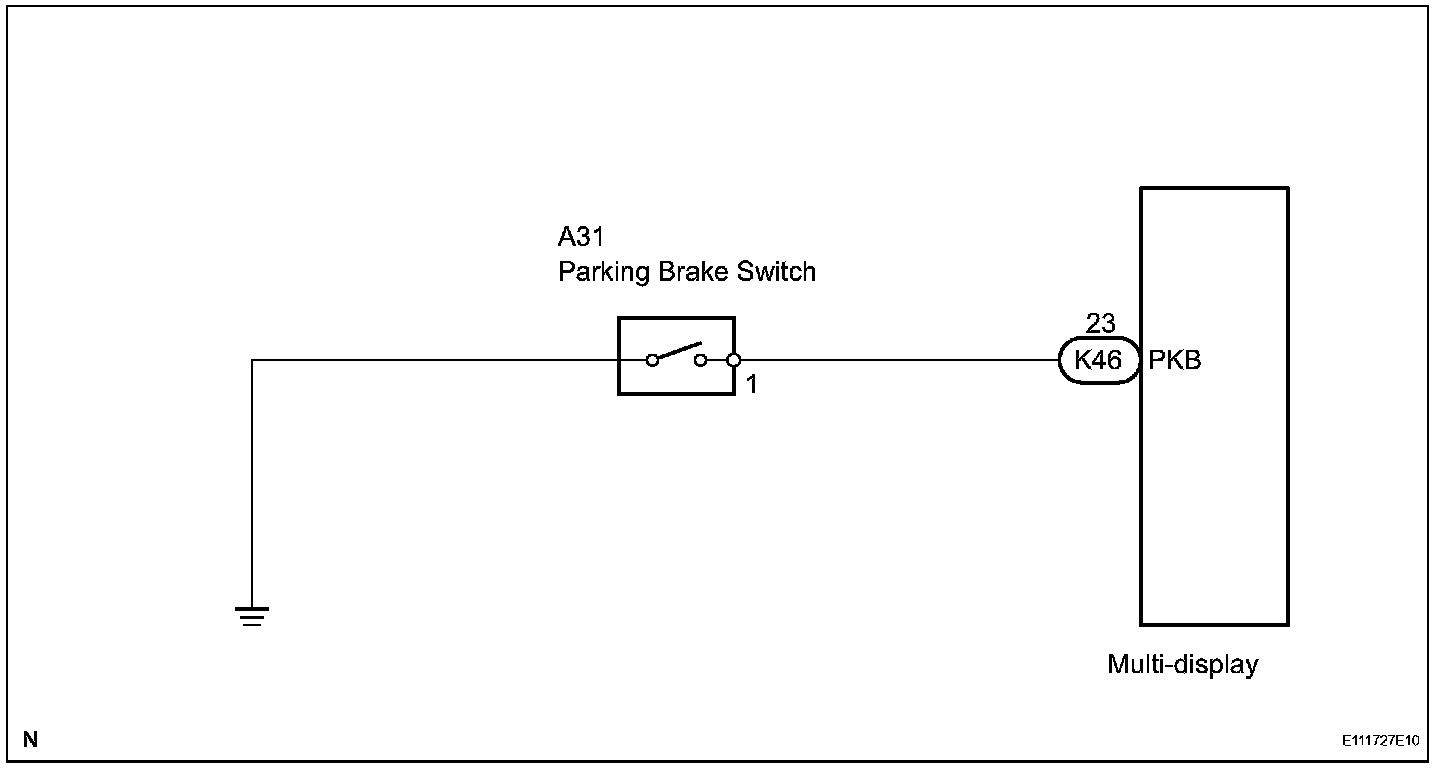

Wiring Diagram:





INSPECTION PROCEDURE

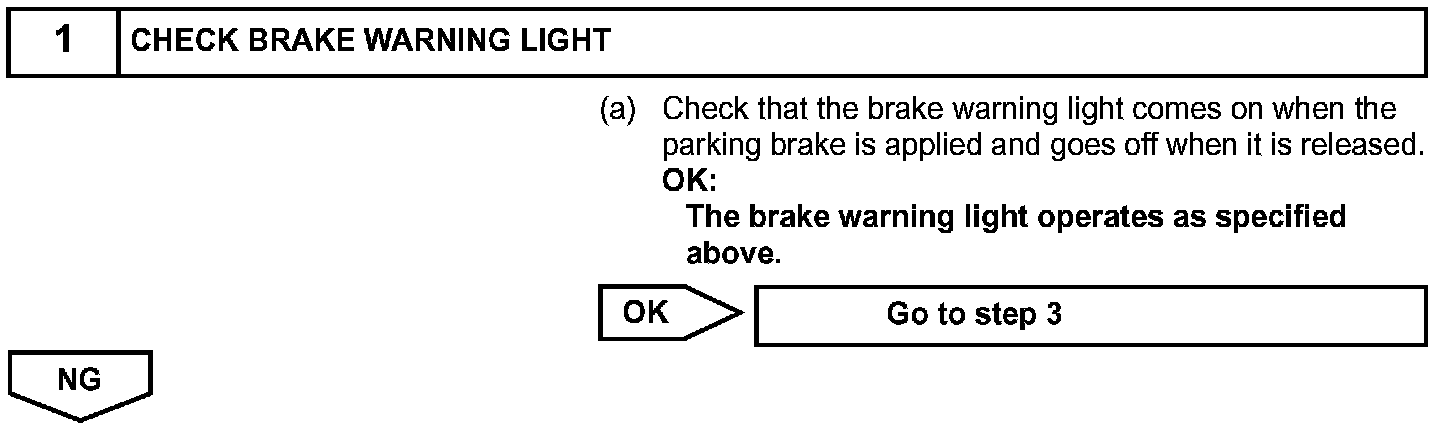

Step 1:

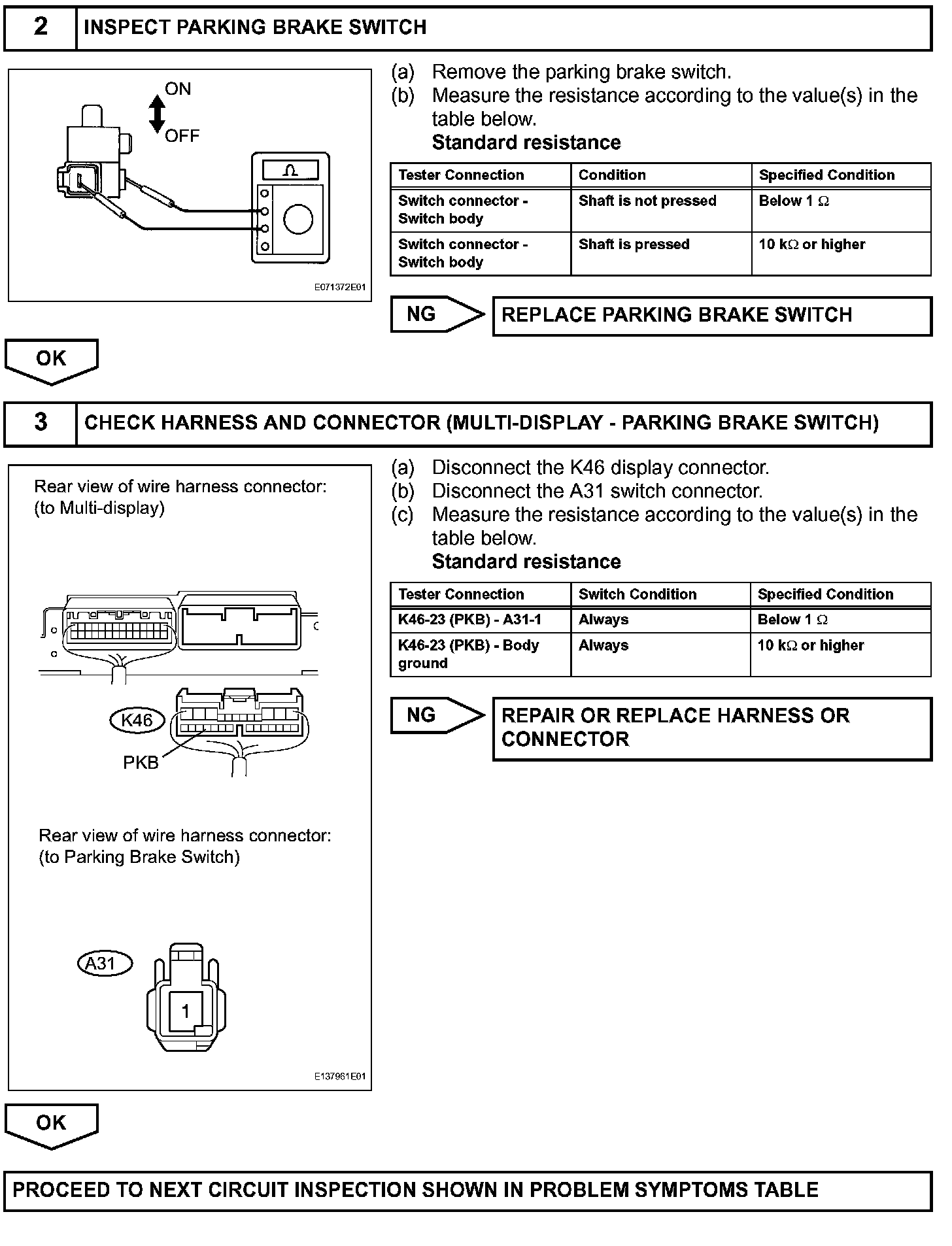

Step 2-3:
