Multi-Display Power Source Circuit

Multi-display Power Source Circuit

DESCRIPTION

The circuit provides power to the multi-display.

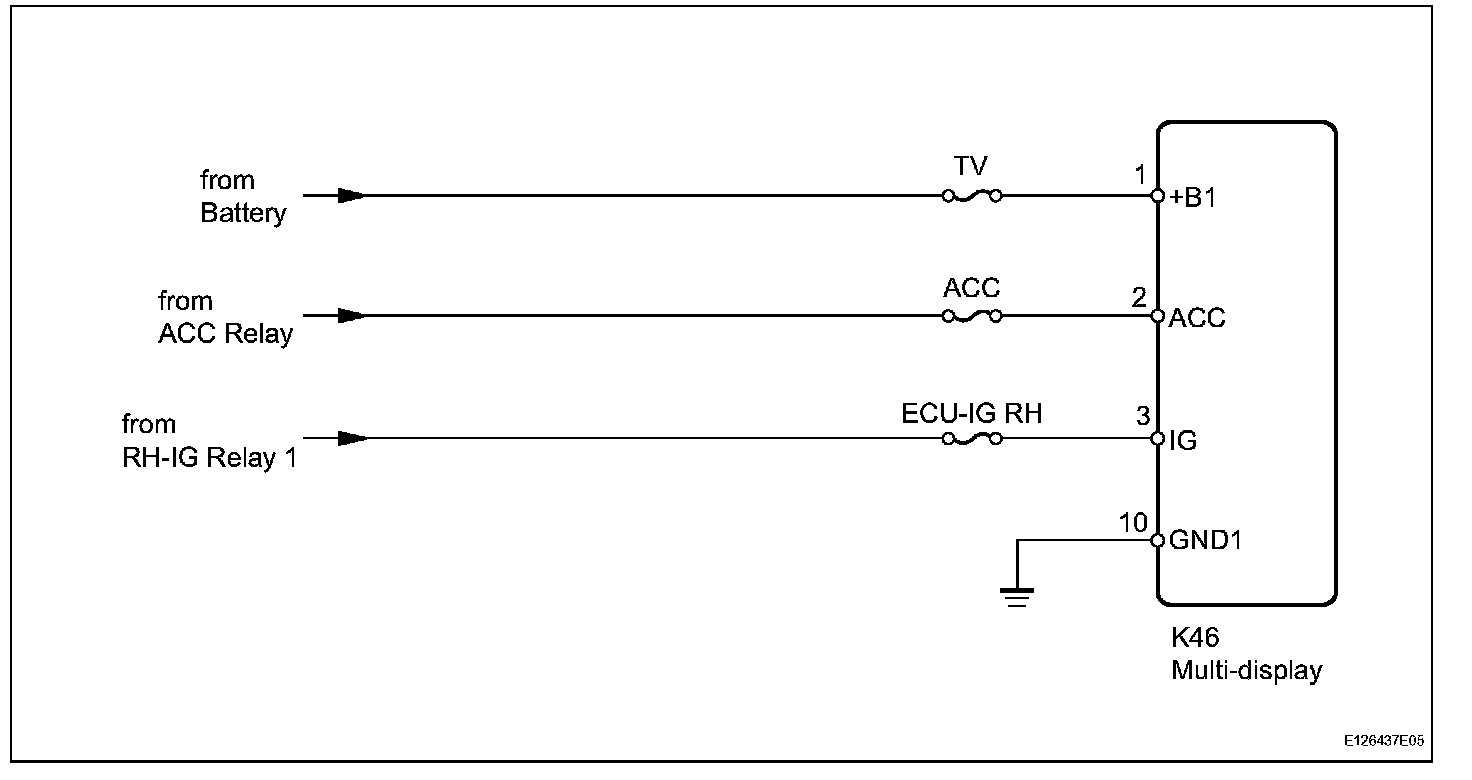

Wiring Diagram:

INSPECTION PROCEDURE

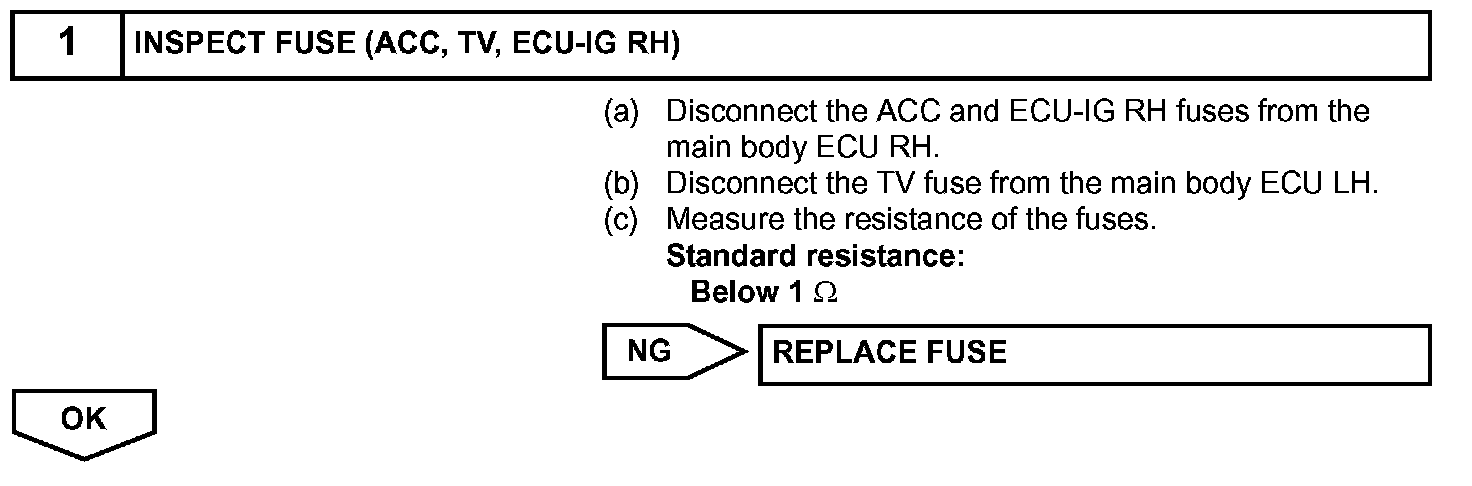

Step 1:

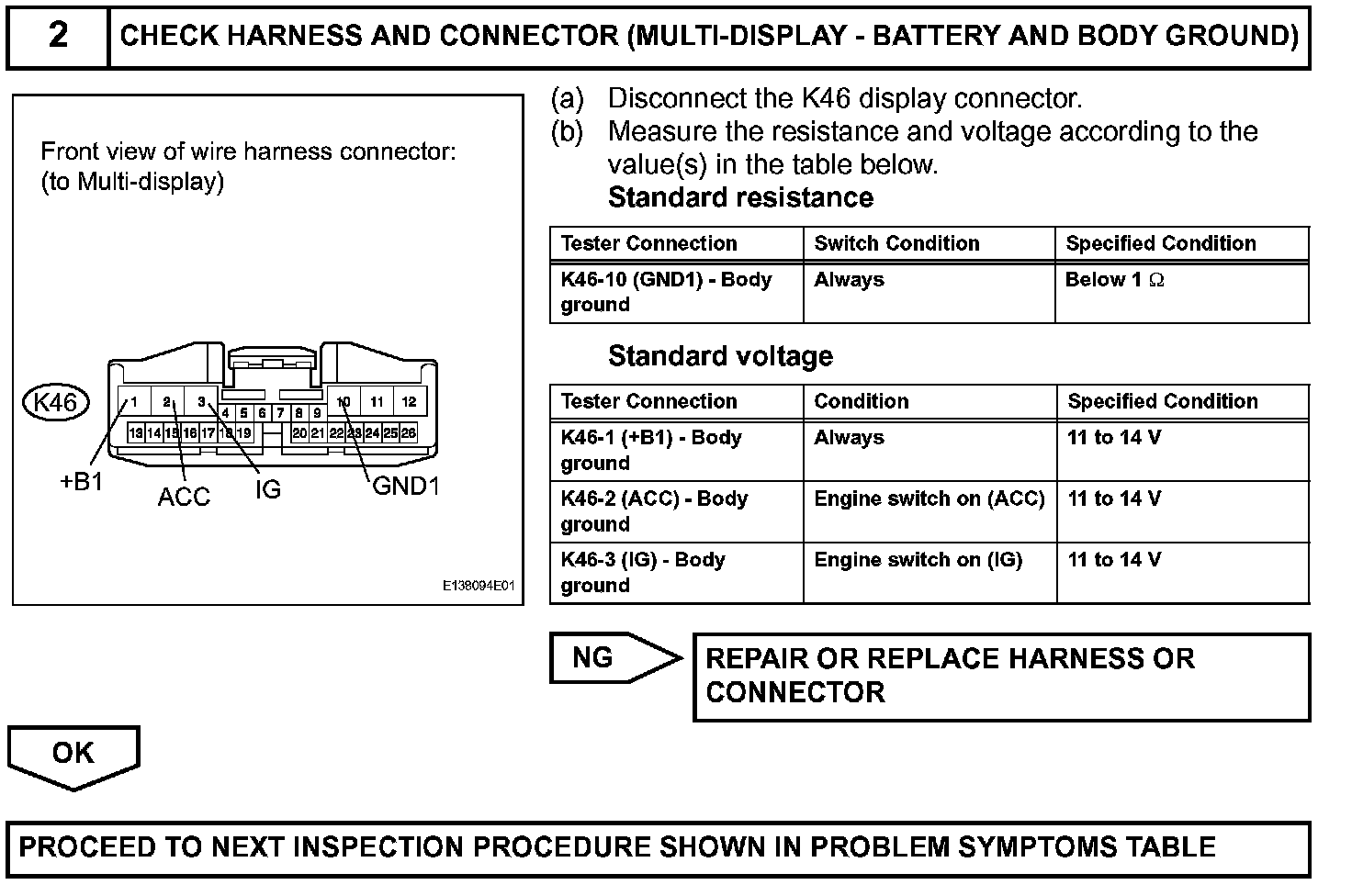

Step 2:
