Home >> Lexus >> 2007 >> GS 350 AWD V6-3.5L (2GR-FSE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Navigation System >> Testing and Inspection >> Component Tests and General Diagnostics >> Multi-Display Communication Error

Multi-Display Communication Error

Multi-display Communication Error

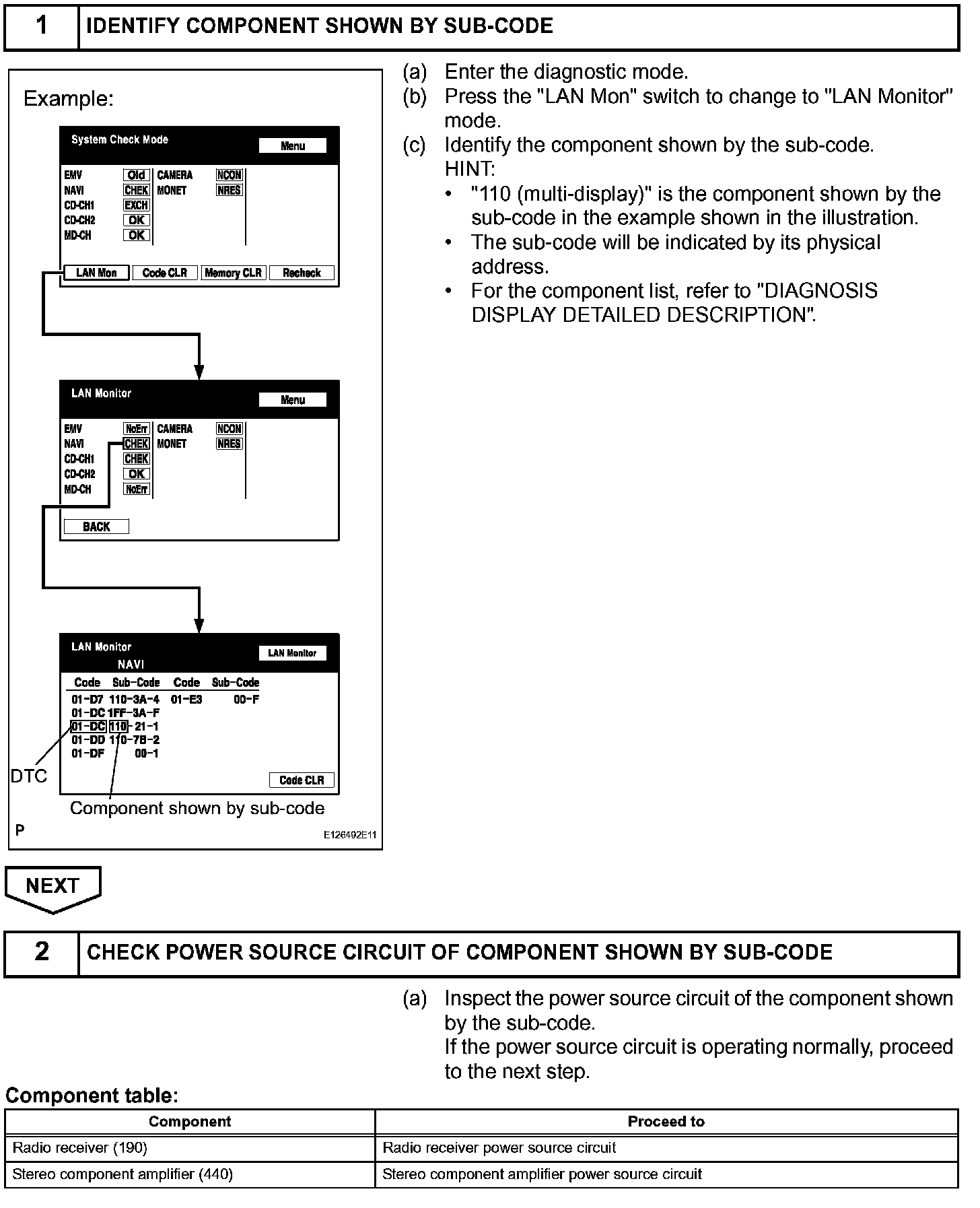

Step 1-2:

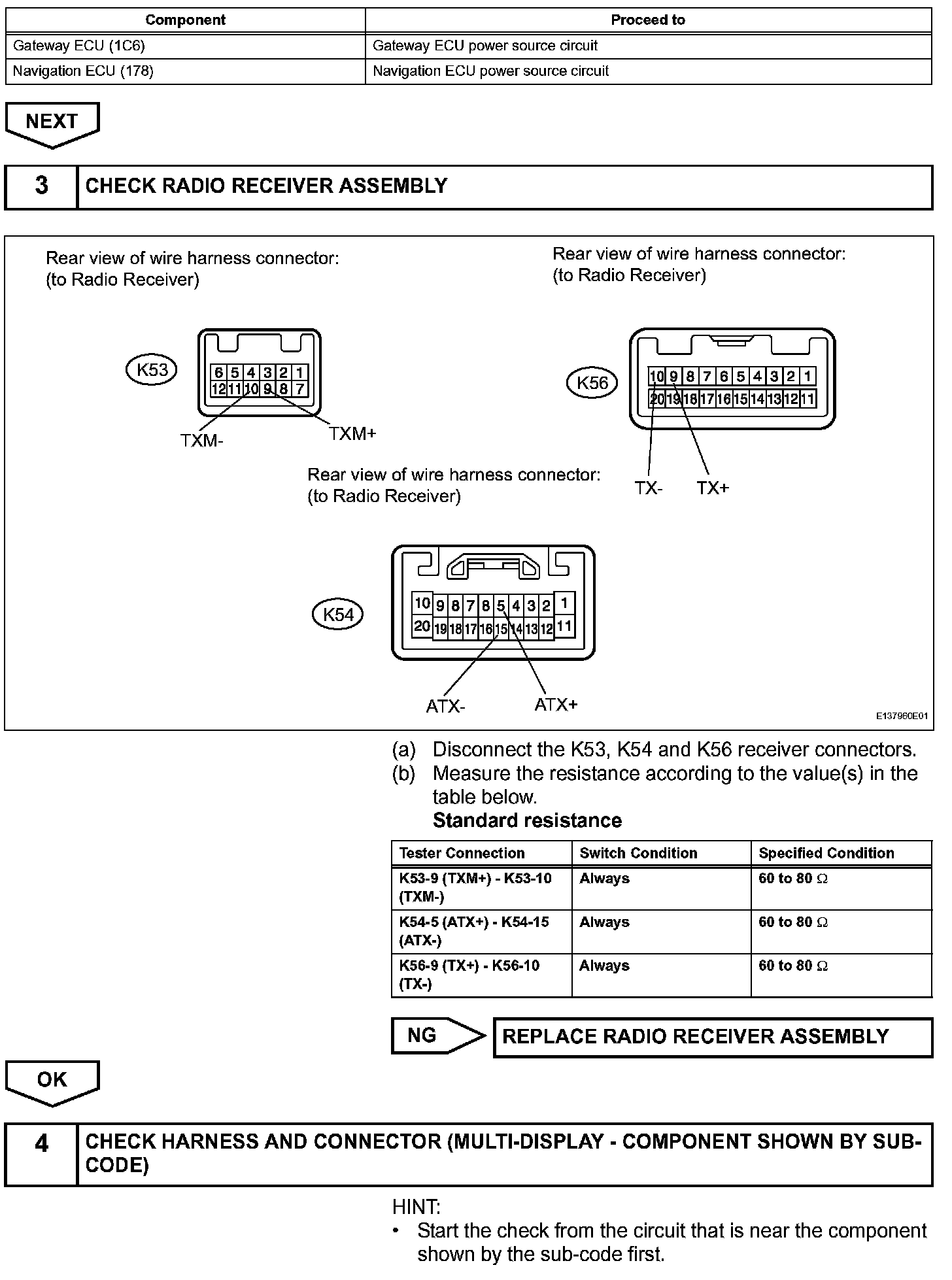

Step 2 (Continued)-4:

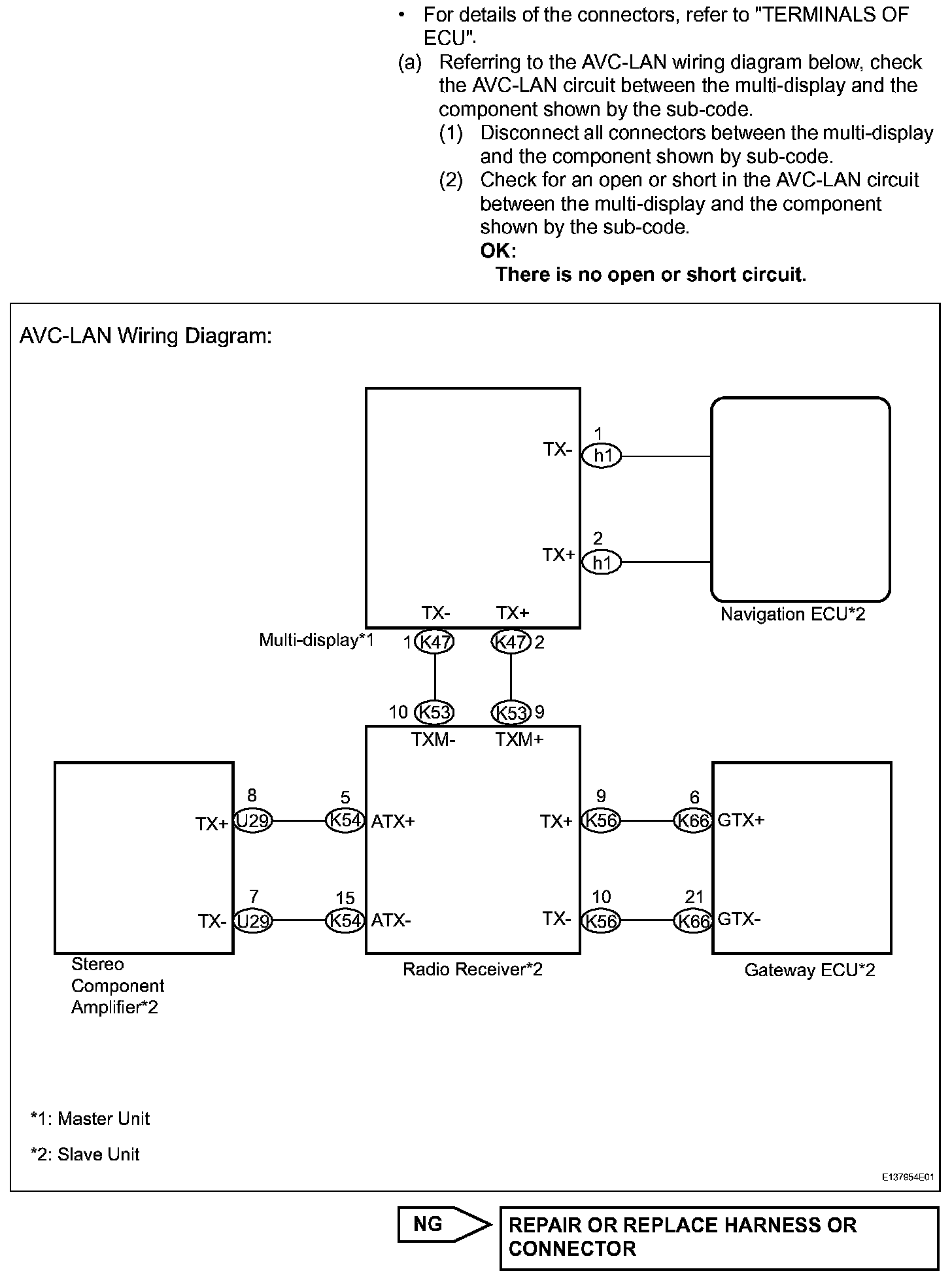

Step 4 (Continued):

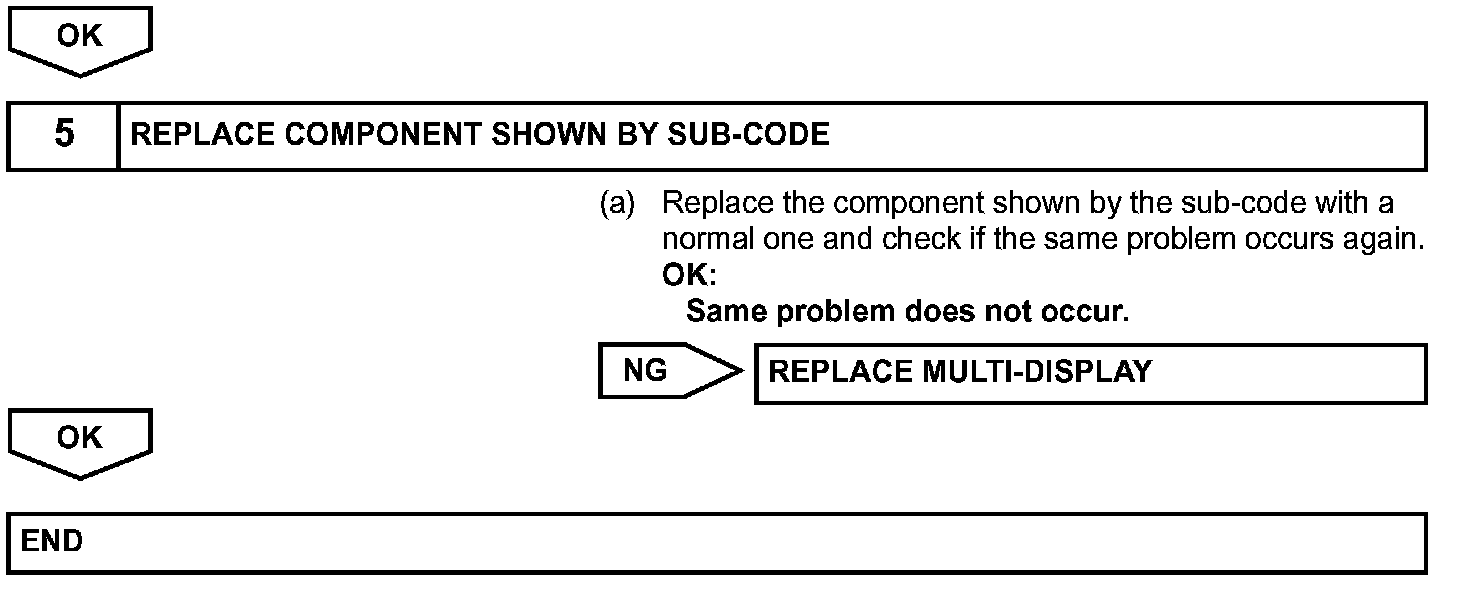

Step 4 (Continued)-5:
