Microphone Circuit Between Overhead J/B and Multi-Display
Microphone Circuit between Overhead J/B and Multi-displayDESCRIPTION
w/ LEXUS Link System:
This circuit sends a microphone signal from the microphone to the multi-display through the mayday ECU. It also supplies power from mayday ECU to the microphone.
(w/o LEXUS Link System:
This circuit sends a microphone signal from the microphone to the multi-display. It also supplies power from multi-display to the microphone.

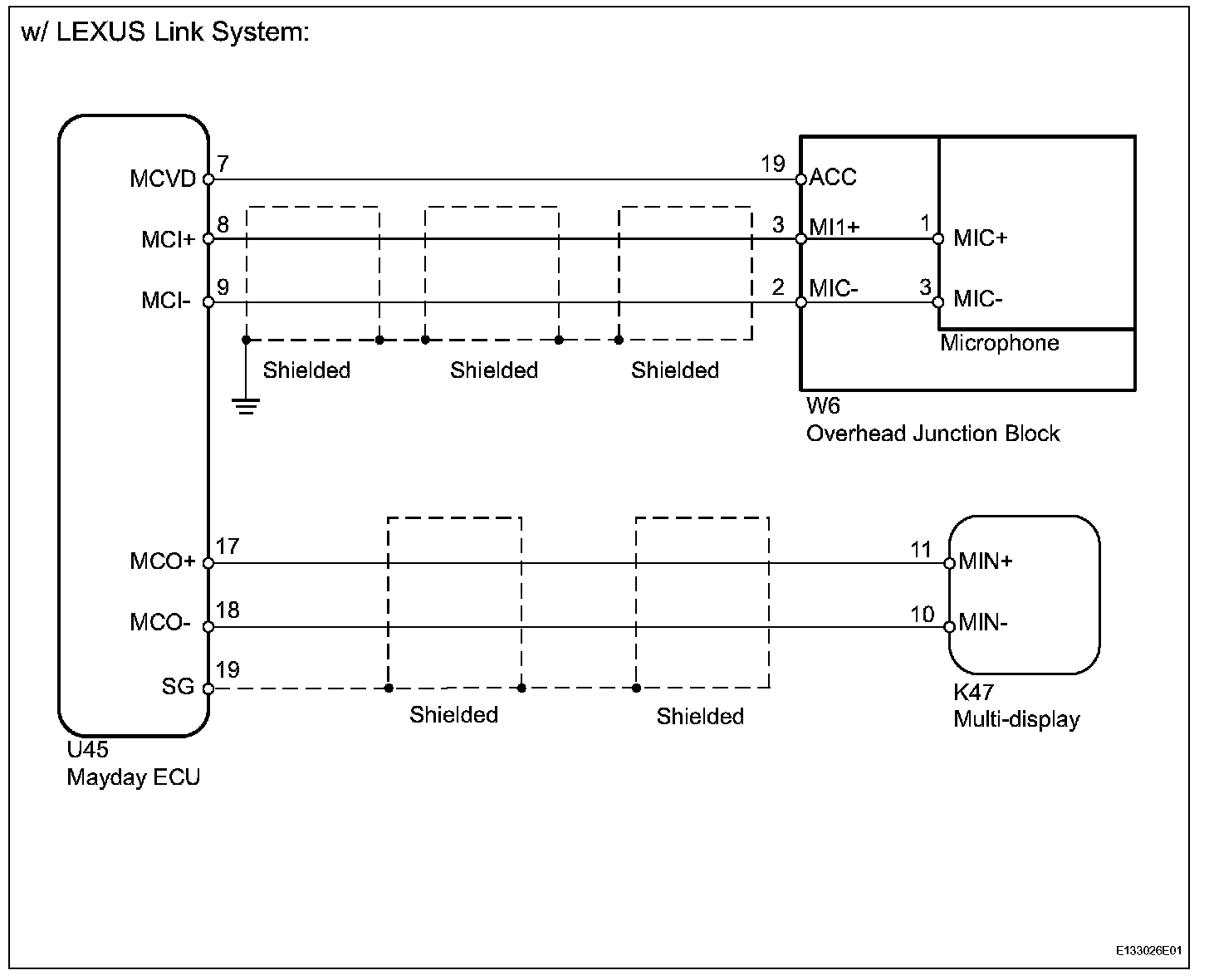

Wiring Diagram (w/LEXUS Link System):

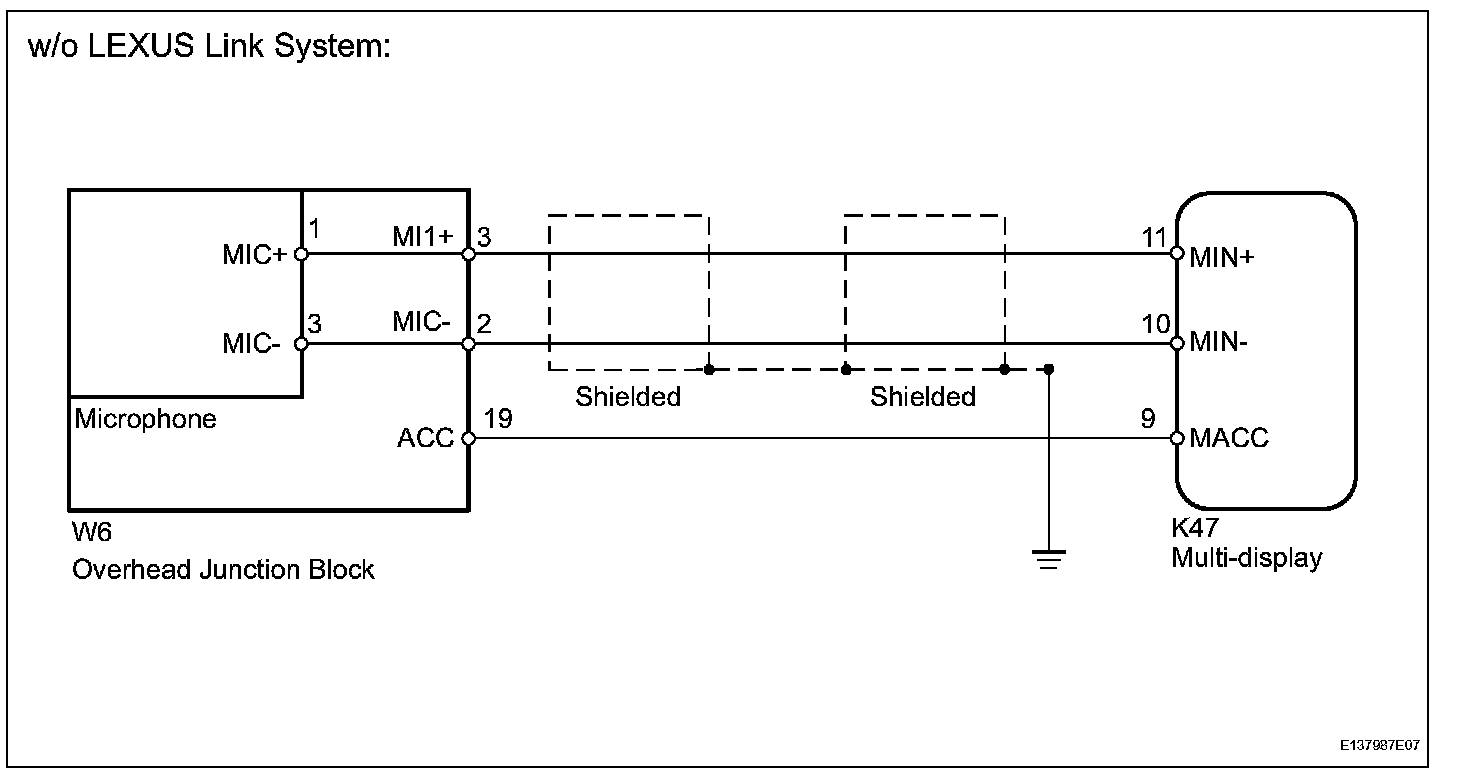

Wiring Diagram (w/o LEXUS Link System):
INSPECTION PROCEDURE

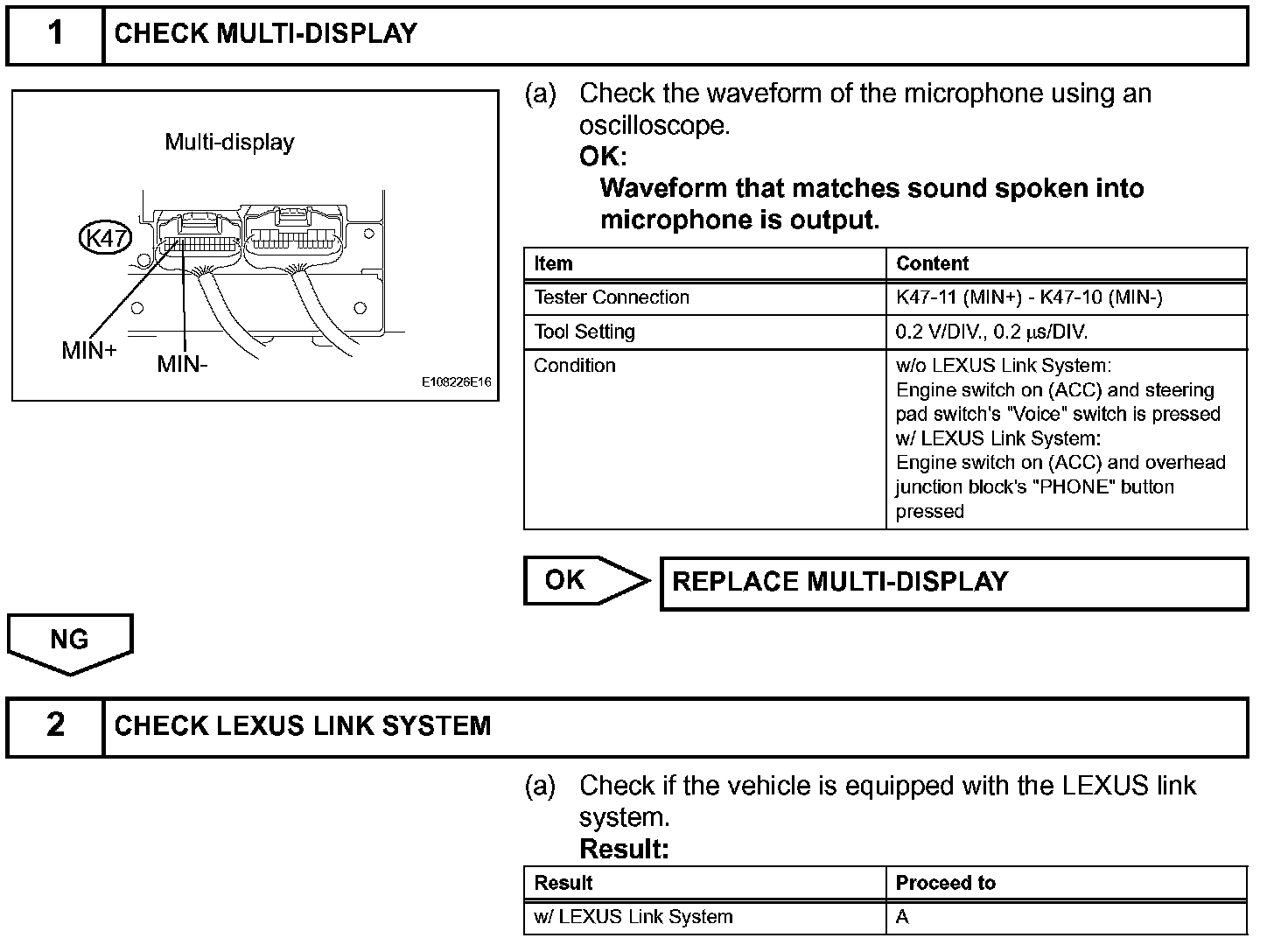

Step 1-2:

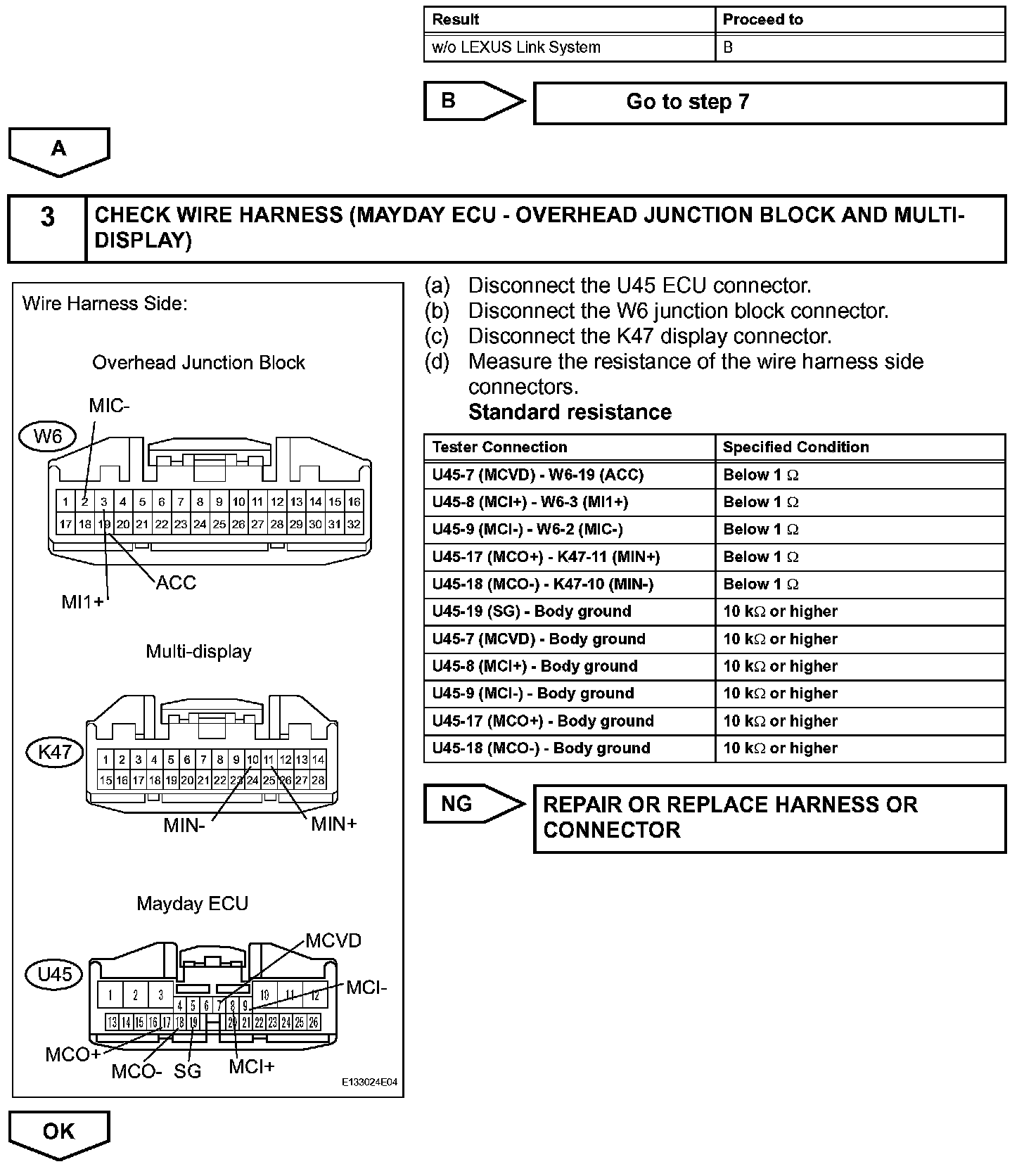

Step 2 (Continued)-3:
Step 4-6:

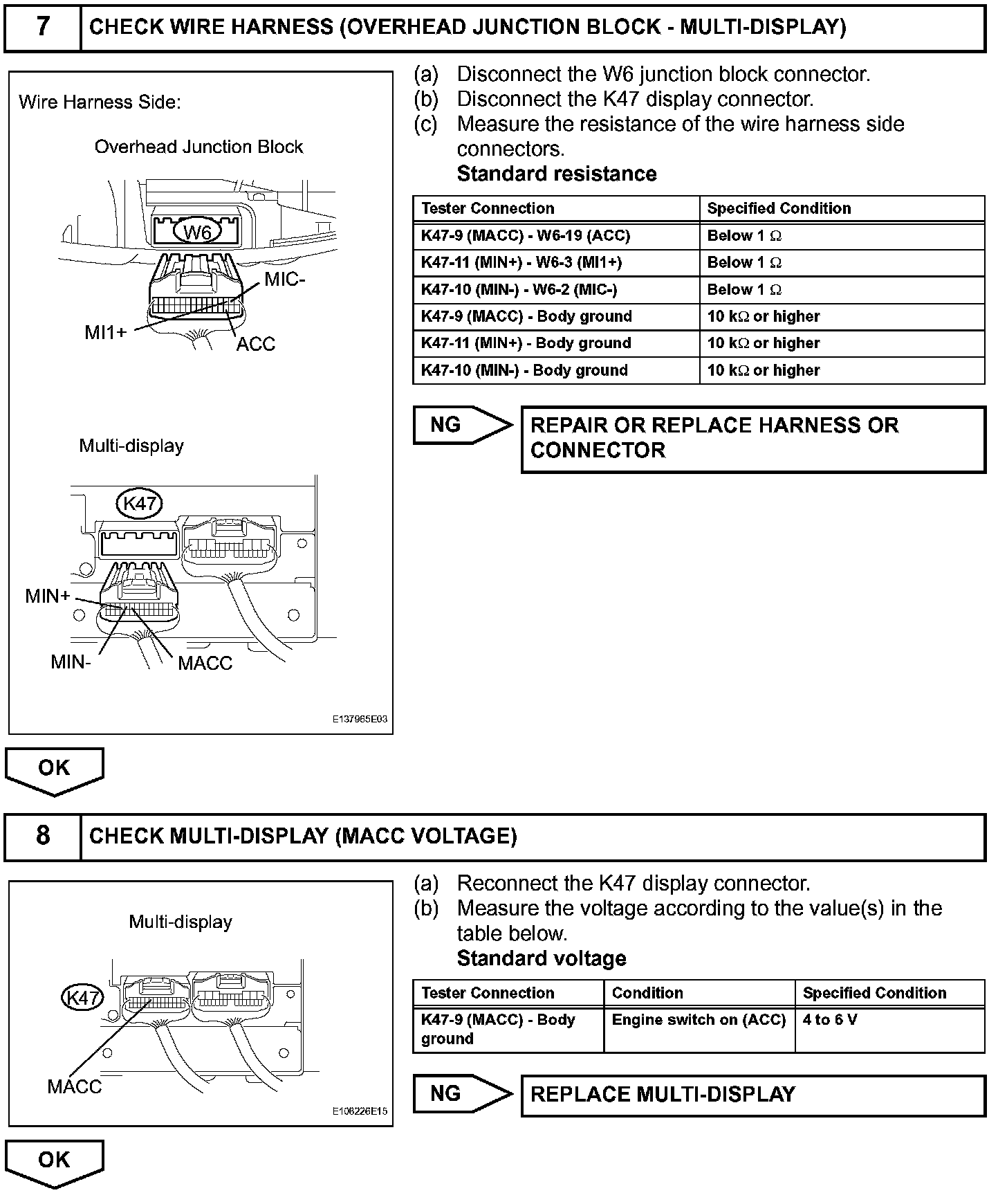

Step 7-8:

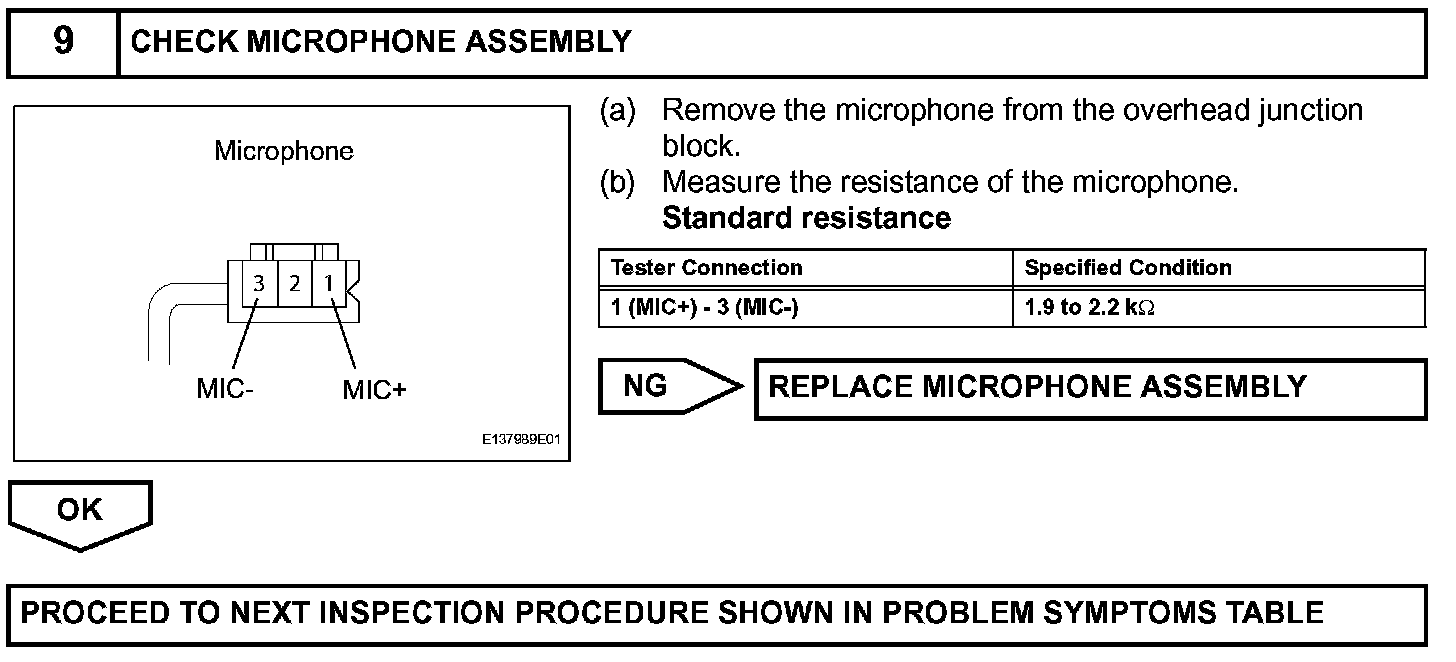

Step 9:
