Display Signal Circuit Between Multi-Display and Radio Receiver

Display Signal Circuit between Multi-display and Radio Receiver

DESCRIPTION

This circuit sends a DVD image signal from the radio receiver to the multi-display.

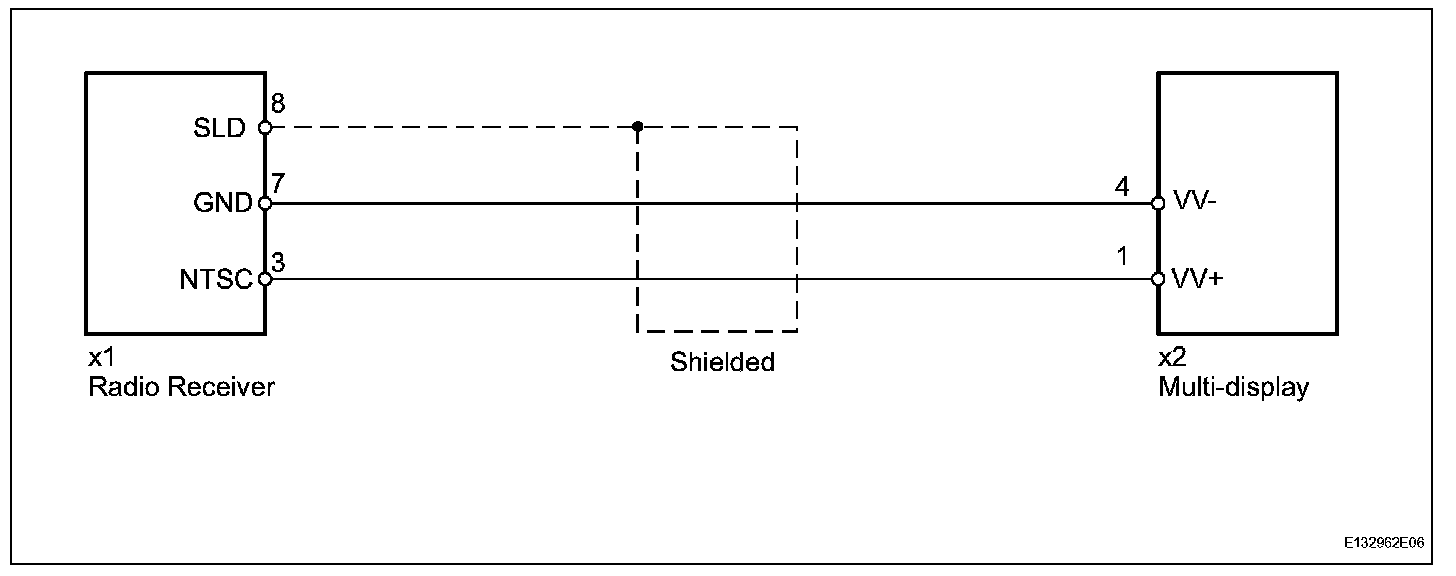

Wiring Diagram:





INSPECTION PROCEDURE

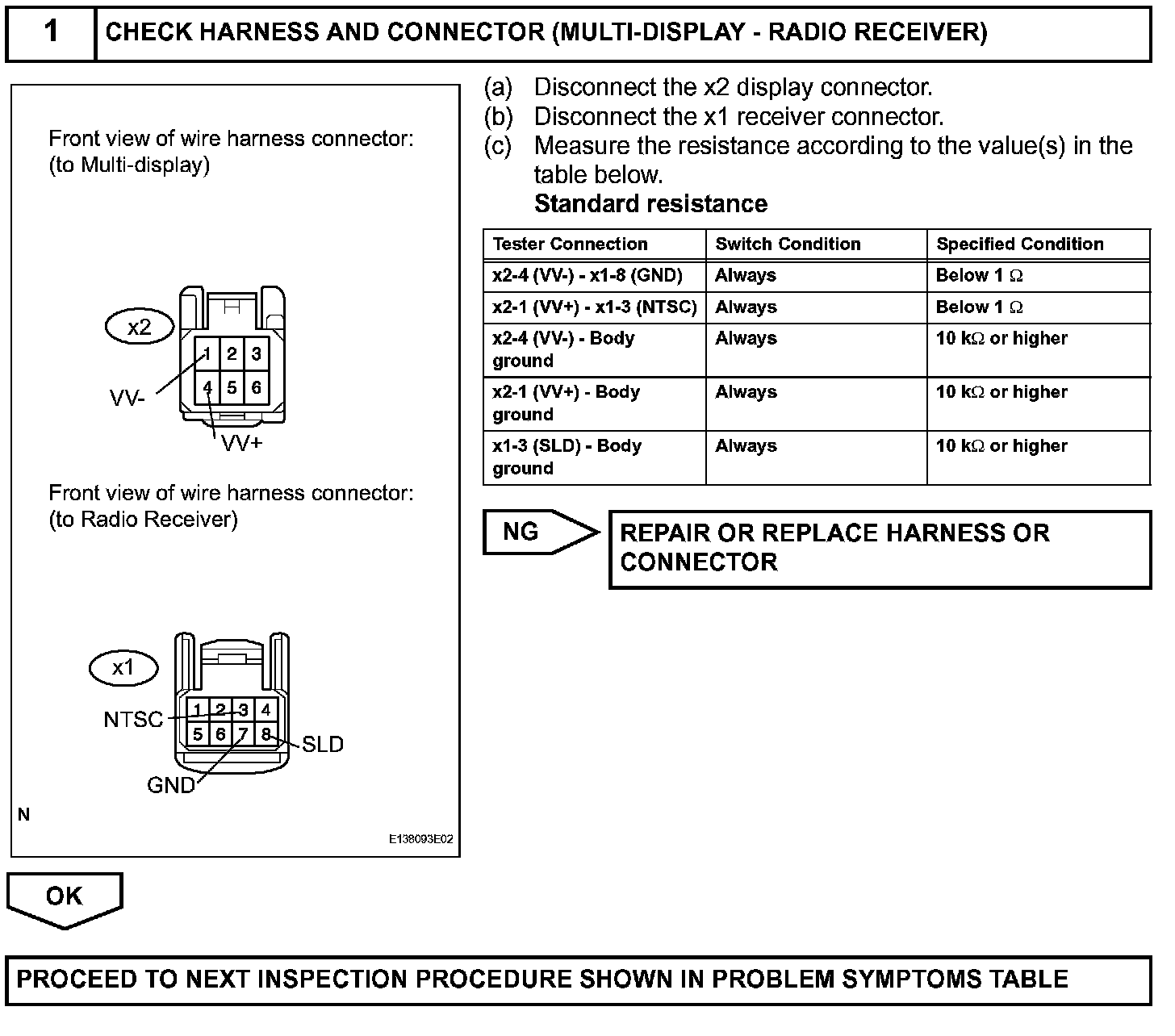

Step 1:
