Emergency Contact Button: Service and Repair
MAYDAY SWITCHREMOVAL
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

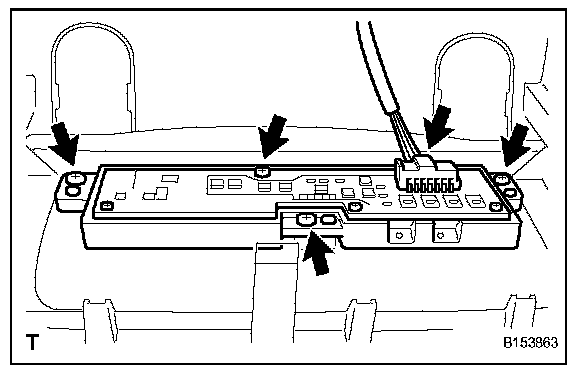

2. REMOVE MAYDAY SWITCH
a. Disconnect the connector.
b. Remove the 4 screws and switch.
INSTALLATION

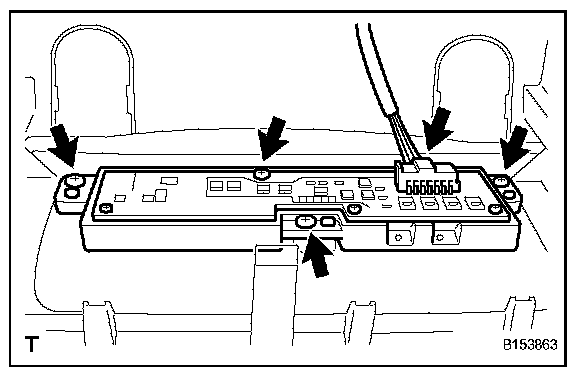

1. INSTALL MAYDAY SWITCH
a. Install the switch with the 4 screws.
b. Connect the connector.
2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
3. CHECK SRS WARNING LIGHT
a. Check the SRS warning light.
4. PERFORM INITIALIZATION
a. Perform initialization. Testing and Inspection
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
