Data List

READ DATA LIST

a. Connect the intelligent tester to the DLC3.
b. Turn the engine switch on (IG).
c. Operate the intelligent tester according to the display and select "Data List".

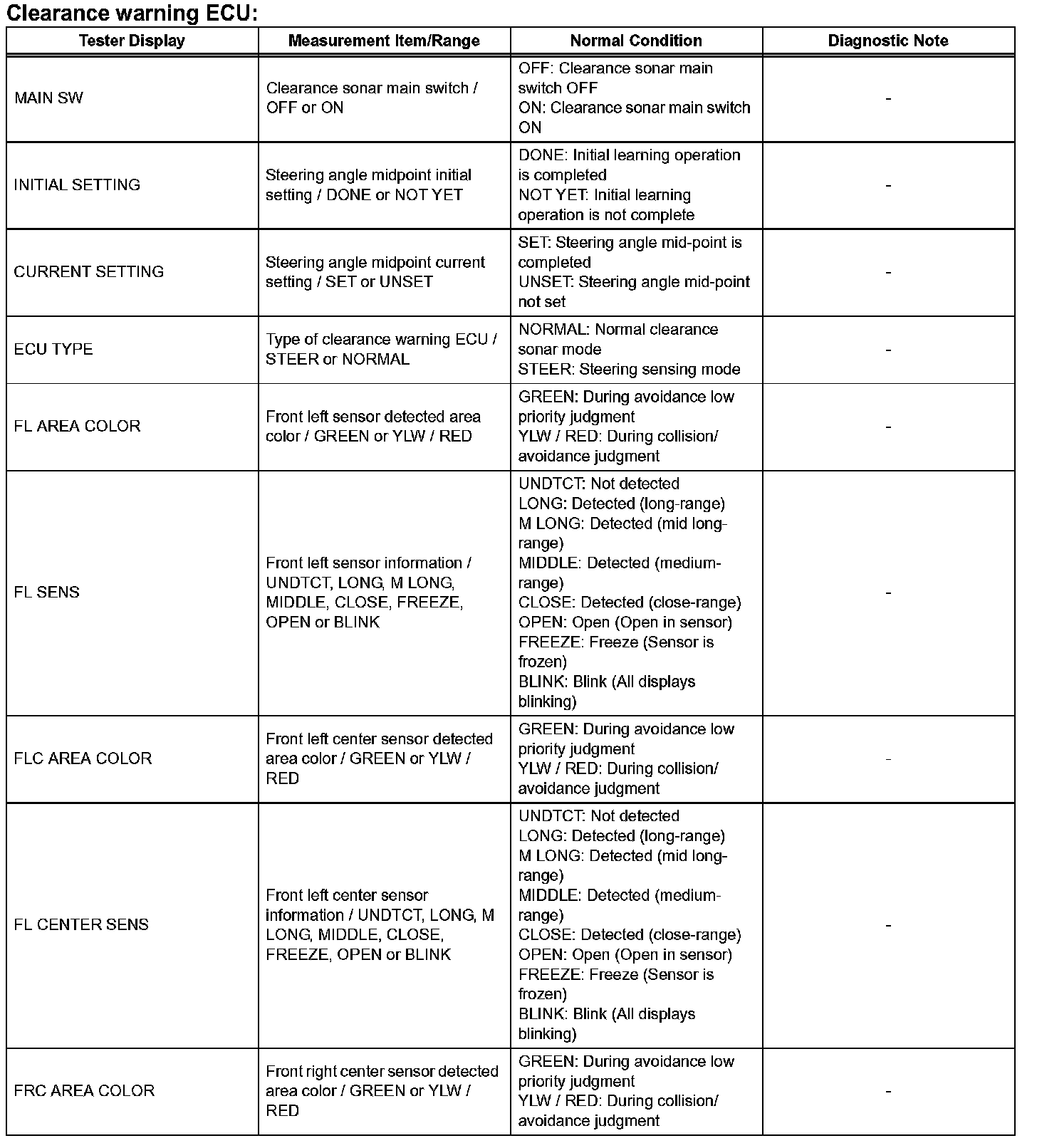

Part 1:

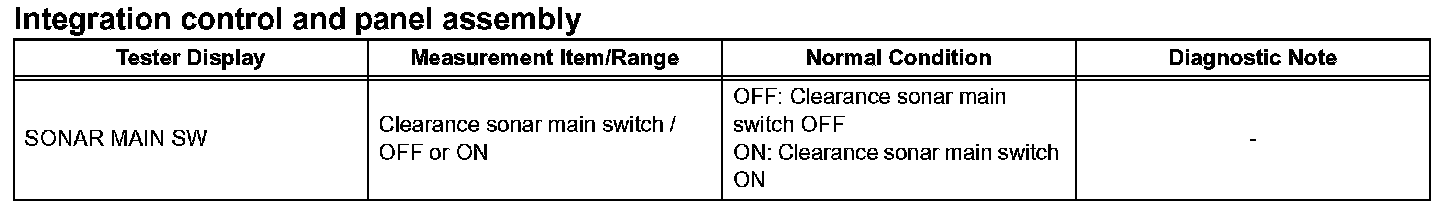

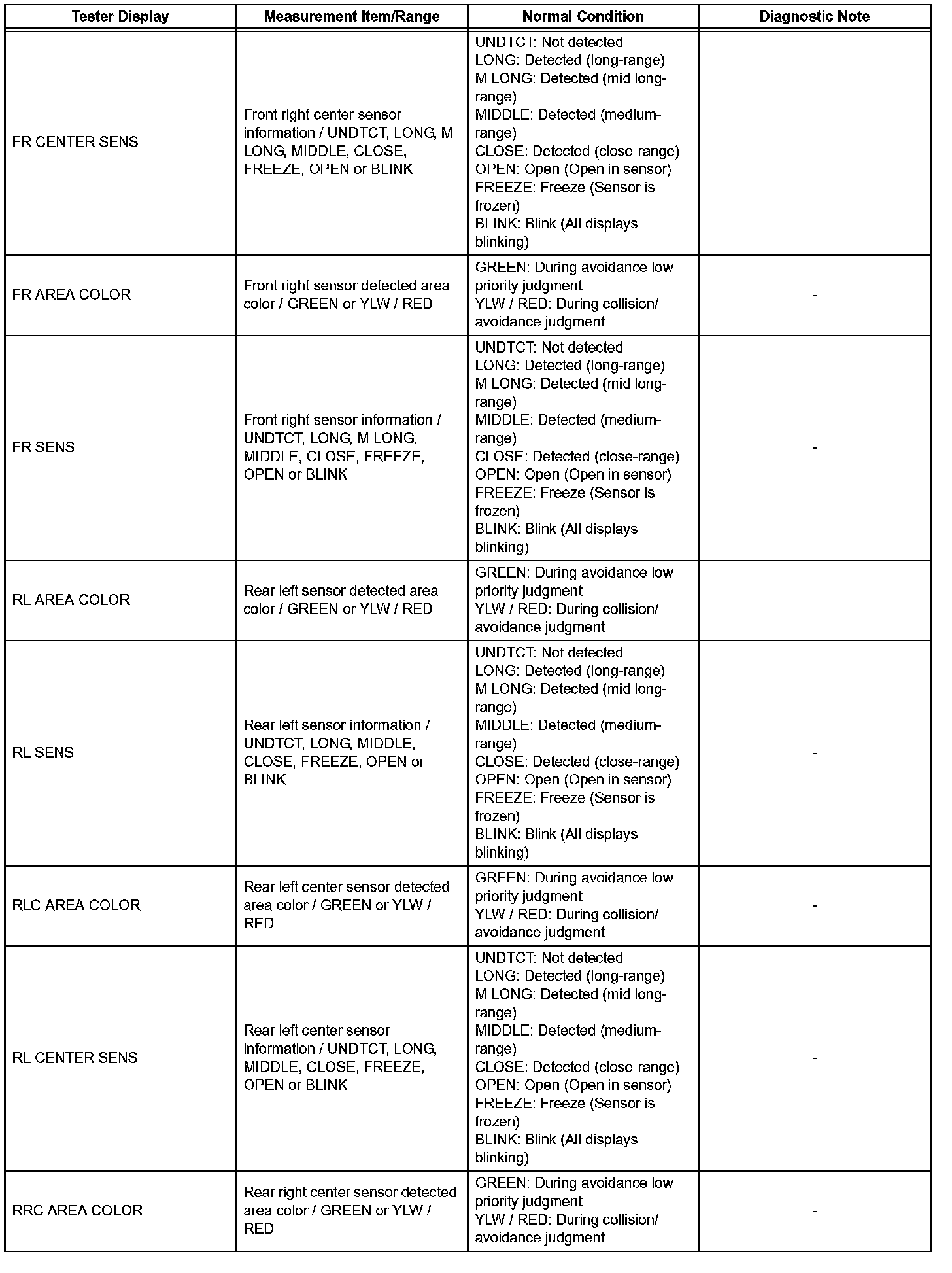

Part 2:




Part 3:
